Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF15

Worm Gearbox Replacement of Ondrives & Rino PF15

A worm gearbox is a type of gearbox that uses a worm gear to transmit power and motion between two perpendicular shafts. Our VRV030 worm gearbox is commonly used in industrial robotics, solar energy systems, military equipment, and other applications where precise and efficient power transmission is required. The VRV030 is a high-performance worm gearbox that is designed to replace the Ondrives & Rino PF15. It features a compact and robust design, with a large reduction ratio and high torque capacity. It also has a low backlash and a self-locking feature, which improves accuracy and reliability.

Advantages of Worm Gear Motors

High Efficiency

One of the main advantages of worm gearboxes is their high efficiency. The design of the worm gear allows for a large reduction ratio in a compact package, which means that a small input can produce a large output torque. This makes worm gearboxes ideal for applications where space is limited and high torque is required.

Low Backlash

Another advantage of worm gearboxes is their low backlash. Backlash is the amount of clearance between the teeth of two gears in mesh, and it can cause positioning errors and reduce precision. Worm gearboxes have a large contact area and a self-locking feature, which reduces backlash and improves accuracy.

Smooth Operation

Worm gearboxes also provide smooth and quiet operation. The constant contact between the worm gear and the worm wheel results in a smooth and steady motion, which reduces noise and vibration. This makes them ideal for applications where noise and vibration are a concern, such as in robotics and medical equipment.

Applications of Worm Gearboxes Replacement of Ondrives & Rino PF15

Industrial Robotics

Worm gearboxes are commonly used in industrial robotics due to their high torque and precision. They are used in the joints and actuators of robots to provide precise and smooth motion, which is essential for accurate positioning and control.

Solar Energy Systems

Worm gearboxes are also used in solar energy systems, where they are used to track the movement of the sun. The high torque and precision of worm gearboxes allow solar panels to be positioned accurately and efficiently, maximizing the amount of energy that can be harvested.

Military Equipment

Worm gearboxes are also used in military equipment, such as tanks and artillery systems. The high torque and low backlash of worm gearboxes make them ideal for heavy-duty applications, where reliability and precision are critical.

Features of VRV030 Worm Reducer

Our VRV030 Worm Reducer boasts a number of features, including a compact and easy-to-install body structure. The fully synthetic lubricating oil has a long service life and the integrated body has good sealing performance, eliminating the risk of oil leakage. The simple structure, high transmission efficiency, stable operation, good noise reduction effect, compact size, and strong corrosion resistance make it a reliable and efficient choice for a variety of applications.

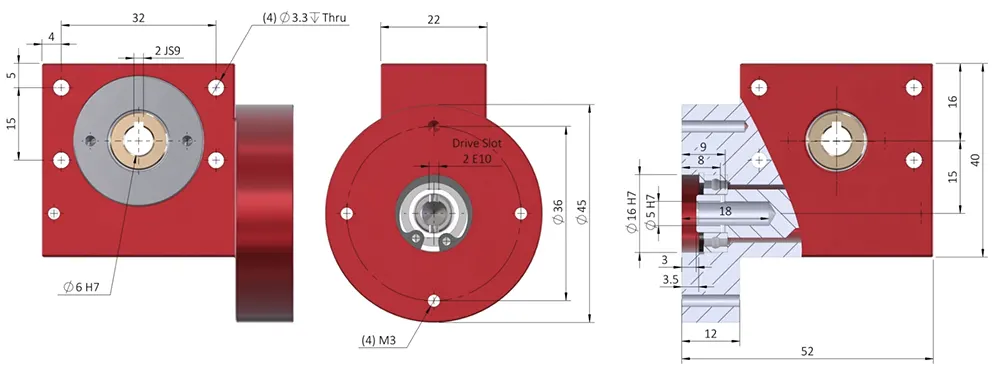

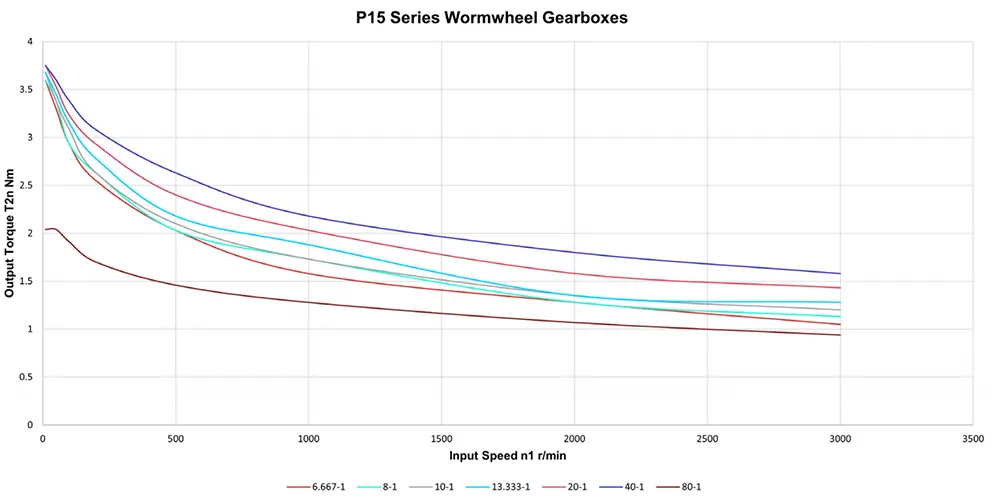

Technical Specifications of Worm Gearmotor Replacement of Ondrives & Rino PF15

The VRV030 offers several benefits over the Ondrives & Rino PF15. It has a higher torque capacity, a lower backlash, and a more compact design. It also provides smoother and quieter operation, which reduces noise and vibration. Additionally, it is more reliable and has a longer lifespan, which reduces maintenance and replacement costs.

Specification	Value
Weight	0.21 kg
Nom. Input Speed [S1 T₂n]n1nom	1,000 min-1 (r/min)
Max. Input Speed n1max	3,000 min-1 (r/min)
Lubrication	Grease Shell Gadus S5 V4P 2.5
Lubrication Temperature	Max. Operating ≈ 60℃
Max. Output Radial Load Fr2	80N
Max. Output Axial Load Fa2	30N



Electric Motors for Worm Gearboxes

Electric motors and worm gearboxes are often used together to create a highly efficient, low-noise power transmission system. At our company, we offer both worm gearboxes and high-quality electric motors to meet our customers' needs. Our electric motors are designed to work seamlessly with our worm gearboxes, ensuring optimal performance and efficiency.
