Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF30

Worm Gear Reducer Replacement of Ondrives & Rino PF30

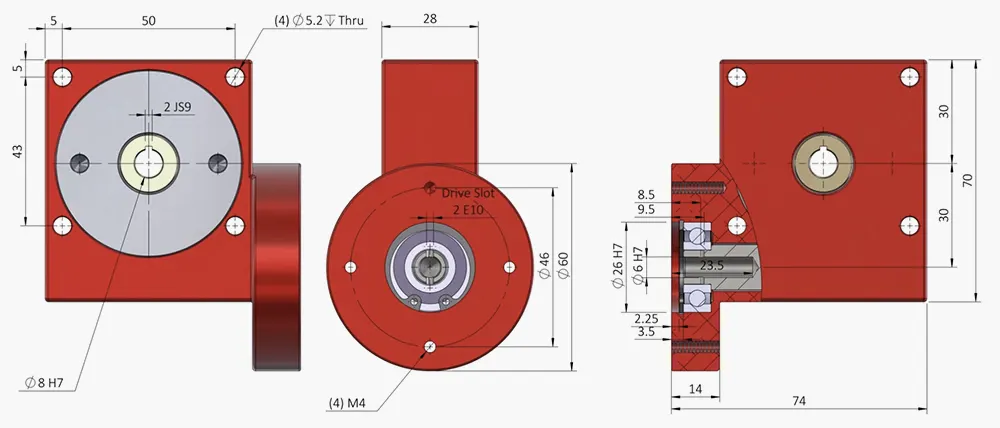

A worm gearbox is a type of gear arrangement where a worm (a screw-like gear) meshes with a worm wheel (a type of gear wheel). The worm rotates the worm wheel, producing a large reduction in speed and a high torque output. It is a compact and efficient way of transmitting power. Our VRV030 worm gearboxes are widely used in various industries, such as industrial robotics, solar energy, military industry and many more. The VRV030 is a replacement for the Ondrives & Rino PF30 worm gearbox. It is designed to have the same dimensions and mounting as the PF30, making it an easy drop-in replacement.

Advantages of Worm Gearbox

High Reduction Ratio

Worm gearboxes are capable of producing high reduction ratios with a single stage. This makes them ideal for high-torque applications where space is limited.

High Efficiency

Worm gearboxes have high efficiency due to the contact between the worm and worm wheel being almost completely tangential. This reduces the amount of sliding friction, resulting in less energy loss and a higher efficiency.

Self-Locking

Worm gearboxes have a self-locking feature, which means that the gearbox cannot be back-driven. This makes them ideal for applications where the load needs to be held in place without the need for a brake or locking mechanism.

Applications of Worm Gearbox Replacement of Ondrives & Rino PF30

Industrial Robotics

Worm gearboxes are commonly used in industrial robots for their high torque output and compact size. They are used in robot joints, grippers, and other actuation mechanisms.

Solar Energy

Worm gearboxes are used in solar trackers to adjust the position of solar panels to follow the sun's path. The high torque output of the worm gearbox enables the panel to be positioned accurately even in windy conditions.

Military Industry

Worm gearboxes are used in military vehicles and equipment for their self-locking feature. They are used in turret rotation mechanisms, gun elevators, and other critical applications that require high torque output and the ability to hold position without a brake or locking mechanism.

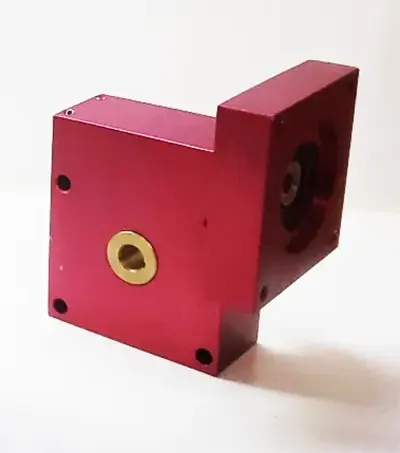

Features of VRV030 Worm Gear Motor

• The VRV030 Worm Reducer has a compact body structure, making it easy to install.
• The fully synthetic lubricating oil used in the VRV030 Worm Reducer has a long service life.
• The integrated body of the VRV030 Worm Reducer has good sealing performance, and there is no risk of oil leakage.
• The VRV030 Worm Reducer has a simple structure, high transmission efficiency, stable operation, good noise reduction effect, compact size, and strong corrosion resistance.

Technical Parameters of VRV030 Worm Reducer

Specification	Value
Weight	0.59 kg
Nom. Input Speed [S1 T₂n]n1nom	1,000 min-1 (r/min)
Max. Input Speed n1max	3,000 min-1 (r/min)
Lubrication	Grease Shell Gadus S5 V4P 2.5
Lubrication Temperature	Max. Operating ≈ 60℃
Max. Output Radial Load Fr2	200N
Max. Output Axial Load Fa2	120N

Electric Motors for Worm Gearboxes

Electric motors and worm gearboxes are a perfect match. Worm gearboxes are used to decrease speed and increase torque, and electric motors provide the power to drive the worm gearboxes.Our company not only provides worm gearboxes but also offers high-quality electric motors. We have a range of electric motors available to meet different needs. Whether you need a low-power or high-power motor, we've got you covered.
