Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF45

Maximize performance with Raydafon Guoup's Worm Gearbox, ideal for industrial robotics, solar energy, and military applications. This robust gearbox offers a seamless VRV030 replacement for Ondrives and Rino PF45, delivering unmatched durability and precision. Perfect for professionals seeking reliability and efficiency, it solves complex motion control challenges, elevating your equipment's capabilities. Choose Raydafon Guoup for a superior solution that stands out in demanding environments.

Send Inquiry

Product Description

Worm Gear Reducer Replacement of Ondrives & Rino PF45

Worm gearboxes have been an essential component in various industries due to their high efficiency and accuracy in transmitting power. VRV030 worm gearbox is an excellent replacement for Ondrives & Rino PF45 worm gearbox due to its improved features and capabilities. The VRV030 worm gearbox has a higher torque capacity, smoother operation, and better wear resistance, making it an ideal component in various industrial applications. Please note that our products are replacement parts only and not original equipment. If you require original equipment, please contact the manufacturer. Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF45

Worm Reducer Replacement of Ondrives & Rino PF45 Applications

Worm Gearbox in Industrial Robotics

Industrial robots have become a vital aspect of the manufacturing industry. Worm gearboxes are used in industrial robots to provide precise and accurate movements. With its high torque and low speed, the worm gearbox can drive the robot with minimal noise and vibration, making it an ideal component in robotic systems.

Benefits of Worm Gearbox in Industrial Robotics

Precision and accuracy in movement
Low noise and vibration
High torque and low speed
Reduced wear and tear

Worm Gearbox in Solar Energy

The use of solar energy has increased significantly in recent years due to its environmental benefits and cost-effectiveness. Worm gearboxes are used in solar energy systems to track the movement of the sun and adjust the position of the solar panels accordingly. This ensures maximum exposure of the solar panels to the sun, resulting in optimal energy production.

Benefits of Worm Gearbox in Solar Energy

Precise tracking of the sun's movement
Optimal positioning of solar panels
Efficient energy production
Cost-effective

Worm Gearbox in Military Industry

The military industry requires high precision and accuracy in their equipment and machinery. Worm gearboxes are used in military vehicles, aircraft, and weapons systems due to their ability to deliver high torque and low speed. This makes the worm gearbox an essential component in military applications where precision and accuracy are critical.

Benefits of Worm Gearbox in the Military Industry

High torque and low speed
Precision and accuracy in machinery
Reduced wear and tear
Reliable and durable

Benefits of VRV030 Replacement of Ondrives & Rino PF45

Higher torque capacity
Smoother operation
Better wear resistance
Improved efficiency

Our Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF45 is a high-quality replacement part that guarantees the same reliable performance as the original.

VRV030 Worm Reducer Features

Our VRV030 Worm Reducer is a top-of-the-line product that offers superior performance and durability. Its key features include:

Compact and easy to install body structure
Fully synthetic lubricating oil with long service life
Integrated body with good sealing performance and no risk of oil leakage
Simple structure with high transmission efficiency and stable operation
Good noise reduction effect, compact size, and strong corrosion resistance

VRV030 Worm Gear Motor Technical Parameters

Specification	Value
Weight	2.1 kg
Nom. Input Speed [S1 T₂n]n1nom	1,000 min^-1(r/min)
Max. Input Speed n1max	3,000 min^-1 (r/min)
Lubrication	Grease Shell Gadus S5 V4P 2.5
Lubrication Temperature	Max. Operating ≈ 60℃
Max. Output Radial Load Fr2	450N
Max. Output Axial Load Fa2	300N

OutputBacklash j	OutputBacklash jA	OutputBacklash jAR	Gear Ratio i	Efficiency ηz	LeadDirection	ReflectedInertia atInput
≤0.50°	≤0.13°	≤0.066°		n1nom		kg-·m²
PF45-10	PF45-10A	PF45-10AR	10:1	90%	Right Hand	7.34x10-6
PF45-12	PF45-12A	PF45-12AR	12:1	89%	Right Hand	6.84x10-6
PF45-15	PF45-15A	PF45-15AR	15:1	86%	Right Hand	6.43x10-6
PF45-20	PF45-20A	PF45-20AR	201	85%	Right Hand	6.09x10-6
PF45-30	PF45-30A	PF45-30AR	30:1	78%	Right Hand	5.86x10-6
PF45-60	PF45-60A	PF45-60AR	60:1	67%	Right Hand	5.70x10-6
PF45-120	PF45-120A	PF45-120AR	120:1	47%	Right Hand	5.66x10-6

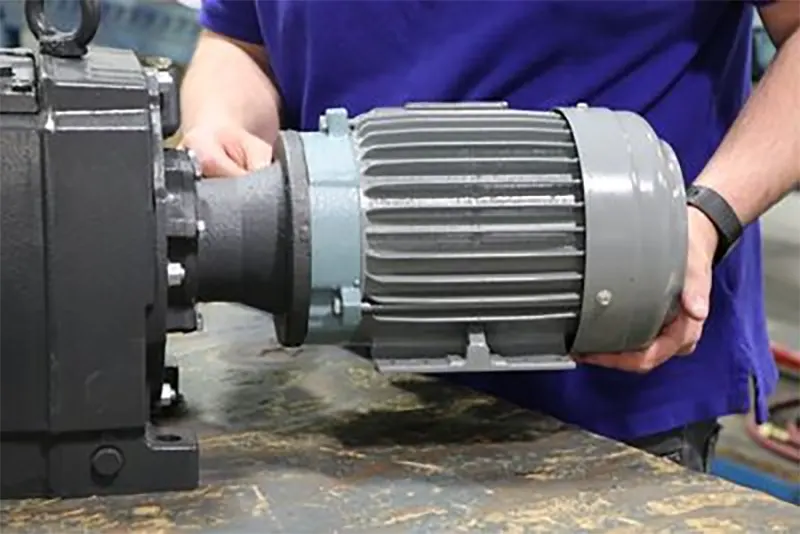

Electric Motors for Worm Gearboxes

Our VRV030 Worm Reducer is designed to work seamlessly with our high-quality electric motors. These motors are specifically engineered to ensure optimal performance and efficiency when used with our worm gearboxes.

About Raydafon

Raydafon is a leading manufacturer of speed reducers with over two decades of experience in the industry. We utilize cutting-edge technologies from both domestic and international sources for our production and testing equipment. Our skilled technical experts use innovative R&D and manufacturing processes, and we adhere to standardized production management methods to ensure stringent control over every stage of reducer production.We are dedicated to consistently delivering high-quality, energy-efficient, and highly stable transmission products to our customers. Our product line includes the MRV series worm gear reducer, GV series gear reducer, RT series solar reducer, XV series planetary reducer, BD series harmonic reducer, and various types of non-standard reducer. Our products are widely used in equipment Industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry and so on.
