Worm Gearbox-Replacement of Chenta HMS Aluminum Worm Gear Reducer(Solid Input Shaft)

Our company offers a brand replacement of the Chenta HMS Aluminum Worm Gear Reducer (Solid Input Shaft). Our products are of high quality and reasonably priced. We emphasize that our products are all replacement parts, not original factory parts. If you need to purchase original factory parts, please contact the original supplier for purchase.

Structure of Worm Gearbox

The worm gearbox is made up of several components:

• Worm Shaft - transmits motion to the worm gear
• Worm Gear - meshes with the worm shaft to transmit motion
• Housing - encloses all components of the gearbox
• Bearing - supports the worm shaft and worm gear
• Oil Seal - prevents lubricant from leaking out of the gearbox
• Output Flange - connects the gearbox to the driven machine
• Input Flange - connects the gearbox to the motor

Here is an image of the structure:

Features of Worm Gearbox

• High precision
• Increased surface area for better heat dissipation and durability
• Lightweight and compact design
• Low maintenance cost
• Option for oil change
• Can be driven in reverse
• Hollow output shaft for increased strength
• Input shaft made of carburized chrome molybdenum alloy steel for increased strength
• Wide range of accessories for wider range of applications
• Minimal vibration and noise during power transmission
• Models 30-90 are made of aluminum alloy casting and 110-150 are made of cast iron casting
• Universal size design for greater compatibility
• Widely applicable and can be used in general installation positions
• Powder-coated castings won't rust

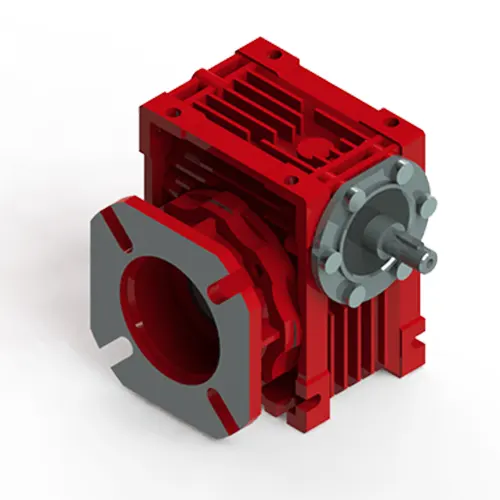

Here is an image of the worm gearbox:

Chenta Aluminum Housing Worm Gear Reducer Replacement

Our products have several advantages over the Chenta HMS Aluminum Worm Gear Reducer (Solid Input Shaft) that we replace:

• Higher quality
• More affordable price
• Greater availability of replacement parts
• Customizable to fit specific needs
• Wide range of accessories for wider range of applications

We emphasize that our products are all replacement parts, not original factory parts. If you need to purchase original factory parts, please contact the original supplier for purchase.Here is an image of our worm gearbox:If you have any specific customization needs, please feel free to contact us for more information.

Common Abnormalities and Solutions of Worm Gearbox

Abnormality	Solution
Overheating	Check oil level, ensure proper ventilation, and reduce load if necessary
Noisy operation	Check for worn gears, worn bearings, or lack of lubrication, and replace parts as needed
Leaking oil	Check for damaged seals or gaskets, and replace as needed
Locked shafts	Check for proper alignment between input shaft and output shaft
Excessive vibration	Check for worn gears or bearings, and replace parts as needed
Loss of power transmission	Check for worn gears, bearings or shafts, and replace parts as needed
Unusual noise from motor	Check for worn motor bearings, loose motor mounts, or improper motor alignment, and replace parts as needed
Excessive wear on gears	Check for proper lubrication, and replace as needed
Excessive backlash	Check for worn gears or bearings, and adjust as needed
Unusual noise from gearbox	Check for worn gears or bearings, and replace parts as needed

Here is an image of a worm gearbox:

Installation of Worm Gearbox

1. When connecting the input shaft directly to the motor, a flexible coupling is preferred; a gear coupling is preferred for connecting the output shaft to the driven machine.
2. Install on a stable base with good ventilation; consider accessibility for oil filling/draining.
3. The input shaft of the gearbox and the motor shaft should be aligned within the tolerance range.
4. After installation, manually rotate the input shaft to check for any locking.
5. Perform a no-load running test before normal operation; any abnormalities should be corrected before normal operation.

Lubrication and Maintenance of Worm Gearbox

• To extend the life of the gearbox, the first oil change should be performed after 500 hours of operation; oil changes should be performed every 2500 hours of operation thereafter. Regardless, it is recommended to check oil level and condition regularly before the next oil change.
• Only use compatible oil specifications and do not mix oils of different specifications.
• Before adding new oil, flush and drain the gearbox.
• If the temperature rises above 80 degrees Celsius or unusual noise occurs, stop the gearbox immediately for inspection. Restart only after the problem is identified and cleared.

Here is an image of the worm gearbox:

Motors for Worm Gear Reducers

Worm gearboxes and electric motors are complementary to each other. A worm gearbox is designed to reduce the speed of a motor, while an electric motor provides the power to turn the gearbox. Together, they form a powerful combination that can drive a wide range of machines and equipment. Our company also offers various types of electric motors for sale. We strive to provide the highest quality products and services at competitive prices to meet the needs of our customers.Here is an image of electric motors:Explore our products and contact us for any inquiries or purchases.

About Raydafon

We are a comprehensive transmission equipment manufacturer that integrates research and development, manufacturing, and sales of speed reducers. With over 20 years of experience in design, production, manufacture, and sales of gearboxes, we serve customers in Europe, America, Africa, Asia, and other regions, and have won the praise of the market. Our consistent mission and vision over the years, advanced production equipment and testing equipment, industry professionals and technicians, and innovative research and development have made us a leading company in the industry. Our standardized production management methods strictly control every aspect of the production of reducers, providing customers with high-quality, high-energy-efficiency, and high-stability production. Our gearboxes are widely used in various industries, including the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more. We welcome and earn the trust of our customers.Here is an image of our worm gearbox factory:

Q&A

Q: What is the maximum load capacity of the worm gearbox?

A: The maximum load capacity of the worm gearbox depends on various factors such as the size, speed, and duty cycle of the gearbox. Please refer to the product specifications or contact us for more information about the load capacity of our worm gearboxes.

Q: Can the worm gearbox be used in harsh environments?

A: Yes, our worm gearboxes are designed for use in harsh environments. They are made of high-quality materials and feature a powder-coated casting that resists rusting. Additionally, they have greater surface area for better heat dissipation and durability, and can withstand extreme temperatures and conditions.

Q: How long does the worm gearbox last?

A: The lifespan of the worm gearbox depends on various factors such as the load, speed, duty cycle, and maintenance of the gearbox. With proper maintenance and care, our worm gearboxes can last for many years and provide reliable performance.
