Worm Gearbox-Replacement of Chenta USM Worm Gear Reducer (Universal Mounting)

Product Introduction

Our company provides the brand replacement of the Worm Gearbox, also known as Worm Gearmoto, Worm Speed Reducer, or Worm Drive. Our products are high-quality replacements for Chenta USM Worm Gear Reducer (Universal Mounting) at a competitive price. It is important to note that our products are replacement parts and not original equipment from the manufacturer. If you require original equipment, please contact the original supplier for purchasing.

Product Structure

The Worm Gearbox consists of several components, each with its own function:

• Worm Shaft: Transfers rotational motion
• Worm Wheel: Receives motion from the worm shaft and converts it into linear motion
• Housing: Encloses the worm shaft and worm wheel for protection
• Bearings: Supports the rotating shafts and reduces friction
• Seals: Prevents lubricant leakage and protects against contaminants

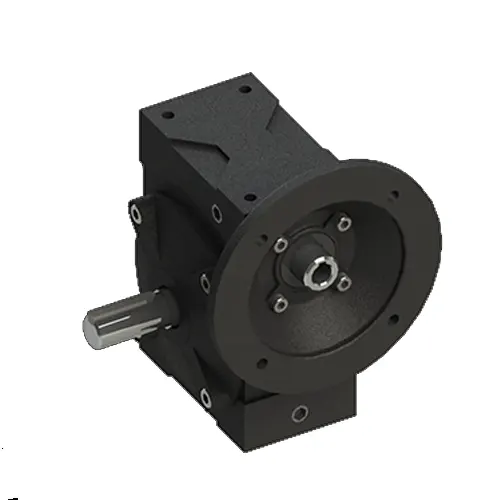

Below is an image of the Worm Gearbox:

Product Features

• Suitable for IEC and NEMA motors
• Ratio range from 1/5 to 1/3600
• Horsepower range from 1/4HP to 100HP
• Equipped with high-quality double lip oil seals
• Worm Shaft made of medium carbon steel, hardened and thread ground
• Worm Wheel made of chrome-molybdenum alloy steel, heat-treated and thread ground, suitable for various housing sizes
• Durable aluminum bronze sand casting
• Sturdy housing made of gray cast iron and ductile iron, suitable for various housing sizes
• Removable base for universal mounting of the gearbox

Below is an image of the Worm Gearbox in action:

Applications

The Worm Gearbox has a wide range of applications:

• Conveyors
• Agricultural machinery
• Food processing equipment
• Packaging machinery
• Material handling equipment

Below is an image showcasing the application of the Worm Gearbox:

Chenta Worm Gear Reducer Replacement

Our company specializes in providing replacements for Chenta Worm Gear Reducer. Here are some advantages of choosing our replacement products:

• High-quality replacements at a competitive price
• Reliable performance and durability
• Easy installation and compatibility with existing systems
• Backed by our company's reputation for excellence

It is important to reiterate that our products are replacements for Chenta Worm Gear Reducer, not original equipment. If you require original equipment, please contact the original supplier. We welcome custom orders based on your specific requirements. Here is an image of our replacement Worm Gearbox:

Installation

Follow these steps for the installation of the Worm Gearbox:

1. Connect the input shaft to the motor using a flexible coupling.
2. Connect the output shaft to the machine, preferably using a gear coupling.
3. Install the gearbox on a stable foundation, ensuring proper ventilation and easy access for lubrication and oil drainage.
4. Align the input shaft of the gearbox with the motor shaft, ensuring proper tolerances.
5. After installation, manually check the smooth operation of the input shaft and ensure the nut is properly secured.
6. Before starting the motor, perform a no-load test run and address any abnormalities immediately.

Lubrication and Maintenance

Proper lubrication and maintenance are essential for the longevity of the Worm Gearbox:

1. Replace the gearbox with a new one after 300 hours of operation, and subsequently every 2500 hours. Regularly check and change the lubricating oil as required.
2. Use oil of the same specifications, avoiding mixing with oils from other brands.
3. Before replacing the oil, flush and drain the gearbox to ensure cleanliness.
4. If the temperature exceeds 80??C or any abnormal noise is detected during operation, immediately shut down the gearbox for inspection and only resume operation after addressing the cause.
5. Regular maintenance is necessary, and any worn parts should be replaced with precision-matched components. Prior to installation, conduct a no-load test run.

Here is an image illustrating the lubrication and maintenance of the Worm Gearbox:

Motors for Worm Gear Reducers

The Worm Gearbox and electric motors complement each other, forming an integral system for various applications. Our company also offers a wide range of electric motors for sale. The combination of reliable motors and our high-quality Worm Gearboxes ensures optimal performance and efficiency. Here is an image showcasing the electric motors we offer:

About Raydafon

We are a comprehensive transmission equipment manufacturer with over 20 years of experience in designing, manufacturing, and selling gearboxes. Our company serves customers worldwide and has gained a reputation for providing high-quality products, competitive prices, and excellent customer service. We take pride in our production capabilities and have invested in advanced equipment and skilled professionals to ensure the highest standards of quality. Our gearboxes are widely used in various industries, including equipment, food, car washing, packaging, transmission, automation, and solar energy. We encourage customers to explore our products and contact us for any inquiries or purchases. Here is an image showcasing our Worm Gearbox factory:

Q&A

Q: Can the Worm Gearbox be used with different motor types?

A: Yes, the Worm Gearbox is compatible with both IEC and NEMA motors, providing flexibility for various applications.

Q: What is the horsepower range of the Worm Gearbox?

A: The Worm Gearbox has a horsepower range from 1/4HP to 100HP, catering to a wide range of power requirements.

Q: How often should the lubricating oil be changed?

A: It is recommended to replace the lubricating oil with a new one after 300 hours of operation, and subsequently every 2500 hours. Regular oil checks and changes are necessary for optimal performance.
