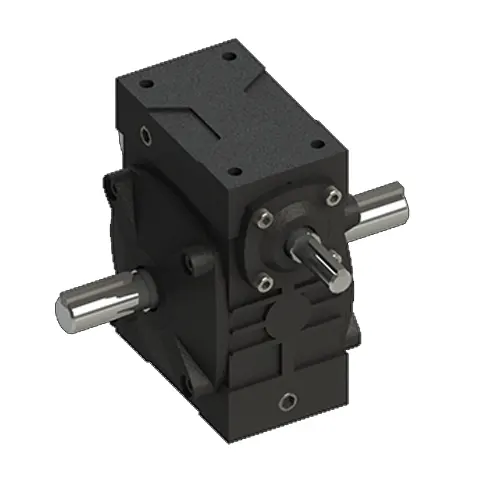

Worm Gearbox-Replacement of Chenta USS Worm Gear Reducer (Universal Mounting)

Product Description

Our company provides a replacement worm gear reducer for the Chenta USS Worm Gear Reducer (Universal Mounting). Our product is of high quality and offered at an affordable price. Please note that our product is a replacement part and not an original equipment manufacturer (OEM) part. If you need to purchase an OEM part, please contact the original supplier.

Structure of Worm Gearbox

1. • Worm gear

The worm gear is the main component of the gearbox and is responsible for transmitting power to the output shaft.

1. • Worm wheel

The worm wheel is the gear that meshes with the worm gear and is responsible for transmitting the power to the output shaft.

1. • Housing

The housing encloses the worm gear and worm wheel and provides protection for the gearbox.

Features of Worm Gearbox

• • Compatible with IEC and NEMA motors
  • Ratio range from 1/5 to 1/3600
  • Horsepower range from 1/4HP to 100HP
  • High-quality double-lip oil seal
  • Medium-carbon steel worm gear, hardened and ground
  • Chromium-molybdenum alloy steel worm gear, heat-treated and ground, suitable for housing sizes 300 and above
  • Durable aluminum-bronze worm wheel
  • Durable housing made of gray cast iron and nodular cast iron, suitable for housing sizes 300 and above
  • Removable base for universal mounting of the gearbox

Application of Worm Gearbox

• • Conveyors

Worm gearboxes are commonly used in conveyor systems to reduce the speed of the motor and increase torque to the output shaft.

• • Lifts and elevators

Worm gearboxes are also used in lift and elevator systems for their ability to hold position when the motor is not running.

• • Packaging equipment

Worm gearboxes are used in packaging equipment for their high torque and low speed capabilities.

Chenta Worm Gear Reducer Replacement

• • High-quality replacement part for Chenta USS Worm Gear Reducer (Universal Mounting)
  • Competitive price
  • Widely used in various industries
  • Compatible with IEC and NEMA motors
  • Available in a wide range of ratios and horsepower options
  • Durable and reliable

Please note that our product is a replacement part and not an original equipment manufacturer (OEM) part. If you need to purchase an OEM part, please contact the original supplier.

Customization

We welcome customers to provide us with their specifications for customization. Our product can be tailored to meet your specific needs and requirements. Please contact us for more information.

Installation of Worm Gearbox

1. 1. Connect input shaft with motor using a flexible coupling
   2. Connect output shaft with machine using a gear coupling
   3. Install on a stable foundation with good ventilation and easy access for oil changes
   4. Align input shaft with motor shaft with appropriate tolerances
   5. Check input shaft for smooth rotation before startup
   6. Perform a no-load test run before operation

Please note that improper installation can cause damage to the gearbox and void the warranty. Please refer to the installation manual for more detailed instructions.

Lubrication and Maintenance of Worm Gearbox

1. 1. Replace gearbox after 300 hours of operation, and every 2500 hours thereafter. Check oil regularly and change as necessary.
   2. Use oil of the same specification for replacement. Do not mix with oil of other brands.
   3. Flush gearbox before oil change and refill with new oil
   4. If temperature exceeds 80?? or abnormal noise is detected during operation, shut down the gearbox and inspect for problems
   5. Check for wear and replace parts with the same specifications as the original parts

Please note that proper lubrication and maintenance are essential for the longevity and smooth operation of the gearbox. Please refer to the maintenance manual for more detailed instructions.

Motors for Worm Gear Reducers

Worm gearboxes and electric motors are complementary devices in any power transmission system. The worm gearbox reduces the speed of the electric motor and increases the torque output to the machine, while the electric motor provides the power needed to drive the gearbox. Our company also provides a wide range of electric motors for sale to meet your specific needs and requirements.

About Raydafon

We are a comprehensive transmission equipment manufacturer with over 20 years of experience in the design, production, manufacture, and sales of speed reducers. Our products are widely used in various industries, including the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry. We have won the praise of customers around the world for our high-quality products, competitive prices, and excellent customer service. Our company is committed to providing customers with the highest level of satisfaction and quality.Please explore our products and contact us for more information or to place an order.

Q&A

Q: What is the maximum horsepower rating for the worm gearbox?

A: The maximum horsepower rating for the worm gearbox is 100HP.

Q: Can the worm gearbox be used with motors other than IEC and NEMA?

A: No, the worm gearbox is only compatible with IEC and NEMA motors.

Q: Is the worm gearbox a replacement part or an OEM part?

A: The worm gearbox is a replacement part and not an OEM part.
