Worm Reducer-Replacement of Elecon Cooling Tower Fan Drive Gear Unit CTU Type 200CTU

200CTU Cooling Tower Worm Gear Unit

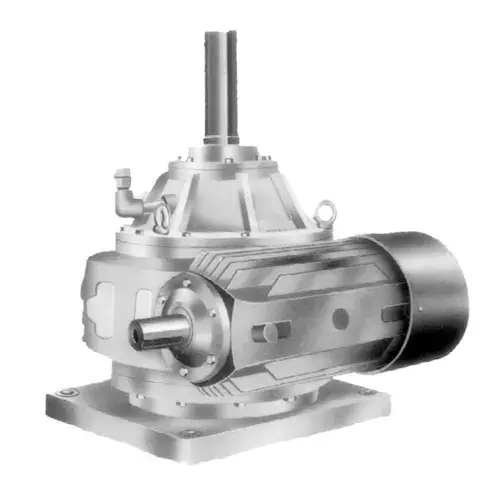

The 200CTU Cooling Tower Worm Gear Unit is a replacement product of the Elecon Cooling Tower Fan Drive Gear Unit CTU Type. It features an extended top casing that can accommodate larger wheel shaft bearings, allowing for a compact transmission. These gears are used in cooling tower fans and similar applications. The length of the output shaft extension can be customized to fit the fan hub installation requirements. Lubrication is achieved through splash in the oil sump and oil immersion in the lower bearing, while oil is pumped to the upper wheel axle bearing through the built-in plunger mechanism. All exposed parts, except for the extended rod, are coated with anti-corrosion paint. Our company offers Elecon brand replacement worm reducers, which are of high quality and offered at competitive prices. It is important to note that our products are replacement parts, not original equipment manufacturer components. For original equipment parts, please contact the original supplier for purchase. Please refer to the image below for visual reference:

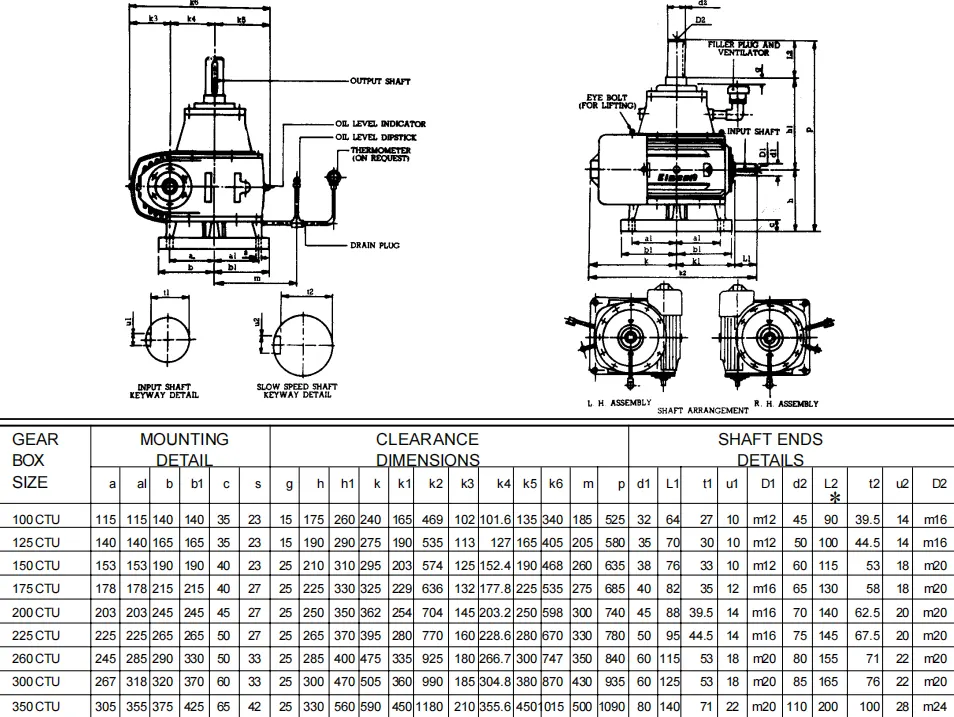

Size and Dimensions

The 200CTU Cooling Tower Worm Gear Unit has the following dimensions:

Features of the Cooling Tower Worm Gear Unit

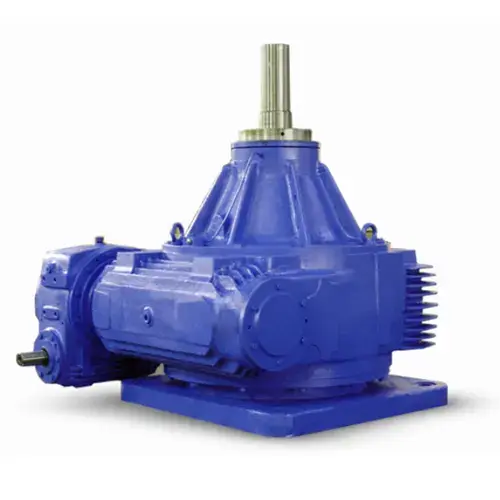

The Cooling Tower Worm Gear Unit series is characterized by its extended top bearing housing, which can accommodate larger wheel shaft bearings. This device consists of a typical extended top bearing housing that allows for high capacity bearings without sacrificing compactness of the transmission unit. The lubrication system is self-contained, with gears and lower bearings immersed in oil in the oil sump, while lubricating oil is pumped to the upper wheel axle bearing through the built-in plunger device. The gearboxes come with commonly used accessories, such as oil plugs, vents, and drain plugs, which can be connected together to simplify maintenance and improve convenience. Please see the image below for reference:

Applications of the 200CTU Cooling Tower Worm Gear Unit

The 200CTU Cooling Tower Worm Gear Unit is suitable for a wide range of applications, including but not limited to:

• Industrial Cooling Towers
• Chemical Processing Equipment
• Power Plants
• Water Treatment Plants

Please refer to the image below for visual reference:

Choosing the Right Cooling Tower Worm Gear Unit

When selecting the appropriate cooling tower worm gear unit, consider the following factors:

• Type of the Prime Mover
• Rated Power
• Speed
• Required Gear Ratio
• Type of Driven Equipment
• Required Actual Power
• Design Speed R.P.M.
• Peak and Impact Loads (provide the magnitude and duration, if possible)
• Type of Drive: Prime Mover and Reducer; Reducer and Driven Machine
• Number of Hours of Operation per Day
• Environmental Conditions, i.e., Temperature and Humidity
• Arrangement for Moving the Gear Unit
• Need for High-Speed/Low-Speed Coupling
• Details of the Motor Driving the Machine Shaft
• Need for Base Plate? If yes, provide the dimensions of the prime mover
• Detailed Description of the Fan's Weight, Diameter, and Axial Thrust
• Provide a Sketch of the Available Space

Please refer to the image below for visual reference:

Elecon Worm Gear Unit Replacement

Our company provides several advantages when it comes to replacing Elecon brand worm gear units:

• High-Quality Replacement: Our worm gear units are of superior quality, ensuring reliable and efficient performance.
• Competitive Pricing: We offer competitive prices for our replacement worm gear units, providing cost savings to our customers.
• Replacement Parts: It is important to note that our products are replacement parts, not original equipment manufacturer components. If you require original equipment parts, please contact the original supplier.
• Customization: We welcome custom orders and can tailor our worm gear units to meet specific requirements based on customer-provided drawings or samples.
• Wide Range of Applications: Our replacement worm gear units are suitable for various applications, including but not limited to industrial cooling towers, chemical processing equipment, power plants, and water treatment plants. Please see the image below for visual reference:

Motors for Worm Reducers

Worm reducers and electric motors are closely related and mutually important. Our company also offers a wide range of electric motors for sale. Electric motors provide the necessary power to drive worm reducers, enabling efficient transmission in various applications. The combination of a reliable worm reducer and a high-performance electric motor is essential for achieving optimal performance. Please refer to the image below for visual reference:

About Raydafon and Our Products

We are a comprehensive transmission equipment manufacturer specializing in the research, development, manufacturing, and sales of speed reducers. With over 20 years of experience, we have served customers in Europe, America, Africa, Asia, and other regions. Our company is known for providing top-quality products, excellent service, and competitive prices. We take pride in our production capabilities and have invested in advanced production and testing equipment. Our team of industry professionals and technicians ensures innovative research, development, and manufacturing. We adhere to standardized production management methods to guarantee the highest quality of our reducers. Our gearboxes are widely used in various industries, including equipment, food, car washing, packaging, transmission, automation, and solar energy. We welcome customers to explore our products and contact us for purchases. Please see the image below for reference:

Q&A

Q: Are the replacement worm gear units compatible with Elecon Cooling Tower Fan Drive Gear Unit CTU Type?

A: Yes, our replacement worm gear units are designed to be compatible with Elecon Cooling Tower Fan Drive Gear Unit CTU Type. They are manufactured to the same specifications and provide equivalent performance.

Q: Can I customize the size and dimensions of the worm gear units?

A: Yes, we offer customization options for the size and dimensions of our worm gear units. Please provide us with your specific requirements, and we will work with you to meet your needs.

Q: Do you offer warranty for your replacement worm gear units?

A: Yes, we offer a warranty for our replacement worm gear units. Please contact our sales team for more information on the warranty terms and conditions.
