The SNU-UD 4/80 Worm Gear Unit is a series of double reduction worm gearboxes that can replace Elecon Double Reduction Worm Gear Unit SNU-UD 4/80. The transmission ratio of this series of double reduction worm gearboxes ranges from 75:1 to 4900:1, which can meet the requirements of slow-speed machinery. It can be used in underdrive, overdrive, and vertical mounting conditions.
Our company provides Elecon brand replacement worm reducers that are of good quality and at a reasonable price. It should be noted that our products are replacement parts, not original parts. If you need to buy original parts, please contact the original supplier for purchase.

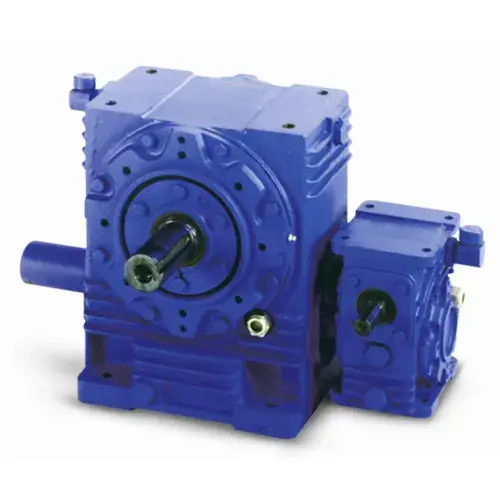

The SNU-UD 4/80 Worm Gear Unit is composed of two single reduction worm gearboxes. The main worm unit is specially designed to be installed on the standard single worm unit that constitutes the second stage. The entire gear device is compact and sturdy, suitable for slow-motion machinery. The transmission ratio range is very wide, from 75:1 to 4900:1. These gear devices are particularly suitable for high torque, low-speed drive. The worm gear transmission complies with BS-721 standards.
The features of the SNU-UD 4/80 Worm Gear Unit are as follows:
The SNU-UD 4/80 Worm Gear Unit is suitable for a wide range of applications, including:
When installing and maintaining the device, the following points should be noted:
| Problem | Cause | Solution |
|---|---|---|
| Overheating | Lack of lubrication, shaft misalignment, too much load, or environmental factors | Check the oil level and add oil if necessary, correct the shaft alignment, reduce the load, or improve the ventilation conditions |
| Noise | Worn gears, bearings, or improper meshing | Replace worn parts, adjust the meshing distance, or replace with suitable gears and bearings |
| Vibration | Imbalance, worn gears or bearings, or improper installation | Balance the system, replace worn parts, or reinstall the gearbox |
| Oil Leakage | Seal damage or improper installation | Replace the seal, check the installation, and improve the sealing structure |
| Low efficiency | Improper lubrication, worn gears or bearings, or improper installation | Check the lubrication, replace worn parts, or reinstall the gearbox |
| Shaft Breakage | Excessive load or shock, poor material quality, or improper installation | Reduce the load or impact, use high-quality materials, or reinstall the gearbox |
| Incorrect transmission ratio | Design flaws, incorrect installation, or improper operation | Check the design, installation, and operation, adjust the transmission ratio or replace the gearbox |
| Abnormal wear | Poor lubrication or poor material quality | Improve lubrication conditions, use high-quality materials |
Our company provides Elecon brand replacement worm reducers that have the following advantages:
Worm gear units and electric motors are essential components of power transmission systems. The worm gearbox provides the desired transmission ratio, while the electric motor provides the necessary power. Worm gearboxes and electric motors are complementary to each other, and their combination can achieve efficient and stable power transmission. Our company also provides various electric motors for sale, which can be matched with worm gearboxes to meet the needs of different customers.
Raydafon is a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. We have more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, serving customers in Europe, America, Africa, Asia, etc., and have won the praise of the market. Our consistent mission and vision over the years, our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing, the use of standardized production management methods to strictly control every aspect of the production of reducers, over the years has been to provide customers with high-quality, high-energy-efficiency, high-stability production. Our gearboxes are widely used in equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and so on. We provide the best service, highest product quality, and competitive prices to our customers.
We encourage customers to explore our worm gear units and contact us for purchase.
Q: Can the SNU-UD 4/80 Worm Gear Unit be used in harsh environments?
A: The SNU-UD 4/80 Worm Gear Unit can be used in harsh environments, but it needs to be noted that the gearbox should be protected from moisture, dust, and corrosive gases. Regular maintenance and inspection should also be carried out to ensure the normal operation of the gearbox.
Q: Can the SNU-UD 4/80 Worm Gear Unit be customized?
A: Yes, the SNU-UD 4/80 Worm Gear Unit can be customized according to the specific requirements of customers, such as the transmission ratio, output shaft size, mounting structure, etc.
Q: How to select the appropriate electric motor for the worm gearbox?
A: The selection of electric motors should be based on the rated power, speed, and torque of the worm gearbox. The electric motor should have a power and speed that matches the rated power and speed of the gearbox. High torque electric motors can also be selected to improve the starting torque of the gearbox.
