Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 1 5/8 SNU Worm Gear Unit

Introduction

The Worm Reducer is a high-quality replacement product for the Elecon SNU Modular Universal Mounting 1 5/8 SNU Worm Gear Unit. It offers several distinct features and applications. This series of gearboxes has a large rib design, which increases the heat dissipation area. The streamlined oil sump can hold more oil, and the larger fan improves the gearbox's thermal rating. All these enhancements result in increased continuous load capacity without significant temperature rise. No need to open the gearbox for manual replacement, simply switch the fan and fan cover from one end of the worm shaft to the other. We provide Elecon brand replacement worm gearboxes, which are of excellent quality and offered at competitive prices. It is important to note that our products are replacement parts and not original equipment manufacturer (OEM) parts. For original equipment purchases, please contact the OEM supplier.

Structure

The gearbox is constructed with a robust and streamlined housing made of fine-grained cast iron. It is completely oil and dust-proof, allowing for outdoor installation without the need for additional covers. The latest precision drilling and machining techniques are used for the surface and bore to ensure perfect alignment and interchangeability. The worm is made of carburized alloy steel, while the worm wheel is cast from phosphor bronze with centrifugal casting. Both undergo precise machining and grinding processes. Each worm wheel is inspected and matched with the main worm to ensure complete interchangeability. The worm and worm wheel are supported by ball or roller anti-friction bearings, providing ample safety margins for shaft and thrust loads. The shaft is made of high-strength carbon steel with a larger diameter to withstand twisting and bending loads that may occur during operation.

Features of the Worm Gear Unit

- High load-carrying capacity: The worm gearbox can handle heavy loads without significant temperature rise, thanks to the enhanced heat dissipation and increased oil capacity.- Easy replacement: The fan and fan cover can be easily switched from one end of the worm shaft to the other without opening the gearbox.- Excellent quality: Our replacement worm gearboxes are manufactured to meet high-quality standards, providing reliable performance and durability.- Competitive pricing: We offer competitive prices for our Elecon brand replacement worm gearboxes, ensuring cost-effectiveness for our customers.- Customizable options: We welcome customers to provide specific requirements for customization, allowing for tailored solutions to meet unique application needs.

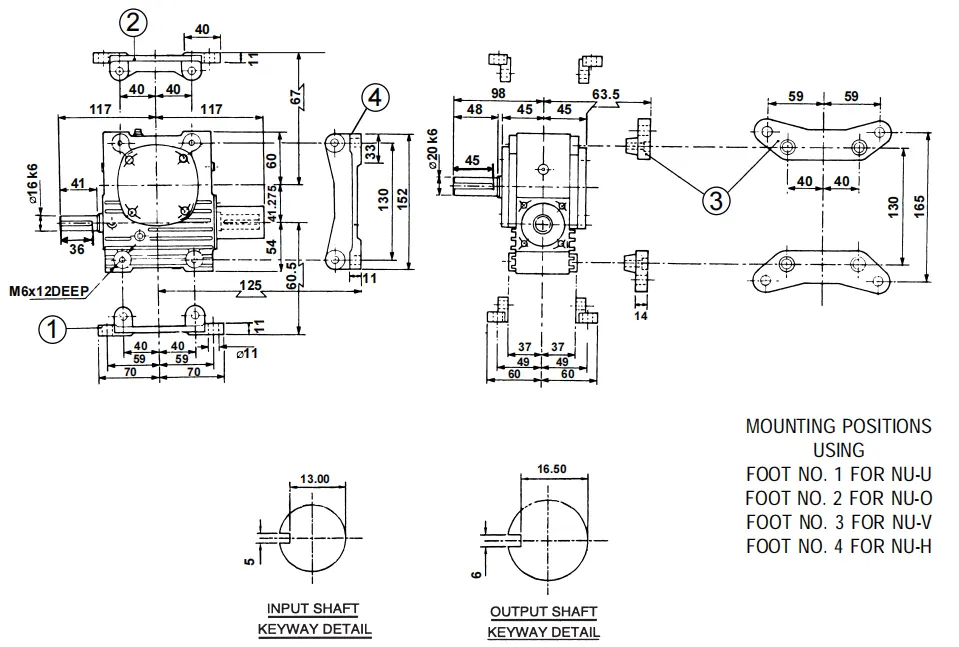

Dimensions

Installation Positions

The single-piece universal housing of the worm gearbox features top and bottom flanges, as well as support flanges, allowing for versatile installation positions such as low speed, high speed, and vertical. This means that internal components are interchangeable for all installation positions. To switch from low speed to high speed or vice versa, simply invert the device and change the positions of the drain plug, vent plug, and oil level indicator. The robust and compact streamlined design offers ample heat capacity.

Possible Issues and Solutions

Problem	Cause	Solution
Abnormal noise during operation	Insufficient or contaminated lubrication	Check and replenish lubrication, replace if necessary
High operating temperature	Excessive load or inadequate heat dissipation	Reduce load or improve heat dissipation
Leakage of oil	Worn seals or damaged gaskets	Replace seals or gaskets
Irregular vibration	Misalignment or unbalanced load	Check alignment and balance, make necessary adjustments
Failure to engage gears	Damage to gears or improper assembly	Replace damaged gears or ensure correct assembly

Elecon Worm Gear Unit Replacement

Our company offers several advantages when it comes to replacing Elecon brand worm gear units:- High-quality replacement: Our worm gear units are manufactured to meet stringent quality standards, ensuring reliable performance and durability.- Competitive pricing: We provide competitive prices for our Elecon brand replacement worm gear units, offering cost-effective solutions for our customers.- Replacement parts: It is important to note that our products are replacement parts and not original equipment manufacturer (OEM) parts. For OEM purchases, please contact the respective supplier.- Customization options: We welcome customers to provide specific requirements for customization, allowing for tailored solutions to meet unique application needs.

Electric Motors for Worm Reducers

The relationship between electric motors and worm reducers is crucial in various applications. Electric motors provide the driving force for worm reducers, enabling the efficient conversion of electrical energy into mechanical power. At our company, we also offer a wide range of electric motors for sale, complementing the performance and functionality of worm reducers. By providing both worm reducers and electric motors, we offer customers a comprehensive solution for their power transmission needs.

In conclusion, our company, Raydafon, specializes in the production of worm gear units, including the replacement of Elecon brand units. With over 20 years of experience, we have established a strong presence in the European and American markets, earning a reputation for providing top-quality products, excellent service, and competitive pricing. Our gearboxes find applications in various industries such as equipment, food, car washing, packaging, transmission, automation, and solar energy. We encourage customers to explore our products and contact us for purchases.

Q&A

Q: What lubrication is recommended for the worm gearbox?A: We recommend using high-quality lubricants specifically designed for worm gear applications. These lubricants should have excellent load-carrying capacity and thermal stability.Q: Can the worm gear unit be used in harsh environments?A: Yes, the worm gear unit is designed to withstand harsh environments. Its robust construction and effective sealing ensure reliable operation even in challenging conditions.Q: Is it possible to replace the worm gear unit without professional assistance?A: While it is possible to replace the worm gear unit without professional assistance, we recommend seeking the help of experienced technicians to ensure proper installation and alignment.
