Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-O Worm Gear Unit

SNU-O Worm Gear Unit Introduction

The SNU-O Worm Gear Unit is a series of worm gearboxes with a wide rib design that increases heat dissipation and a streamlined oil sump that can carry more oil. The larger capacity fan can improve the gearbox's heat rating. All these mean that the continuous load capacity is increased, and the temperature will not rise significantly. It is unnecessary to open the gearbox for manual replacement. Just replace the fan and fan cover from one end of the worm shaft to the other. We provide Elecon brand replacement worm gearboxes at a favorable price, and our products are all replacement parts, not original parts. If you need to buy original parts, please contact the original supplier for purchase.

Structure of SNU-O Worm Gear Unit

The gearbox body is made of fine-grained cast iron, which is completely oil-proof and dust-proof, and can be installed outdoors without a separate cover. The surface and aperture use the latest precision machine precise drilling and processing to ensure perfect alignment and interchangeability. The worm is made of carburized alloy steel that is carburized, ground, and polished and is an integral part of the shaft. The bearing journal is precisely ground. The worm wheel is made of centrifugally cast phosphor bronze wheel hubs. The worm is machined on a special worm milling machine and gas-carburized and ground on an automatic workpiece grinder. The worm wheel is processed by a high-precision hobbing machine with high-precision hobbing cutter. Each worm wheel is inspected and matched with the main worm to ensure complete interchangeability. The worm and worm wheel are supported by rolling ball or rolling cylinder antifriction bearings, which have sufficient safety margin and can withstand sufficient shaft neck and thrust loads. The gearbox and bearings are designed for cantilever loads generated by chain or small gear drive. However, complete detailed information should be provided to confirm. Extra rolling cylinder bearings can be provided in case of heavy cantilever loads.The axle is made of high-strength carbon steel. The large diameter of the axle can withstand the twisting and bending loads that may be caused by cantilever drive.

Features of SNU-O Worm Gear Unit

- The wide rib design increases heat dissipation.- The streamlined oil sump carries more oil.- The larger capacity fan improves the gearbox's heat rating.- The worm and worm wheel are made of high-quality materials and precisely processed to ensure interchangeability.- The gearbox can be installed outdoors without a separate cover and is completely oil-proof and dust-proof.

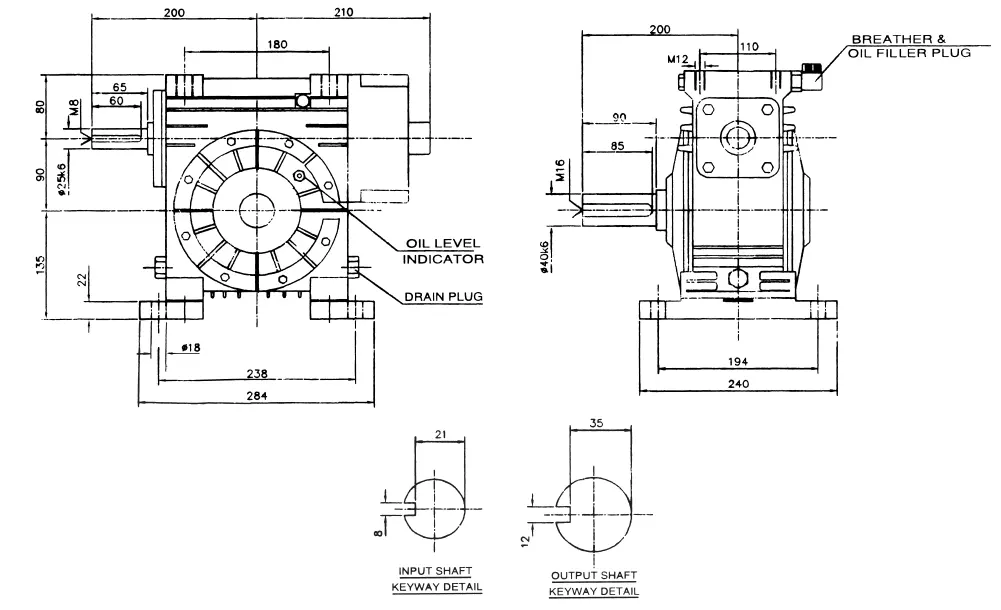

Dimensions of SNU-O Worm Gear Unit

Installation Position

The single-piece universal shell has top and bottom flanges and also provides support flanges, making the gearbox have a universal installation position, such as low speed, high speed, and vertical. Therefore, the internal components can be interchanged for all installation positions. Just invert the device and change the position of the drain plug, vent plug, and oil level indicator to quickly change the installation position from low speed to high speed, and vice versa. The sturdy and compact streamlined design has sufficient heat capacity.

Problems and Solutions of SNU-O Worm Gear Unit

Problem	Cause	Solution
The gearbox is running hot	Insufficient lubricant, excessive load, or poor ventilation	Refill with lubricant, reduce load, or improve ventilation
The gearbox is noisy	Worn gears or bearings or incorrect meshing	Replace gears or bearings or adjust meshing
The gearbox is leaking oil	Loose bolts, damaged seals, or worn bearings	Tighten bolts, replace seals, or replace bearings
The gearbox is vibrating	Unbalanced load or loose parts	Rebalance load or tighten parts
The gearbox is not rotating	Electrical problem or damaged gears or bearings	Fix electrical problem or replace gears or bearings

Elecon Worm Gear Unit Replacement

Our company provides Elecon brand replacement worm gearboxes at a favorable price. Our products have the following advantages:- High-quality materials and precise processing to ensure interchangeability with Elecon brand products.- Favorable price compared with original parts.- All products are replacement parts, not original parts.If you need to buy original parts, please contact the original supplier for purchase. We welcome customers to come to us with drawings or samples for customization.

Motors for Worm Reducers

Motors and worm reducers are essential components of a power transmission system. The motor provides power, and the worm reducer provides torque and speed reduction. The combination of the two determines the overall performance of the system. Our company also provides various electric motors for sale, which can be matched with worm reducers to achieve the desired transmission effect.At Raydafon, we are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. We have more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, serving customers in Europe, America, Africa, Asia, etc., and have won the praise of the market. Our consistent mission and vision over the years, our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing, the use of standardized production management methods to strictly control every aspect of the production of reducers, over the years has been to provide customers with high-quality, high-energy-efficiency, high-stability production. Our gearboxes are widely used in equipment Industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry and so on. We welcome and trust customers to explore our products and contact us for purchase.

Q&A

Q: What is the maximum load capacity of the SNU-O Worm Gear Unit?A: The continuous load capacity of the SNU-O Worm Gear Unit is increased due to its wide rib design, but the maximum load capacity depends on the specific application and should be determined based on the gearbox's technical data.Q: Can the SNU-O Worm Gear Unit be used outdoors without a separate cover?A: Yes, the SNU-O Worm Gear Unit is completely oil-proof and dust-proof and can be installed outdoors without a separate cover.Q: What is the warranty period for Elecon brand replacement worm gearboxes provided by your company?A: Our company provides a one-year warranty period for Elecon brand replacement worm gearboxes.
