The SNU-U worm gear unit is a series of high-quality replacement gearboxes produced by our company. They feature wide ribs that increase heat dissipation, streamlined oil sumps that carry more oil, and larger fans that increase the gearbox's heat rating. All these upgrades result in increased continuous load capacity, with temperature rise remaining within reasonable ranges. The product can be replaced without having to open the gearbox manually; by replacing the fan and fan cover from one end of the worm shaft to the other end.
Our company provides replacement worm gearboxes in the Elecon brand, which are of good quality and come with favorable prices. It should be noted that our products are not original parts but rather replacement parts. If you need original parts, please contact the original supplier for purchase.
The gearbox housing is designed with a streamlined structure and is made of high-quality cast iron. It is completely oil-resistant and dustproof, and can be installed outdoors without the need for a separate cover. The surface and aperture are precisely drilled and machined with the latest precision machines to ensure perfect alignment and interchangeability. The worm is made of carburized alloy steel that has been ground and polished, and is integrated with the shaft. The bearing journal of the shaft is precisely ground. The worm wheel is made of centrifugally cast phosphor bronze wheel rim, and the worm is machined on a dedicated worm milling machine and carburized and ground on an automatic workpiece grinder. The worm wheel is processed on a precision gear hobbing machine with high-precision gear hob. Each worm wheel is inspected and matched with the main worm to ensure complete interchangeability. The worm and the worm wheel are supported by rolling bearings or roller bearings, which have sufficient safety margins and can withstand sufficient shaft neck and thrust loads. The overhanging loads generated by chain or small gear transmissions are generally allowed, as the gearbox and bearings are designed for this purpose. However, complete and detailed information should be provided to us for confirmation. Additional roller bearings can be provided in situations where there are heavier overhanging loads.
The wheel shaft is made of high-strength carbon steel. The large diameter of the wheel shaft can bear the twisting and bending loads caused by overhanging drives.

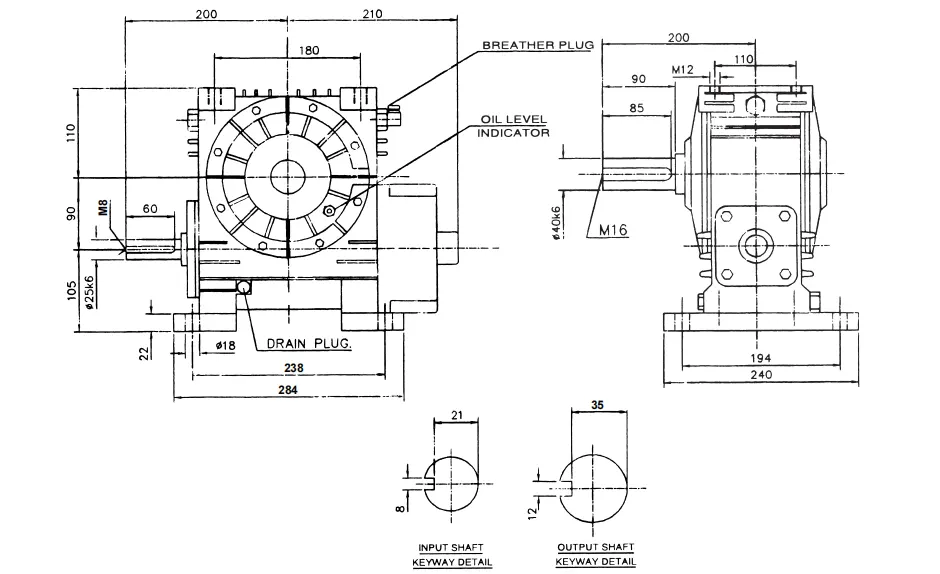

The gearbox's universal shell has top and bottom flanges, as well as supporting flanges, allowing it to be installed in a variety of positions, such as low speed, high speed, and vertical installations. This means that internal components can be interchanged for all installation positions. Simply invert the device and reposition the drain plug, vent plug, and oil level indicator to quickly change the installation position from low speed to high speed, and vice versa.
Our company also offers a variety of electric motors for worm reducers. A high-quality motor is an essential component of a worm reducer, as it provides the power that drives the reducer and ultimately affects its operation. We provide customers with a wide range of electric motors, suitable for various applications, and high-quality products at reasonable prices.
Our company offers a variety of replacement parts for Elecon worm gear units, which are of good quality and at favorable prices. All of our products are replacement parts, not original parts. If you need original parts, please contact the original supplier for purchase. Our products are designed to be interchangeable with other components for all installation positions, such as low speed, high speed, and vertical installations, due to their universal shell with top and bottom flanges and supporting flanges. Our products provide excellent performance and increased load capacity. Our company can provide customized services based on customer requirements, and welcome customers to provide drawings or samples.
We are a comprehensive transmission equipment manufacturer that integrates research and development, manufacturing, and sales of speed reducers. With more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, we serve customers in Europe, America, Africa, Asia, and other regions, and have won the praise of the market. Our consistent mission and vision over the years have led us to introduce advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing. We use standardized production management methods to strictly control every aspect of the production of reducers, over the years has been to provide customers with high-quality, high-energy-efficiency, high-stability production. Our gearboxes are widely used in various industries, such as the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and so on. We provide customers with the best service, highest product quality, and competitive prices. We welcome customers to explore our products and contact us for purchase.
| Question | Answer |
|---|---|
| What should be done if the gearbox is overloaded? | Heavier loads can be supported by additional roller bearings. If you have any questions, please provide us with complete and detailed information for confirmation. |
| What is the maximum heat rating of the gearbox? | The gearbox has a larger capacity fan and wider ribs to provide better heat dissipation, which increases the gearbox's heat rating and allows it to operate continuously with increased load capacity. |
| Can the gearbox be used outdoors? | The gearbox is completely oil-resistant and dustproof, and can be installed outdoors without the need for a separate cover. |
