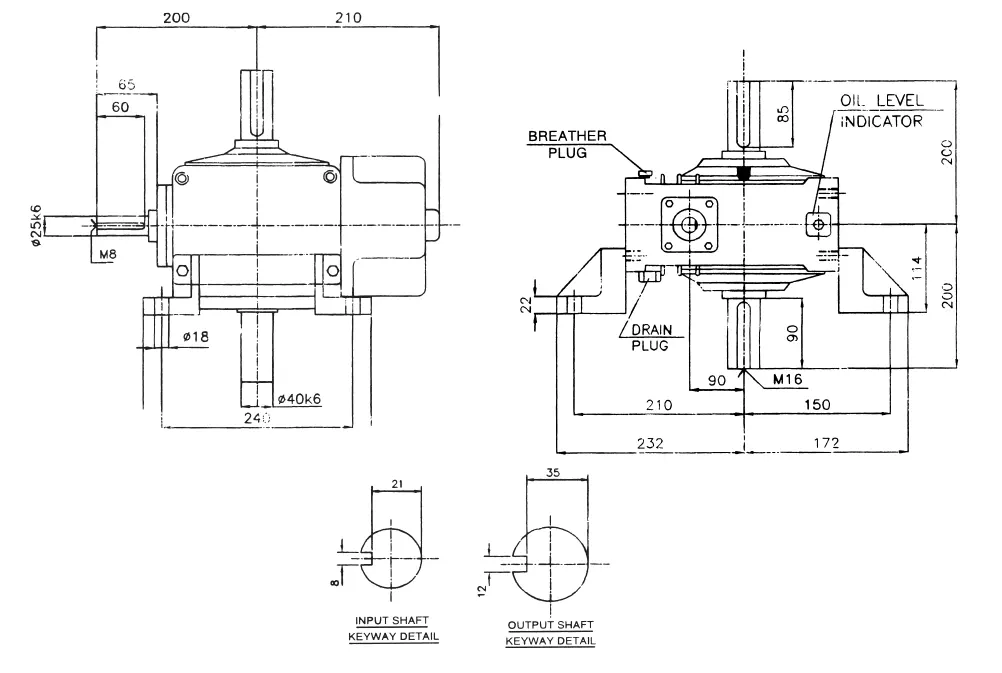

The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit is a series of gearboxes that come with an enlarged rib, which increases the heat dissipation area. The streamlined oil sump can carry more oil, and the larger capacity fan can improve the thermal rating of the gearbox. All of this means that the continuous bearing capacity is increased, while the temperature does not rise significantly. The gearbox can be replaced with a simple fan and fan cover replacement, without having to open the gearbox for manual change. Our company provides Elecon brand replacement worm gearboxes that are of good quality and offer competitive prices. Please note that our products are replacement parts, not original factory parts. If you need to purchase original factory parts, please contact the original manufacturer for purchase.
The Worm Gear Unit has a streamlined design, a solid structure, and is made of fine-grained cast iron, which makes it completely oil and dust-proof and can be installed outdoors without a separate cover. The surface and aperture use the latest precision machines for precise drilling and processing to ensure perfect alignment and interchangeability. The worm is made of carburized alloy steel that has been carburized, ground, and polished and is integrated with the shaft. The bearing journal of the shaft is precision ground. The worm wheel is made of centrifugally cast phosphor bronze wheel hubs. The worm is machined on a dedicated worm milling machine and carburized and ground on an automatic workpiece grinder. The worm wheel is machined on a precision gear hobbing machine with a high-precision hob. Each worm wheel is inspected and matched with the main worm to ensure full interchangeability. The worm and worm wheel are supported by ball or roller anti-friction bearings with sufficient safety margins to withstand adequate shaft neck and thrust loads. The overhang load generated by chain or small gear transmission is generally allowed because the gearbox and bearing are designed for this purpose. However, complete and detailed information should be provided to us for confirmation. In cases where the overhanging load is heavy, additional roller bearings can be provided. The wheel shaft is made of high-strength carbon steel. The wheel shaft has a larger diameter, which can withstand twisting and bending loads that may be caused by overhang drive.
The Worm Gear Unit is highly efficient and produces minimal noise and vibration. It is ideal for use in applications that require high precision and low noise levels.
The Worm Gear Unit is designed to be safe and reliable in operation. It is equipped with high-precision bearings that have a long service life and can withstand heavy loads. In addition, the gearbox has a high heat dissipation capacity, which ensures long-term, stable operation under high-speed and heavy-load conditions.
The Worm Gear Unit is designed with a universal mounting position, which makes it easy to install and maintain. The gearbox can be installed in a variety of positions, including low speed, high speed, and vertical positions, and its internal components are interchangeable across all mounting positions. This eliminates the need for multiple gearbox models and simplifies inventory management.
The Worm Gear Unit has a strong adaptability to different working environments and can be used in a wide range of industries, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more.
The Worm Gear Unit is made of high-quality materials and is precision machined to ensure a long service life and minimal maintenance requirements.
The Worm Gear Unit comes with a universal housing that has top and bottom flanges, as well as support flanges, which allow the gearbox to be installed in a variety of positions, including low speed, high speed, and vertical positions. The internal components are interchangeable across all mounting positions, making it easy to install and maintain. Simply invert the device and change the position of the drain plug, vent plug, and oil level indicator to quickly change the installation position from low speed to high speed and vice versa. The gearbox has a sturdy, compact, and streamlined design with ample heat capacity.
| Possible Problems | Causes | Solutions |
|---|---|---|
| The gearbox produces abnormal noise during operation | Worm and worm wheel installation is not correct; Worm and worm wheel are worn; Bearing damage; Gear meshing is not correct | Correctly install the worm and worm wheel; Replace worn worm and worm wheel; Replace damaged bearings; Correctly mesh the gears |
| The gearbox temperature is too high during operation | Lack of lubricating oil; Insufficient cooling; Overload operation | Add lubricating oil to the gearbox; Increase cooling measures; Reduce the load or use a gearbox with a higher load capacity |
| The gearbox leaks oil | Oil seal damage; Sealing surface damage; Installation is not correct | Replace the damaged oil seal; Repair the damaged sealing surface; Correctly install the gearbox |
| The gearbox has a short service life | Low quality materials; Poor machining accuracy; Improper use and maintenance | Use high-quality materials for production; Improve machining accuracy; Use and maintain the gearbox according to the instructions |
| The gearbox is not running smoothly | Worm and worm wheel are worn; Bearing damage; Gear meshing is not correct | Replace worn worm and worm wheel; Replace damaged bearings; Correctly mesh the gears |
Our company provides Elecon brand replacement worm gearboxes that are of good quality and offer competitive prices. Please note that our products are replacement parts, not original factory parts.
Our replacement worm gearboxes are priced competitively compared to the original factory parts, making them a cost-effective solution for customers who need to replace their gearboxes.
Our replacement worm gearboxes are designed to be easily replaceable, without the need for complicated manual changes or modifications.
Our replacement worm gearboxes are widely used in a variety of industries and applications, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more.
Our replacement worm gearboxes are designed to be interchangeable with Elecon brand gearboxes, making them a convenient and practical replacement solution for customers.
We also welcome customers to provide us with samples or drawings for customized production.
Electric motors are an important component of Worm Reducers. They convert electrical energy into mechanical energy, which drives the Worm Reducer to operate. In turn, Worm Reducers provide the necessary speed reduction and torque multiplication to drive various industrial equipment. Therefore, the success of the operation of Worm Reducers is closely related to the selection and quality of electric motors. Our company also provides various types of electric motors for sale, providing customers with a complete solution for their equipment needs.
We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, we serve customers in Europe, America, Africa, Asia, and more, and have won the praise of the market. Our consistent mission and vision over the years, our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing. We use standardized production management methods to strictly control every aspect of the production of reducers and over the years have provided customers with high-quality, high-energy-efficiency, and high-stability productions. Our gearboxes are widely used in a variety of industries, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more. We encourage customers to explore our products and contact us for purchase.
Q: What is the maximum operating temperature of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit?
A: The maximum operating temperature of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit is 80??C.
Q: What are the main applications of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit?
A: The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit is widely used in a variety of industries and applications, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more.
Q: How long is the service life of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit?
A: The service life of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit depends on various factors such as the operating conditions, the frequency of maintenance, and the quality of the materials used. With proper use and maintenance, the gearbox can have a long service life.
