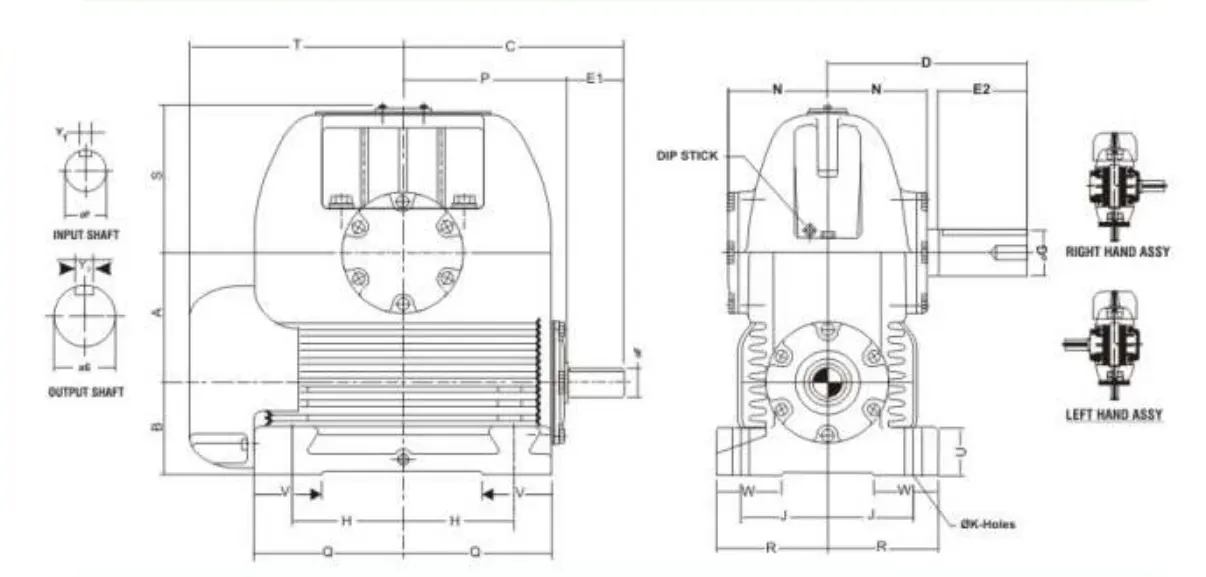

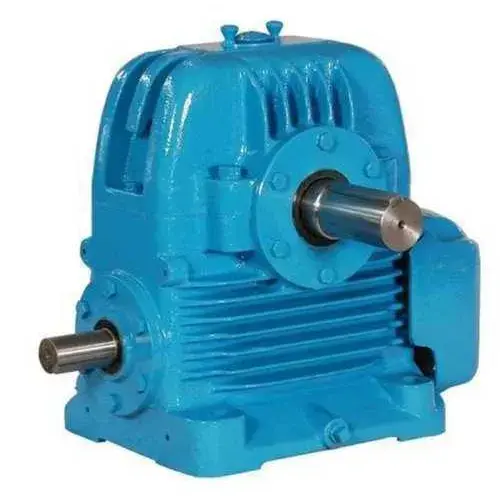

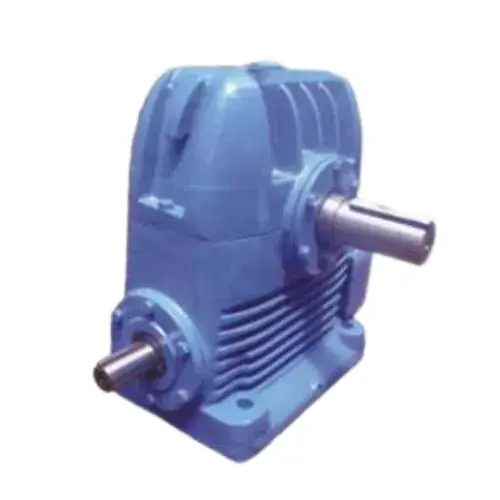

The Worm Reducer-Replacement of Fenner FU Type Worm Gearbox FU300 is a high-quality and cost-effective product that our company offers to customers. Our product is designed to replace Fenner-brand worm gearboxes and provides superior performance at a competitive price. It is important to note that our product is a replacement part, not an original part. We provide only replacement parts for original equipment. If you need to buy the original equipment, please contact the original manufacturer for purchase.
The Worm Reducer-Replacement of Fenner FU Type Worm Gearbox FU300 is composed of the following parts:
The worm shaft and the worm wheel shaft are the main components of the gearbox. The housing provides support and protection for the internal components. The cooling fins and fans are responsible for dissipating the heat generated during operation. The tapered roller/angular contact bearings are critical to the performance of the gearbox, as they withstand axial thrust and overhung loads.
Selecting a suitable gearbox is accomplished by comparing the actual transmitted load with the rated value in the catalog. However, actual load conditions may vary or fluctuate depending on the application type, and in order to deal with the same problem, the use coefficient must be considered to achieve equivalent load or design power. Therefore, the equivalent load = actual load x service factor mechanical rated value and service factor mechanical rated value is used to measure capacity, assuming continuous operation for 10 hours per day under uniform load conditions. If the equipment operates more than 10 hours per day, the mechanical service factor should be selected based on the type of prime mover, the number of hours of operation per day, and the application type and load characteristics connected to the equipment to ensure the appropriate gear life catalog rated values allow for instantaneous 100% overload during start-up, braking or running, up to a maximum of 10 times per day. Therefore, the selected equipment catalog rated value should be at least equal to or greater than half of the maximum overload reached during its operation period. The service life of the gearbox can be determined by comparing the actual transmitted load with the rated value in the catalog. The following steps should be followed:
| Problem | Cause | Solution |
|---|---|---|
| Overheating of gearbox | Insufficient lubrication or too much load. | Check the lubrication and reduce the load. |
| Noisy gearbox | Worn gears or insufficient lubrication. | Replace the gears and check the lubrication. |
| Vibration | Worn gears or loose screws. | Replace the gears and tighten the screws. |
| Oil leakage | Damaged seals or loose screws. | Replace the seals and tighten the screws. |
| Non-working gearbox | Electrical failure or loose connections. | Check the electrical connections and repair if necessary. |
| Excessive noise and vibration | Worn bearings or gears, or improper alignment. | Replace worn parts and align the gearbox. |
| Leaking oil seals | Damaged seals or loose screws. | Replace the seals and tighten the screws. |
| Overheating of bearings | Insufficient lubrication or improper alignment. | Check the lubrication and align the gearbox. |

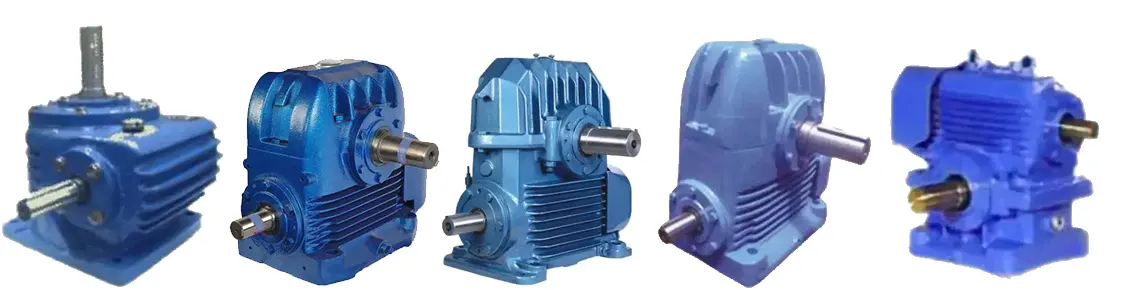

Our company offers a range of worm gearboxes that can replace Fenner-brand gearboxes. Our products have several advantages:
We are committed to providing our customers with the highest quality products and services. If you are interested in purchasing our products, please contact us. We also welcome customers to provide us with drawings or samples for customized production.
The motors are an important component of the worm reducers. They provide the power to rotate the worm shaft and the worm wheel shaft. The performance of the reducer is directly related to the quality of the motor. Our company also provides various types of electric motors for sale to meet the needs of our customers. The combination of our worm reducers and motors can provide customers with a reliable and efficient drive system.
Our company, Raydafon, is a comprehensive transmission equipment manufacturer with more than 20 years of experience in the design, production, manufacture, and sales of gearboxes. We serve customers in Europe, America, Africa, Asia, and other regions, and have won the praise of the market. We are committed to providing customers with the highest quality products, the most efficient services, and the most competitive prices. Our gearboxes are widely used in various industries, such as equipment industry, food industry, car-washing industry, packaging industry, transmission industry, automation industry, and solar energy industry. We welcome and trust our customers to explore our products and contact us for purchases.
A: The minimum service life of all gearboxes at full load is 20,000 hours, limited by a temperature of 90 degrees Celsius.
A: We provide only replacement parts for original equipment. If you need to buy the original equipment, please contact the original manufacturer for purchase.
A: Our gearboxes are widely used in various industries, such as equipment industry, food industry, car-washing industry, packaging industry, transmission industry, automation industry, and solar energy industry.
