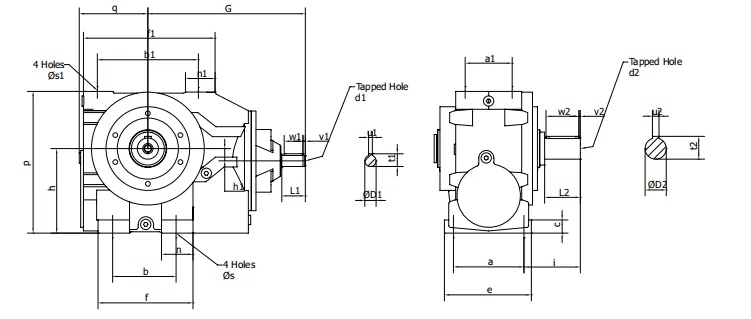

Worm Reducer-Replacement of Fenner Series C Helical Worm Gearbox Foot Mounted Reducer-with Output Shaft Double/Triple Reduction 874

Introduction

Our Worm Reducer is the perfect replacement for Fenner Series C Helical Worm Gearbox Foot Mounted Reducer with Output Shaft Double/Triple Reduction 874. It is a highly efficient and energy-saving direct drive with multiple installation options. The ready-made transmission ratio ranges from 8:1 to 16,000:1 and can be interchanged with other leading brands in the market. The gearbox has a high driving power of up to 45 kW and can accept standard IEC motors without any modifications. Its modern design technology and high-quality components make the C series helical worm gearboxes more cost-effective than any other gearbox.We offer the perfect replacement for Fenner brand helical worm gearboxes at a reasonable price, which ensures the same high quality as original spares. It is important to note that we only provide replacement parts for original factory spares. For the purchase of original factory spares, please contact the original supplier.

Features of Worm Reducer

• Transmission ratio ranges from 8:1 to 16,000:1, with a maximum of 10,000 Nm.
• Eight different specifications available, with aperture ranges from 20 mm to 90 mm.
• Highly efficient and energy-saving direct drive, with efficient gear transmission that helps to save energy and operating costs.
• Can be interchanged with other leading brands in the market.
• Innovative motor adapter uses standard IEC interface.
• Oil-free sealing gearbox ensures no leakage while disassembling the motor.
• Multiple installation options, including base, flange, and shaft.

Applications of Worm Reducer

Our Worm Reducer is suitable for a wide range of applications, including:

• Conveyors
• Crushers
• Mixers
• Agitators
• Packaging equipment
• Food processing equipment
• Industrial machinery
• Textile machinery

Fenner Helical Worm Gearbox Replacement

Our Worm Reducer is the perfect replacement for Fenner Series C Helical Worm Gearbox Foot Mounted Reducer with Output Shaft Double/Triple Reduction 874. Our products are of high quality and reasonably priced, ensuring the same high quality as original spares. It is important to note that we only provide replacement parts for original factory spares. For the purchase of original factory spares, please contact the original supplier.Our replacement products offer the following advantages:

• Same high quality as original spares
• Reasonably priced
• Perfect replacement for Fenner Series C Helical Worm Gearbox Foot Mounted Reducer with Output Shaft Double/Triple Reduction 874

Composition of Worm Reducer

Our Worm Reducer consists of the following parts:

• Worm gear
• Worm wheel
• Bearing
• Housing
• Output shaft

The worm gear and the worm wheel are the key components of the gearbox. The worm gear is a helical gear that meshes with the worm wheel, which is a cylindrical gear. The bearing supports the worm gear and worm wheel, reducing friction and wear. The housing provides the necessary structural support for the gearbox. The output shaft connects to the machinery being driven and transmits the power from the gearbox to the machinery.

Installation of Worm Reducer

The performance of the Worm Reducer depends on correct installation, lubrication, and maintenance. The following are the installation procedures:Shaft Mounting:

1. Ensure that the shaft and the gearbox hole where the gear unit is mounted are clean and burr-free.
2. Apply a small amount of lubricating oil to the shaft and the hole to help with assembly and prevent corrosion.
3. Slide the device onto the drive shaft and fit the key.

Foot Mounting:

1. Secure the device to a sturdy structure.
2. Install the output shaft extension if necessary.
3. Interconnect the shaft with an elastic coupling and ensure that the shaft deviation is within the range acceptable to the coupling.
4. When mounting pulleys or sprockets on two shafts, install them as close to the gearbox as possible.
5. Do not strike the shaft when installing or removing the transmission components, as this will damage the bearings.

Lubrication and Maintenance of Worm Reducer

Lubrication:

1. Size 870 and 871 gearboxes are lubricated for life, except when working in explosive environments. All other gearbox sizes require oil change according to the equipment's working temperature.
2. Half of the oil should be replaced in new gearboxes after 1000 hours of work, after one year, or after the specified service life.

Maintenance:

1. Regularly check the gearbox for oil leakage.
2. Check the gearbox for any abnormal noise or vibration.
3. Check the gearbox for any loose or damaged parts.
4. Regularly maintain the gearbox according to the specified maintenance procedures.

Possible Issues and Solutions

Possible Issues	Causes	Solutions
Abnormal noise or vibration	Loose parts, damaged bearings, damaged gears	Tighten loose parts, replace damaged bearings, replace damaged gears
Overheating	Insufficient lubrication, damaged bearings	Check lubrication, replace damaged bearings
Oil leakage	Damaged oil seals, damaged gearbox housing	Replace damaged oil seals, replace damaged gearbox housing
Slipping gears	Worn gears, damaged bearings	Replace worn gears, replace damaged bearings
Decreased efficiency	Incorrect installation, damaged gears	Correct installation, replace damaged gears
Stuck gears	Contamination, lack of lubrication	Clean the gears, check lubrication
Corrosion	Moisture, acidic environment	Keep the gearbox dry, use protective coatings
Worn bearing	Excessive load, lack of lubrication	Reduce load, check lubrication

Motors for Worm Gear Reducers

Worm gear reducers and electric motors are interdependent. The Worm Reducer is designed to reduce the speed of the electric motor while increasing torque. The electric motor, on the other hand, provides the driving force for the Worm Reducer to function. The two components work together to provide the necessary power for industrial machinery, such as conveyors, crushers, and mixers.We also offer a wide range of electric motors to complement our Worm Reducer products. Our electric motors are of high quality and are designed to work efficiently with our Worm Reducers. They are available in different sizes and types, including AC and DC motors, to meet the needs of various industrial applications.

About Raydafon

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With over 20 years of experience in gearbox design, production, manufacturing, and sales, we have served customers in Europe, America, Africa, Asia, and other regions and have won the praise of the market.Our company has introduced advanced production equipment and testing equipment at home and abroad and employs industry professionals and technicians to carry out innovative research and development and manufacturing. We use standardized production management methods to strictly control every aspect of gearbox production. Our gearboxes are widely used in industries such as equipment, food, car washing, packaging, transmission, automation, and solar energy.We strive to provide our customers with high-quality, high-energy-efficiency, and high-stability gearboxes, as well as the best services, highest product quality, and competitive prices. We welcome all customers to explore our products and contact us for purchases or customized orders.

Q&A

Q: What is the transmission ratio range of the Worm Reducer?
A: The transmission ratio range of the Worm Reducer ranges from 8:1 to 16,000:1, with a maximum of 10,000 Nm.Q: What are the installation options for the Worm Reducer?
A: The Worm Reducer has multiple installation options, including base, flange, and shaft.Q: What are the possible causes of overheating in the Worm Reducer?
A: The possible causes of overheating in the Worm Reducer are insufficient lubrication and damaged bearings.
