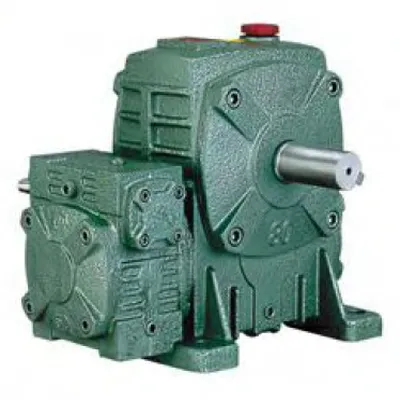

WPEA Series Double Stage Worm Gearboxes

Raydafon Group's WPEA Series Double Stage Worm Gearboxes deliver robust, high-torque power transmission for demanding applications. Crafted with precision engineering and durable materials, these gearboxes ensure smooth operation and long-lasting performance in industrial settings. Ideal for engineers and manufacturers, they provide reliable solutions for automation and machinery, enhancing efficiency and reducing downtime. Experience superior quality and trust Raydafon Group for your gearbox needs.

Send Inquiry

Product Description

WPEA Series Double Stage Worm Gearboxes

The WPEA series worm gearboxes are widely used in chemical plants, mechanical equipment, and engineering institutions due to their compact structure, high efficiency (deceleration), accurate and reliable transmission movement, maintenance, and use. Many reducers can generally be divided into gears (cylindrical gears, bevel gears) and worm gears.According to the number of stages of the reducer, it is divided into single-stage, two-stage, and three-stage reducers. There are also vertical and horizontal points. The reducer mainly comprises gears (or worm gears), shafts, bearings, boxes, etc. The gears (or worm gears), shafts, bearings, etc., are supported by gears (or worm gears).

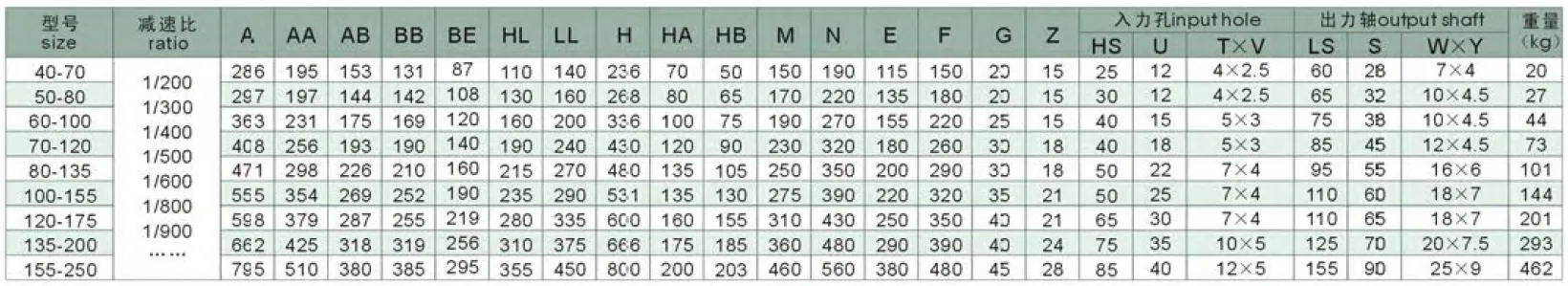

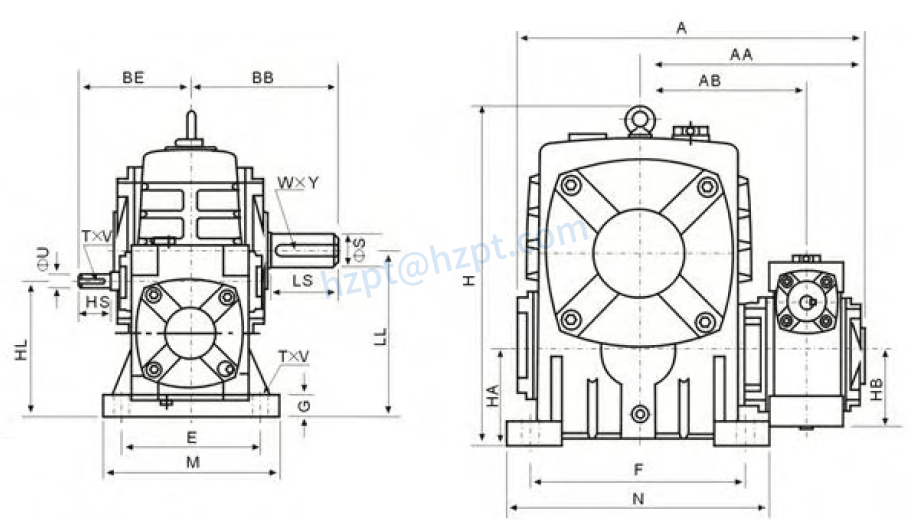

Specifications Parameter

Worm Gearbox Description

Our worm gearbox has many items for your choosing. We also can produce as per your drawing or sample to meet your special request.1- Safe, reliable, economical, and durable2- Stable transmission, quiet operation3- Larger output torque4- High carrying ability5- May equip with various outer power inputs conveniently. One type may equip with various power motors. And it is easy to realize the combination and junction between every machine type.6- Long life: Under the condition of correct choosing(including choosing a suitable operation console), normal operation, and maintenance, the life if the main parts speed reducer gearbox(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.

Choice of Lubricant

Before operating the worm gear speed reducer, add N220 ~ N320（Ambient temperature-30°℃~40°℃）, N320~N460（Ambient temperature 40°C~65C）lubrication oil up to the center line of the oil gauge. In the meanwhile, remove the small screw of the air vent. After having worked for 100 hours for the first time, you must clear the inside and change the lubrication oil in it, hre after once every 2500 hours. WPEA Series Double Stage Worm Gearboxes

Application of WPEA Series Worm Gearboxes

It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc. WPEA Series Double Stage Worm Gearboxes

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. WPEA Series Double Stage Worm Gearboxes

Company Profile

As a professional manufacturer of worm gearboxes and worm gear reducers in China, we mainly produce reduction gearboxes, aluminum case worm gearboxes, arc gear cylindrical worm gearboxes, worm gear reducers, in-line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, reliable quality, etc. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.We have 600 workers in our factory, which covers 70,000 square meters in Ningbo. We have been making 2,500 units of reducers every day since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the world. Our customers come from Italy, Germany, the USA, Canada, Spain, the UK, Mexico, Brazil, Argentina, Turkey, Singapore, and other leading industrial countries worldwide. 30% of them are OEM-made for direct manufacturers of other products.We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are confident that you will have confidence in our products after visiting our facility. We have the latest automatic equipment and experienced workers to ensure stable quality and large output. We have the most sophisticated technology and engineering team to support the most demanding requirements on standard and OEM products.

Hot Tags: Double Stage Worm Gearboxes, Custom Industrial Gearboxes, Worm Drive Wholesale
