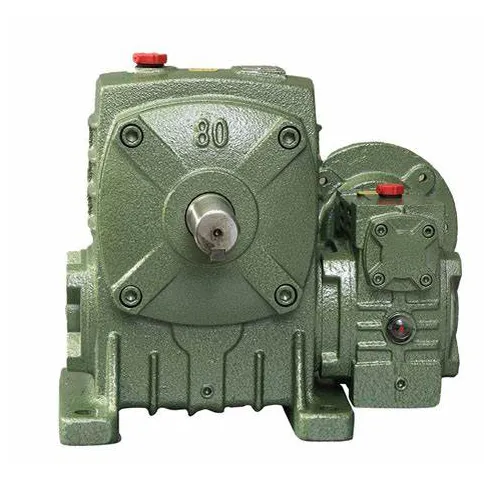

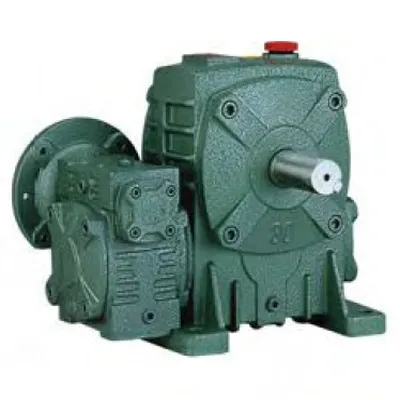

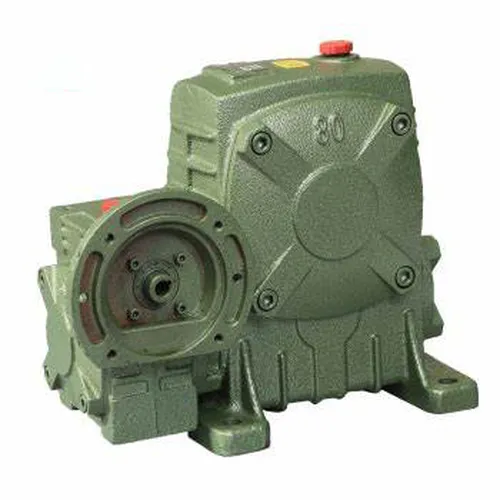

WPEDA Series Double Stage Worm Gearboxes

WPEDA Series Double Stage Worm Gearboxes

Worm gearboxes are widely used due to their durability, large transmission ratio, small size, strong self-locking ability, simple structure, and easy manufacturing, but their relatively low transmission efficiency. To add a breather cover to the worm gear reducer, the temperature of the reducer will change with the working time. The higher the temperature, the air in the reducer case will expand, thereby leaking the lubricating oil from the split surface, so a vent cover is provided on the reducer case cover. An oil drain hole is provided under the reducer case seat to facilitate the later replacement of lubricating oil.

Products Description

Type	WPEDA worm gearbox
Model	40-70, 50-80, 60-100, 70-120,80-147,100-155, 120-175, 135-200,155-250
Ratio	200-900

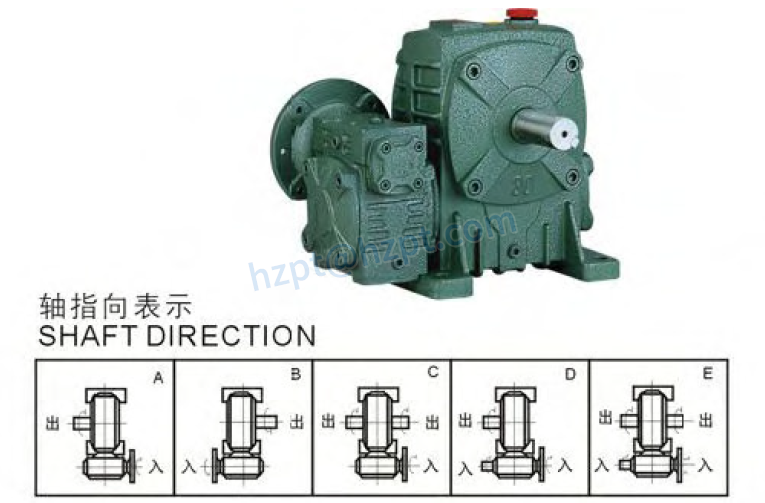

Mounting Position	Foot mounted, flange mounted
Output Form	Solid shaft, hollow shaft
Material of Housing	Casting Iron
Material of Shaft	Chromium steel
Oil seal	KSK
Bearing	C&U

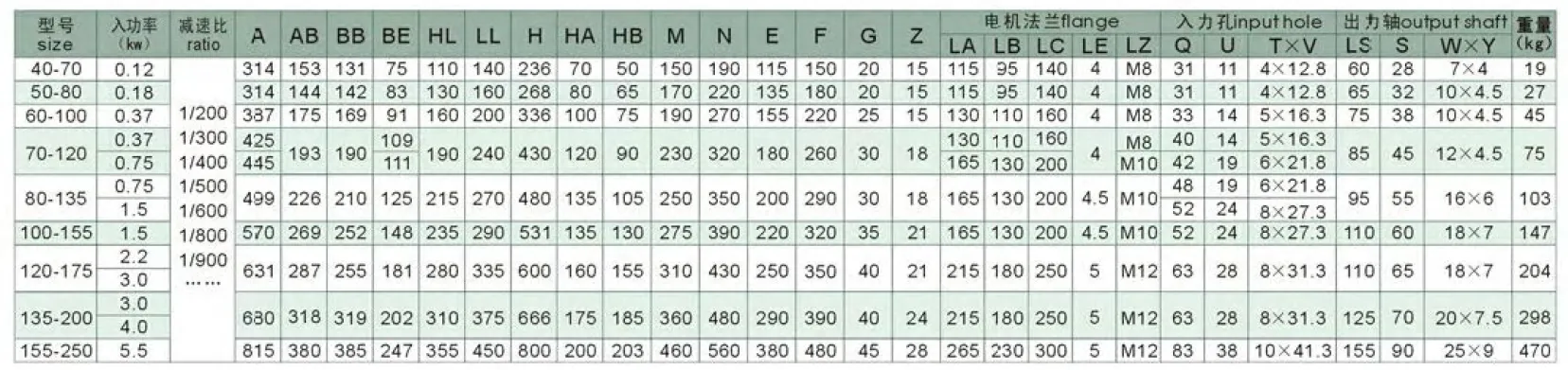

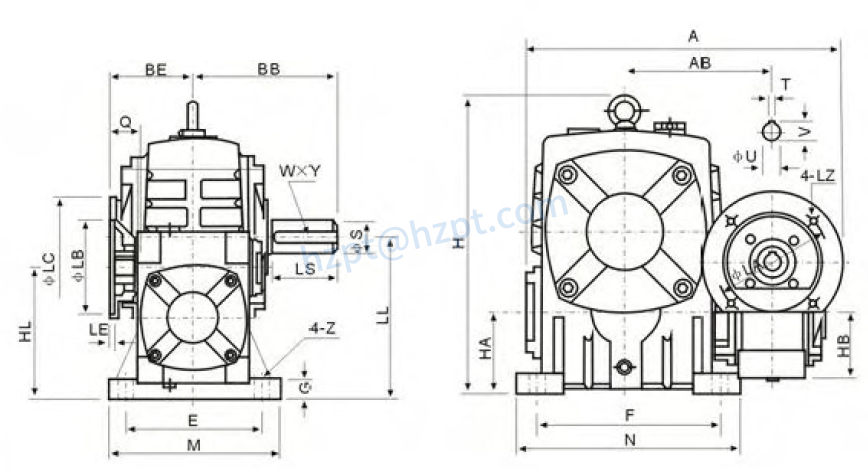

Product Specifications

Company Profile

As a professional manufacturer of worm gearboxes and worm gear reducers in China, we mainly produce reduction gearboxes, aluminum case worm gearboxes, arc gear cylindrical worm gearboxes, worm gear reducers, in-line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, reliable quality, etc. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.We have 600 workers in our factory, which covers 70,000 square meters in Ningbo. We have been making 2,500 units of reducers every day since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the world. Our customers come from Italy, Germany, the USA, Canada, Spain, the UK, Mexico, Brazil, Argentina, Turkey, Singapore, and other leading industrial countries worldwide. 30% of them are OEM-made for direct manufacturers of other products.We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are confident that you will have confidence in our products after visiting our facility. We have the latest automatic equipment and experienced workers to ensure stable quality and large output. We have the most sophisticated technology and engineering team to support the most demanding requirements on standard and OEM products.
