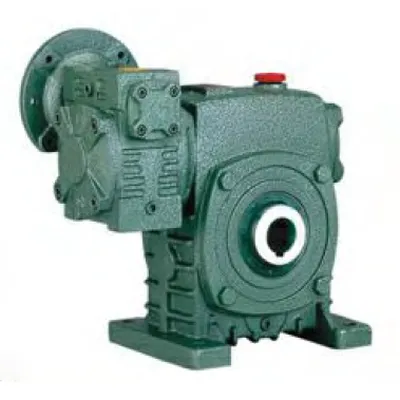

WPEDKS Series Double Stage Worm Gearboxes

Raydafon Group's WPEDKS Series Double Stage Worm Gearboxes offer robust power transmission for industrial applications, featuring durable materials and efficient design to enhance machinery performance. Ideal for engineering and manufacturing sectors, these gearboxes deliver reliable torque reduction, solving complex power needs with precision. Their compact build and high load capacity set them apart from competitors, ensuring smooth operation and longevity. Experience seamless power solutions that boost productivity and reduce downtime.

Send Inquiry

Product Description

WPEDKS Series Double Stage Worm Gearboxes

The material combination of the worm and worm gear of the worm gear reducer must have both wear resistance and good running-in performance. Worm material is generally made of alloy steel or high-quality carbon steel. The worm tooth surface is subjected to carburization, quenching or nitriding, and other heat treatments to obtain higher hardness. Its hardness is generally between 35-55HRC, but there are also more than 60HRC. The material used to make the worm gear ring is tin bronze, which is the most ideal. In processing technology, the mechanical properties of centrifugal casting are the best, followed by casting with metal molds and sand molds.

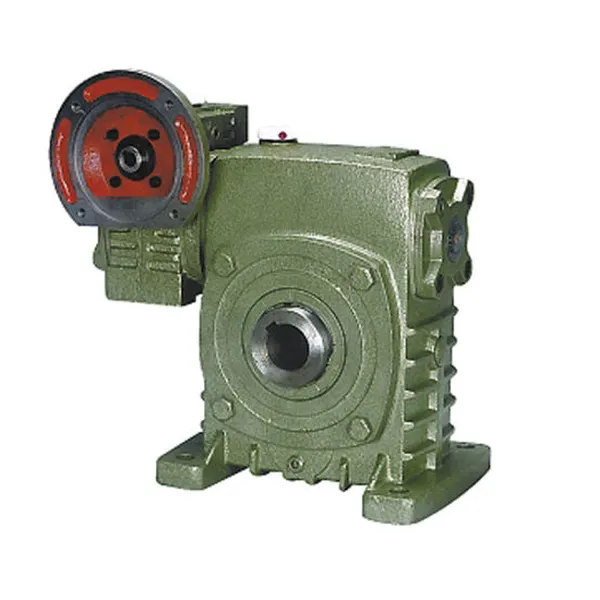

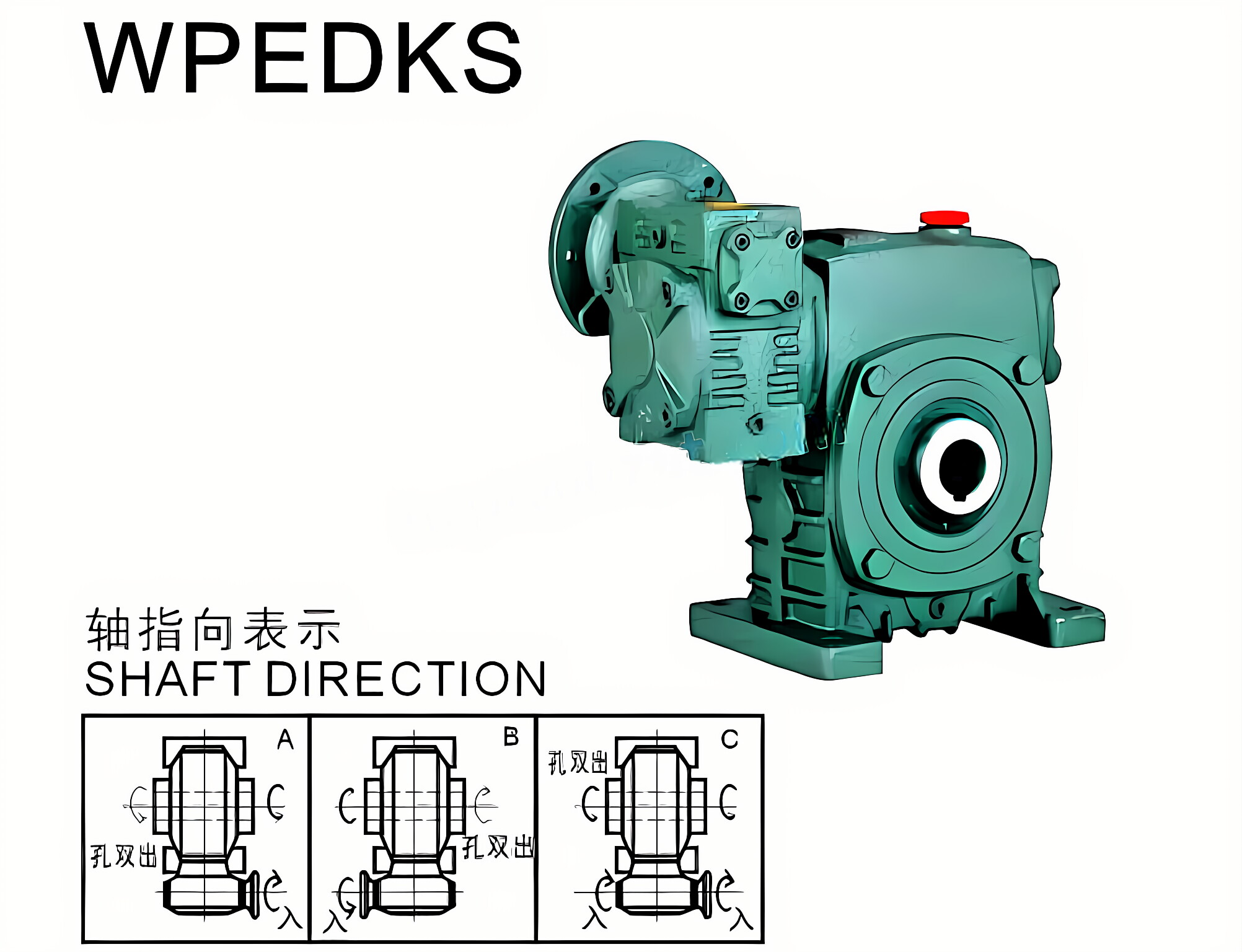

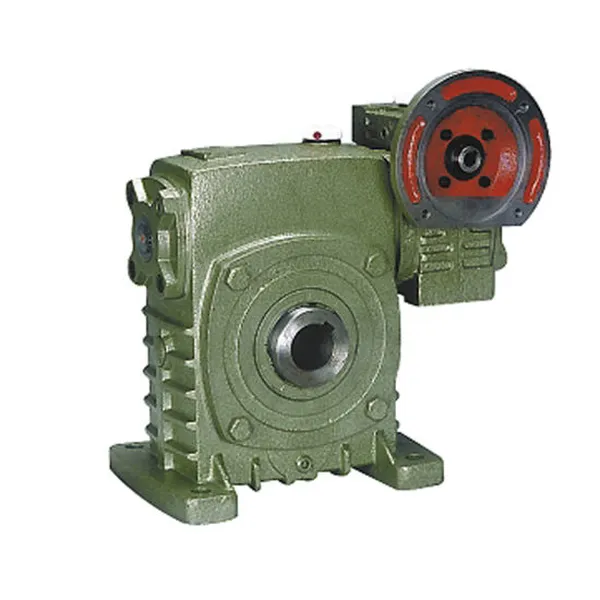

WPEDKS Vertical Worm Gearboxes

Type	Vertical worm gearbox
Model	WPEDKS
Ratio	1:200, 300, 400, 500, 600, 800, 900
Color	Blue/Gold Or On Customer Request
Material	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.
	Shaft-chromium steel-45#
Packing	Carton and Wooden Case
Warranty	1 Year
Usages	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing, Woodworking, Glass.
IEC Flange	56B14, 63B14, 63B5, 63B5, 71B14, 80B14 AND SO ON
Lubricant	Synthetic&Mineral

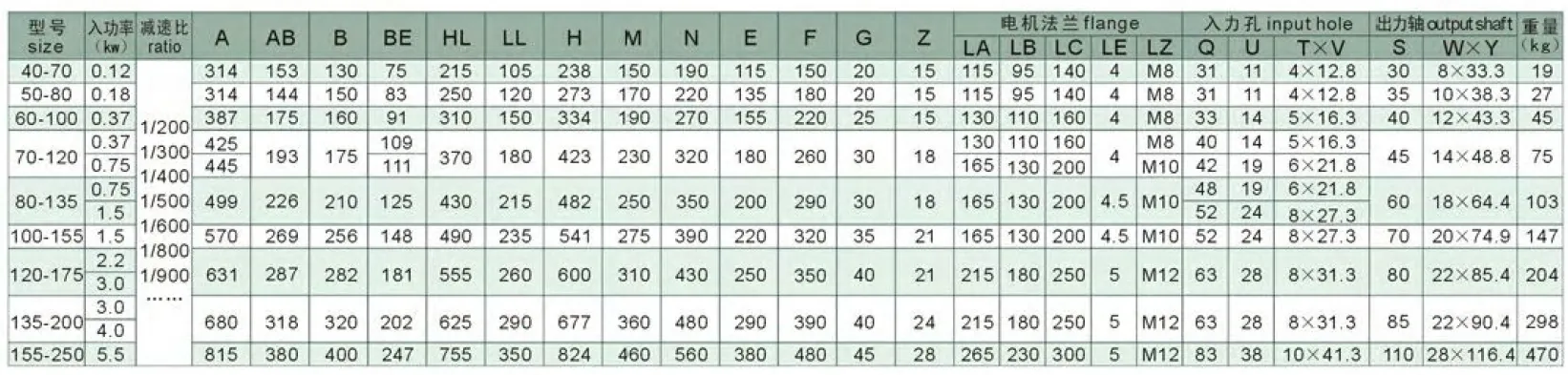

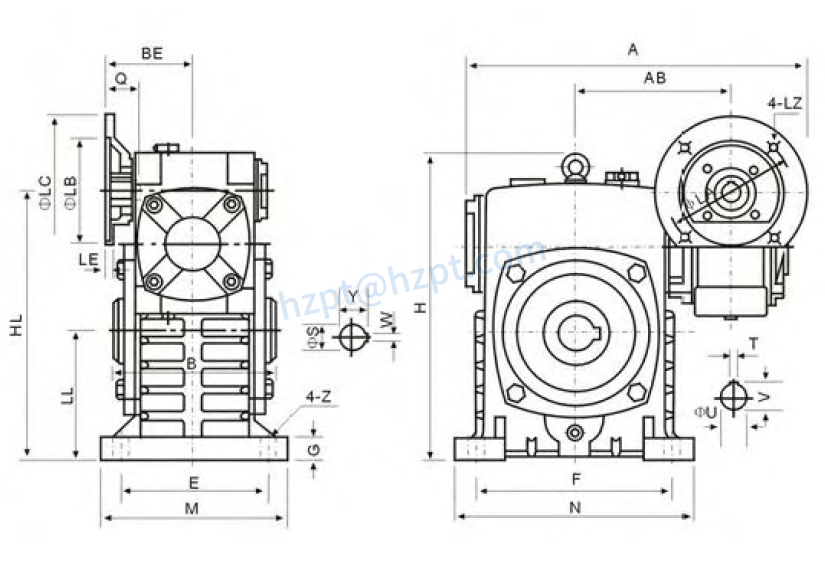

Specifications Parameter

The Advantages of the Worm Gearboxes Mainly Include the Following:

1. Compact mechanical structure, light volume, small size, and high efficiency.2. Good heat exchange performance and fast heat dissipation.3. Simple installation, flexible and light, superior performance, easy maintenance, and repair.4. Large transmission speed ratio, large torque, and high ability to withstand overload.5. Stable operation, low noise, and durability.6. Strong applicability and great safety and reliability.

Selection Steps Of Worm Gearboxes

1. Determine the speed ratio of the worm gear reducer, speed ratio = input speed/ output speed.2. Calculate the output torque of the worm gear reducer.3. Correct the output torque of the worm gear reducer.4. Calculate the power of the worm gear reducer.5. Determine the model specifications of the worm gear reducer.

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. WPEDKS Series Double Stage Worm Gearboxes

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry. WPEDKS Series Double Stage Worm Gearboxes

FQA

1. Q: What's the type of your company?A: We are a manufacturer.2. Q: What should I provide when I choose the speed reducer?A: load condition and speed of rotation or speed ratio (combination with combined speed reducer can get extra low out putting rotational speed) work circumstance (temperature, humidity, corrosion, etc.) and installation space.3. Q: How long does it take to finish my order?A: It depends on your quantity.4. Q: How can I know the process of my order?A: We will be sent detailed pictures and videos of the production process to you to confirm before shipping.
