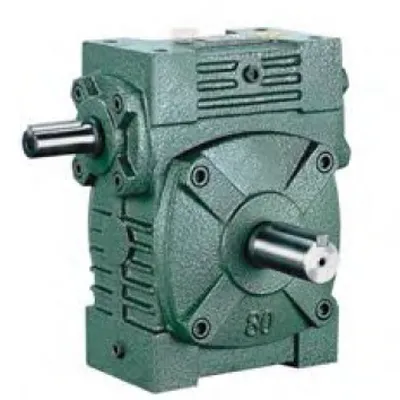

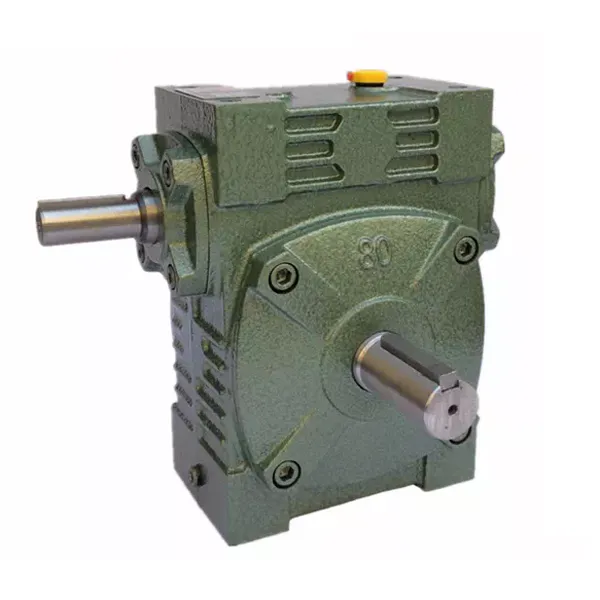

WPW Series Universal Speed Worm Gearboxes

WPW Series Universal Speed Worm Gearboxes

WPW series cast iron worm reducer size 40,50,60,70,80,100,120,135,155,175,200,250. The worm gear system transmits power through sliding contact, resulting in a low vibration, noise, little backlash, and self-locking property. Based on years of experience uses designed teeth surface with unsurpassed torque transfer performance with excellent performance, efficiency and cost. The structural strength of our cast iron, Heavy-duty Right angle series reducers are available in speed ratios ranging from5:1 to 60:1.Also; our gearboxes are supplied with a breather plug and oil mirror, which you can judge whether there is enough oil inside.

Product Description

Type:	WP Universal Speed Reducer-Iron Worm Gearbox
Model:	WPW
Others:	40,50,60,70,80,100,120,135,155,175,200,250

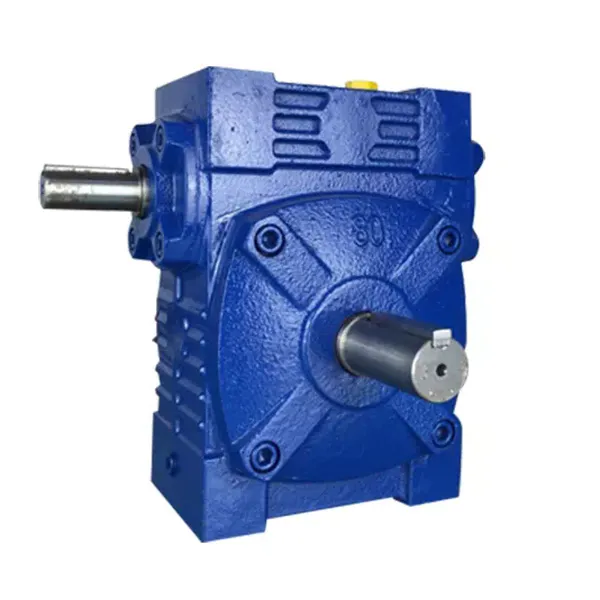

Color:	Blue/Green or on customer request
Material:	HT200
Input power:	0.18-7.5kw(Under the case of input speed 1500rpm)
Ratio:	10,15,20,25,30,40,50,60
Output torque:	6-3025N.M
Bearing:	C&U, NSK, SKF, or specified
Seal:	CTY, CFW, SKF, or specified
Product features:	It adopts American technology with durability, stable transmission, large carrying capacity, low noise, compact structure, large transmission ratio and vast power.
Application areas:	Textile printing and dyeing, rubber and plastic machinery, building materials machinery, environmental protection machinery, lifting machinery, food packaging, metallurgical machinery, petrochemical industry, stage machinery, and new energy field.
Lubricant:	Synthetic
Warranty:	1Year

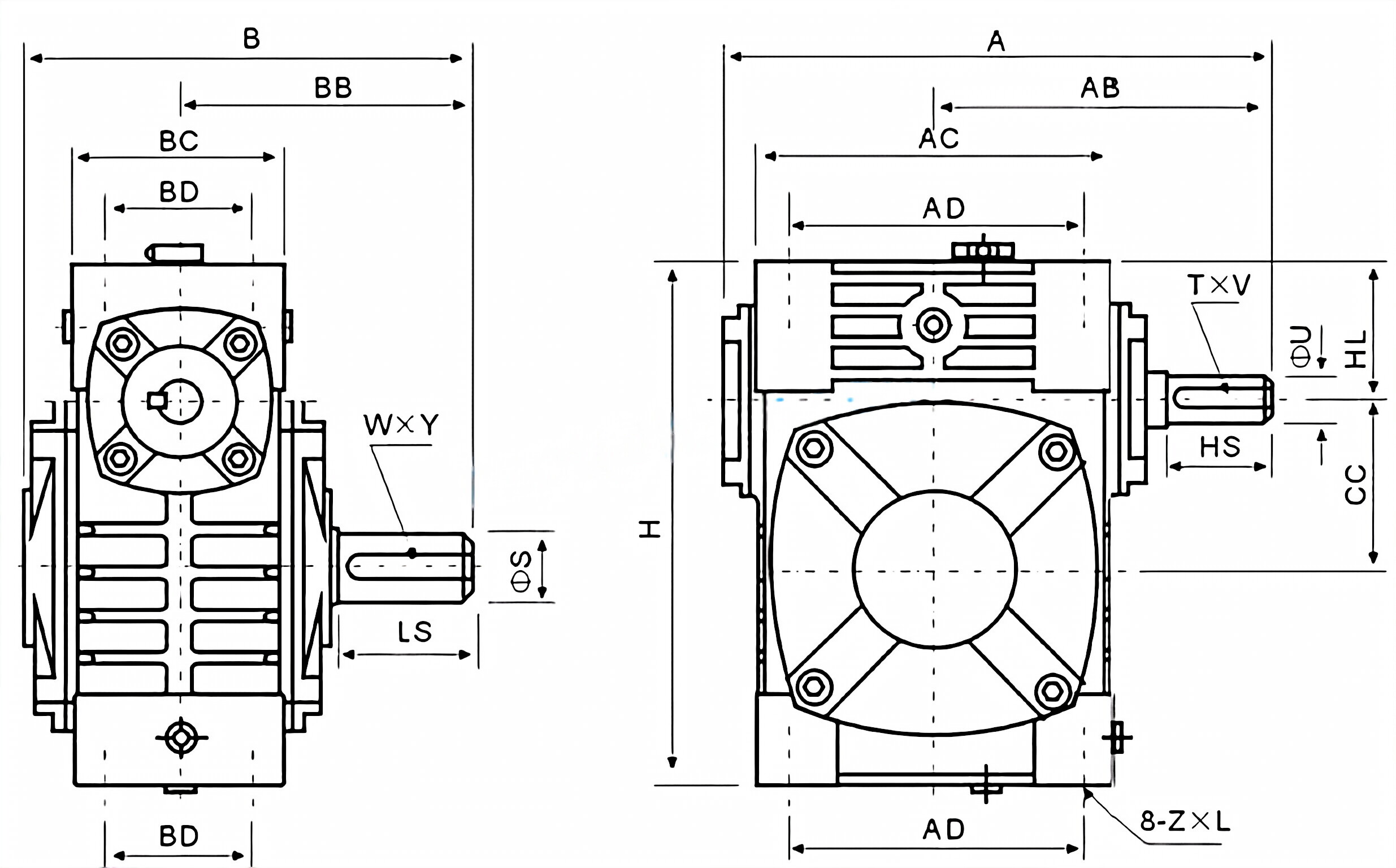

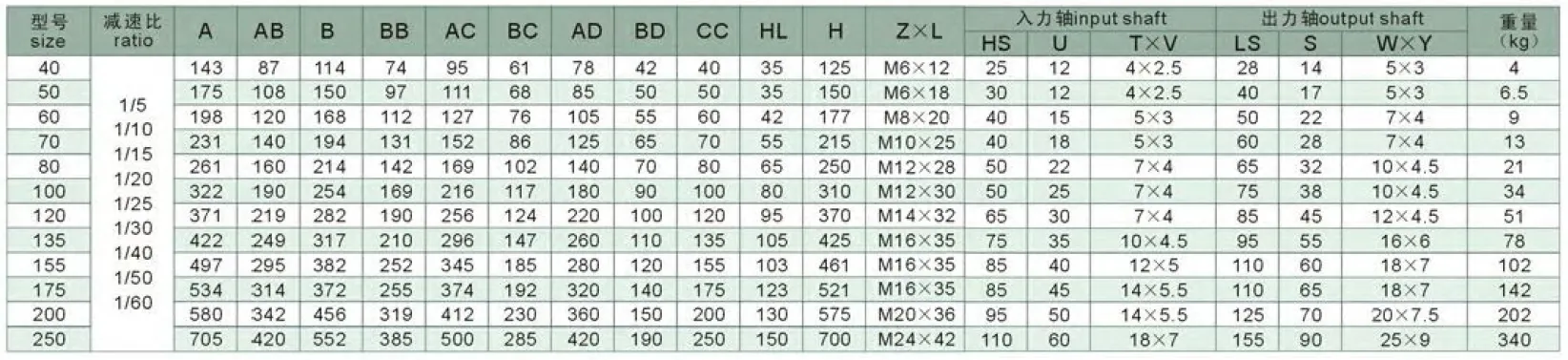

Product Specifications

Company Profile

We handle power transmission products; our lines mainly cover series products in speed reducers, gearboxes, associated electrical motors, and other accessories. Based on their versatile functions, our products can be utilized in many fields: wastewater treatment machines, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers worldwide.Furthermore, the R&D investment is increasing annually to meet our customers' new demands better and adapt to the recent tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

FAQ

Q: Are you a trading company or manufacturer?A: We are a factory.Q: How long is your delivery time?A: Generally,  it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.Q: Can we buy one pc of each item for quality testing?A: We are glad to accept trial orders for quality testing.Q: How to choose a gearbox that meets your requirement?A: You can refer to our catalog to choose the gearbox, or we can help to decide which you provide the technical information of required output torque, speed, parameters, etc.Q: What information shall we give before placing a purchase order?A: a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information.b) Housing color.c) Purchase quantity.d) Other special requirements.
