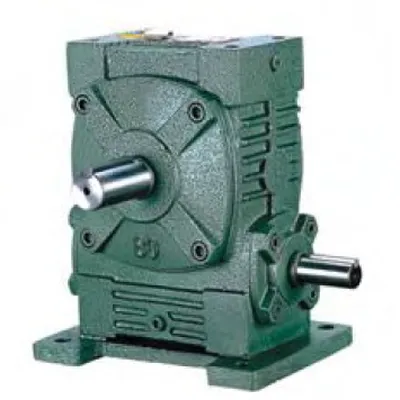

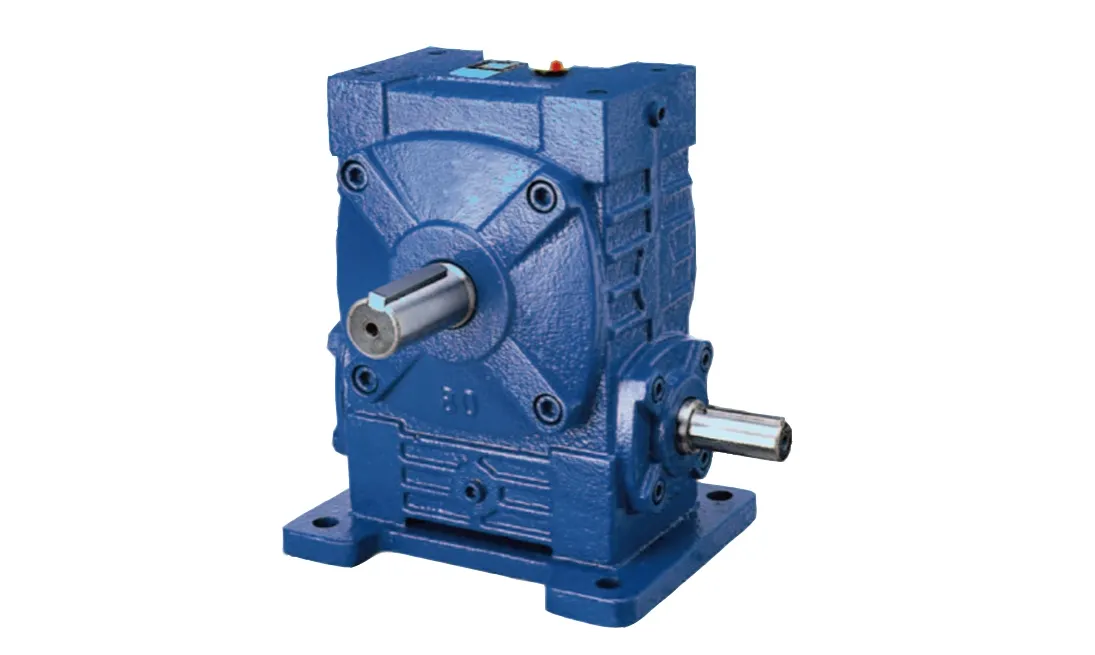

WPWA Series Universal Speed Worm Gearboxes

WPWA Series Universal Speed Worm Gearboxes

A worm gear reducer is a traditional transmission device, the inside is a turbine worm, and the tooth shape is involute. WPWA series worm gearboxes are made of 45 # steel through heat treatment processing. And the worm gear is cast with tin bronze. It has good wear resistance, especially outstanding in bearing capacity. It mainly applies to the reduction drive of various mechanical equipment such as plastic, metallurgy, beverage, mining, hoisting and transportation, and chemical construction.

WPWA Worm Reduction Gearbox

Applicable Industries	Manufacturing Plant, Construction works, Energy & Mining
Gearing Arrangement	Worm
Output Torque	19~2371
Input Speed	1400RPM
Output Speed	24~140
Place of Origin	Zhejiang, China
Brand Name	EPT
Color	Green, blue, yellow, red
Product name	Electric Motor Speed Reducer

Type	Worm reduction gearbox
Model	WPWA
Ratio	1:5,10,15,20,25,30,40,50,60
Color	Blue/Red Or On Customer Request
Material	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC
	Shaft-chromium steel-45#
Packing	Carton and Wooden Case
Warranty	1 Year
Usages	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing,Woodworking, Glass.
IEC Flange	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant	Synthetic&Mineral

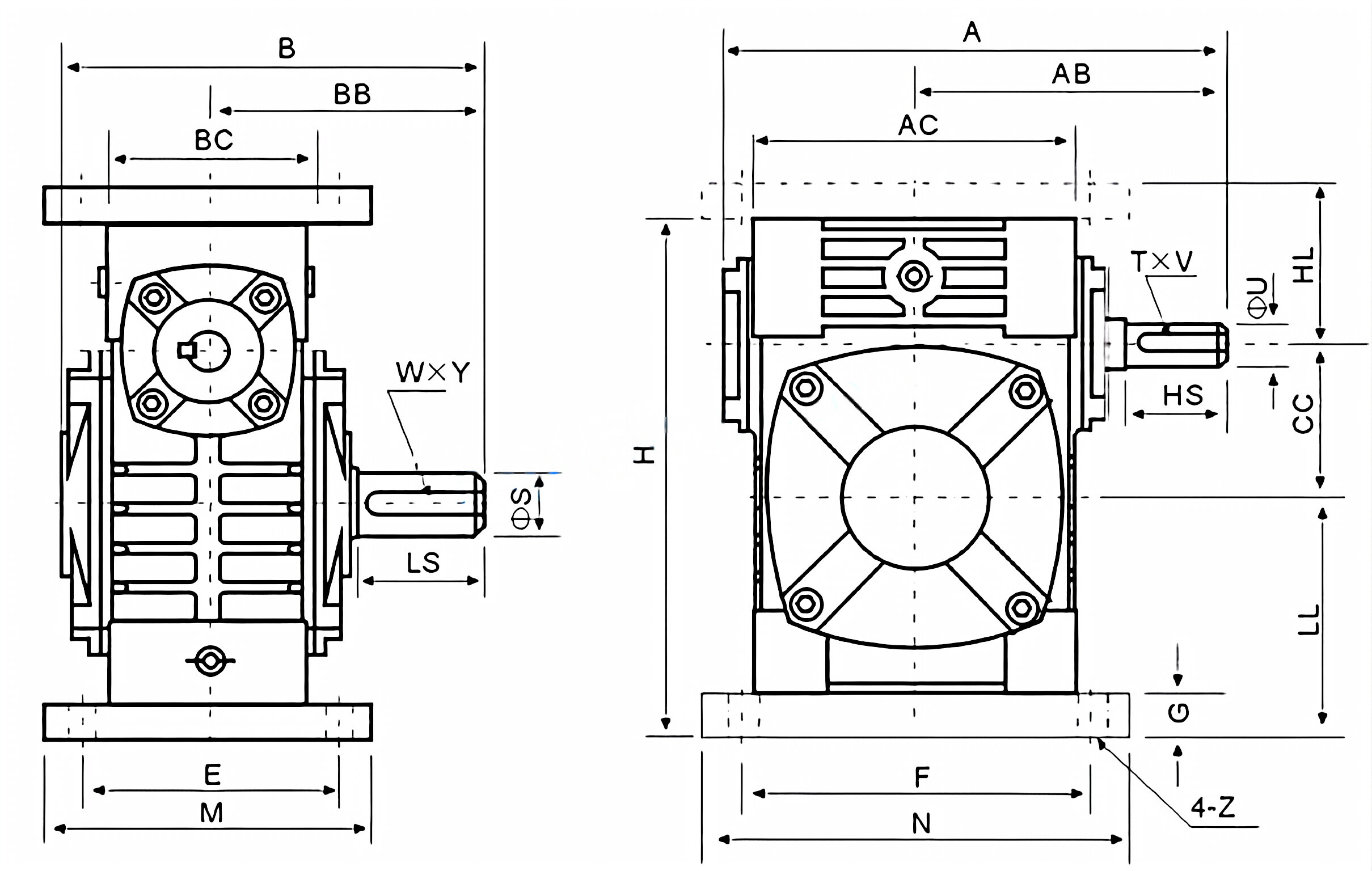

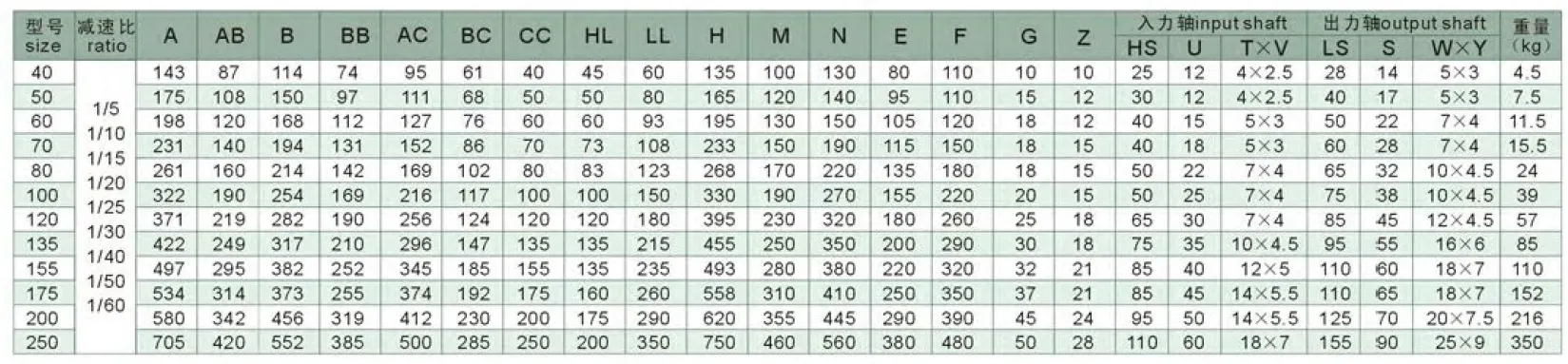

Specifications Parameter:

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.

FAQ

1 Q: What's your MOQ for reducer?A: 1unit is ok for sample testing2 Q: What about your warranty for your reducer?A: One year.3 Q: Do you provide OEM service with the customer logo?A: Yes, we could do OEM orders, but we mainly focus on our brand.4 Q: How about your payment terms?A: TT, western union. 100% payment in advance for orders less than $5,000. 30% deposit and balance before delivery for orders over $5,000.5 Q: How about your packing?A: Carton, Plywood case. If you need more, we can pack all goods in pallets.6 Q: What information should be given if I buy a gearbox from you?A: Rated power, gearbox ratio, input speed, and mounting position. More details, better!7 Q: How do you deliver the reducer?A: We will compare and choose the most suitable ways of delivery by sea, air, or express courier.We hope you will enjoy cooperating with us.
