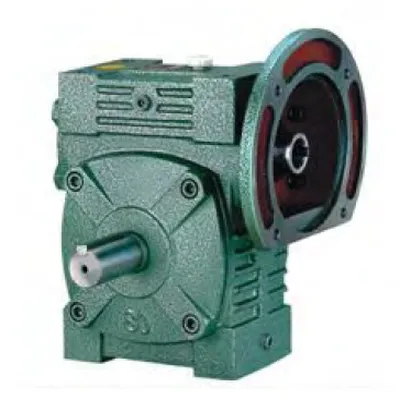

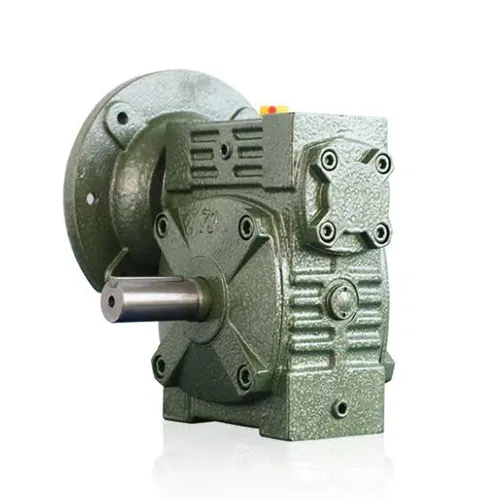

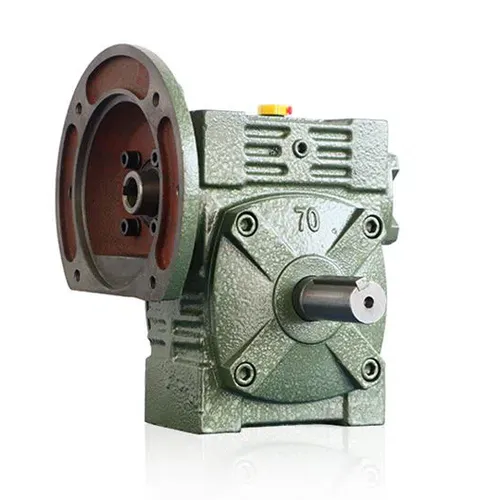

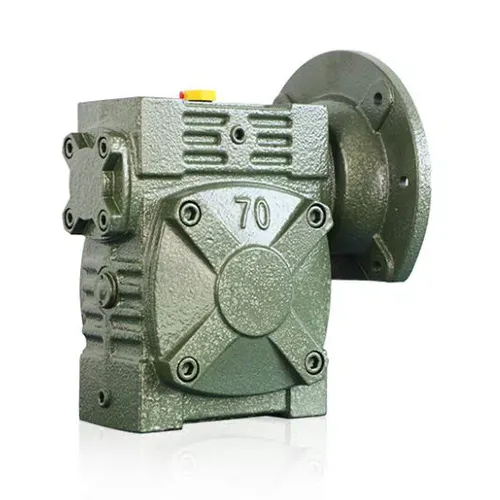

WPWD Series Universal Speed Worm Gearboxes

WPWD Series Universal Speed Worm Gearboxes

The material combination of the worm gear and worm reducer must have wear resistance and good run-in performance. The worm material is generally made of alloy or high-quality carbon steel. The tooth surface of the worm has been carburized, quenched, or nitrided to obtain higher hardness. Its hardness is generally between 35 and 55HRC, but there are also more than 60HRC. The material used to make the worm ring tin bronze, which is ideal. In terms of processing technology, centrifugal casting has the best mechanical properties, followed by metal casting and sand casting.We will provide a high-quality cast iron worm reducer with an elegant appearance, efficient radiator, and high carrying ability. It is installed on multiple surfaces and has a hollow output shaft and various input and output types; it can conjoin other transmission machinery efficiently.

WPWD Speed Decrease Gearbox Reducer

Type	Speed reducer Worm gearbox
Model	WPWD
Ratio	1:10,15,20,25,30,40,50,60
Color	Blue. green Or On Customer Request
Material	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.
	Shaft-chromium steel-45#
Packing	Carton and Wooden Case
Warranty	1 Year
Input Power	0.12-15 KW
Usages	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing,Woodworking, Glass.
IEC Flange	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant	Synthetic&Mineral

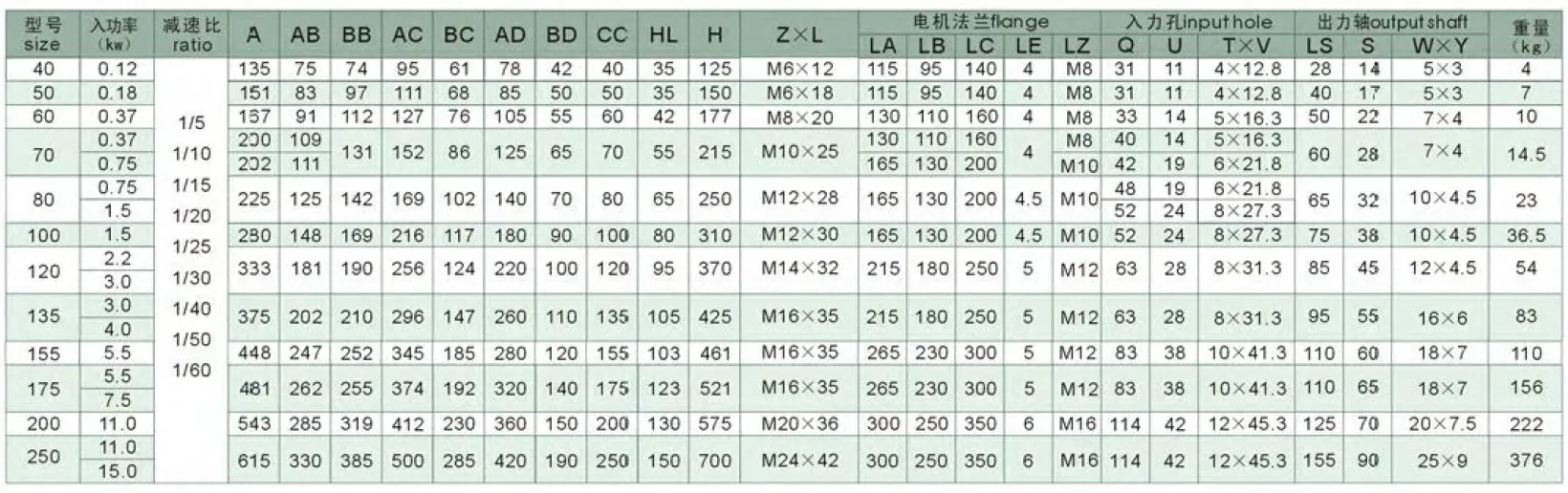

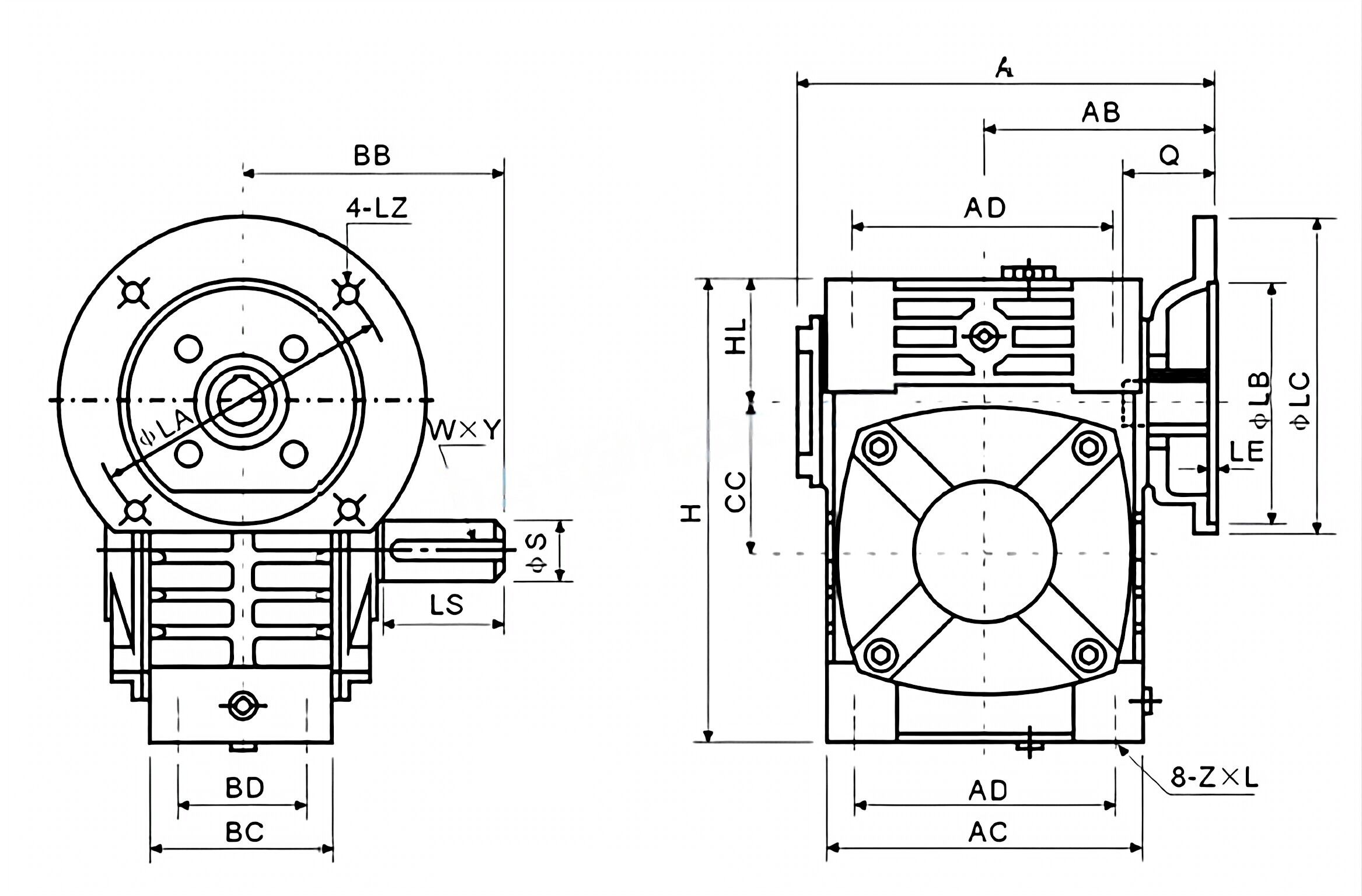

Specifications Parameter

Features of WPWD Series Worm Gearboxes

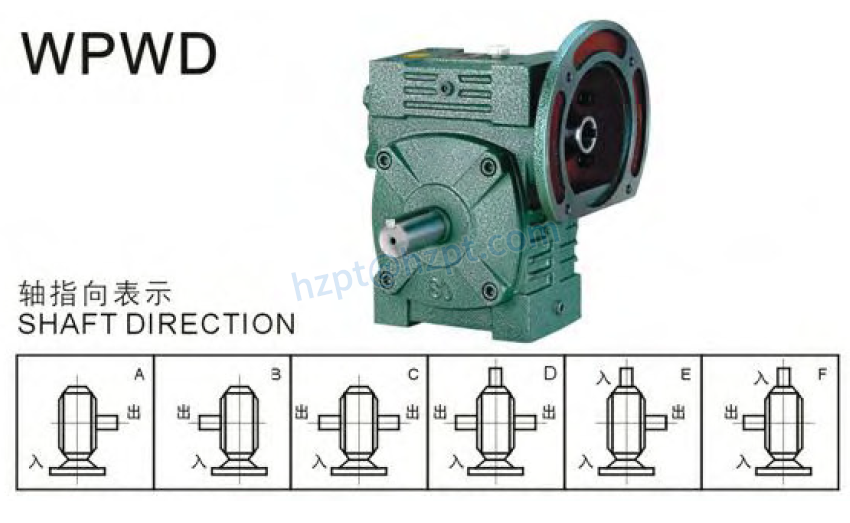

1. It's small in size, compact, lightweight, and saves space for mounting, lightweight, and non-rusting2. Runs steadily with low noise3. High reliability and high efficiency4. Specification: 40-250 casting iron housing)5. Input power: 0.04 - 7.5kW (four-stage motor)6. Output torque: 17 - 3000N.m7. Transmission ratio: 10-608. Easy installation: direct motor connection and shaft input, shaft and hollow shaft output form, shaft installation, and flange mounting forms.9. Good-looking appearance, durable service life, and small volumePacking and Transportation

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.

Why Choose Us?

1. Products tested&Well packed: all products will be tested and well-packed before shipping.2. Respond promptly: your inquiry will be replied to within 12 hours.3. Professional: we offer you professional solutions & advice.4. Good service: we think what you think and do what we urgently want.5. Quality Guaranteed: we keep mass production as the sample in high quality.

FAQ

Q: Can we order a sample？A: Yes, you can order a sample to check quality.Q: What is your loading port？A: Ningbo or Shanghai, China.Q: Do you accept OEM？A: Yes, we can customize as requested.Q: How extended warranty do you supply？A: Our products have 12 months warranty, easily broken spare parts excluded.Q: What is your payment term？A: Other terms can be accepted after confirmation by T/T, L/C.
