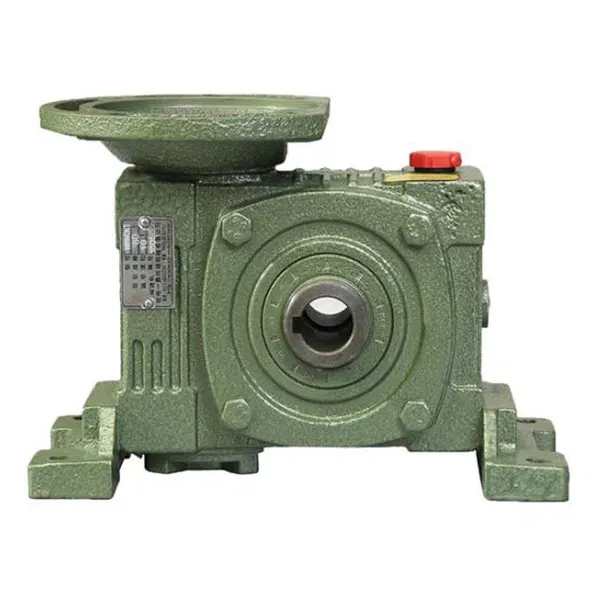

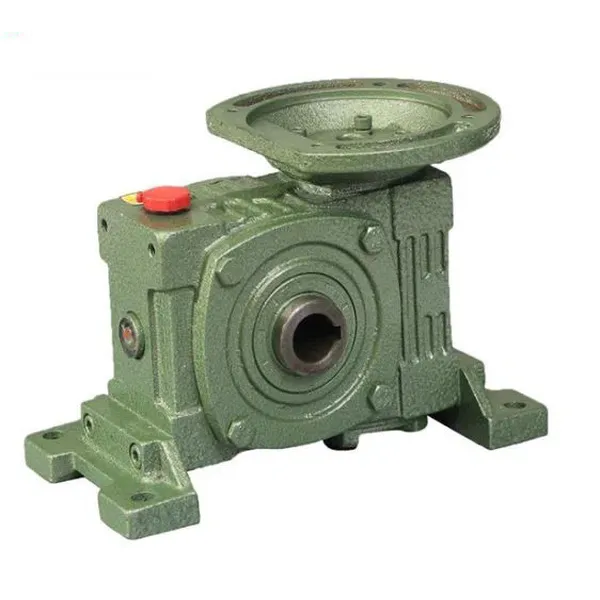

WPWDKT Series Universal Speed Worm Gearboxes

Structural Features of Worm Gear Reducer:

A large transmission ratio can be obtained, which is more compact than the staggered-axis helical gear mechanism.The meshing tooth surfaces of the two wheels are in line contact, and their bearing capacity is much higher than that of the staggered shaft helical gear mechanism.The worm drive is equivalent to a screw drive, a multi-tooth meshing drive, so the industry is stable, the noise is slight, and it is self-locking.When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking; that is, only the worm can drive the worm, but not the worm. Such as the self-locking worm mechanism used in its heavy machine, its reverse self-locking can play a role in safety protection.The transmission efficiency is low, and the wear is severe. When the worm gear is engaged in the transmission, the relative sliding speed between the meshing gear teeth is significant, so the friction loss is substantial, and the efficiency is low. On the other hand, the relative sliding speed causes severe wear and heat generation on the tooth surface. More expensive materials with good anti-friction and anti-wear properties and suitable lubricating devices are often used to dissipate heat and reduce wear, so the cost is high. , the axial force of the worm is large.

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.
