WPWED Series Double Stage Worm Gearboxes

Discover the WPWED Series Double Stage Worm Gearboxes by Raydafon Guoup, engineered for high-torque applications. Built with durable materials and precision design, it offers superior efficiency and quiet operation. Ideal for industries like manufacturing and automation, it ensures reliable performance, solves alignment and space challenges, and stands out with compact size and robust construction. Experience seamless power transmission and boost your productivity with this innovative solution.

Send Inquiry

Product Description

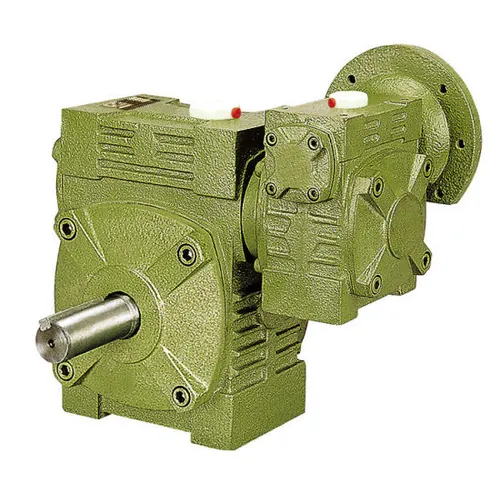

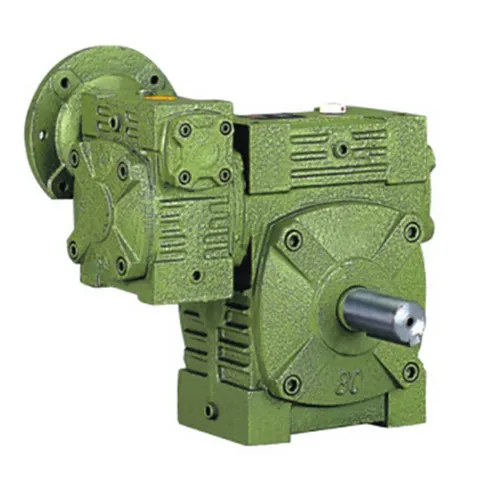

WPWED Series Double Stage Worm Gearboxes

WPWED series worm gearbox is a motor developed based on WD worm gearboxes. The worm is made of 45# high-quality steel after heat treatment. The worm gear is made of tin bronze. Excellent wear resistance. Especially the carrying capacity. The gearbox is mainly used for decelerating the transmission of various mechanical equipment. Such as plastics, metallurgy, beverage, mining, lifting transport, chemical construction, etc. Suitable for industry applications requiring reliable deceleration under high energy efficiency. Worm gearboxes for electric motors provide a perfect solution. We provide double deceleration, single deceleration, and worm gearboxes for motor products with diverse functions and good performance.

WPWED Worm Gearboxes

Type	worm gearbox
Model	WPWED
Ratio	1:200, 300, 400, 500, 600, 800, 900
Color	Blue/Red Or On Customer Request
Material	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.
	Shaft-chromium steel-45#
Packing	Carton and Wooden Case
Warranty	1 Year
Usages	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing, Woodworking, Glass.
Lubricant	Synthetic&Mineral

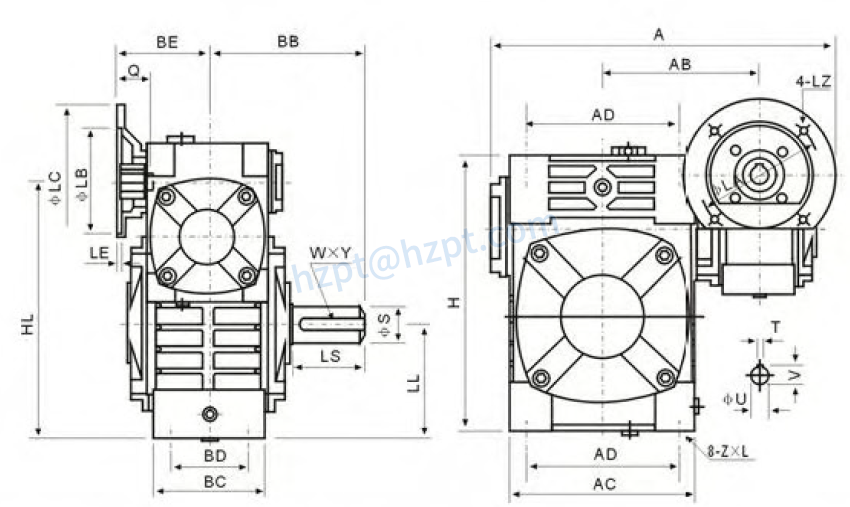

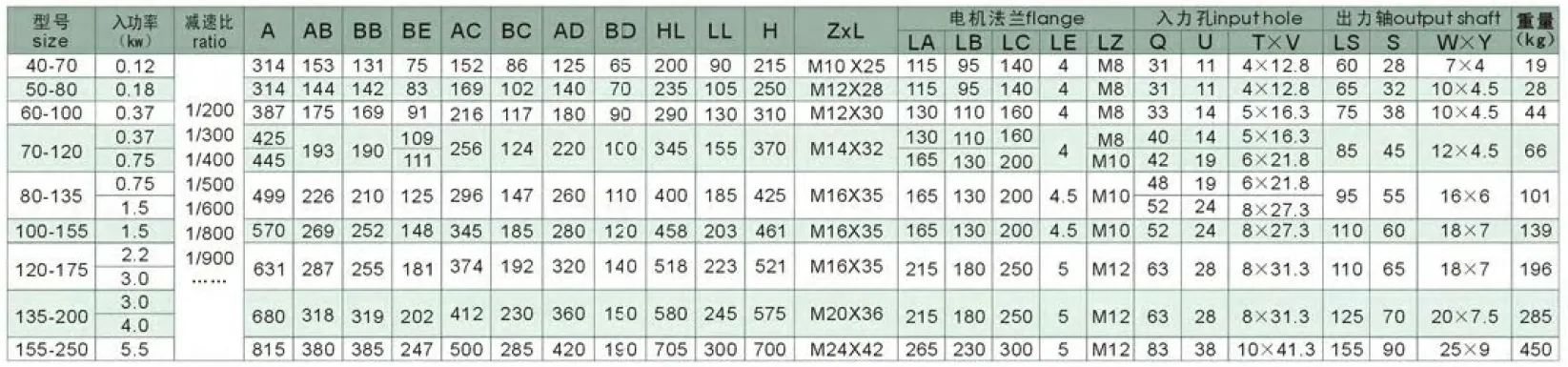

Specifications Parameter

Worm Gearboxes Application Requirements:

1. About placement: it can not be placed for too long, more than 3 ~ 6 months, and the oil seal is not immersed in the lubricating oil; it is recommended that the user of the reducer replace the oil seal.2. Working environment: Please follow the rules of reducer use; the standard working environment temperature is -5 degrees to 10 degrees; if more than this rated value, please get in touch with the manufacturer.3. Installation attention: worm gear and reducer must be firmly installed on the machine; it can not appear to lose phenomenon. In this process, confirming whether the gear reducer turns correctly is necessary, which can be a discontinuous installation operation.4. Protection device: after installation, when used, must first check the lubricating oil level, not immediately raise the load to the highest; it is recommended to increase gradually; it is recommended to install a protection device around the worm gear reducer.5. Ventilation device: reducer is usually used with a reducer motor or motor, so a ventilation device must be installed to improve heat dissipation and maintain the regular operation.

Our Superiority

1. Professional Service: Customized is our factory advantage.2. Delivery on Time.3. Good Quality: ISO 9001 Certificated;4. Faster and Lower Cost Deliver: Long-term cooperated shipping forwarders with us.

Application of WPWED Series Worm Gearboxes

It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc. WPWED Series Double Stage Worm Gearboxes

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. WPWED Series Double Stage Worm Gearboxes

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.

FAQ

Q: Can you make the worm gearbox with customization?A: Of -course. We can customize as promised, like flange, shaft, configuration, material, etc.Q: Do you provide samples?A: Of -course. The sample is available forQ: What is your MOQ?A: It is 1pc for the beginning of our business.Q: What's your lead time?A: Standard products need 5-30days, a bit longer for customized products.Q: Do you provide technical support?A: Of -course. Our company has a design and development team wand e can provide technical support when needed
