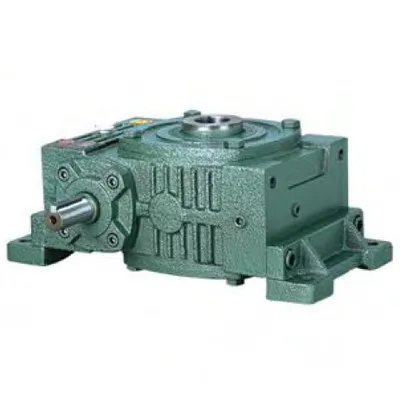

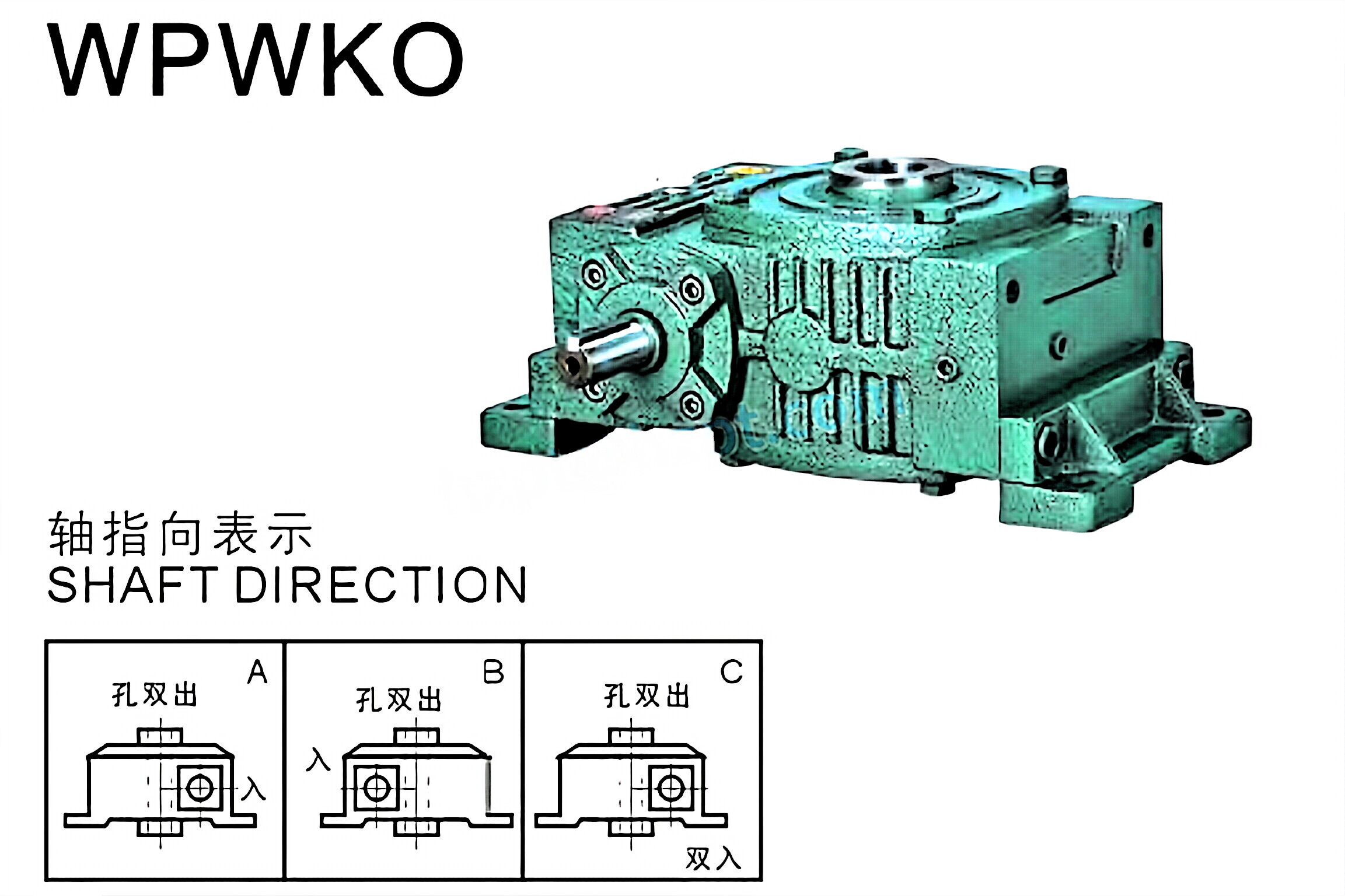

WPWKO Series Universal Speed Worm Gearboxes

WPWKO Series Universal Speed Worm Gearboxes

Worm gearboxes are called worm gear reducers or worm gear speed reducers and worm drive gearboxes, mainly by worm gear or gear, shaft, bearing, chassis, etc. The chassis supports the worm gear or gears, shaft, and bearings. Therefore, the shell of the reducer must have enough hardness to avoid deformation after loading, resulting in a decline in transmission quality. The chassis of the worm gear and worm transmissions are usually cast iron, with only a few heavy-duty transmissions made of cast steel.The gearbox shell comprises a box seat and cover, and the split surface passes through the transmission's axis. The Bolts connect the box seat and the box cover, and two positioning pins are used to accurately fix the joint position of the box cover and the box seat. The holes for mounting the bearings on the casing must be precise to ensure the correct solution of the mutual positions of the gear axes. The arrangement of the bolts should be reasonable, and the space required to move the wrench should be considered. The diameter of the bolts around the bearing can be slightly larger, as close as possible to the bearing.

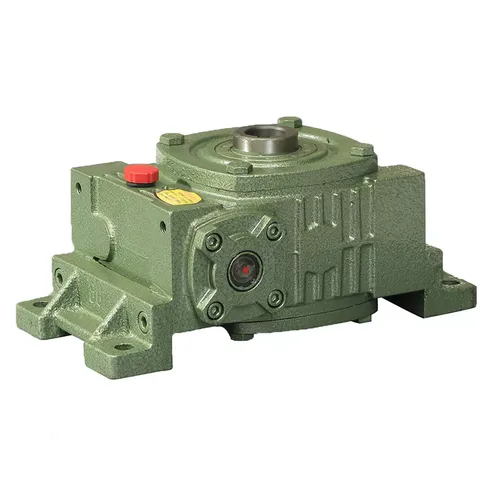

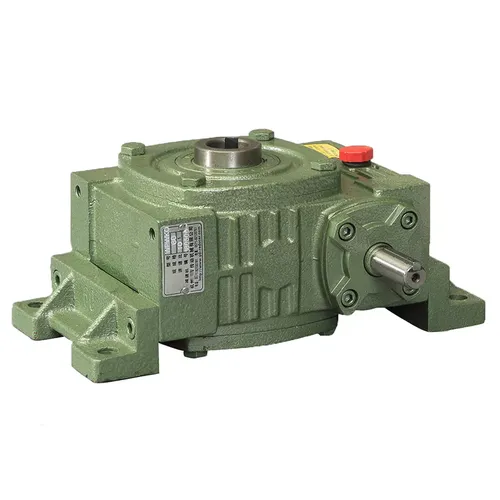

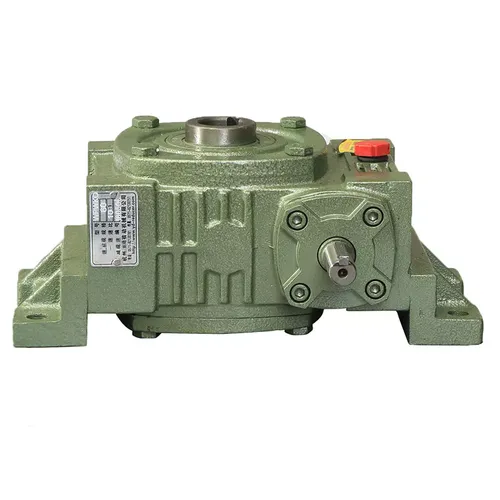

WPWKO Vertical Shaft Worm Drive Gearbox

Model NO.	WPWKO 40-250
Application	Industry
Hardness	Hardened
Type	Worm and Worm wheel
Frame Size	WPWKO 40-250
Input Power	0.12~15kw
Output Speed	25~300rpm
Output Torque	17~3000n,
Gear Arrangement	Worm
Input Speed	1500rpm
Color	Green, Grey.Blue.
Package Details	Wooden Case/Carton/Pallet
Weight	5~500kgs
Manufacturing Method	Rolling Gear
Toothed Portion Shape	Bevel Wheel
Material Trade Specification	ISO9001
Origin	Zhejiang

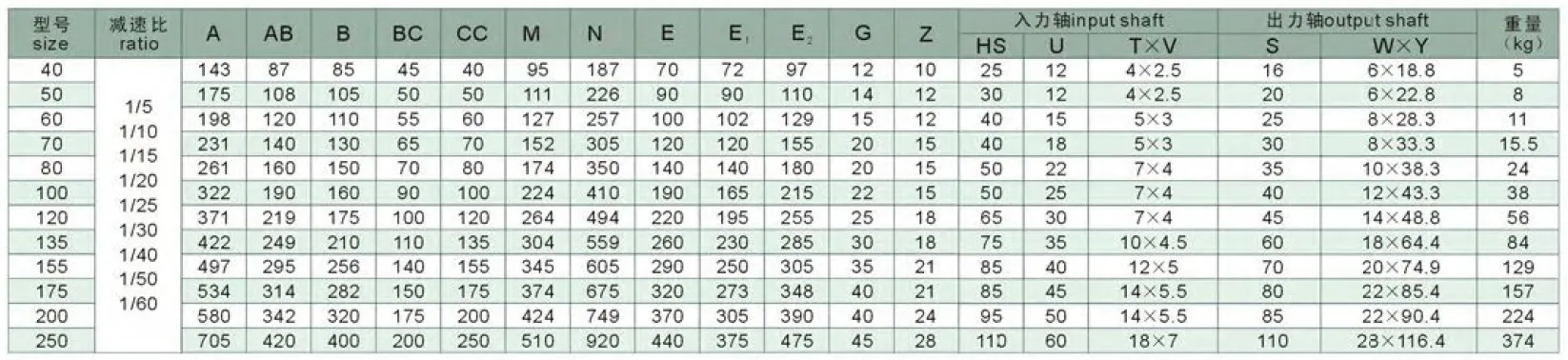

Product Specifications

What is the Working Principle of the Worm Gear Reducer?

The worm gear reducer is a power transmission mechanism that uses the gear's speed converter to decelerate the motor's number of revolutions to the required courses and obtain a significant torque mechanism. The application range of reducer is quite extensive in the tool used to transmit power and motion.The working principle of worm gear reducer:1. worm gear reducer overall structure, beautiful appearance, good rigidity.2. the box has the primary type (box is vertical or horizontal, with footboard) and general type (box is cuboid, multi-sided with fixed screw holes, without footboard or add the bottom of the footboard and other structural types)3. There are two types of input shaft connection: primary type (single input shaft and double input shaft) and two with motor flange.4. There are two output shaft structures: primary type (single output shaft, double output shaft) and hollow output shaft.5. The position direction of the output and input axis is the upper and lower direction of the input axis, Output shaft up and down, and Input axis up and down.6. can use two or three reducers into a multi-stage reducer to obtain a large transmission ratio. Installation and output: a base type, flange type, and torsion arm type installation, solid shaft and hollow shaft output, and direct output of worm.
