WPWS Series Universal Speed Worm Gearboxes

WPWS Series Universal Speed Worm Gearboxes

The worm gear reducer is a power transmission mechanism that uses the gear's speed converter to decelerate the motor's number of revolutions to the required courses and obtain a significant torque mechanism. In the tool used to transmit power and motion, the application range of the reducer is quite extensive. Two or three reducers can form a multi-stage reducer to obtain an excellent transmission ratio. Installation type and output method: a base type, flange type, torque arm type installation, solid shaft, hollow shaft output, and direct worm output.

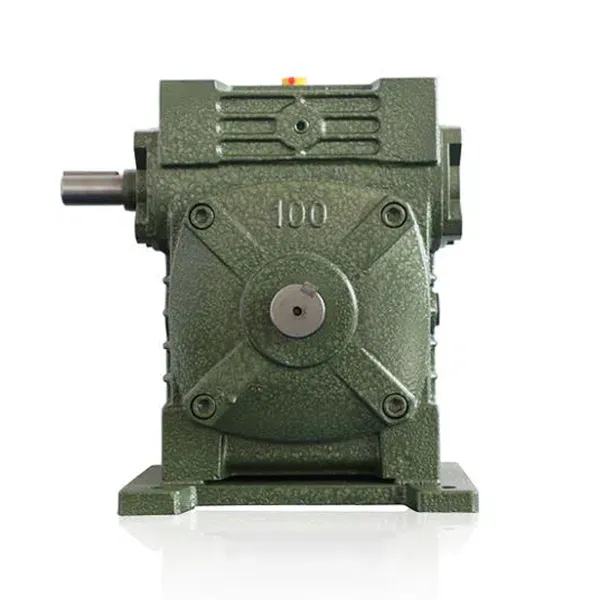

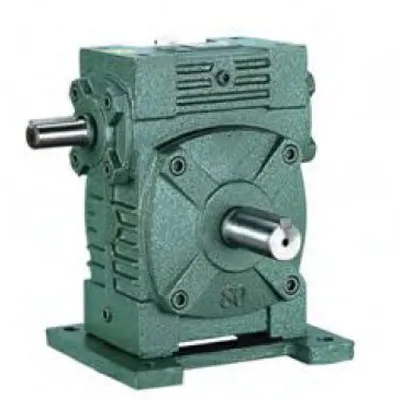

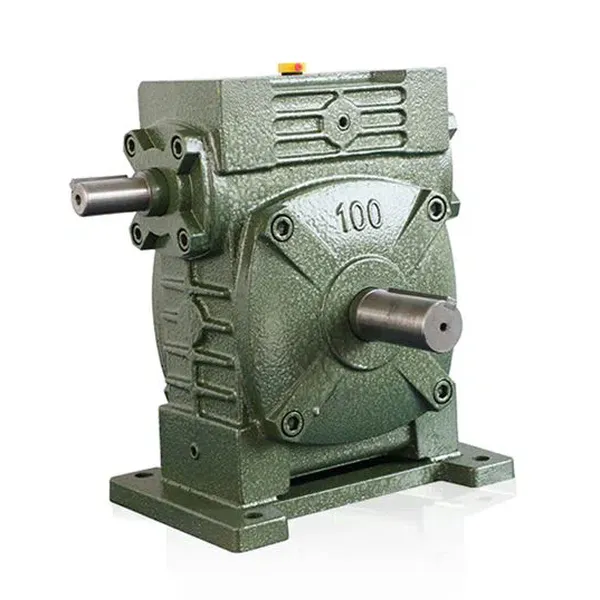

WPWS Cast Iron Worm Gear Speed Reducer

Place of Origin	Zhejiang, China
Brand Name	EPT
Model Number	WPWS
Gearing Arrangement	Worm
Output Torque	6-6050N.m
Rated Power	0.12-33KW
Input Speed	1500rpm
Output Speed	4-200rpm
Ratio	100-3600
Color	Blue/ Green/ Gray/ Red or on customer request
Material	HT200
Bearing	EPT Bearing
Seal	KSK
Quality	High precision
Lubricant	Synthetic & Mineral
Warranty	1Year

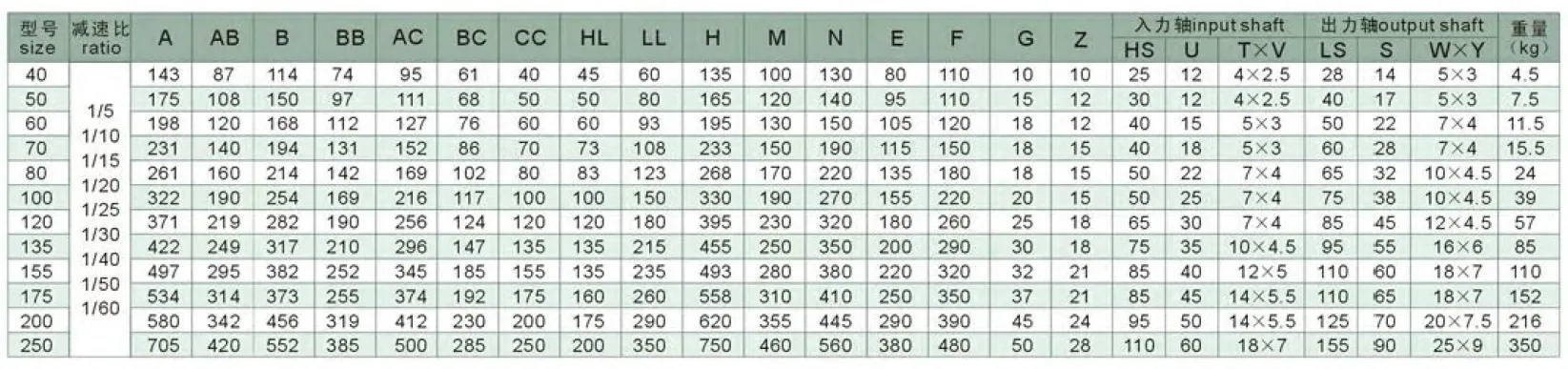

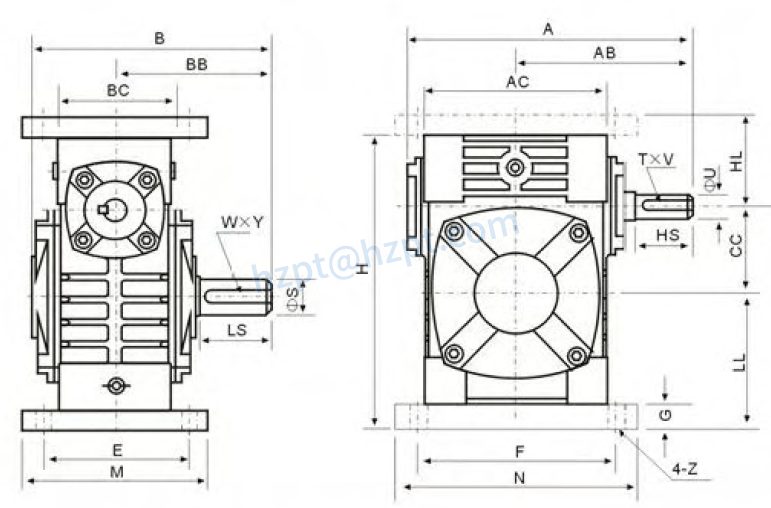

Product Specifications

Why Choose Our Worm Gearboxes?

1. High heat-radiating efficiency, high carrying ability2. With excellent quality3. Large output torque.4. Large output torque5. Reasonable price6. Good-looking appearance, durable service life, and small volume.7. Promise to deliver on time8. Suitable for Omni-bearing installation.9. Safe, reliable, economical, and durable10. Stable transmission, quiet operation11. Certificate of quality: ISO900112. Every product must be tested before sending13. Made of high-quality aluminum alloy, lightweight and non-rusting14. Smooth running and low noise.15. High radiating efficiency.

Company Profile

As a professional manufacturer of worm gearboxes and worm gear reducers in China, we mainly produce reduction gearboxes, aluminum case worm gearboxes, arc gear cylindrical worm gearboxes, worm gear reducers, in-line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, reliable quality, etc. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.We have 600 workers in our factory, which covers 70,000 square meters in Ningbo. We have been making 2,500 units of reducers every day since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the world. Our customers come from Italy, Germany, the USA, Canada, Spain, the UK, Mexico, Brazil, Argentina, Turkey, Singapore, and other leading industrial countries worldwide. 30% of them are OEM-made for direct manufacturers of other products.We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are confident that you will have confidence in our products after visiting our facility. We have the latest automatic equipment and experienced workers to ensure stable quality and large output. We have the most sophisticated technology and engineering team to support the most demanding requirements on standard and OEM products.

Our Services

As a result, we can provide standard and non-standard WP series gearboxes to meet customers' requirements.

1. High-quality product----Our tenet is "quality first." Suitable materials, precise manufacturing processes, and strict quality control can create excellent quality.2. Competitive price----We have our factory, scientific producing, and direct-selling.So we can save the cost and supply low price.3. Professional----Our professional engineer can answer technical questions, help you solve technical problems, and help you choose the most suitable product according to your requirements.4. Delivery fast----We are near the port and have a professional forwarder. Goods can be sent out within 1 to 10 working days based on order quantity.5. Best service----Answering e-mails or solving questions timely.Delivery and update information on time.

We also Provide Other Series of Universal Speed Worm Gearboxes.
