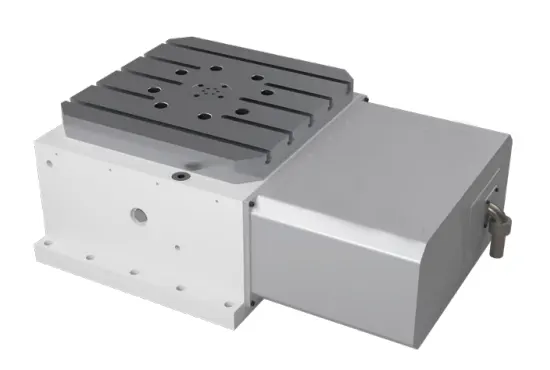

WT-H430 High Rigidity Worm Gear CNC Tilting 5th Axis Rotary Table

Introduction to CNC Rotary Table

The CNC Rotary Table is a fundamental part of a CNC machine tool. It is designed to precisely rotate the workpiece for machining operations. The WT-H430 model, manufactured by Raydafon (Ningbo Raydafon), is a high rigidity worm gear CNC tilting 5th axis rotary table. It is known for its superior performance, precision, and durability.

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	300 Kg

Product Features

• Horizontal micro-positioning table: Ensures accuracy during machining.
• Suitable for horizontal processing machines: Offers versatility.
• Hydraulic lock: Provides secure and stable operation.
• Heavy-duty cutting: Perfect for high-load applications.
• Simultaneous machining: Increases efficiency and productivity.

Working Principle of CNC Rotary Table

The CNC Rotary Table is composed of three main parts: the spindle, the drive mechanism, and the control system. The spindle is the axis that rotates the workpiece or tool, the drive mechanism provides power to the spindle, and the control system controls the speed and direction of the spindle.

Application Areas

The CNC Rotary Table is widely used in various machining operations, including Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, and Boring Machine.

Advantages of CNC Rotary Table

The CNC Rotary Table offers several advantages. It improves production efficiency by automatically rotating the workpiece or tool. It also ensures accurate positioning during rotation, thereby improving product quality. Furthermore, it reduces the need for manual labor, hence lowering labor costs.

Worm Gear System in CNC Rotary Tables

A worm gear is a helical structure, similar to a propeller, while a worm wheel is a gear that pairs with it, usually having more teeth than the worm. This design provides a high transmission ratio, allowing for greater torque output within a smaller space. In CNC machines, rotary tables often use worm gear systems because they can provide precise positioning and stable rotational movement, making them ideal for tasks requiring precise control and stability.

About Raydafon (Ningbo Raydafon)

Raydafon is one of the leading suppliers of CNC turntables. The company actively develops R&D innovation and production technology, fully cooperating with the rapidly changing needs of customers, and designs the CNC rotary table that meets the needs of customers. Raydafon has always been adhering to the business philosophy of "honesty based, harmony based, technology-based, industry competitive". The company's products are widely used in various processing equipment, such as non-standard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, military, aerospace and other fields. Its main products are 4-axis, 5-axis CNC turntable and horizontal 4-axis turntable for tool machine tools. At the same time, it provides users with solutions for CNC precision turntable or swing mechanism.We encourage you to explore this remarkable product and contact us for your purchase. We guarantee quality, affordable pricing, and excellent service.
