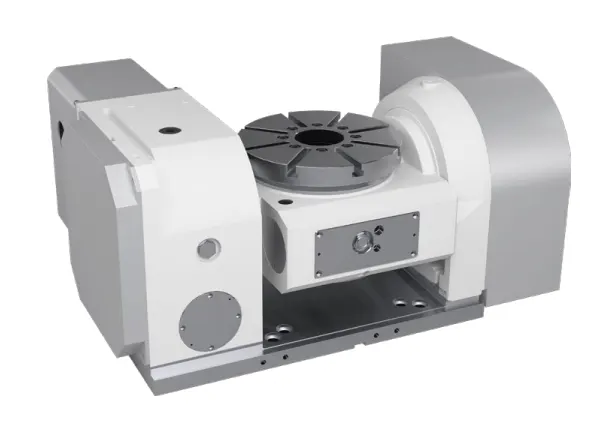

WT-S250 High Rigidity 5th Axis CNC Rotary Table for Milling Machine Turntable

Introduction to CNC Rotary Tables

The CNC rotary table is an essential component of the CNC machine tools. It serves as the platform where the workpiece is placed for machining. The key feature of the CNC rotary table is its ability to rotate the workpiece in various angles, allowing the machine tool to perform complex cutting tasks with high precision. The WT-S250 model stands out among its peers with its high rigidity and adaptability to both vertical and horizontal structures, making it a versatile choice for various machining tasks.

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	290 Kg
Customization:	Available | Customized Request

Key Features of the WT-S250 CNC Rotary Table

• The tilting axis, the rotating axis, and the support seat all adopt the embracing hydraulic brake mechanism: This feature ensures stability and precision during machining.
• High rigidity: The WT-S250 model is highly rigid, making it resistant to deformation and enhancing its durability.
• Stainless steel material: The use of stainless steel enhances the product's corrosion resistance, ensuring its longevity.
• Applications: The WT-S250 model can be applied to various machines, such as Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, Boring Machines, etc., demonstrating its versatility.



Working Principle of CNC Rotary Tables

The CNC rotary table is composed of three main components: the spindle, the drive mechanism, and the control system. The spindle is the axis that rotates the workpiece or tool, the drive mechanism provides power to the spindle, and the control system controls the speed and direction of the spindle. This principle ensures the precision and stability of the machining process.

Advantages of Using CNC Rotary Tables

• Improved production efficiency: The CNC rotary table can automatically rotate the workpiece or tool, thereby improving production efficiency.
• Improved product quality: The CNC rotary table can ensure that the workpiece or tool maintains an accurate position during rotation, thereby improving product quality.
• Reduced labor costs: The CNC rotary table can reduce the need for manual labor, thereby reducing labor costs.

Worm Gear System in CNC Rotary Tables

A worm gear is a spiral structure, similar to a propeller, and a worm wheel is the gear that pairs with it. This design provides a high transmission ratio, allowing for a greater torque output in a smaller space. CNC machines often use worm gear systems in their rotary tables because they provide precise positioning and stable rotational motion, making them ideal for tasks that require precise control and stability.

About Raydafon (Ningbo Raydafon)

Raydafon is one of the leading suppliers of CNC turntables. The company actively innovates in R&D and production technology, fully cooperating with the rapidly changing needs of customers, and designing CNC rotary tables that meet customer needs. Raydafon has always adhered to the business philosophy of "honesty-based, harmony-based, technology-based, industry competitive". With the support from all walks of life, we will continue to advance in R&D and service, and strive to become a reliable professional service provider and leading brand in China's machine tool industry.

Frequently Asked Questions

Q: What is the lead time for the WT-S250 model?

A: For common models, the lead time is about 5-7 workdays. For customized models, the lead time may be about 30 workdays.

Q: Can the products and package be customized?

A: Yes, we accept OEM orders. You just need to tell us your detailed requirements and we will design and provide the 3D modeling for your confirmation. If all is ok, the production will be arranged.

Q: What is the quality guarantee?

A: We offer a one-year guarantee for our products.Explore the WT-S250 High Rigidity 5th Axis CNC Rotary Table for Milling Machine Turntable now and contact us for more details!Edited by Zqq.
