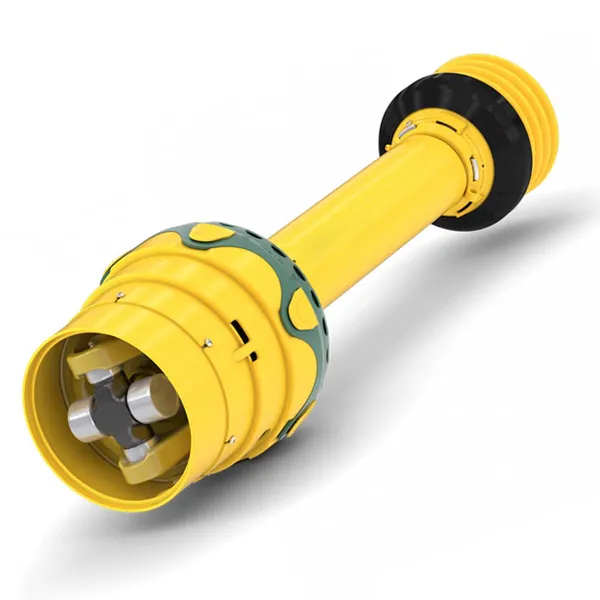

The WWE2280 series PTO shaft is a type of power take-off (PTO) shaft used in agricultural machinery, such as tractors and other farm equipment, to transfer power from the engine to the attached implements. PTO shafts are commonly used to power rotary mowers, tillers, and other equipment that is powered by a rotating shaft. The WWE2280 series PTO shaft is designed for heavy-duty applications and is capable of transmitting up to 300 horsepower.The WWE2280 series PTO shaft features a telescoping design, which allows it to extend and retract to accommodate different lengths between the tractor and the implement. It also has a safety shield to help prevent accidental contact with the rotating shaft and a locking collar to ensure that the shaft stays securely attached to the tractor and implemented.

WWE2280 Series PTO Shaft Specifications

Product Name	WWE2280 Series PTO Shaft
Long description	Wide-angle CV PTO drive shafts complete 80° series WWE 2280 / 80°
Application range	Slurry tank Crop sprayers Drawn hay processing machine
Properties	Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length center distance of the outer intersection
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Wide angle pto-shaft, 1-sided, with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Automatic collar lock
Attachment machine side	Quick disconnect yoke
Size code	WWE 2280
Length	1210 mm
Power 540 rpm	20 kW
Power 1000 rpm	31 kW
Cross joint bush diameter by tractor side - longer part	22 mm
Cross joint bush diameter by tractor side	24 mm
Cross joint length by tractor side - longer part	76 mm
Cross joint length by tractor side	61 mm
Cross joint bush diameter by machine side	24 mm
Cross joint length by machine side	61 mm
Clutch type	n/a
Outer tube profile	1G
Outer tube wall thickness	2.7 mm
Outer tube large outside diameter	48 mm
Inner tube profile	OvGA
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	1850 N·m
Protection type	ST15
Original number equivalent	1800092
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used, and this item will take 24-48 hours to deliver.

WWE2280 Series PTO Shaft Size Chart

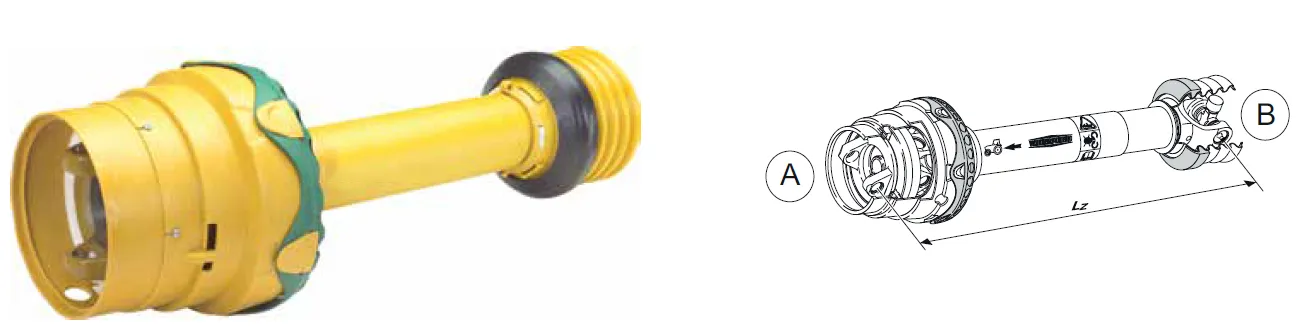

1. WWE2280 Series PTO Drive Shaft

Order Number	Type	Length	Guard	Tube	A		B
		(mm)			Yoke	Bore dim	Yoke	Bore dim
1113142	WWE2280	860	SDF15	0vGA/1G	ASGE	1 3/8” x 6Spline	AG	1 3/8” x 6 Spline
1113143	WWE2280	1210	SDF15Z	0vGA/1G	ASGE

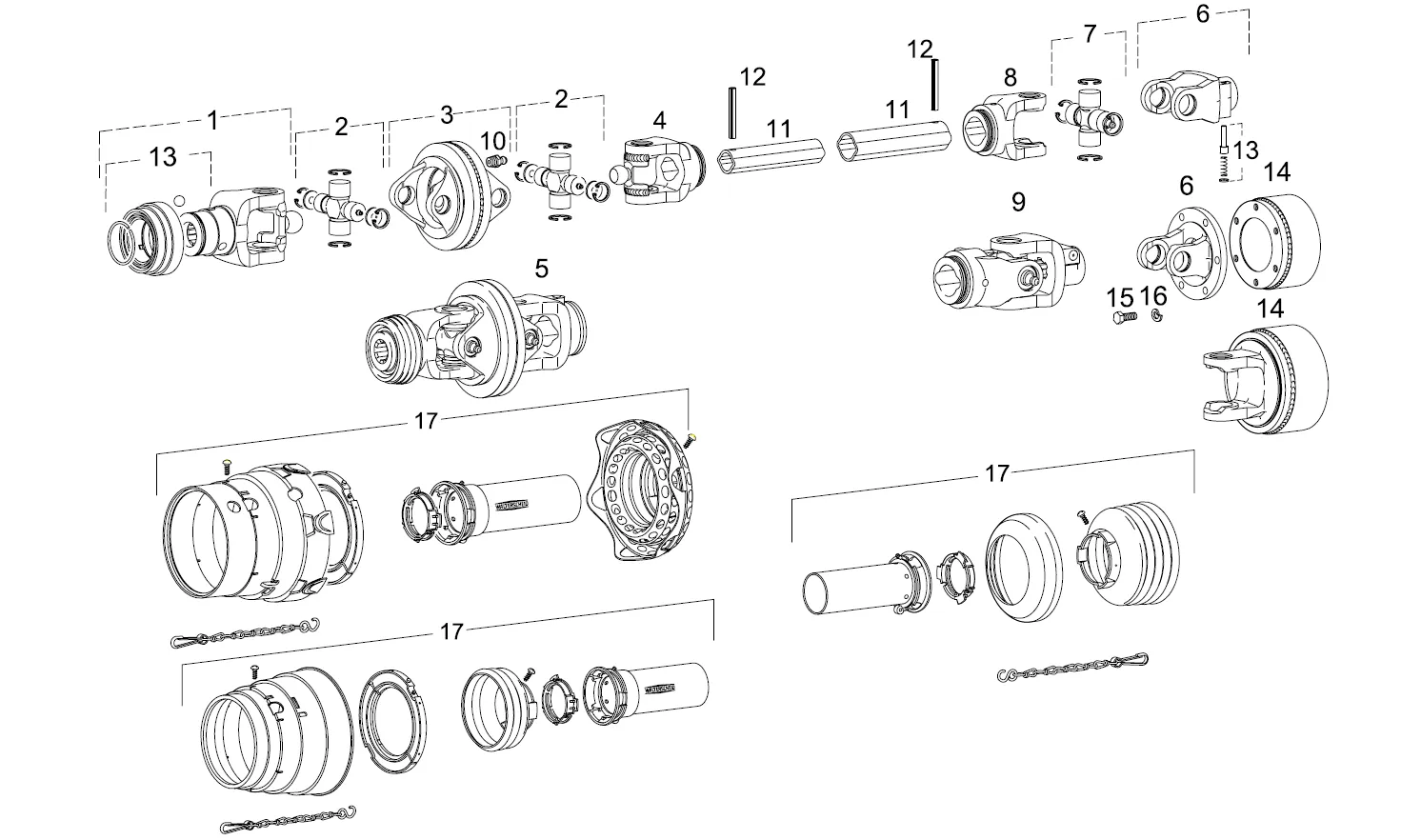

WWE2280 Series PTO Shaft Parts Diagram

Number	Parts Name	Number	Parts Name
1	Tractor Yoke	10	Grease nipple
2	Cross & Bearing Kit	11	Inner Tube
3	Double Yoke	12	Roll pin
4	Inner Profile Yoke	13	Closures for yoke & couplings
5	Yoke	14	Slip clutch
6	Outer Profile Yoke	15	Hexagon head screw
7	Cross & Bearing Kit	16	Spring washers
8	Yoke groove	17	PTO shaft guard
9	U joint

Benefits of Using the WWE2280 Series PTO Shaft

There are several benefits to using the WWE2280 series PTO shaft in agricultural equipment:1. Heavy-duty performance: The WWE2280 series PTO shaft is designed for heavy-duty applications, making it suitable for use with powerful tractors and heavy implements. It can transmit up to 300 horsepower, which means it can handle demanding tasks such as tilling, mowing, and harvesting.2. Telescoping design: The telescoping design of the WWE2280 series PTO shaft allows it to extend and retract, making it easier to connect and disconnect the shaft from the tractor and implement. This feature also means that the shaft can be adjusted to accommodate different lengths between the tractor and the implement.3. Safety features: The WWE2280 series PTO shaft comes equipped with a safety shield that helps prevent accidental contact with the rotating shaft. The locking collar ensures that the shaft stays securely attached to the tractor and implement, reducing the risk of accidents.4. Durability: The WWE2280 series PTO shaft is made from high-quality materials and is designed to withstand the rigors of heavy use. This means that it is less likely to break or wear out prematurely, reducing the need for repairs and replacements.Overall, the WWE2280 series PTO shaft offers reliable, heavy-duty performance and safety features that make it a good choice for agricultural equipment. Its telescoping design and durability also make it a convenient and cost-effective option for farmers and other users.

Applications of WWE2280 Series PTO Shaft

The WWE2280 series PTO shaft can be used in a variety of agricultural applications where power needs to be transferred from a tractor to an attached implement. Some common applications of the WWE2280 series PTO shaft include:(1) Rotary mowers: The WWE2280 series PTO shaft can be used to power rotary mowers, which are commonly used to cut grass and other vegetation on farms.(2) Tillers: The WWE2280 series PTO shaft can be used to power tillers, which are used to prepare the soil for planting by breaking up and loosening the soil.(3) Harvesting equipment: The WWE2280 series PTO shaft can be used to power harvesting equipment such as combines and balers, which are used to harvest and process crops.(4) Hay equipment: The WWE2280 series PTO shaft can be used to power hay equipment such as hay balers, which are used to bale and store hay for animal feed.(5) Manure spreaders: The WWE2280 series PTO shaft can be used to power manure spreaders, which are used to distribute animal manure as fertilizer on fields.Overall, the WWE2280 series PTO shaft is suitable for a wide range of agricultural applications where power needs to be transferred from a tractor to an implement. Its heavy-duty design and safety features make it a reliable and convenient option for farmers and other users.

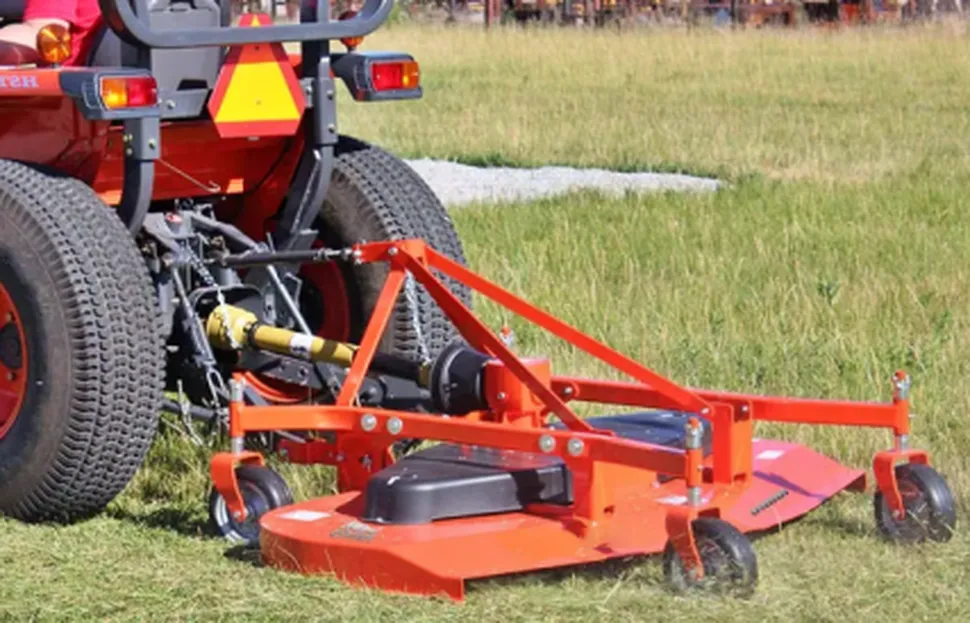

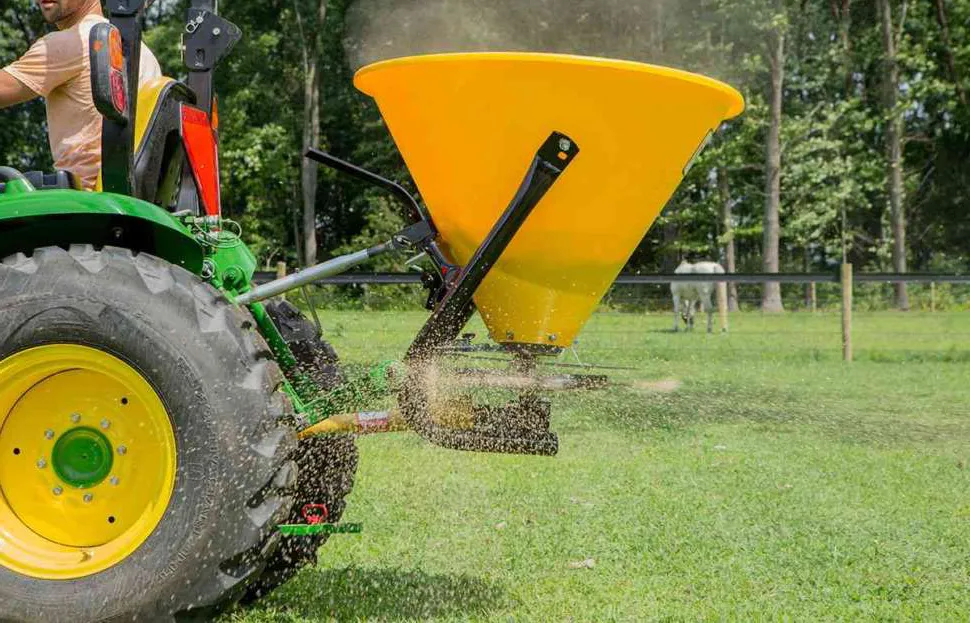

WWE2280 Series PTO Shaft for Rotary Cutter	WWE2280 Series PTO Shaft for Fertilizer Spreader

WWE2280 Series PTO Shaft and Agricultural Gearbox

The WWE2280 series PTO shaft can be used in conjunction with an agricultural gearbox to transfer power from a tractor to an implement. An agricultural gearbox is a device that is mounted between the tractor and the implement and is used to change the speed and direction of the power being transferred. The agricultural gearbox takes power from the PTO shaft and transmits it to the implement through a series of gears.The WWE2280 series PTO shaft is designed to work with a variety of agricultural gearboxes, depending on the specific application. For example, a rotary mower may require a gearbox with a different gear ratio than a tiller or a baler. When selecting an agricultural gearbox to use with the WWE2280 series PTO shaft, it is important to consider factors such as the horsepower and speed requirements of the implement, as well as the desired output speed and direction.Overall, the combination of the WWE2280 series PTO shaft and an agricultural gearbox provides a versatile and reliable system for transferring power from a tractor to an implement in a variety of agricultural applications.

WWE2280 Series PTO Shaft FAQ

Q1: What is the maximum horsepower that the WWE2280 series PTO shaft can transmit?A: The WWE2280 series PTO shaft is capable of transmitting up to 300 horsepower, making it suitable for heavy-duty applications.Q2: What is the telescoping range of the WWE2280 series PTO shaft?A: The telescoping range of the WWE2280 series PTO shaft varies depending on the specific model but typically ranges from 43 to 67 inches.Q3: What safety features does the WWE2280 series PTO shaft have?A: The WWE2280 series PTO shaft comes equipped with a safety shield that helps prevent accidental contact with the rotating shaft. It also has a locking collar that ensures the shaft stays securely attached to the tractor and implements.Q4: Can the WWE2280 series PTO shaft be used with any type of implement?A: The WWE2280 series PTO shaft is designed to work with a variety of implements, but it is important to ensure that the implement is compatible with the specific model of the PTO shaft being used.Q5: What maintenance does the WWE2280 series PTO shaft require?A: The WWE2280 series PTO shaft should be inspected regularly for signs of wear or damage, and any damaged components should be replaced immediately. The shaft should also be lubricated regularly with high-quality grease to ensure smooth operation.
