WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft
  • WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO ShaftWWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

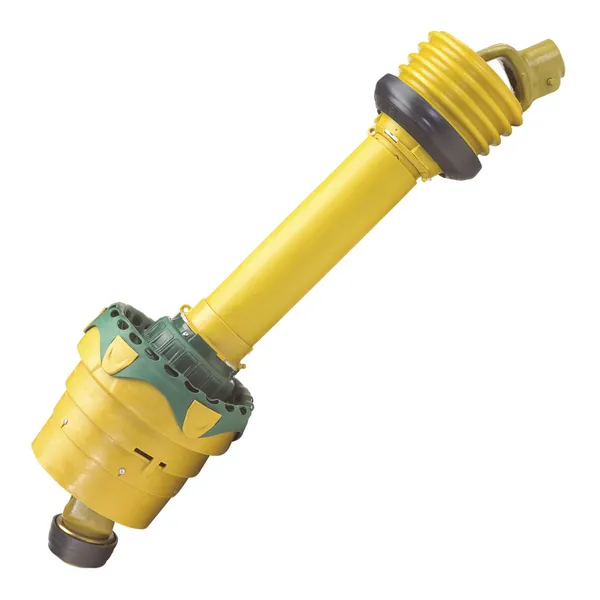

Raydafon Group's WWE2380 Series PTO Shaft is the perfect replacement for Walterscheid PTO shafts, designed for heavy-duty agricultural and industrial machinery. With enhanced durability, superior torque transmission, and easy installation, it ensures reliable performance in demanding conditions. Ideal for farmers and equipment operators, this shaft boosts efficiency, reduces downtime, and delivers peace of mind with its robust construction. Choose Raydafon for a seamless upgrade that outperforms competitors!

WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The WWE2380 series PTO shaft is a high-performance PTO shaft that is designed for use in a variety of agricultural and industrial applications. It is made from high-quality materials and features a number of advanced design features that make it durable and reliable. The WWE2380 series PTO shaft is available in a variety of lengths and configurations to meet the specific needs of different applications.WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

WWE2380 Series PTO Shaft Specifications

TypeWWE2380 SeriesChainK
Shaft length (Lz)860Inner profile length640
Item no. attachment WH-A41378Outer profile length630
Item no. attachment WH-I365802Cone type WH-IWW80
Torque of clutch in daNm0Length of guard tube (outer)575
Rotation speed max. RPM1000 RPMNipple form/position I/ALL LB
Form attachment WH-AKP1 3/8Cone Type WH-ARP5
Form attachment WH-IKP1 3/8Length of guard tube (inner)560
SNR cone WH-A199181Protective colorGELB
Attachment type of profileAACross sealSTANDARD
SNR cone WH-I134400Abbreviation attachment WH-AAG
Profile tube - outer type1GAbbreviation attachment WH-IQSG
Profile tube - inner type0VGAGuard typeSDF15

WWE2380 Series PTO Shaft Size Chart

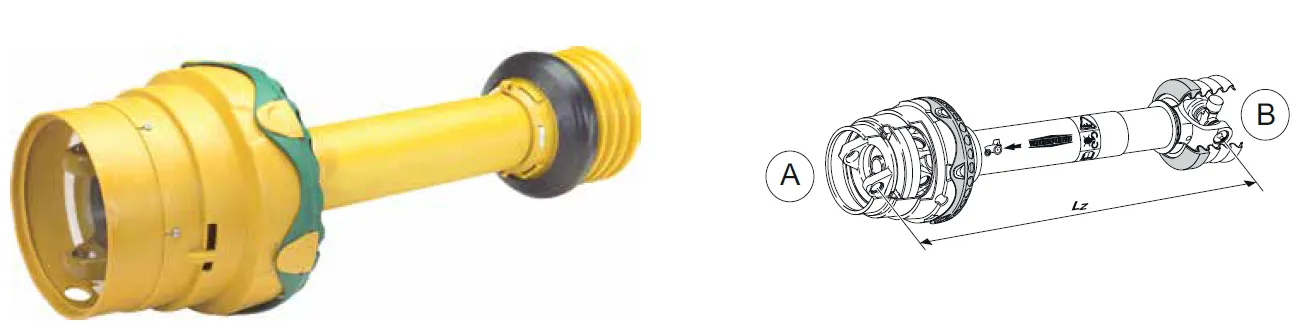

1. WWE2380 Series PTO Drive Shaft

WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft
Order NumberTypeLengthGuardTubeAB
(mm)YokeBore dimYokeBore dim
1113144WWE2380860SDF150vGA/1GQSG1 3/8” x 6SplineAG1 3/8” x 6 Spline
1113145WWE23801210SDF15Z0vGA/1GQSG
1113146WWE2380860SDF251bGA/2aGQSG
1113147WWE23801210SDF25Z1bGA/2aGQSG

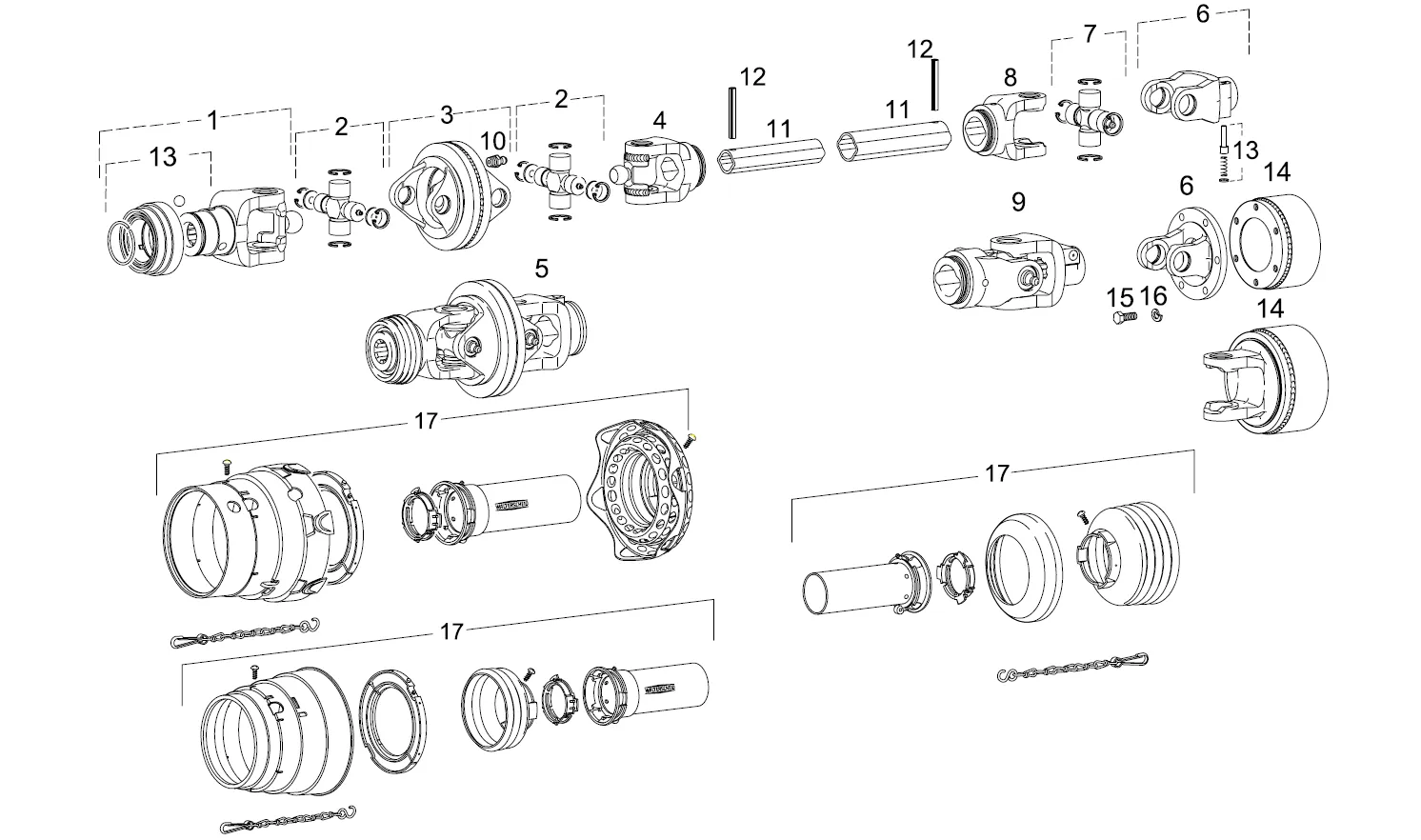

WWE2380 Series PTO Shaft Parts Diagram

WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft
NumberParts NameNumberParts Name
1Tractor Yoke9U joint
2Cross & Bearing Kit10Grease nipple
3Double Yoke11Inner Tube
4Inner Profile Yoke12Roll pin
5Yoke13Closures for yoke & couplings
6 Outer Profile Yoke14Slip clutch
7Cross & Bearing Kit15Hexagon head screw
8Yoke groove16Spring washers
17PTO shaft guard

WWE2380 Series PTO Shaft Design Features

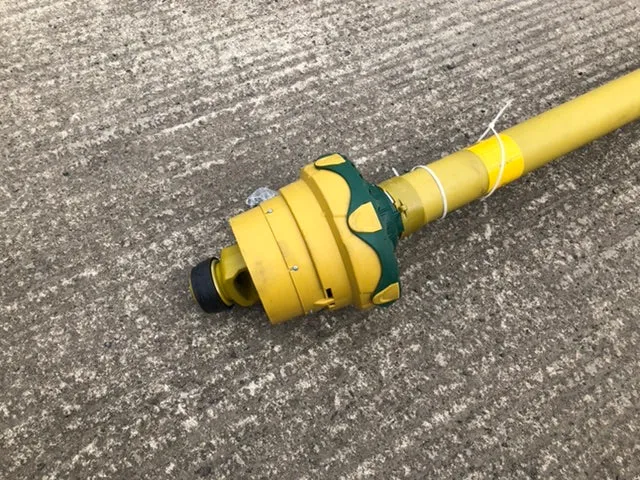

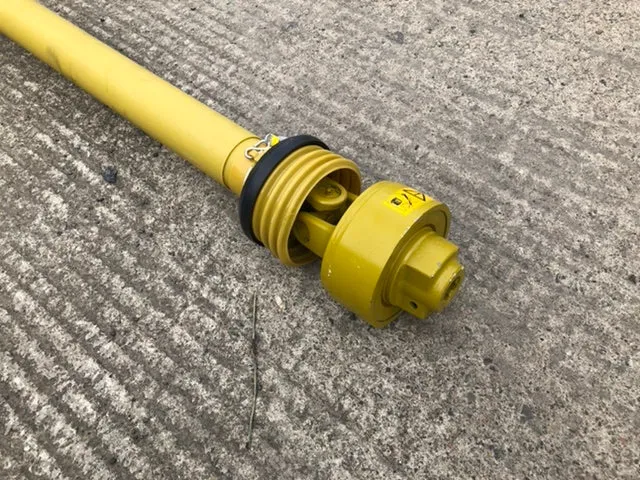

The WWE2380 series PTO shaft is a type of power take-off shaft used in agricultural and industrial applications to transmit power from a power source, such as a tractor, to a driven machine, such as a mower or a baler. Here are some design features of the WWE2380 series PTO shaft:1. Size and length: The WWE2380 series PTO shaft is designed to be compatible with Category 2 tractors and machines. It comes in various lengths, ranging from 43.2 inches (1097 mm) to 68.4 inches (1738 mm), to accommodate different applications.2. Splined shafts: The WWE2380 series PTO shaft has a splined shaft on both ends that allows it to connect to the power source and the driven machine. The splined shaft provides a secure and precise fit that minimizes vibrations and ensures efficient power transmission.3. Safety features: The WWE2380 series PTO shaft is equipped with several safety features to prevent accidents and injuries. These include a retractable guard that covers the exposed rotating shaft, a safety chain that prevents the shaft from falling off in case of disconnection, and a locking collar that secures the shaft in place during operation.4. Material and finish: The WWE2380 series PTO shaft is made of high-quality steel that provides strength, durability, and resistance to wear and corrosion. The shaft is finished with a black oxide coating that enhances its appearance and protects it from rust.5. Bearing support: The WWE2380 series PTO shaft has bearing support that helps to distribute the load and reduce stress on the shaft and the power source. This feature increases the shaft's longevity and minimizes the risk of damage to the power source.
WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO ShaftWWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

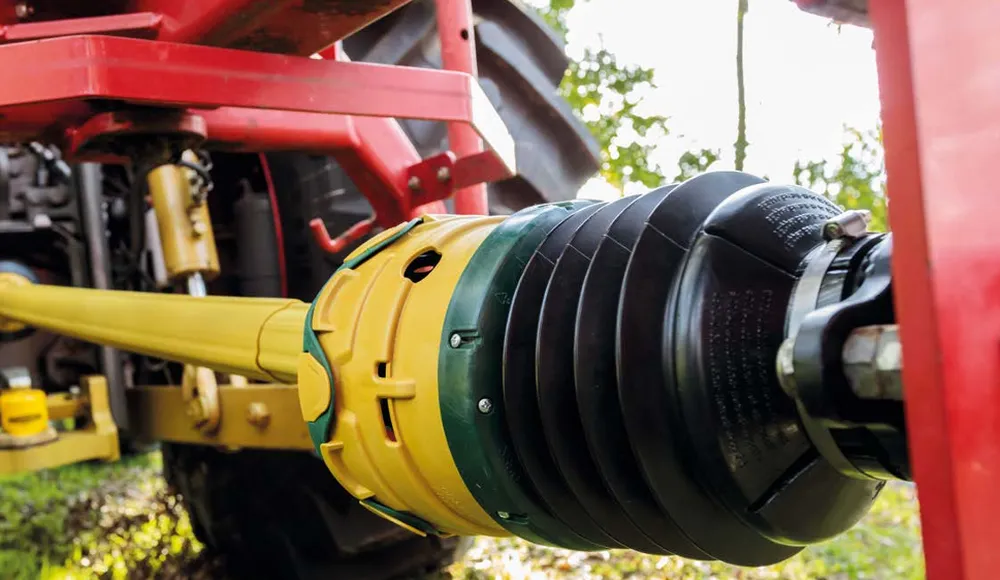

How to Install a WWE2380 Series PTO Shaft?

The installation of a WWE2380 series PTO shaft should be performed by a qualified technician or someone with experience in PTO shaft installation. Here are the general steps for installing the WWE2380 series PTO shaft:(1) Choose the correct length: Choose the appropriate length of the WWE2380 PTO shaft for your application, ensuring that it is not too long or too short.(2) Match the splines: Match the splines on the PTO shaft with those on the tractor and the implement. Make sure the splines are engaged properly and fully.(3) Install the safety features: Install the safety features such as the PTO shaft guard, safety chain, and locking collar to ensure the safe operation of the PTO shaft.(4) Align the components: Align the tractor and implement properly, ensuring that the PTO shaft is straight and in line with the tractor and implement. Misalignment can cause excessive wear and tear on the PTO shaft and components.(5) Attach the PTO shaft: Attach the PTO shaft to the tractor and implement. Tighten the retaining bolts and nuts to the manufacturer's recommended torque specifications.(6) Test the PTO shaft: Test the PTO shaft by engaging the tractor's PTO and checking for smooth operation. Listen for any unusual noises, vibrations, or wobbling. If you notice any issues, stop the PTO immediately and inspect the PTO shaft and components.(7) Maintain the PTO shaft: Regularly inspect and maintain the PTO shaft and components, including checking for wear, proper lubrication, and any damage. Replace any worn or damaged parts immediately.WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

How to Repair a WWE2380 Series PTO Shaft?

Repairing a WWE2380 series PTO shaft should only be performed by a qualified technician or someone with experience in PTO shaft repairs. Here are the general steps for repairing a WWE2380 series PTO shaft:Identify the problem: Identify the problem with the PTO shaft, such as a cracked or broken shaft, damaged splines, or worn bearings.Disassemble the PTO shaft: Disassemble the PTO shaft by removing the retaining bolts and nuts, the safety features, and the damaged components.Inspect the components: Inspect the components, including the splined shafts, bearings, and other parts, for wear and damage. Replace any worn or damaged components with new ones.Repair the shaft: Repair the shaft if it is damaged by welding or replacing the damaged section with a new one.Replace the bearings: Replace the bearings if they are worn or damaged. Use high-quality bearings that are compatible with the PTO shaft.Reassemble the PTO shaft: Reassemble the PTO shaft with the new or repaired components. Ensure that the safety features, such as the PTO shaft guard, safety chain, and locking collar, are properly installed.Test the PTO shaft: Test the PTO shaft by engaging the tractor's PTO and checking for smooth operation. Listen for any unusual noises, vibrations, or wobbling. If you notice any issues, stop the PTO immediately and inspect the PTO shaft and components.It's important to follow the manufacturer's instructions and guidelines for the repair of the WWE2380 Series PTO shaft. Improper repair can result in equipment damage, personal injury, or even death. Regular maintenance and inspection of the PTO shaft can help prevent the need for repairs and ensure safe and efficient operation.

Agricultural Gearbox and WWE2380 Series PTO Shaft

An agricultural gearbox is a mechanism used in agricultural machinery to transfer power from the tractor to various agricultural implements such as mowers, plows, and cultivators. The WWE2380 series PTO shaft is a type of power take-off shaft that is often used in conjunction with an agricultural gearbox to transmit power from the tractor to the gearbox and then to the implement.The agricultural gearbox typically has input and output shafts that are designed to connect with the PTO shaft. The PTO shaft transfers power from the tractor's engine to the gearbox's input shaft, which then drives the output shaft that powers the implement. The PTO shaft and agricultural gearbox work together to ensure efficient power transfer and smooth operation of the implement.The WWE2380 series PTO shaft is designed to be compatible with Category 2 tractors and machines and has various safety features, such as a retractable guard, safety chain, and locking collar to prevent accidents and injuries. The PTO shaft's splined shafts provide a secure fit that minimizes vibrations and ensures efficient power transmission.When using an agricultural gearbox and PTO shaft, it's important to ensure that the components are properly aligned and securely connected to prevent excessive wear and tear and potential equipment damage or personal injury. Regular maintenance and inspection of the agricultural gearbox and PTO shaft are also important to ensure safe and efficient operation.WWE2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft
