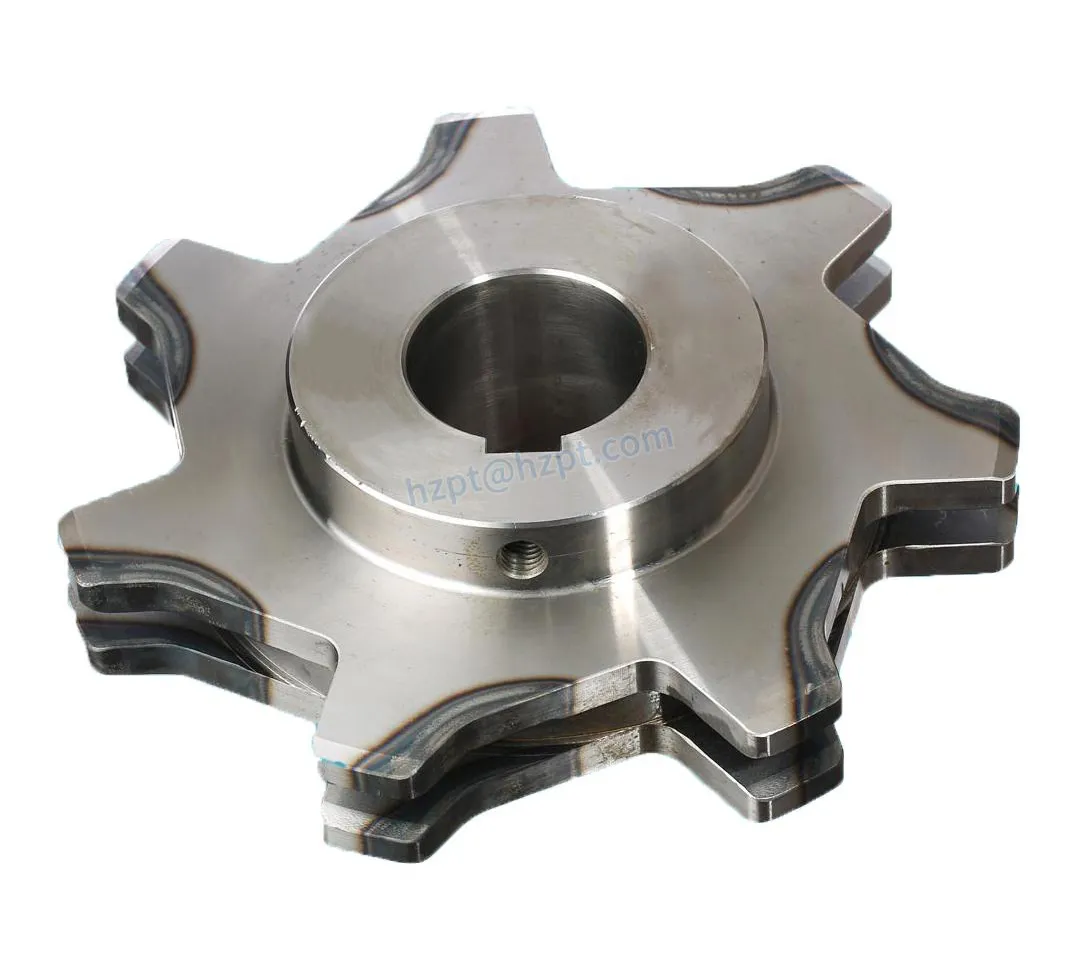

X458 Chain Sprockets Drop Forged Rivetless Chain Sprockets

X458 Chain Sprockets for X458 Chain

X458 chain sprockets are a type of sprocket used in conveyor systems. They are designed to work with the X458 conveyor chain, which is a heavy-duty chain commonly used in industrial applications. The X458 chain sprockets are made of high-quality materials, such as steel or cast iron, and are designed to withstand heavy loads and high speeds.X458 chain sprockets are available in a variety of sizes and configurations to meet the specific needs of different conveyor systems. They are typically mounted on shafts or hubs and are used to transmit power from the conveyor motor to the conveyor chain. The sprockets have teeth that mesh with the links of the chain, causing the chain to move along the conveyor.Overall, X458 chain sprockets are an essential component of conveyor systems, providing reliable and efficient power transmission for heavy-duty industrial applications.

▍Types of X458 Chain Sprockets

(1) A-plate X458 Chain Sprockets

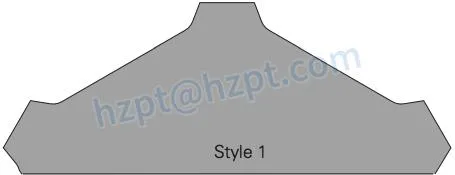

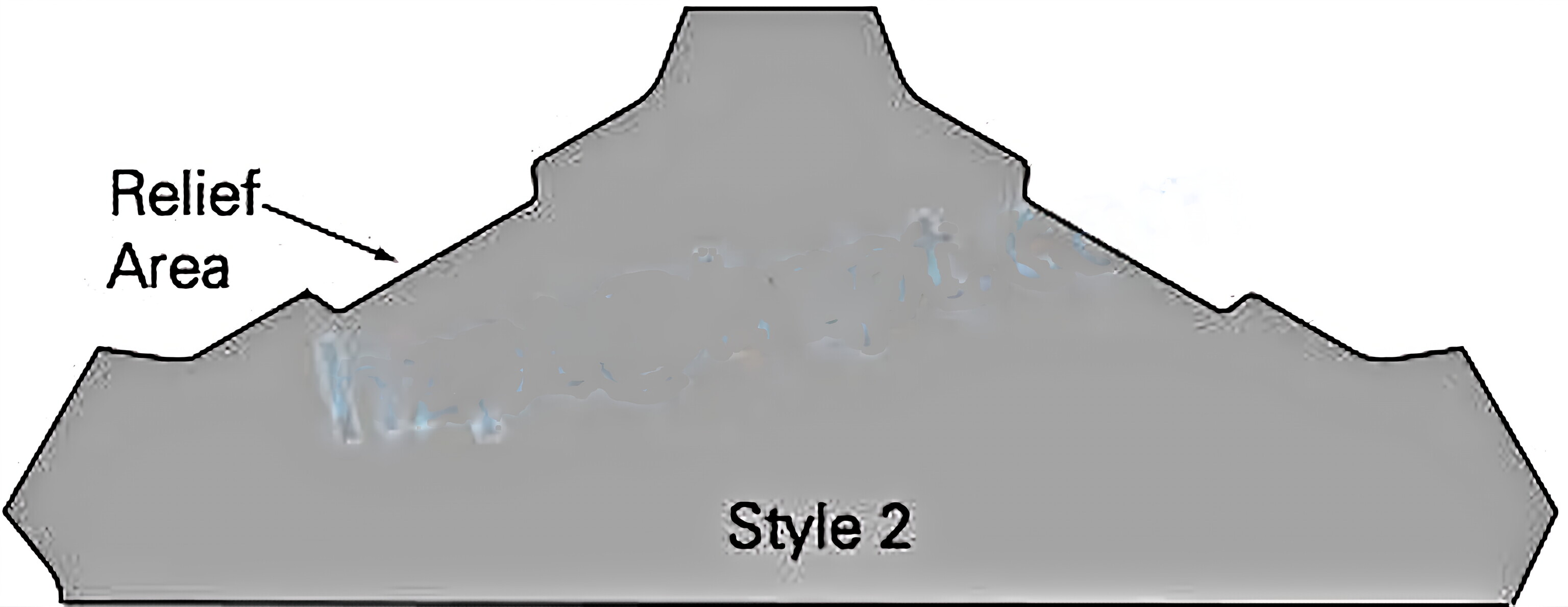

These A-plate x458 chain sprockets are manufactured specifically for the X458 chain and are designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area." We offer both styles, as shown below. Make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high-quality and durable sprocket.

• High-Quality Sprocket
• Manufactured for X458 Chain
• Two Styles To Choose From
• Extremely Durable
• Optimum Performance

Specifications of X458 Chain Sprockets (A-Plate)

Sprocket Number	Tooth Count	Pitch	Style	Stock Bore	Weight (LBS)
X-458A5	5	4.031"	A-Plate	1.50"	33.00 LBS
X-458A6	6	4.031"	A-Plate	1.50"	47.00 LBS
X-458A7	7	4.031"	A-Plate	1.50"	64.00 LBS
X-458A8	8	4.031"	A-Plate	1.50"	83.00 LBS
X-458A9	9	4.031"	A-Plate	1.50"	105.00 LBS
X-458A10	10	4.031"	A-Plate	1.50"	130.00 LBS
X-458A11	11	4.031"	A-Plate	1.50"	157.00 LBS
X-458A12	12	4.031"	A-Plate	1.50"	186.00 LBS

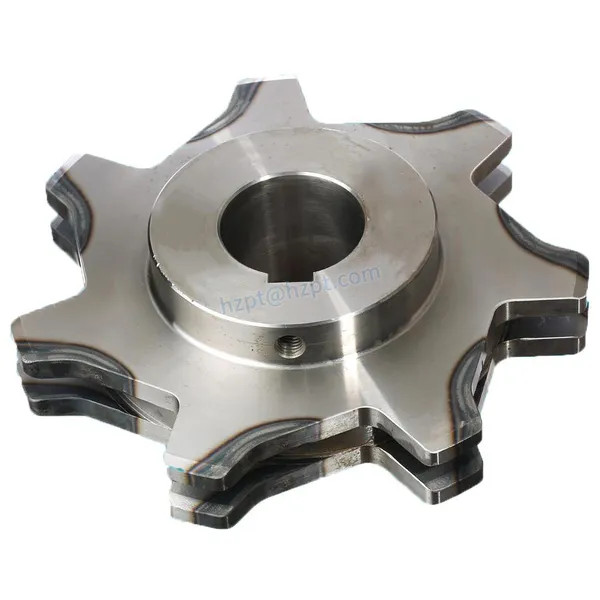

(2) C-hub X458 Chain Sprockets

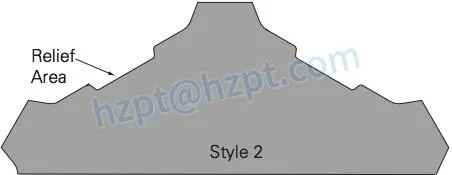

These C-hub X458 chain sprockets are manufactured specifically for the X458 chain and are designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below; make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high-quality and durable sprocket.

• High-Quality Sprocket
• Manufactured For X458 Chain
• C-Hub Style (Hub On Both Sides)
• Two Styles To Choose From
• Extremely Durable
• Optimum Performance

Specifications of X458 Chain Sprockets (C-Hub)

Sprocket Number	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
X-458C5	5	13.045"	C-Hub	5.500"	4.250"	3.440"	54.00 LBS
X-458C6	6	15.575"	C-Hub	5.500"	4.250"	3.440"	68.00 LBS
X-458C7	7	18.115"	C-Hub	5.500"	4.250"	3.440"	85.00 LBS
X-458C8	8	20.662"	C-Hub	6.500"	5.000"	3.940"	120.00 LBS
X-458C9	9	23.214"	C-Hub	6.500"	5.000"	3.940"	141.00 LBS
X-458C10	10	25.768"	C-Hub	6.500"	5.000"	3.940"	166.00 LBS
X-458C11	11	28.325"	C-Hub	6.500"	5.000"	3.940"	193.00 LBS
X-458C12	12	30.883"	C-Hub	6.500"	5.000"	3.940"	222.00 LBS

▍Benefits of Using X458 Chain Sprockets

There are several benefits to using X458 chain sprockets in conveyor systems. Here are some of the key advantages:1. Durability: X458 chain sprockets are made of high-quality materials, such as steel or cast iron, which makes them highly durable and able to withstand heavy loads and high speeds.2. Precision: X458 chain sprockets are designed to mesh precisely with the X458 conveyor chain, which ensures smooth and efficient power transmission.3. Versatility: X458 chain sprockets are available in a variety of sizes and configurations, which makes them suitable for use in a wide range of conveyor systems.4. Easy installation: X458 chain sprockets are easy to install and can be mounted on shafts or hubs using standard mounting techniques.5. Low maintenance: X458 chain sprockets require minimal maintenance and can operate for long periods without the need for lubrication or other maintenance.6. Cost-effective: X458 chain sprockets are a cost-effective solution for conveyor systems, providing reliable and efficient power transmission at a reasonable cost.Overall, X458 chain sprockets are a reliable and efficient solution for power transmission in conveyor systems, providing durability, precision, versatility, easy installation, low maintenance, and cost-effectiveness.

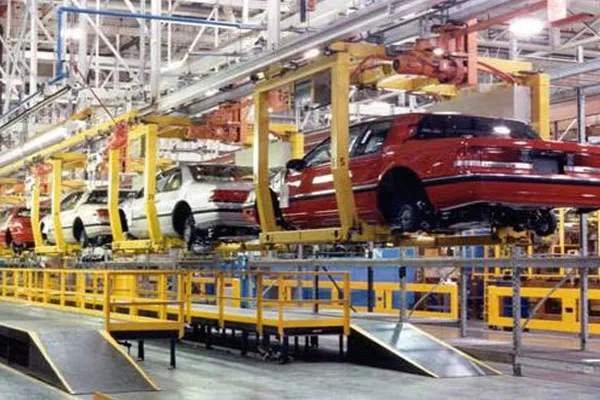

▍Applications of X458 Chain Sprockets

X458 chain sprockets are used in a variety of applications, including:

• Conveyor systems: X458 chain sprockets are used in a variety of conveyor systems, including belt conveyors, roller conveyors, and screw conveyors.

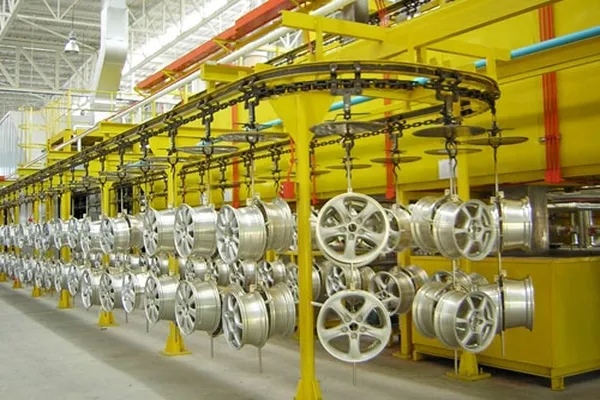

• Overhead trolley systems: X458 chain sprockets are used in overhead trolley systems to move materials around a warehouse or factory.
• Car wash systems: X458 chain sprockets are used in car wash systems to move the brushes that clean the cars.
• Wastewater treatment systems: X458 chain sprockets are used in wastewater treatment systems to move the sludge that is being treated.

X458 chain sprockets are also used in a variety of other applications, including:

• Mining: X458 chain sprockets are used in mining operations to transport heavy loads of ore and other materials.
• Construction: X458 chain sprockets are used in construction to transport materials such as concrete, gravel, and sand.
• Agriculture: X458 chain sprockets are used in agricultural applications to move crops, feed, and other materials.
• Warehousing and distribution: X458 chain sprockets are used in warehouses and distribution centers to move products and materials along conveyor systems.
• Material Handling: X458 chain sprockets are commonly used in material handling applications such as overhead trolley conveyors, flight conveyors, and chain-driven live roller conveyors.

X458 chain sprockets are a versatile and reliable choice for a variety of applications. They are made of high-quality materials and are designed to withstand the rigors of industrial and commercial use.

▍How to Choose the Right X458 Chain Sprockets?

Choosing the right X458 chain sprockets for your conveyor system is important to ensure reliable and efficient power transmission. Here are some factors to consider when selecting X458 chain sprockets:1. Chain size: X458 chain sprockets are designed to work with the X458 conveyor chain. Make sure to choose the sprocket size that matches the chain size to ensure proper fit and operation.2. Number of teeth: The number of teeth on the sprocket determines the speed and torque of the conveyor system. Choose a X458 chain sprockets with the appropriate number of teeth for your application.3. Pitch diameter: The pitch diameter of the sprocket is the diameter of the circle that passes through the center of the sprocket teeth. Choose a X458 chain sprocket with the appropriate pitch diameter for your conveyor system.4. Material: X458 chain sprockets are made of different materials, such as steel or cast iron. Choose a material that is suitable for your application and environment.5. Hub type: X458 chain sprockets are available with different hub types, such as plain or split. Choose a hub type that is suitable for your application and installation requirements.6. Mounting: X458 chain sprockets can be mounted on shafts or hubs using different mounting techniques. Choose a mounting technique that is suitable for your application and installation requirements.Overall, choosing the right X458 chain sprockets requires careful consideration of the chain size, number of teeth, pitch diameter, material, hub type, and mounting technique. Consult with a conveyor system expert or manufacturer to ensure that you choose the right sprockets for your application.

▍X458 Chains and X458 Chain Sprockets

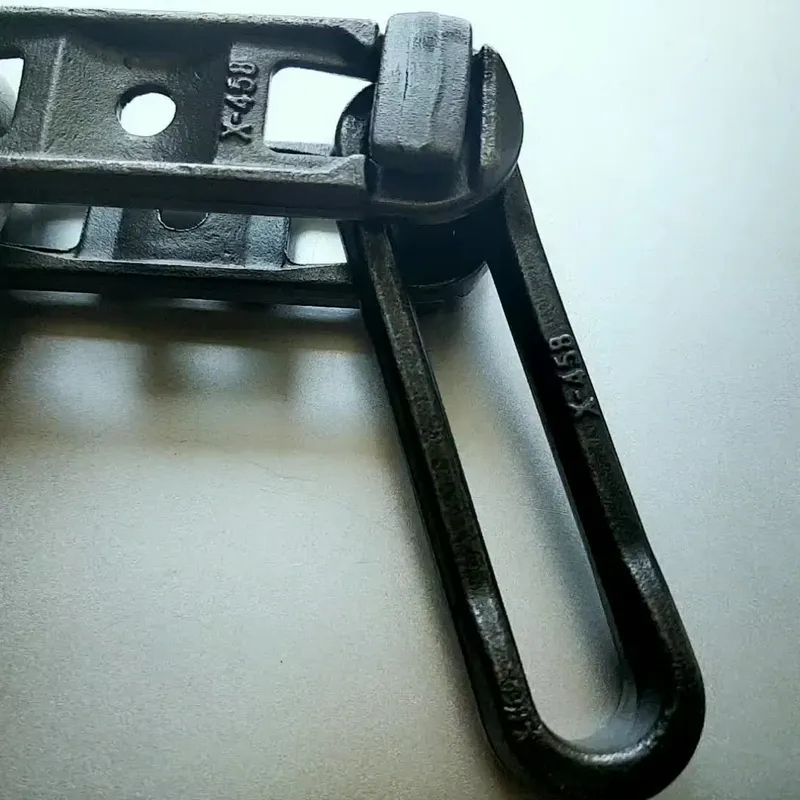

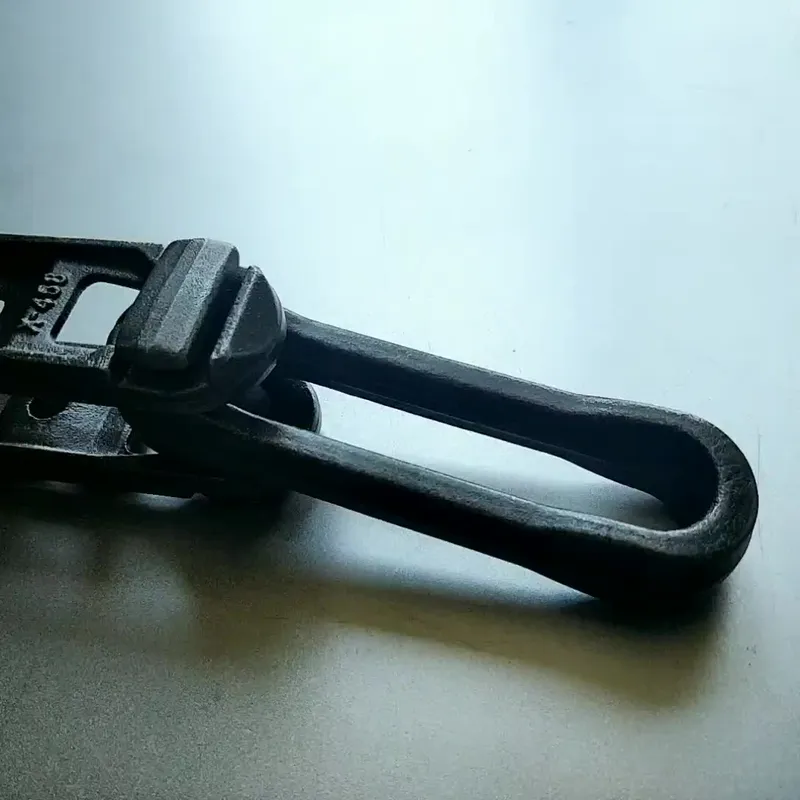

The X458 chain is a drop forged rivetless chain designed with flexibility and the ability to assemble and disassemble in an easy manner. It is commonly used in heavy-duty industrial applications. They are designed to handle high loads and speeds and are made of high-quality materials, such as alloy steel, to ensure durability and long-lasting performance.This X458 chain features fully heat-treated and solid components that are manufactured using high-quality steel and have an ultimate strength of 48,000 lbs. Additionally, this X458 chain is designed to have increased flexibility, transverse pitch strength, and the best overall operating performance. X458 Rivetless Drop Forged Chain is used in a wide range of applications, including the automotive industry, car washes, material handling, meat packing, overhead conveyors, poultry processing, sugar processing, trolley conveyors, and more. We also offer a full line of X458 chain sprockets and X458 chain attachments.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
