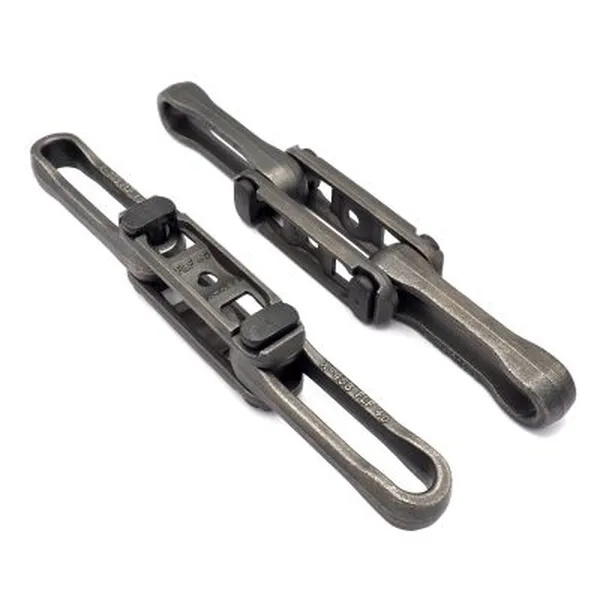

X458 Rivetless Chain

X458 Rivetless Chain

The x458 rivetless chain is a type of conveyor chain used in material handling systems. It is called "rivetless" because it does not use traditional pins and bushings to connect the chain links. Instead, the links are connected by a series of steel rods that are inserted through the links, creating a continuous loop. The x458 refers to the chain's pitch or the distance between the center of each link. In this case, the pitch is 4.5 inches (114.3 mm), and the "x" designation indicates that the chain has straight sidebar construction.The X458 rivetless chain is a high-strength, drop-forged chain that is commonly used in overhead conveyor systems and other unique applications. It is designed for increased flexibility and is easily disassembled and assembled. The X458 rivetless chain is made of high-quality steel and has a tensile strength of 48,000 lbs. It is also fully heat treated and has solid components.The x458 rivetless chain is known for its strength, durability, and flexibility, making it well-suited for heavy-duty applications such as automotive assembly lines, food processing, and warehouse logistics. It is also easy to install and maintain, as the absence of rivets means that links can be quickly and easily replaced if they become damaged.

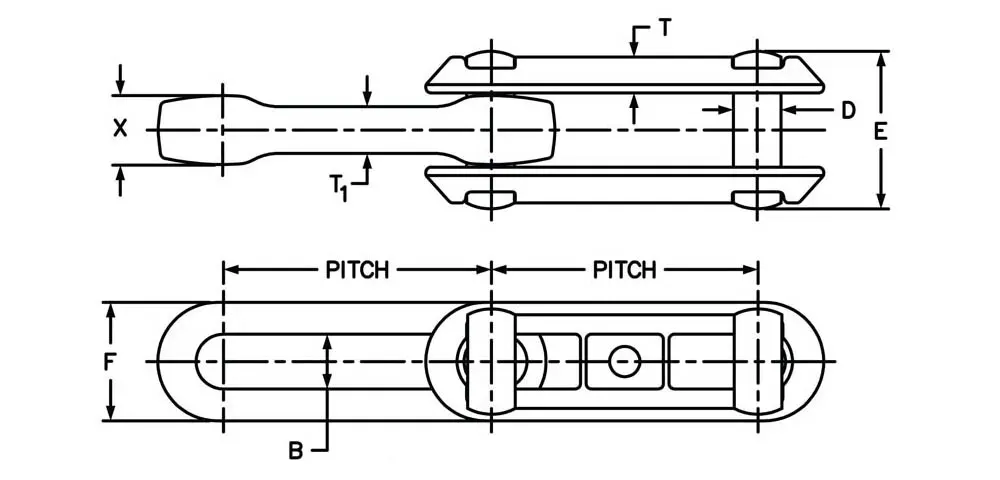

▍X458 Rivetless Chain Dimensions:

Pitch:?	4.031"
Dimension (D):	0.625"
Dimension (E):?	2.19"
Dimension (F):?	1.44"
Dimension (T):	0.48"
Dimension (T1):?	0.66"
Dimension (X):?	1.02"
Dimension (B):?	0.69"
Ultimate Strength:?	48,000 LBS
Links Per 10ft:?	30
Weight:?	3.2 lbs/ft

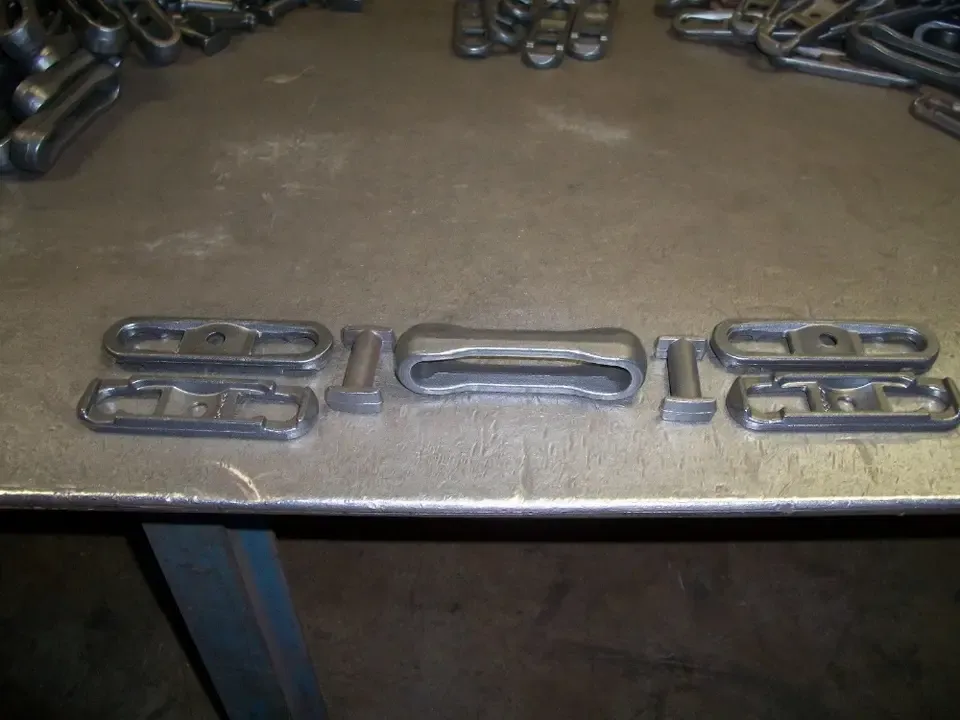

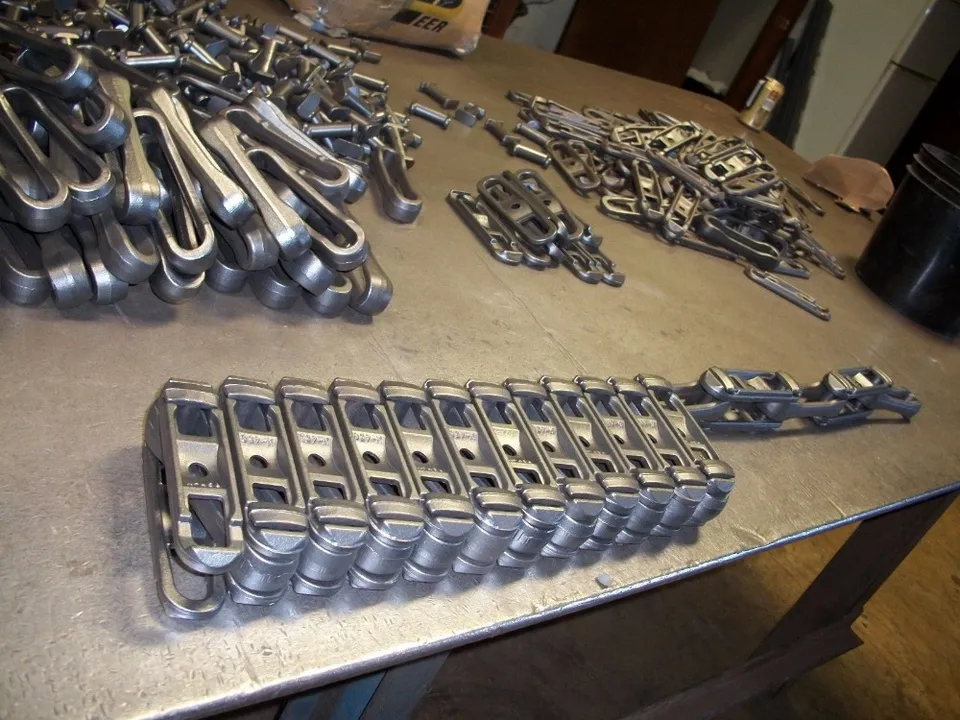

▍Characteristics of?X458 Rivetless Chain

Here are some of the characteristics of the X458 rivetless chain:1. Increased flexibility: The X458 rivetless chain is more flexible than other types of chains, which allows it to move more smoothly and easily. This can improve efficiency and reduce wear and tear.2. Transverse pitch strength:?The X458 chain has a high transverse pitch strength, which means that it is more resistant to bending and twisting. This can improve the durability and lifespan of the chain.3. Best overall operating performance: The X458 rivetless chain has been designed to provide the best overall operating performance in a wide range of applications. This means that it can handle a variety of loads and conditions without sacrificing performance.4. 48,000 lbs tensile strength:?The X458 chain has a tensile strength of 48,000 lbs, which makes it very strong and capable of handling heavy loads.5. Fully heat-treated components: The components of the X458 rivetless chain are fully heat treated, which makes them more resistant to wear and tear. This can extend the lifespan of the chain.6. Solid components:?The components of the X458 chain are solid, which makes them more durable and less likely to break or bend.7. Made of high-quality steel: The X458 rivetless chain is made of high-quality steel, which ensures that it is strong and durable.Overall, the X458 rivetless chain is a high-quality, versatile, and durable chain that is well-suited for a wide range of applications. If you are looking for a chain that is strong, flexible, and easy to use, the X458 conveyor chain is a great option.

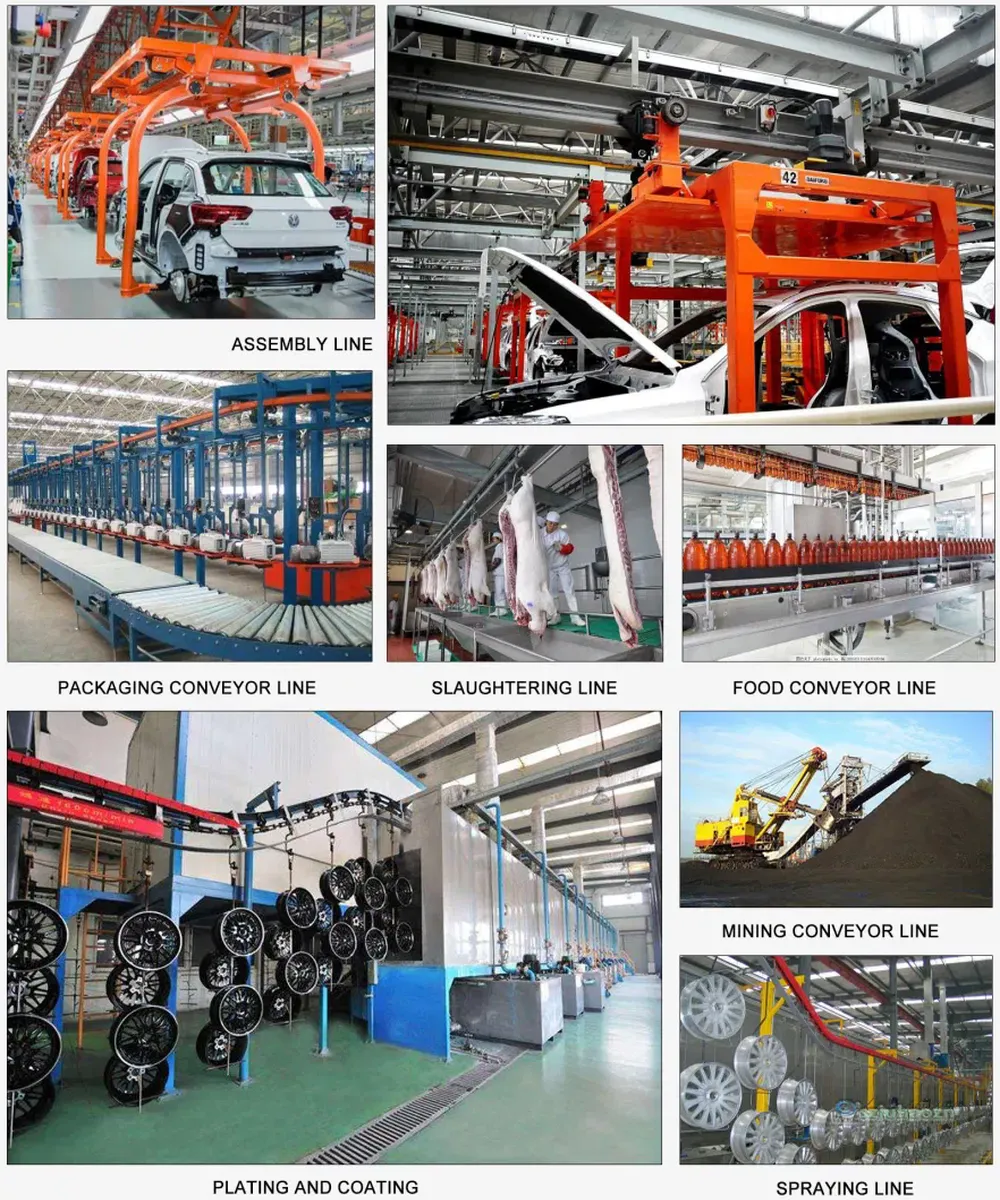

▍X458 Rivetless Chain Application Area

The X458 rivetless chain is a versatile conveyor chain that is used in a wide range of material handling applications. Some of its common application areas include:Automotive industry: The X458 rivetless chain is often used in automotive assembly lines to move car bodies and parts between different stages of the manufacturing process.Food processing industry: The X458 rivetless chain's corrosion-resistant properties make it ideal for use in food processing facilities, where it can transport food products along the production line.Warehousing and distribution: The X458 rivetless chain is used in warehouses and distribution centers to move goods between different storage and loading areas.Manufacturing industry: The X458 rivetless chain is used in various manufacturing applications, such as the production of appliances, electronics, and machinery.Packaging industry: The X458 rivetless chain is used in packaging lines to move products through the different stages of the packaging process.Material handling industry: The X458 rivetless chain is used in a variety of material handling applications, such as baggage handling at airports and mail sorting in postal facilities.Pharmaceutical industry: The X458 rivetless chain is used in pharmaceutical manufacturing facilities to transport medicines and other products through the production process.

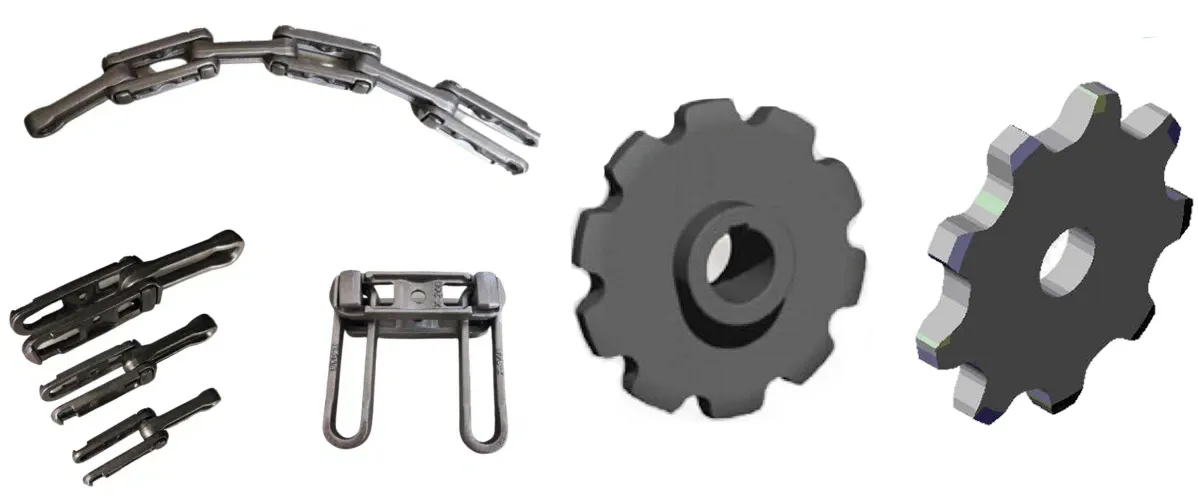

▍X458 Chain Sprockets for X458 Rivetless Chain

The X458 rivetless chain operates with a sprocket that is specifically designed to match its pitch and other dimensions. The X458 chain sprockets are an essential component of the chain drive system, as it provides the necessary power to move the chain and the loads being transported. Here are some key characteristics of X458 chain sprockets:Pitch diameter: The pitch diameter of X458 chain sprockets is typically between 8 and 16 inches (200-400 mm), depending on the specific application requirements.Teeth count: The number of teeth on X458 chain sprockets can vary depending on the size of the sprocket and the speed of the conveyor. Smaller sprockets may have as few as 12 teeth, while larger sprockets can have up to 120 teeth or more.Material: X458 chain sprockets are typically made from high-strength steel or other durable materials that can withstand the stresses of heavy-duty conveyor applications.Tooth profile: The tooth profile of X458 chain sprockets is designed to match the shape of the chain links, ensuring smooth and efficient power transmission.Hub design: The hub of the sprocket is designed to fit securely onto the drive shaft of the conveyor system, ensuring reliable power transmission and minimizing the risk of slippage.Overall, the X458 chain sprockets are an essential component of the rivetless chain drive system, and they must be carefully selected and maintained to ensure optimal performance and longevity of the conveyor system.
