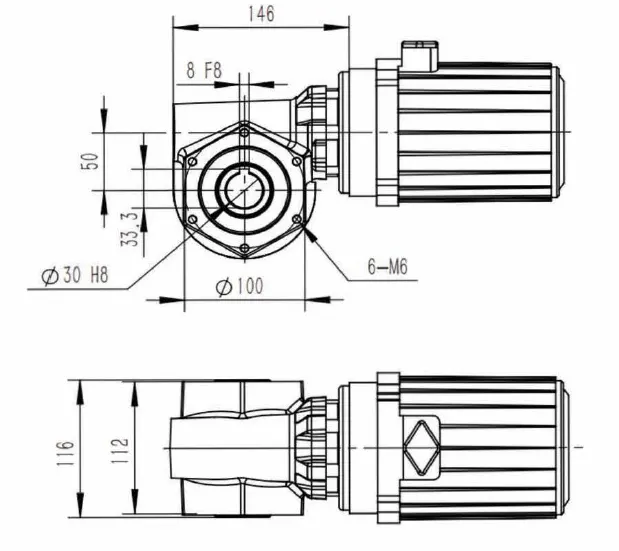

XRV050 Worm Gear Reducer for Water-related Environments

The XRV050 Worm Reducer is a special worm gear reducer. This gear reducer features a modular design, a large ratio range, and high wear and corrosion resistance. With the ability to support motor powers ranging from 0.25kw to 0.75kw, this reducer is versatile and adaptable. Its compact body and high protection level of IP56 make it a reliable choice for water-related environments.

Technical Parameters of the XRV050 Worm Reducer for Water-related Environments

Type	Ratio	Flange	Power
XRV050	5     7.5  10     12  15     20  30     40  50     60  80    100	71B14	0.18KW     0.25KW    0.37KW    0.55KW    0.75KW     1.1KW
		80B14

Type	i	n2/r/min	Mn2/Nm	Fr2/N	Motor	P1/kw	L/mm
XRV050	5	280	17	1577	7134	0.55	180
		280	23	1577	8024	0.75	205
	7.5	187	25	1805	7134	0.55	180
		187	34	1805	8024	0.75	205
	10	140	22	1987	7124	0.37	180
		140	32	1987	7134	0.55	180
		140	44	1987	8024	0.75	205
	12	117	26	2016	7124	0.37	180
		117	33	2016	7134	0.55	205
		117	48	2016	8024	0.75	205
	15	93	31	2274	7124	0.37	180
		93	46	2274	7134	0.55	180
		93	63	2274	8024	0.75	205
	20	70	27	2503	7114	0.25	180
		70	40	2503	7124	0.37	180
		70	59	2503	7134	0.55	180
		70	81	2503	8024	0.75	205
	25	56	32	2696	7114	0.25	180
		56	48	2696	7124	0.37	180
		56	71	2696	7134	0.55	180
	30	47	37	2865	7114	0.25	180
		47	55	2865	7124	0.37	180
		47	81	2865	7134	0.55	180
	40	35	33	3153	7114	0.25	180
		35	46	3153	7124	0.37	180
		35	68	3153	7134	0.55	180
	50	28	54	3397	7114	0.25	180
		28	72	3397	7124	0.37	180
		28	80	3397	7134	0.55	180
	52	27	55	3482	7114	0.25	180
		27	73	3482	7124	0.37	180
		27	82	3482	7134	0.55	180
	60	23	60	3610	7114	0.25	180
		23	75	3610	7124	0.37	180
		23	84	3610	7134	0.55	180
	80	18	64	3973	7114	0.25	180
		18	77	3973	7124	0.37	180
		18	89	3973	7134	0.55	180
	100	14	68	4280	7114	0.25	180
		14	79	4280	7124	0.37	180
		14	93	4280	7134	0.55	180

Key Features of the XRV050 Worm Reducer for Water-related Environments

• The modular design of every module, making it common with more parts.
• Large ratio range, offering more choices than the common RV reducer.
• The wheel material is SUS304+GcuSn12, ensuring high wear and corrosion resistance.
• Compact body design, enabling it to fit into most equipment structures.
• Lubrication with Full-Synthetic Oil, with the option to choose the viscosity of 320/220.
• ADC12 housing material with powder painting, which offers better anticorrosive properties and an enhanced appearance.

Applications of the XRV050 Worm Reducer

While the XRV050 Worm Reducer is primarily used in car washes, it also finds applications in the slaughter industry, field equipment, and other water-related environments. Its high protection level and easy installation make it a reliable choice for these applications.

Choosing the Right Worm Gear Reducer

• Consider the environment: The XRV050 Worm Reducer is designed for water-related environments and other applications where high protection levels are required.
• Assess the required power: With support for motor powers ranging from 0.25kw to 0.75kw, this reducer can meet a variety of needs.
• Check the ratio range: With a large ratio range, this reducer offers more choices than the common RV reducer.

Motors for Worm Gear Reducers

The performance of a worm gear reducer is closely tied to the quality of its motor. As a leading manufacturer of speed reducers, we also offer a range of electric motors designed to work seamlessly with our reducers.

Motor Dimensions

IP67 Motor Dimension

IP56 Motor Dimension

Hot Tags: XRV050 worm gear reducer manufacturer, water-resistant gear reducer supplier, industrial worm gear reducer wholesale

Type	IP56 Motor					IP67 Motor
RV/De	L	D	ΦC	ΦS	T	L	D	ΦC	ΦS	T
71B14
