YS40F Continuously Variable Transmission Oil Cylinder

YS40F Continuously Variable Transmission Oil Cylinder

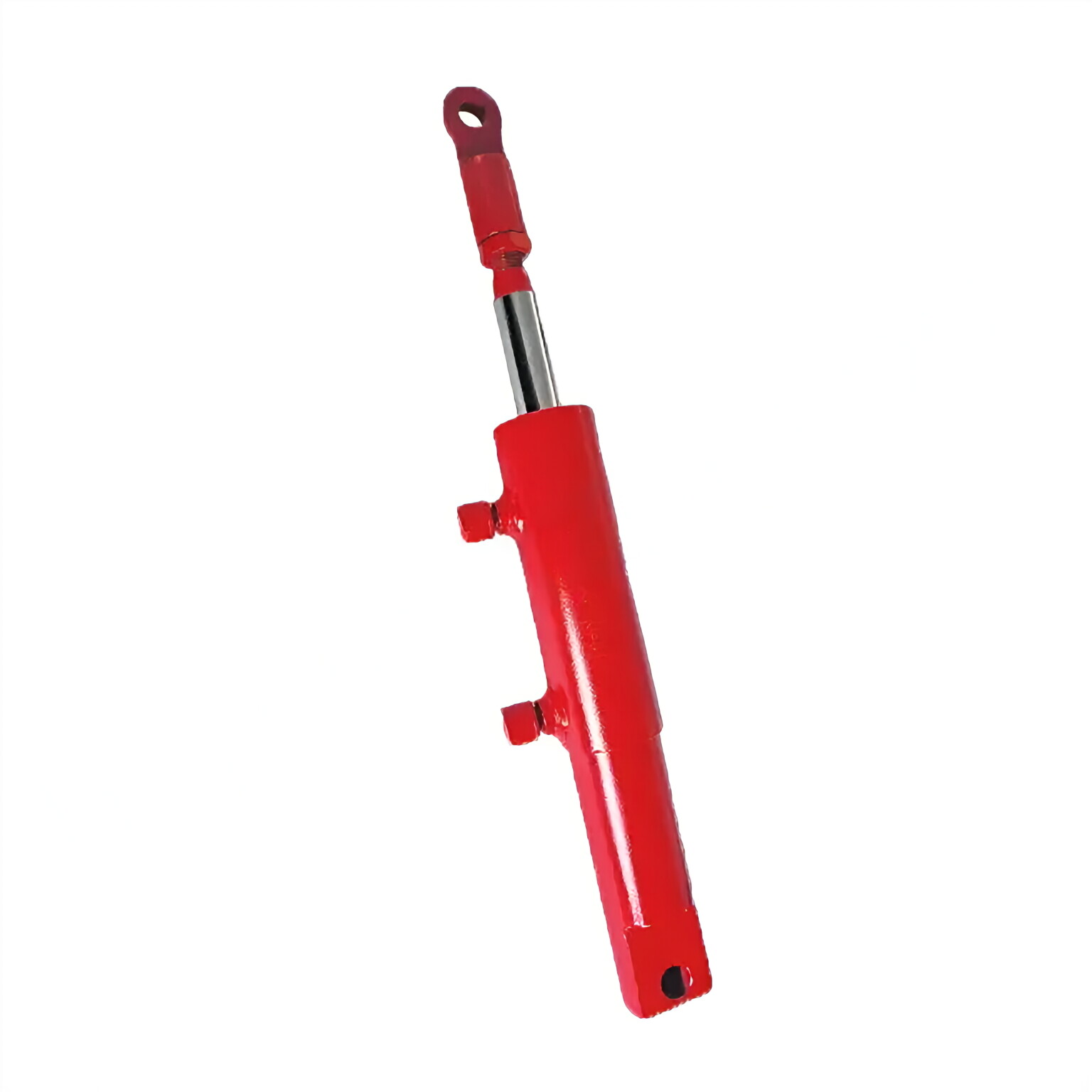

The YS40F Continuously Variable Transmission Oil Cylinder is a hydraulic cylinder designed for use in continuously variable transmission systems. It plays a crucial role in controlling the flow of oil to ensure smooth and efficient operation of the transmission. With a cylinder diameter of 40mm, rod diameter of 22mm, travel distance of 65mm, and installation distance of 418mm, this cylinder offers excellent performance and reliability.

Product Definition and Function

The YS40F Continuously Variable Transmission Oil Cylinder is a hydraulic component used to regulate the flow of oil in a continuously variable transmission system. Its main function is to control the positioning and movement of components within the transmission, allowing for seamless changes in gear ratios and smooth operation. This cylinder is an essential part of the transmission system, ensuring optimal performance and efficiency.

Product Specifications

• Cylinder Diameter: 40mm
• Rod Diameter: 22mm
• Travel: 65mm
• Installation Distance: 418mm

Product Features

• High precision and durability
• Smooth and reliable operation
• Compact design for easy installation
• Excellent load-bearing capacity
• Versatile and adaptable to various applications

Our YS40F Continuously Variable Transmission Oil Cylinder is a superior alternative to traditional cylinders. It offers superior performance and reliability, making it an ideal choice for various hydraulic applications.

Applications

The YS40F Continuously Variable Transmission Oil Cylinder finds its applications in various industries:

• Construction: This cylinder is commonly used in construction equipment such as cranes, hoists, and elevators where a secure and stable fixation of heavy objects is required.
• Manufacturing: It is employed in hydraulic presses where high pressures are applied to shape materials, requiring a secure and stable fixation during the manufacturing process.
• Transportation: It is used in stabilizers and jacks for vehicles, ensuring safety during maintenance or transportation.
• Aviation: The cylinder is essential in landing gear systems, securing the landing gear in the appropriate position during takeoff and landing, ensuring safe operations.

Design Considerations and Selection Criteria

When designing and selecting the YS40F Continuously Variable Transmission Oil Cylinder, several crucial factors should be taken into account:

• Load-bearing capacity: The cylinder should be capable of withstanding the expected loads and pressures within the transmission system.
• Sealing ability: It should have excellent sealing properties to prevent oil leakage and ensure efficient transmission operation.
• Durability: The cylinder should be able to withstand prolonged use and resist wear and tear under various operating conditions.
• Safety: It should incorporate safety features to prevent accidents and ensure the well-being of operators and equipment.
• Maintainability: The cylinder should be designed for easy maintenance and repair to minimize downtime and costs.

Sealing and Lubrication

The YS40F Continuously Variable Transmission Oil Cylinder employs various sealing components such as piston seals, rod seals, etc. These seals are made of durable materials like polyurethane and nitrile rubber, ensuring excellent wear resistance. The cylinder body and threaded ends are finely processed to enhance wear resistance. Regular lubrication with the appropriate amount of hydraulic oil is essential for smooth operation and longevity.

Regular Inspection and Preventive Maintenance

To ensure optimal performance and longevity of the YS40F Continuously Variable Transmission Oil Cylinder, regular inspections and preventive maintenance are recommended:

• Inspect the cylinder for any signs of leakage, damage, or wear.
• Ensure proper lubrication of all moving parts.
• Periodically replace worn-out seals and perform calibration checks.

Product Installation

Proper installation of the YS40F Continuously Variable Transmission Oil Cylinder is crucial for its optimal performance. Follow these guidelines:

• Ensure correct alignment of the cylinder during installation, referring to the provided alignment guide if necessary.
• Use appropriate installation brackets to securely fasten the cylinder.

Maintenance Tasks

Three common maintenance tasks for the YS40F Continuously Variable Transmission Oil Cylinder are:

• Regular inspections to identify any issues or wear.
• Proper lubrication to ensure smooth operation and prevent premature wear.
• Seal replacement and calibration checks to maintain optimal performance.

Proper installation, lubrication, and adjustment are crucial to ensure the longevity and performance of the cylinder. Correct alignment and the use of suitable installation brackets are recommended. We also offer inspection, repair, and replacement services to extend the lifespan of the YS40F cylinder.

Safety Considerations and Environmental Factors

When using the YS40F Continuously Variable Transmission Oil Cylinder, it is essential to consider safety measures to minimize risks and protect personnel and equipment.

Troubleshooting and Common Issues

Here are some troubleshooting tips and solutions for common issues related to the YS40F Continuously Variable Transmission Oil Cylinder:Issue 1: Oil leakageSolution: Inspect the seals and replace any worn-out or damaged ones. Ensure proper lubrication and check for loose connections.Issue 2: Erratic cylinder movementSolution: Check for any obstructions or debris that may hinder smooth operation. Clean or remove any obstacles and ensure proper lubrication.Issue 3: Cylinder not holding positionSolution: Inspect the seals and tighten any loose connections. Check for any defects or damage to the cylinder body.Incorporating preventive measures can help minimize potential issues and ensure the efficient operation of the YS40F Continuously Variable Transmission Oil Cylinder.

About Our Company

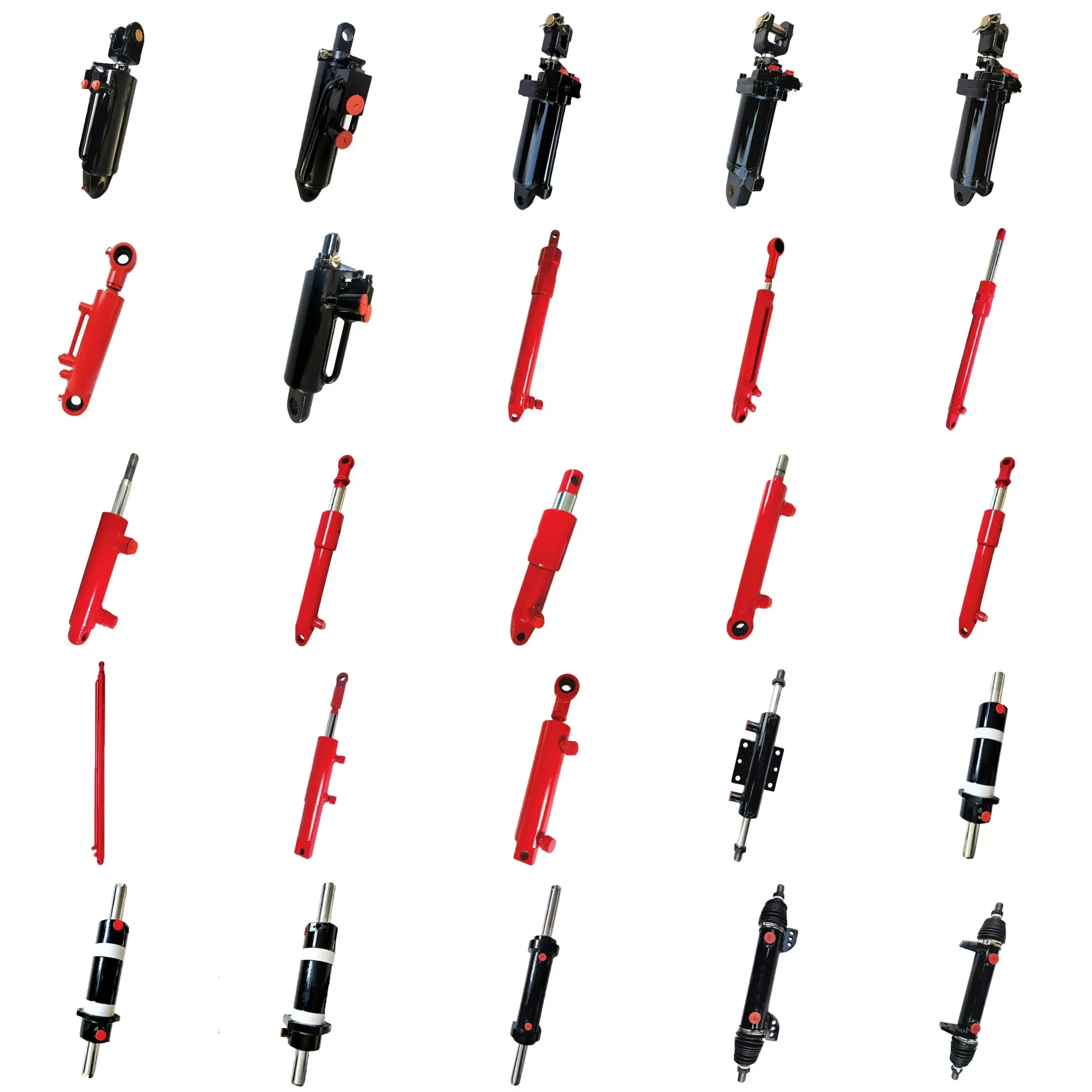

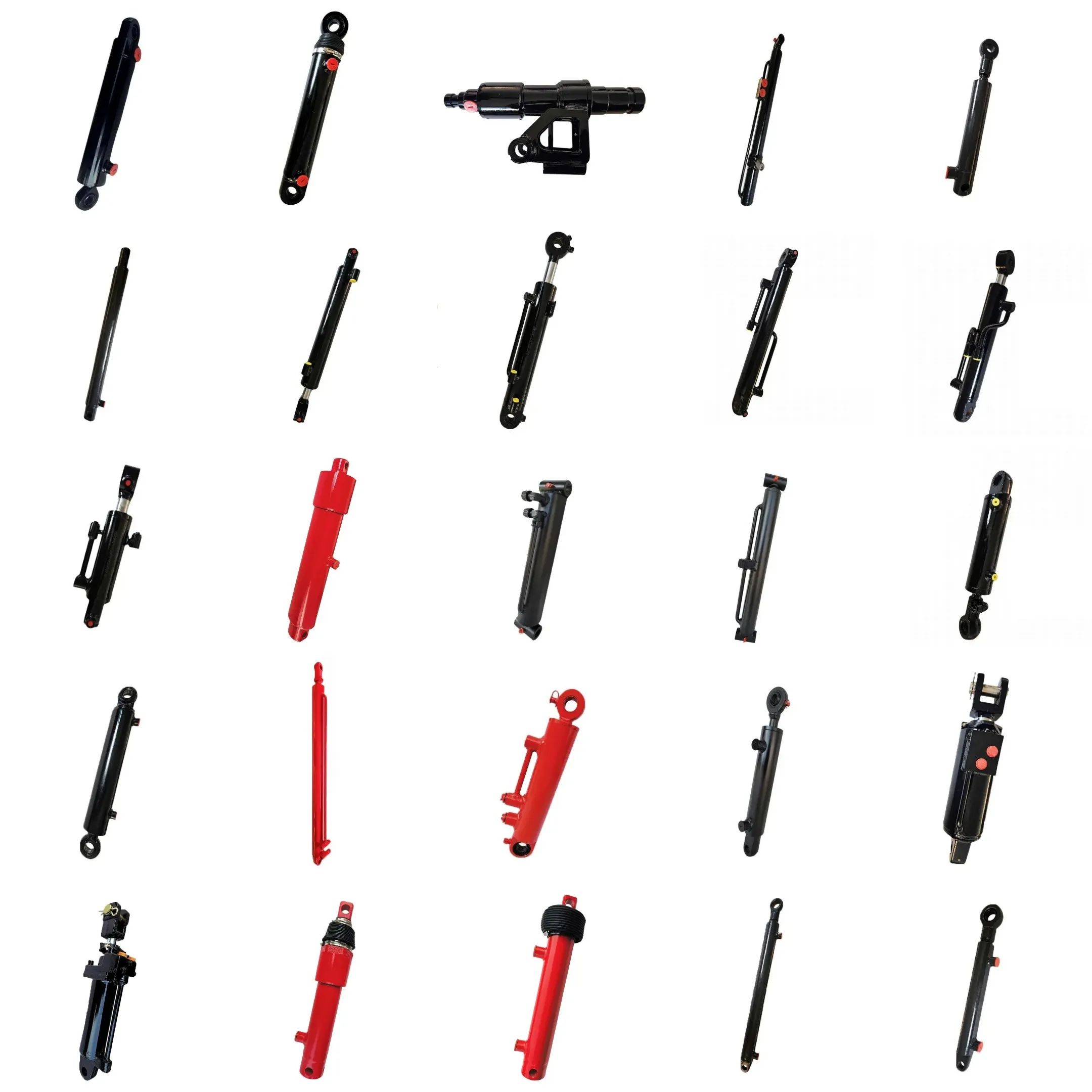

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, offering a comprehensive range of products. As a renowned and trusted supplier, we have established ourselves as a key player in both domestic and international markets.Our company stands apart due to:

• Professionalism: We have a team of skilled experts dedicated to delivering high-quality hydraulic cylinders.
• International certifications: Our products meet stringent international quality standards, ensuring reliability and performance.
• Customization services: We offer tailored solutions to meet specific customer requirements.

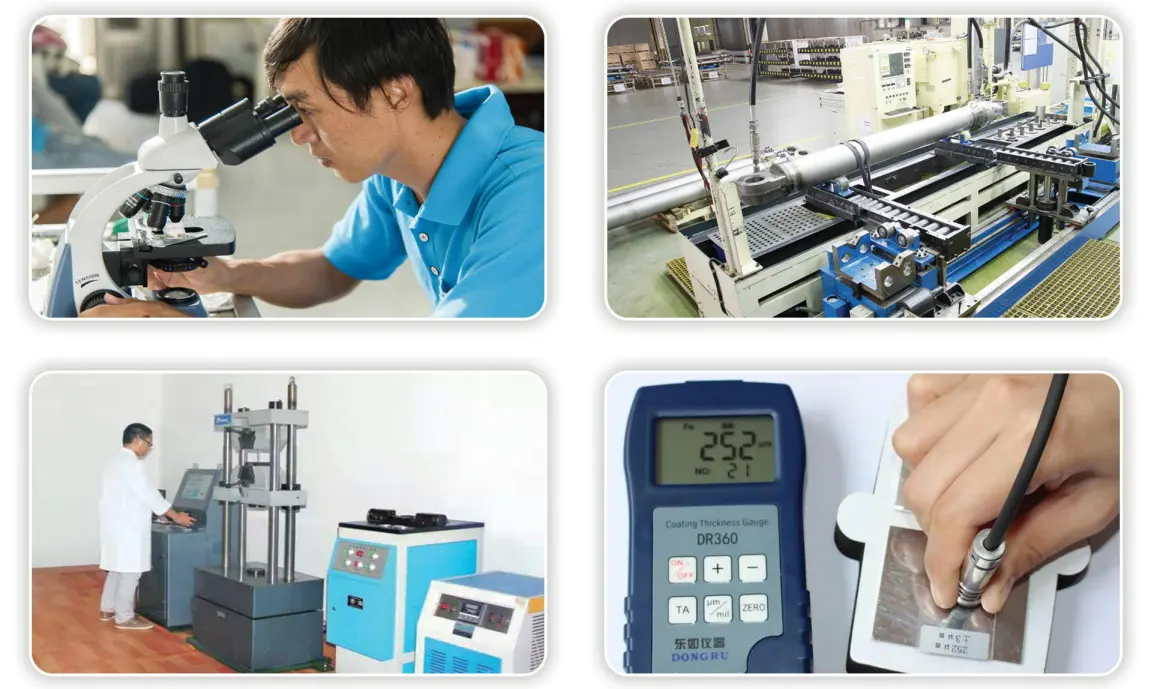

• Advanced production equipment: Our state-of-the-art manufacturing facilities enable us to produce cylinders of exceptional quality and precision.
• Excellent after-sales service: We provide comprehensive support and assistance to our customers, ensuring their satisfaction.
