Z10399/AZ31797 T20 Sprocket For John Deere Combine Cutting Platforms & Header

Raydafon Group introduces the Z10399/AZ31797 T20 Sprocket, expertly crafted for John Deere combine cutting platforms and headers to ensure smooth, reliable operation. Built with durable materials and precision engineering, this sprocket enhances performance, reduces wear, and fits seamlessly for farmers and agricultural professionals. Experience superior efficiency and peace of mind with a product designed to maximize your harvesting productivity. Trust Raydafon Group for quality that stands out in the field.

Send Inquiry

Product Description

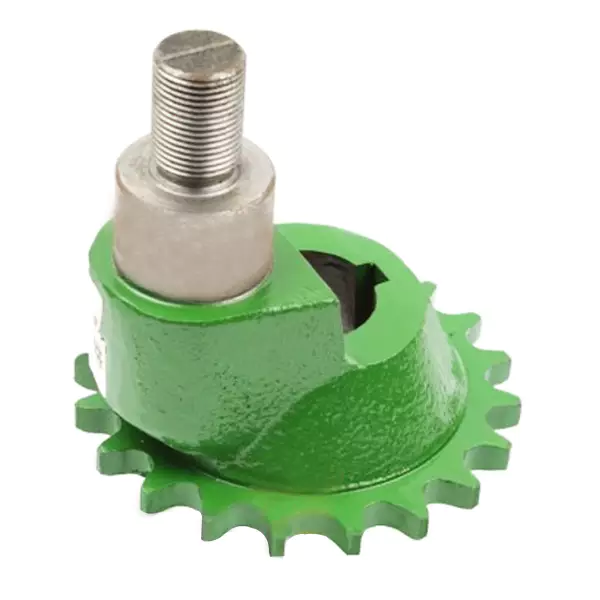

Z10399/AZ31797 T20 Sprocket For John Deere Combine Cutting Platforms & Header

▍Destination of the chain sprocket:

The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element - a chain.

▍Structure of Z10399/AZ31797 T20 sprocket:

Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.

▍Application of Z10399/AZ31797 T20 sprocket

Spare part for JOHN DEERE combine

▍Features of Z10399/AZ31797 T20 sprocket

One row sprocket.

▍Parameters of Z10399/AZ31797 T20 sprocket

Weight , W	kg	1.48
Inner diameter , d	mm	33
Outer diameter , D	mm	109
Number of teeth , Z		20
Pitch , p	mm	15.88
Height , H	mm	125
Thread , M		М20х1.5
Length screw thread , Lc	mm	27
Diameter of shaft , Ds	mm	35
Key slot	mm	46х8х4

The parameters may differ from the actual ones.

▍Usage of Z10399/AZ31797 T20 Sprocket

Combine harvester John Deere: 330 730 925 930 932 935 940 942 945 950 952 955 960 965 965H 968H 970 975 985 Header John Deere: 1000 Series 900 Series

▍Related Products

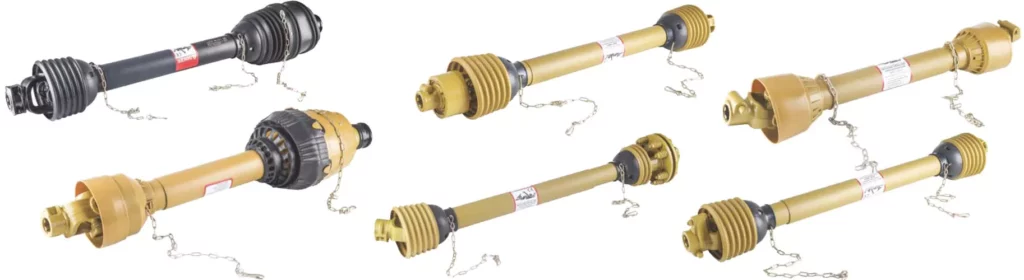

▍We Also Supply PTO Shafts & Agricultural Gearboxes
