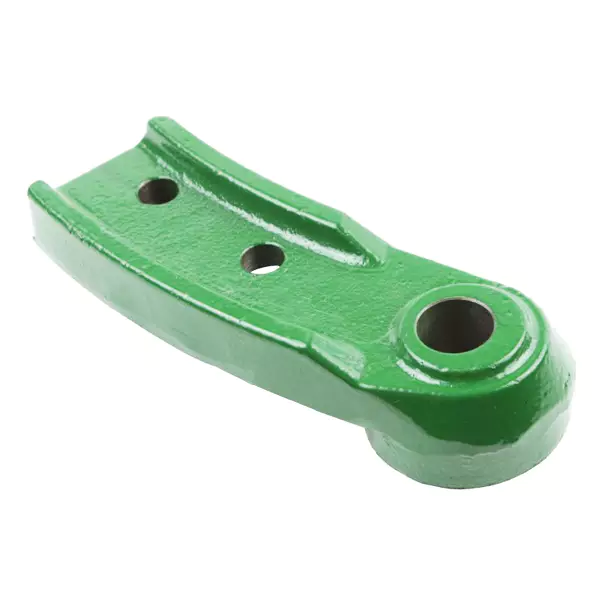

Z11231.01 Knife Housing For John Deere Combine & Baler

Z11231.01 Knife Housing For John Deere Combine & Baler

▍Application

A spare part for the header of the John Deere combine.

▍Destination

The knife beam is designed to transmit oscillatory motion from the fork shaft to the head of the header knife. This spare part is used for replacing a worn out or damaged part during repairs.

▍Properties

The beam is made of cast iron by means of moulding molten metal. On the one side of the beam there is an opening with splines for mounting the beam on the wobble box, and on the opposite side there are fixing holes for the head of the beam.

▍Parameters Of Knife Housing

Weight , W	kg	1
Inner diameter , d	mm	18
Outer diameter , D	mm	54
Number of mounting holes , N		3
Mounting holes diameter , Dm	mm	11
Height , H	mm	36
Height , H2	mm	23

▍Usage Of Knife Housing Knife Housing can be adapted to Combine Harvester John Deere: 1032 1042 1052 1055 1065 1068H 1072 1085 330 530 630 730 925 930 730 925 930 932 935 940 942 945 950 952 955 965 965H 968H 970 975 985 Tractor John Deere:1120 2025R Baler John Deere: 430

▍Related Products

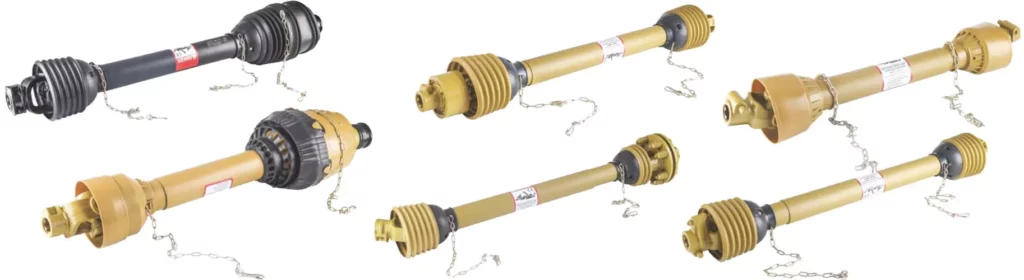

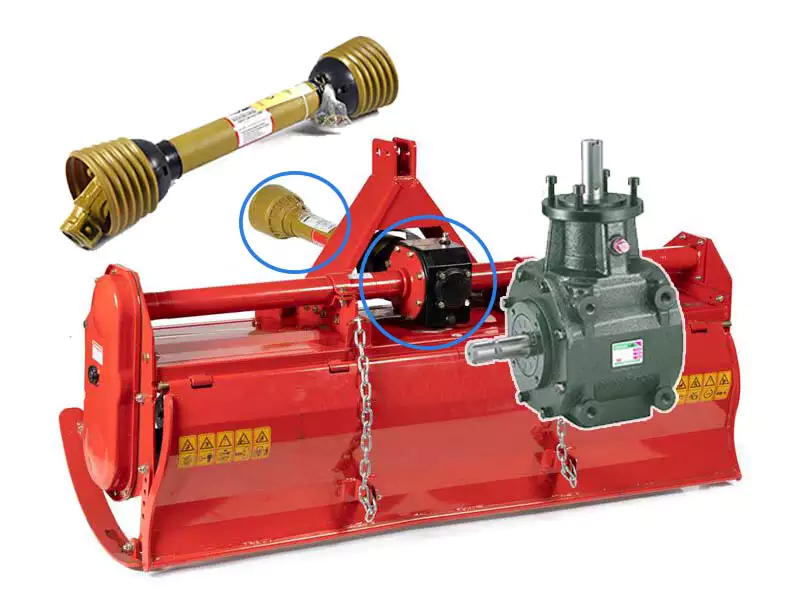

▍We Also Supply PTO Shafts & Agricultural Gearboxes
