Z11508 T17 Sprocket For John Deere Combine Cutting Platforms And Header

Discover the Raydafon Group Z11508 T17 Sprocket, engineered for John Deere combine cutting platforms and headers. With premium materials and precision design, it ensures smooth operation, reducing downtime for farmers and operators. This durable sprocket solves wear issues, enhancing efficiency in demanding harvesting tasks. Its compatibility and reliability set it apart, delivering peace of mind during crucial seasons. Choose Raydafon Group for trusted performance that boosts your equipment's longevity and productivity.

Send Inquiry

Product Description

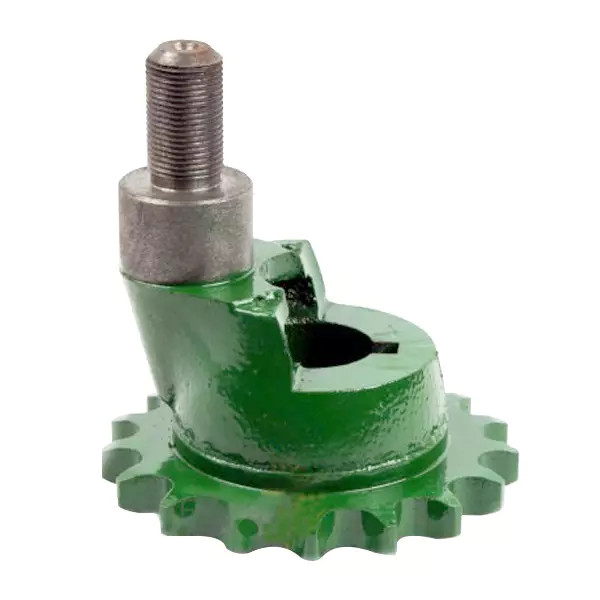

Z11508 T17 Sprocket For John Deere Combine Cutting Platforms And Header

▍Destination of the chain sprocket:

The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element - a chain. This spare part is used for replacing a worn out or damaged part during repairs.

▍Properties of Z11508 T17 sprocket:

Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.

▍Application of Z11508 T17 sprocket

Spare part for John Deere combine.

▍Features of Z11508 T17 sprocket

One row sprocket.

▍Parameters of Z11508 T17 sprocket

Weight , W	kg	1.56
Inner diameter , d	mm	33
Outer diameter , D	mm	110
Top hight , Th	mm	48
Number of teeth , Z		17
Height , H	mm	128
Thread , M		М20
Inner diameter , d1	mm	38
Length screw thread , Lc	mm	30
Key slot	mm	8х48х5

The parameters may differ from the actual ones.

▍Usage of Z11508 T17 sprocket

Combine harvester John Deere: 1032 1042 1052 1055 1065 1068 1068H 1072 1075 1075HY/4 1085 1085HY/4 1088 Header John Deere: 1000 Series

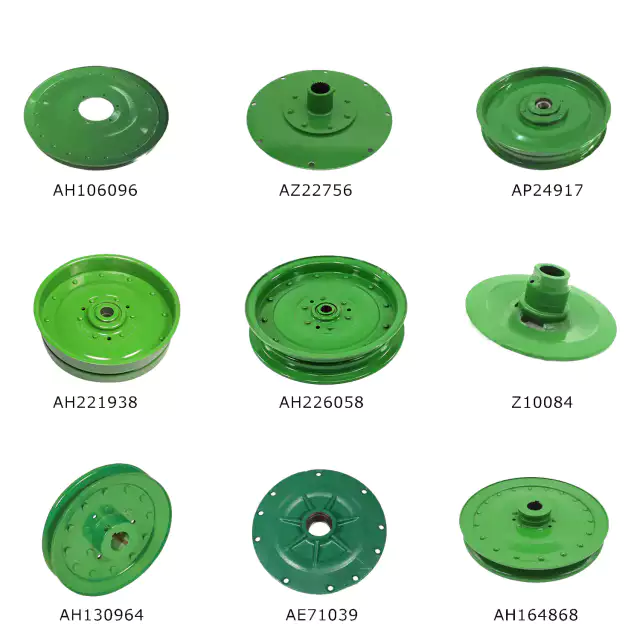

▍Related Products

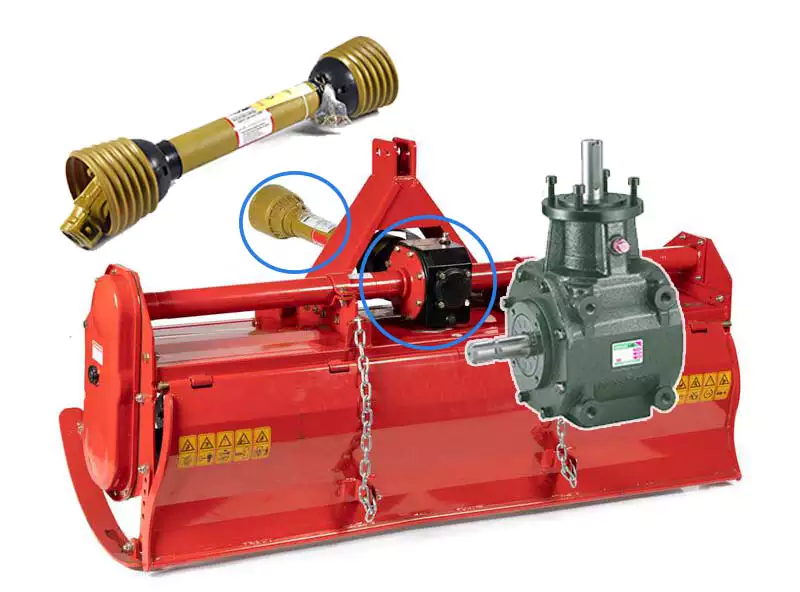

▍We Also Supply PTO Shafts & Agricultural Gearboxes

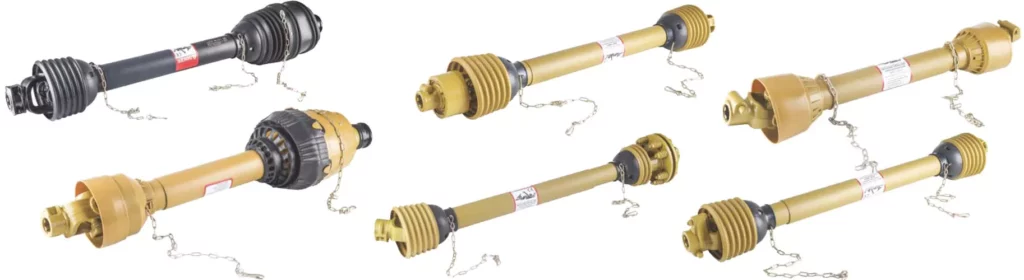

If you also need the PTO shafts, click here：https://hzpt.com/agricultural-pto-shaft/ Z11508 T17 Sprocket For John Deere Combine Cutting Platforms And Header
