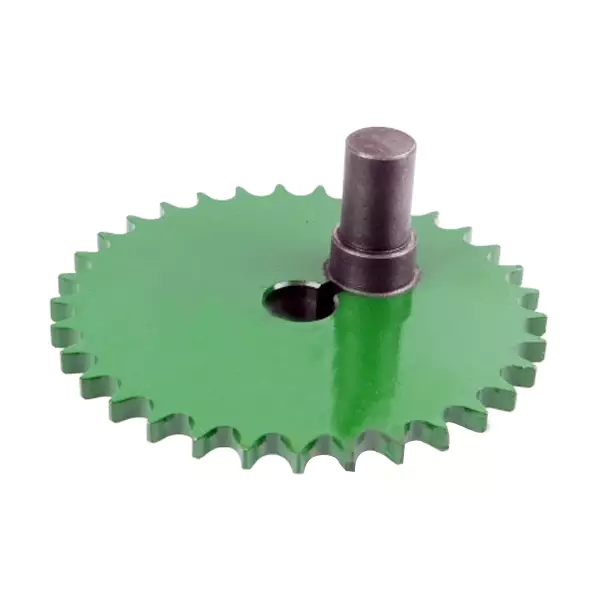

Z11690 Straw Walker Sprocket For John Deere Combine

Z11690 Straw Walker Sprocket For John Deere Combine

▍Application A spare part for the straw walker of the John Deere combine harvesters.

▍Destination

Ensuring the transmission of torque through the chain to the working units of the drive. This spare part is used for replacing worn out or damaged parts during repairs. ▍Properties Steel or cast iron product of a complex spatial form in the form of an asterisk with a central hole and fastening elements. On the outer surface of the part is applied a special coating to increase the lifetime of operation.

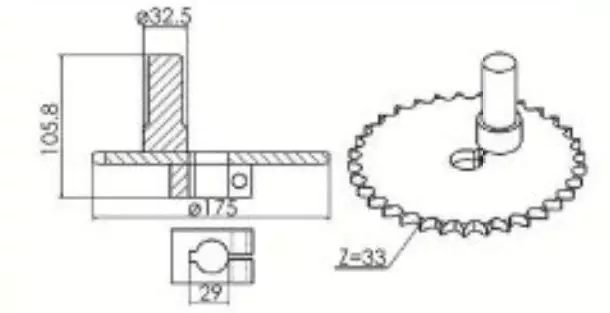

▍Parameters Of Z11690 Straw Walker Sprocket

Weight , W	kg	3.5
Inner diameter , d	mm	29
Number of teeth , Z		33
Mounting holes diameter , Dm	mm	10
Height , H	mm	105.8
Gear diameter , Dg	mm	210
Diameter of shaft , Ds	mm	32.5
Key slot	mm	4x7

▍Usage of Z11690 Straw Walker Sprocket

Combine harvester John Deere: 1166 1166HY/4 1169 1169HY/4 1174 1174HY/4 1177 1177HY/4 1188 1188HY/4 4435 4435HYDRO  C100-ORIGIN 3316(CHINA EDDITION) C110(CHINA EDDITION)  W210(CHINA EDDITION)  C230(CHINA EDDITION)

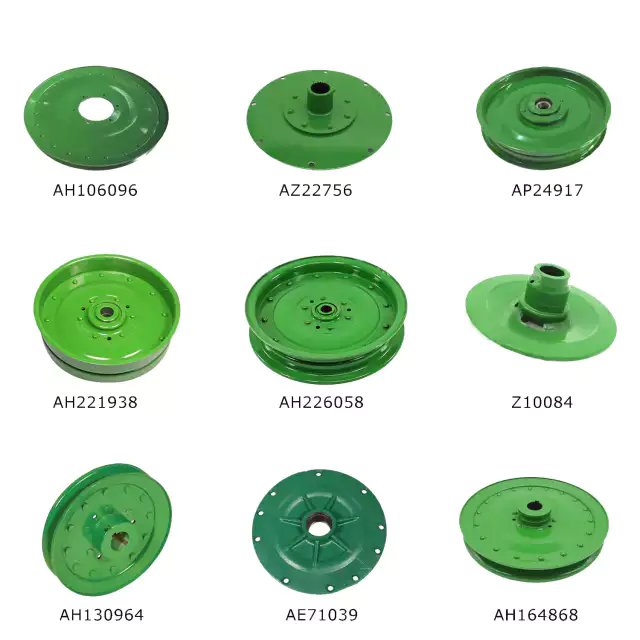

▍Related Products

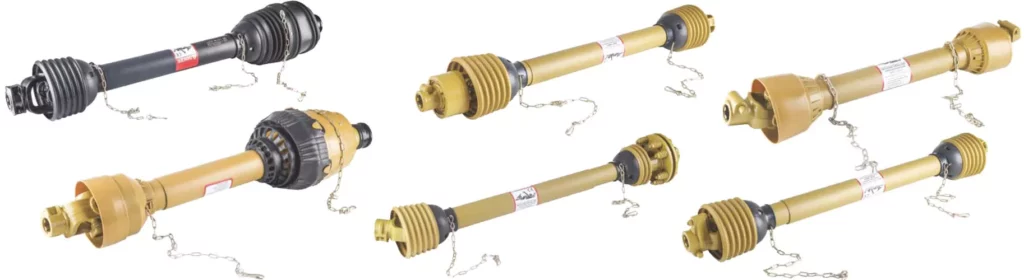

▍We Also Supply PTO Shafts & Agricultural Gearboxes

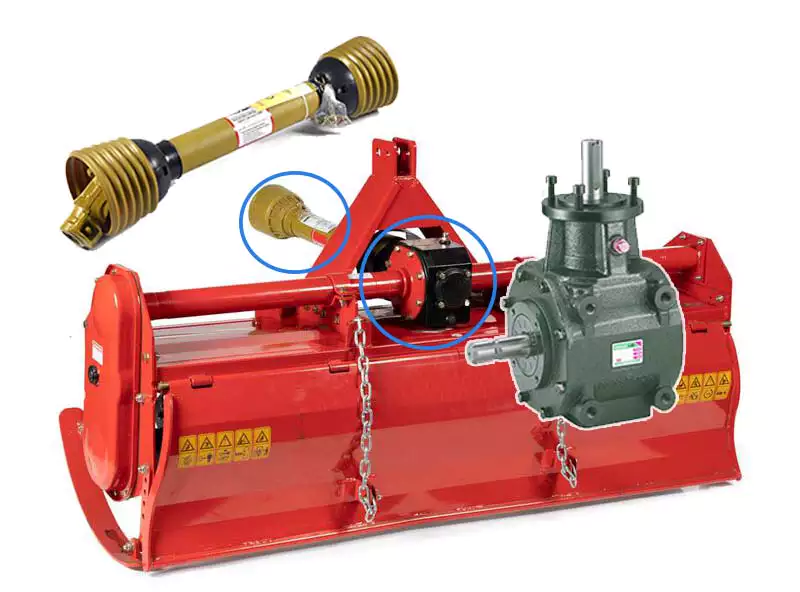

If you also need the PTO shafts, click here：https://hzpt.com/agricultural-pto-shaft/ We Also Supply Agricultural Gearboxes

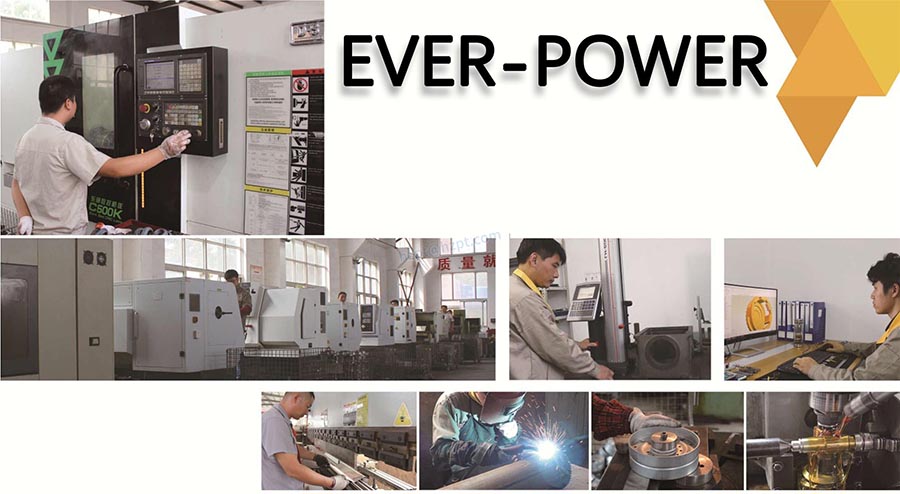

▍Company Information
