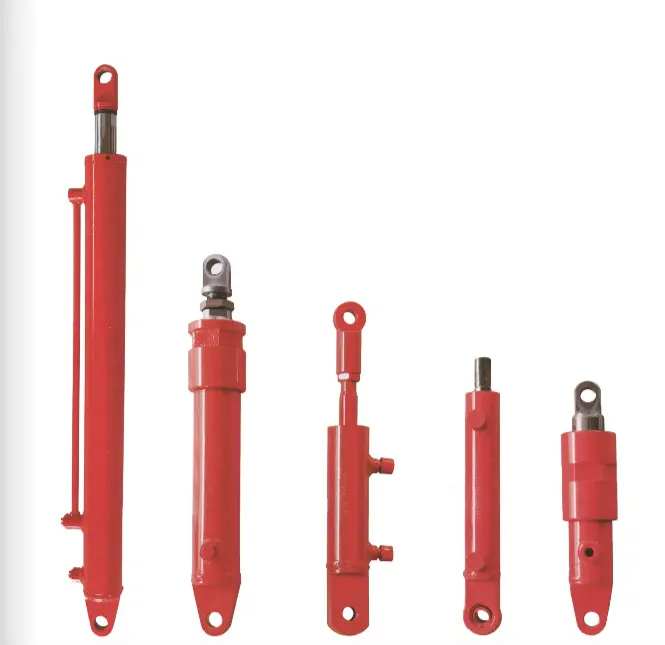

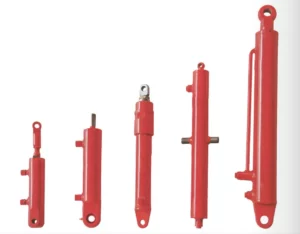

ZG and HSG Series Hydraulic Cylinders for Harvester

ZG and HSG Series Hydraulic Cylinders for Harvester



Basic Parameters Of ZG and HSG Series Hydraulic Cylinders for Harvester:

Note: 1. Speed ratio Φ refers to the ratio of the effective area of the piston and the effective area of the piston rod cavity.2. Speed ratio 1.46-rod diameter is the preferred series.3. The maximum travel specified in the S> table required by the user shall be settled through negotiation between the two parties.4. The minimum travel of the hinge shaft and the middle flange connection is selected according to Tables 5, 6, 7, and 8.5.1Mpa is equal to 10kgfcm².

ZG and HSG Series Hydraulic Cylinders for Harvester Characteristic:

• Robust Construction: Hydraulic cylinders for harvesters are built from high-strength materials specifically designed to endure the demands of challenging work environments. This robust construction ensures they can handle heavy loads and extreme conditions without failure, making them reliable for even the toughest jobs. Their durability minimizes the risk of breakdowns, allowing operators to work with confidence.
• High Precision: These cylinders are engineered for precise performance, enabling accurate control over the boom, arm, and bucket movements of the excavator. This level of precision is crucial for tasks that require careful maneuvering, such as digging trenches or lifting delicate materials. The ability to execute movements with accuracy not only improves efficiency but also enhances safety on the job site.
• Corrosion Resistance: Equipped with advanced protective coatings, hydraulic cylinders for harvesters resist rust and environmental damage effectively. This corrosion resistance is particularly important in harsh outdoor conditions, where exposure to moisture and chemicals can lead to premature wear. By extending the lifespan of the cylinders, this feature reduces maintenance costs and the need for frequent replacements.

• Variety of Sizes: Hydraulic cylinders for harvesters are available in a wide range of sizes and specifications to accommodate different excavator models and applications. This versatility ensures compatibility with various machinery, making it easier for operators to find the right fit for their specific needs. Whether for small-scale projects or large construction sites, there's an appropriate cylinder available to enhance performance.
• User-Friendly Installation: Designed with ease of use in mind, these cylinders facilitate straightforward installation and quick replacements. Clear instructions simplify the integration process, allowing operators to get back to work with minimal downtime. This user-friendly approach not only saves time but also ensures that even those with limited technical experience can successfully install or replace the cylinders without hassle.

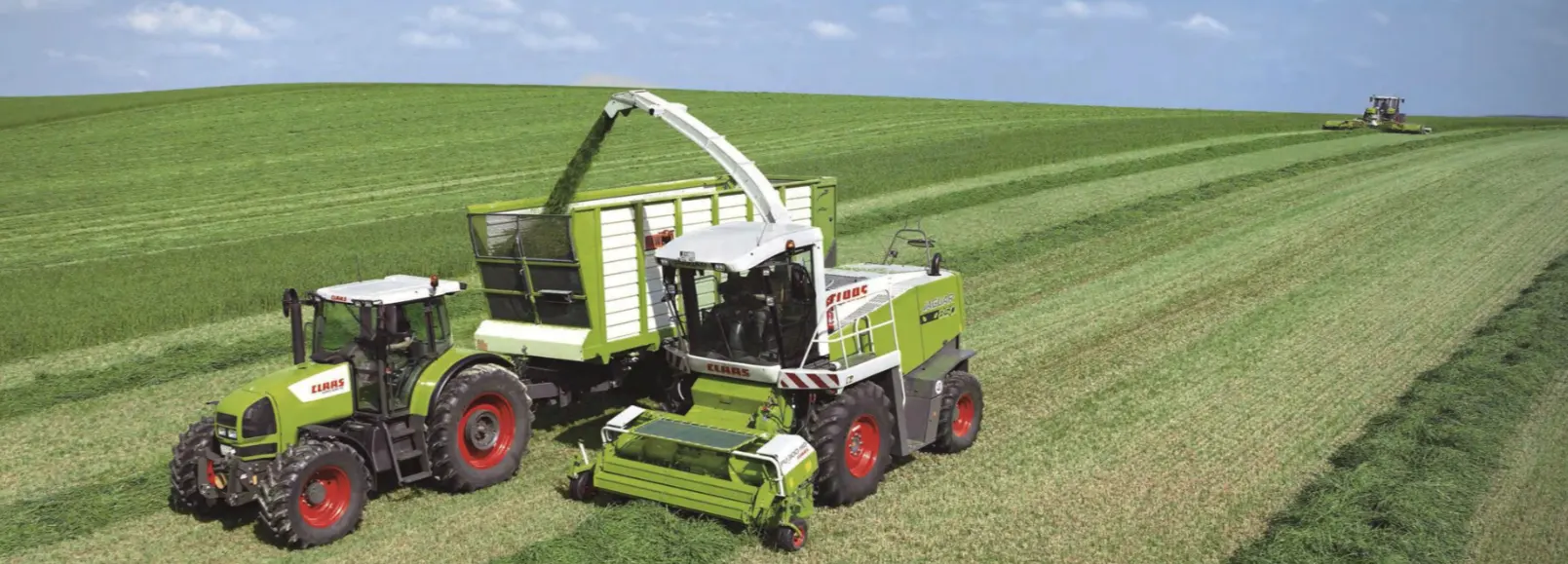

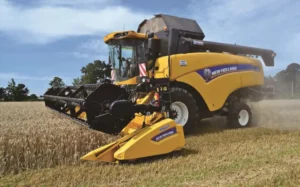

ZG and HSG Series Hydraulic Cylinders for Harvester Application:

Model And Performance Parameters:

1.  Demonstration Of The Type

2. The Piston Rod End Is External Thread (See Table 6-1, 6-2) Rod Earrings

Piston Rod End With External Thread Rod Head For Earring Connection Mounting Connection Dimensions Table 6-1

Note: 1. The connection size with ▲ is only the speed ratio Φ=2.2. The speed ratio with * is 1.7, and △ it is ∅only 80 cylinder card key size.3. Speed ratio Φ=1.46 column piston rod diameter is preferred series.

Piston Rod For External Threaded Rod Head Earring Connection Mounting Connection Size Table (Hinge Shaft, End, Middle Flange) Table 6-2

 HSG TYpe Engineering Hydraulic Cylinder Instructions:

HSG*01 series double action single rod piston hydraulic cylinder is a reciprocating linear motion in the hydraulic system of the actuator, suitable for construction machinery, mining machinery, lifting and transportation machinery, metallurgical machinery, and engineering vehicles hydraulic transmission.Schematic Diagram Of Structure:

unbuffered

buffered

Selection Method:

1. User root 1. Enter the connection mode number (the last four digits in the Model Description) according to the Model Description. Then, consult Figure 1 to Figure 4 according to the connection mode of the piston rod end to determine the required structural form. Refer to Table 5 to Table 8 according to the structure form, cylinder diameter, and speed ratio stroke to determine the external installation and connection dimensions.2. Complete model, travel, and installation distance when ordering:

Note: If the installation distance required by the user is the same as L1+S to L4+S or L21 to L24 in Table 5 to Table 8, the installation distance can not be written down when ordering; If not, the installation distance must be written. However, the required installation distance can only be greater than or equal to L1+S to L4+S or L21 to L24. The dimensions L31 to L38 selected by the user shall be within the range specified in Tables 5 to 8.For example, a user needs a hydraulic cylinder: the installation is a hinge shaft, the piston rod end is an external threaded rod head earring joint bearing, the bottom end of the cylinder is cushioned, and the cylinder diameter isΦ150, rod diameter Φ85, stroke 1000, installation distance L33 is 800, the model and stroke used for ordering, installation distance is:3. Selection Check:After the user finishes the selection, please check the selected main parameters (cylinder diameter, piston rod diameter) and connection number in Table 1, Table 2, and Table 3 to avoid selection errors.

Hydraulic Cylinder Mounting Connection Dimension Drawing:

40 Bore Oil Cylinder

50 Bore Oil Cylinder

63 Bore Oil Cylinder

80 Bore Oil Cylinder

100 Bore Oil Cylinder

63 Bore Oil Cylinder

Lower Flange Size

This product has two styles to choose from, the size will be different, please carefully distinguish!In this picture, the sizes of model A and model B are at the end of the page.Please inform the customer service staff of the specified style and note that there is no specified style, the company will send randomly.Data will be in error; please order carefully!

5 Tons - Top And Bottom Flange Series Hydraulic cylinder

Electroplated piston rod, high hardness, wear resistance, corrosion resistance, prevent wear oil seal.FA-63X35 Product Parameters:Cylinder diameter 63MM, rod diameter 35MM, outer diameter 73MM, stroke 100-2000MM;Thread M18*1.5, rated pressure 16MPA, maximum 19MPA, thrust up to 5 tons;Some specifications support customization, so please consult the company's customer service staff.

Solid Rod - 12.5 Tons Hydraulic Cylinder

Electroplated piston rod, high hardness, wear resistance, corrosion resistance, prevent wear oil seal.FA-100X63 Product Parameters:Cylinder diameter 100MM, rod diameter 63MM, outer diameter 110MM, stroke 100-2000MM;Thread M20*1.5, rated pressure 16MPA, maximum 19MPA, thrust up to 12.5 tons;Some specifications support customization, so please consult the company's customer service staff.

Engineering Hydraulic Cylinder For Sale:

In addition to hydraulic cylinder replacement products, we offer a wide range of engineered hydraulic cylinders for different industrial scenarios. Our products are widely used in construction, mining, manufacturing, and other fields to meet the diverse needs of customers.We look forward to working with you to promote the progress and development of the hydraulic industry jointly!
