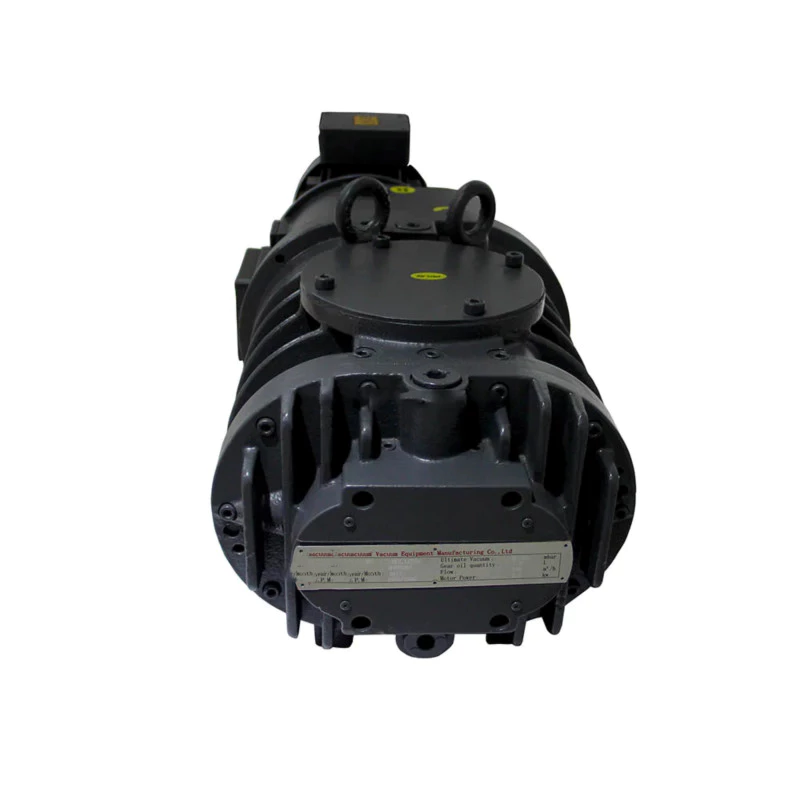

ZJB-150 Roots vacuum pump

ZJB-150 Roots Vacuum Pump

ZJB-150 Roots vacuum pump is a type of vacuum pump that can generate a high vacuum. It is widely used in various industries, such as chemical, pharmaceutical, semiconductor, and food processing industries. The pump is designed to be oil-free, with low noise and vibration, and with a long operating life.

Features and Advantages

High pumping speed

The Roots vacuum pump has a high pumping speed, which can quickly and efficiently remove gases from the vacuum chamber. The pumping speed varies depending on the model and operating conditions. The ZJB-150 Roots vacuum pump has a pumping speed of 150 m3/h.

Oil-free design

The Roots vacuum pump is designed to be oil-free, which eliminates the need for oil changes and reduces the maintenance requirements. It is also more environmentally friendly and suitable for applications where contamination from oil is undesirable.

Low noise and vibration

The Roots vacuum pump operates quietly and with low vibration levels, which helps to maintain a comfortable working environment and reduces the risk of damage to the equipment.

High efficiency

The Roots vacuum pump is designed to be highly efficient, which means that it can generate a high vacuum using less energy than other types of vacuum pumps. This makes it a cost-effective option for many applications.

Adaptability

The Roots vacuum pump is adaptable to a wide range of operating conditions and can handle different types of gases, including corrosive and toxic gases.

Long operating life

The Roots vacuum pump is designed to have a long operating life with minimal maintenance requirements. This makes it a reliable and cost-effective option for many applications.

Working Principle

The Roots vacuum pump works on the principle of two interlocking rotors that rotate in opposite directions. As the rotors turn, the volume between them decreases, causing the gas to be compressed and expelled out of the pump. This creates a vacuum in the chamber that is being pumped.

Applications

The Roots vacuum pump is used in a wide range of applications, including:

• Chemical processing
• Pharmaceutical manufacturing
• Semiconductor manufacturing
• Food and beverage processing
• Environmental testing

Maintenance Requirements

To maintain the performance and prolong the operating life of the Roots vacuum pump, regular maintenance is required. The maintenance requirements include:

• Checking the oil level and adding oil as needed (for oil-lubricated pumps)
• Checking and cleaning the inlet filter
• Checking and cleaning the exhaust valve
• Inspecting the rotor and stator for wear and damage

Advantages in Energy-saving and Environmental Protection

The Roots vacuum pump has several advantages in energy-saving and environmental protection, including:

• Oil-free design, which eliminates the need for oil changes and reduces the risk of oil contamination
• High efficiency, which reduces energy consumption
• Low noise and vibration, which creates a comfortable working environment
• Long operating life, which reduces waste and prolongs the service life of the equipment

Comparison with Other Types of Vacuum Pumps

Compared to other types of vacuum pumps, such as rotary vane pumps or diffusion pumps, the Roots vacuum pump has several advantages, including:

• Oil-free design, which eliminates the need for oil changes and reduces the risk of oil contamination
• High pumping speed, which means that it can generate a high vacuum quickly and efficiently
• Low noise and vibration, which creates a comfortable working environment

However, the Roots vacuum pump also has some disadvantages compared to other types of vacuum pumps, such as:

• Higher initial cost
• Lower ultimate vacuum
• Not suitable for pumping some gases, such as hydrogen and helium

Oil-Free Operation

The Roots vacuum pump is suitable for oil-free operation, which eliminates the need for oil changes and reduces the risk of oil contamination. This makes it a more environmentally friendly option and suitable for applications where contamination from oil is undesirable. However, it is important to note that some models of the Roots vacuum pump may require periodic lubrication of the bearings.

High Pumping Speed and Low Ultimate Pressure

The high pumping speed and low ultimate pressure of the Roots vacuum pump are achieved through several design features, including:

• The interlocking rotor design, which creates a smooth and consistent flow of gas through the pump
• The large surface area of the rotors, which allows for efficient compression and expulsion of gas
• The use of multiple stages of pumping, which allows for a higher ultimate vacuum

About Our Company and Products

Our company is a leading supplier of Roots vacuum pumps in the Chinese market. We offer a wide range of vacuum pumps, including Roots vacuum pumps, screw vacuum pumps, water ring vacuum pumps, slide valve vacuum pumps, rotary vane vacuum pumps, rotary piston vacuum pumps, and reciprocating vacuum pumps. Our products are manufactured using state-of-the-art automated production equipment and are backed by our commitment to quality and customer service.

If you are looking for a reliable and cost-effective vacuum pump for your application, please contact us to learn more about our products and services. We offer customized solutions to meet the specific needs of our customers, and we are committed to providing high-quality products at competitive prices.

We welcome customers to visit our factory and discuss their specific requirements with our team of experts. Contact us today to learn how we can help you find the right vacuum pump for your application.
