ZJB-300 Roots vacuum pump

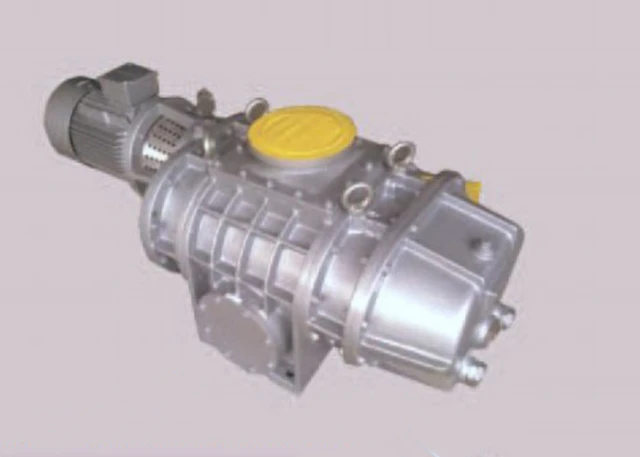

ZJB-300 Roots Vacuum Pump

The ZJB-300 Roots Vacuum Pump is a high-performance pump designed for use in a variety of industrial applications. This pump is known for its high pumping speed and large pumping rate, making it an ideal choice for applications that require high levels of vacuum. In addition, the ZJB-300 Roots Vacuum Pump is designed to operate without oil, which reduces maintenance requirements and improves overall reliability.

Features and Benefits

• High pumping speed and large pumping rate
• Oil-free operation
• Low vibration and low noise
• Long lifespan and high reliability
• Easy to maintain and clean

System and Working Principle

The ZJB-300 Roots Vacuum Pump operates on the principle of two rotating impellers that trap gas and move it from the inlet to the outlet. The pump is designed to work in combination with another type of vacuum pump, such as a rotary vane pump, to achieve high levels of vacuum.

Applications

The ZJB-300 Roots Vacuum Pump is widely used in the following industries:

• Semiconductor Manufacturing
• Food Processing
• Medical Equipment
• Pharmaceutical Manufacturing
• Chemical Processing

Product Overview

The ZJB-300 Roots Vacuum Pump is a type of positive displacement pump that has been used in various applications for many years. It is classified as a dry pump because it does not require oil to operate. Some of the advantages of the ZJB-300 Roots Vacuum Pump include:

• Easy installation and maintenance
• Low energy consumption
• Long lifespan
• Quiet operation
• High reliability

The pump has two main components: the impellers and the housing. The impellers are responsible for trapping the gas and moving it from the inlet to the outlet. The housing contains the impellers and creates a vacuum chamber for the gas to flow through.The ZJB-300 Roots Vacuum Pump is commonly used in applications where a high level of vacuum is required. Some of the specific processes where the ZJB-300 Roots Vacuum Pump is used include:

• Thin film coating
• Sputtering
• Etching
• Freeze drying
• Distillation

To operate the ZJB-300 Roots Vacuum Pump, it is important to follow the manufacturer's instructions carefully. This includes proper installation, operation, and maintenance procedures to ensure the pump operates at optimal performance levels.

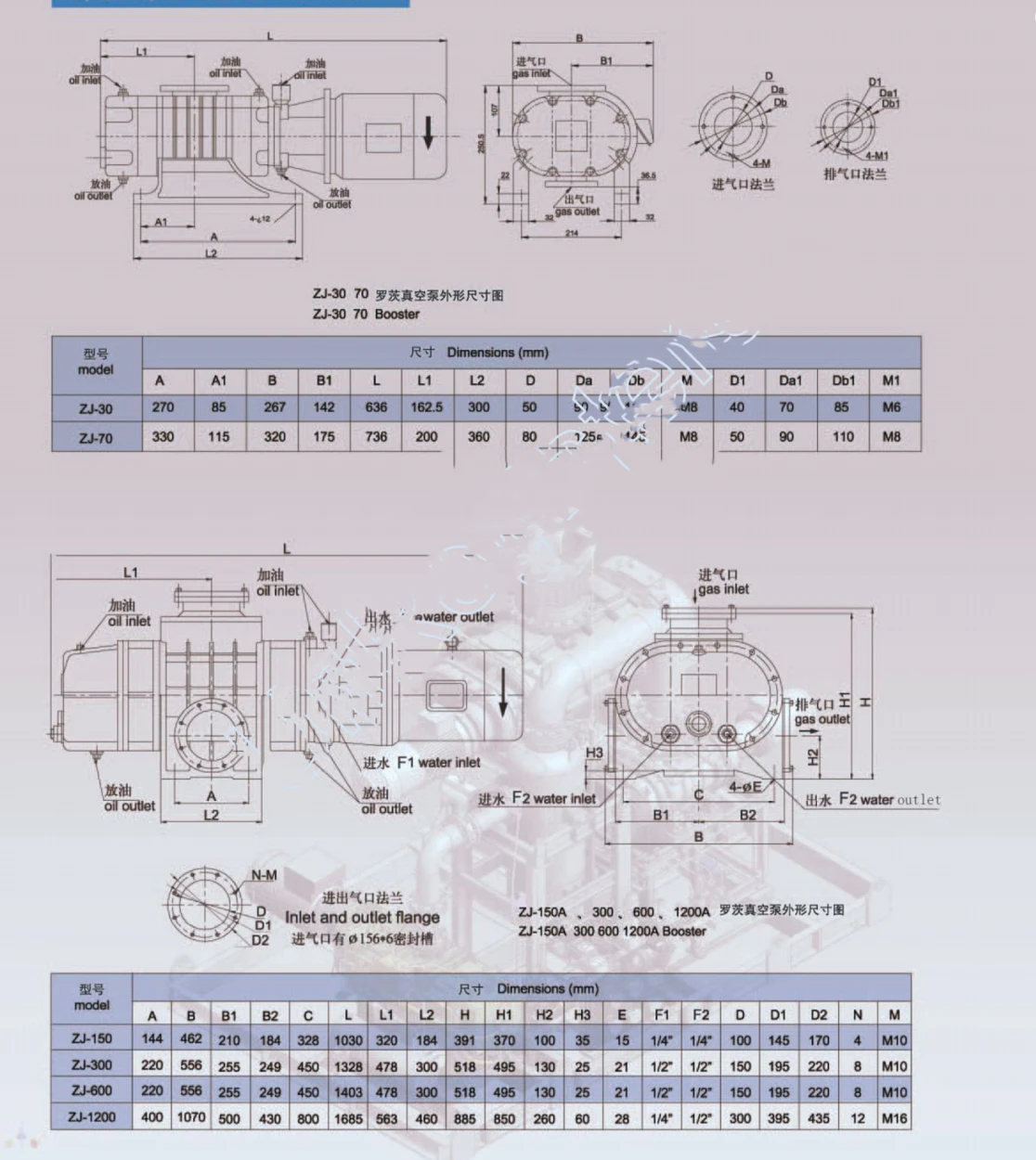

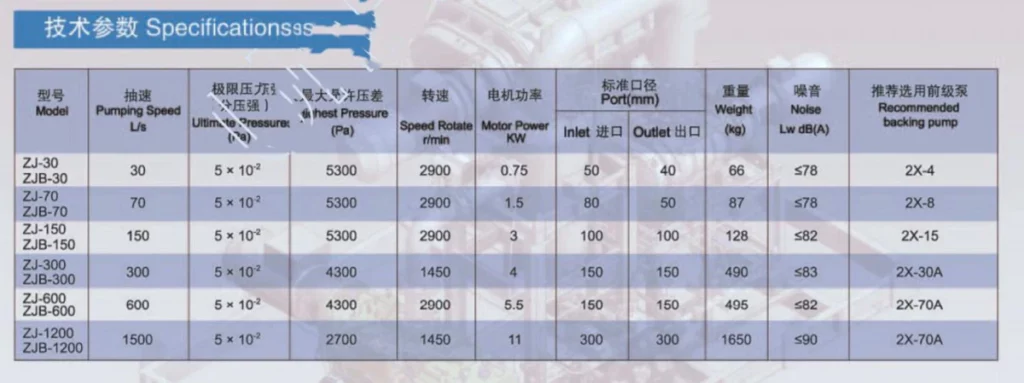

Product parameters

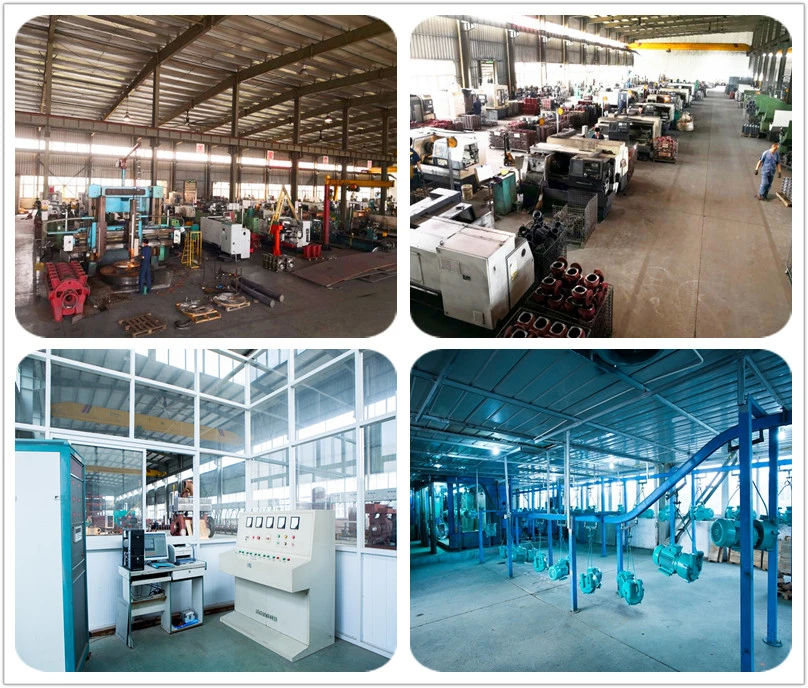

Raydafon is a leading supplier of Roots Vacuum Pumps in the Chinese market. We offer a wide range of vacuum pumps, including Roots Vacuum Pumps, Slide Valve Vacuum Pumps, Screw Vacuum Pumps, Liquid Ring Vacuum Pumps, and Rotary Vane Vacuum Pumps. Our products are manufactured using state-of-the-art CNC machinery and assembly equipment, ensuring high-quality and reliable performance. We also offer competitive pricing and exceptional customer service, and we welcome customers to contact us for custom orders.
