ZR10 Right Angle Planetary Gearbox Reducer

ZR10 Right Angle Planetary Gearbox Reducer

Overview

ZR10 Right Angle Planetary Gearbox Reducer is a type of gearbox that is used to reduce the speed of a motor. It is widely used in industrial machinery, such as construction, crushing equipment, environmental protection, mining, port equipment, communication, papermaking, power equipment, amusement equipment, chemical mixing, marine vessels, and metal products.

It is designed to provide high-precision transmission, robustness, compact structure, and low noise operation. The gearbox is made up of planetary gears, a sun gear, a ring gear, and a planet carrier. The planetary gears rotate around the sun gear, which causes the planet carrier to rotate around the central axis.

Here are some of the key features of ZR10 Right Angle Planetary Gearbox Reducer:

• High precision transmission
• Robustness
• Compact structure
• Low noise operation

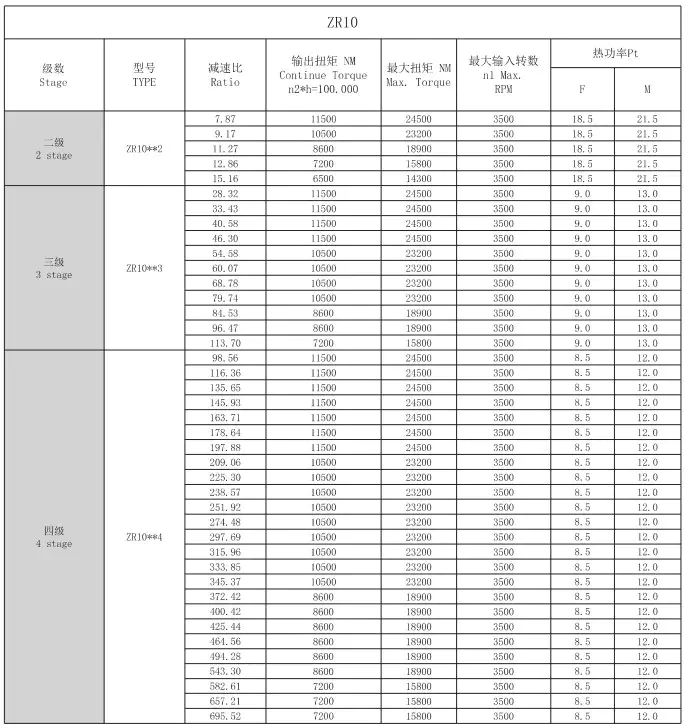

Technical Parameters

Specifications

Performance Advantages

Our planetary gearbox has some significant performance advantages over other types of gearbox. It is known for its high efficiency, energy-saving, long lifespan, and high reliability.

Here are some of the advantages in detail:

• High efficiency: Our gearbox is designed to provide maximum output power with minimum input power. This ensures that the gearbox operates with high efficiency, leading to reduced energy consumption and operating costs.
• Energy-saving: The gearbox operates with minimum energy loss, resulting in energy savings and reduced environmental impact.
• Long lifespan: Our gearbox is built to last. It can withstand heavy loads and harsh conditions, ensuring a long lifespan and reduced maintenance costs.
• High reliability: Our gearbox is designed to operate with high reliability. It undergoes rigorous testing to ensure that it meets all the necessary quality standards.

Applications

ZR10 Right Angle Planetary Gearbox Reducer is widely used in various industries for different applications. Here are some of its typical uses:

• Construction industry: Our gearbox is used in cranes, hoists, and other construction equipment.
• Crushing equipment: Our gearbox is used in crushers, shredders, and other crushing equipment.
• Environmental protection: Our gearbox is used in environmental protection equipment, such as air compressors and water pumps.
• Mining industry: Our gearbox is used in mining equipment, such as conveyor belts and pumps.
• Port equipment: Our gearbox is used in port equipment, such as cranes and loaders.
• Communication industry: Our gearbox is used in communication equipment, such as satellite dishes.
• Papermaking industry: Our gearbox is used in papermaking machinery, such as paper machines and paper cutters.
• Power equipment: Our gearbox is used in power equipment, such as generators and turbines.
• Amusement equipment: Our gearbox is used in amusement equipment, such as roller coasters and Ferris wheels.
• Chemical mixing: Our gearbox is used in chemical mixing equipment, such as agitators and mixers.
• Marine vessels: Our gearbox is used in marine vessels, such as ships and boats.
• Metal products: Our gearbox is used in metalworking machinery, such as lathes and milling machines.

Ordering Process

If you want to order ZR10 Right Angle Planetary Gearbox Reducer, you need to provide us with the following information:

• Application requirements and operating environment: We need to know the specific application requirements and operating environment for your gearbox.
• Basic parameters: We need to know the basic parameters of your gearbox, such as ratio, input speed, output speed, rated torque, power, and other technical specifications.
• Installation and connection: We need to know the installation and connection requirements for your gearbox.
• Installation space: We need to know the specific dimensions of your installation space.
• Surface treatment: We need to know the surface treatment requirements for your gearbox, such as anti-rust treatment and other surface coatings.
• Other requirements: We need to know any other special requirements you may have, such as protection level, lubrication method, vibration and noise limits, and other technical specifications.

Shipping Information

When you order our gearbox, you can expect the following:

• No lubrication oil: The gearbox is shipped without lubrication oil.
• Anti-rust paint: The gearbox is treated with anti-rust paint to protect it during shipping.
• Appropriate storage: If the gearbox is stored for a long time, it should be coated with oil to prevent corrosion.
• Wooden box packaging: The gearbox is shipped in a wooden box to protect it during transportation.
