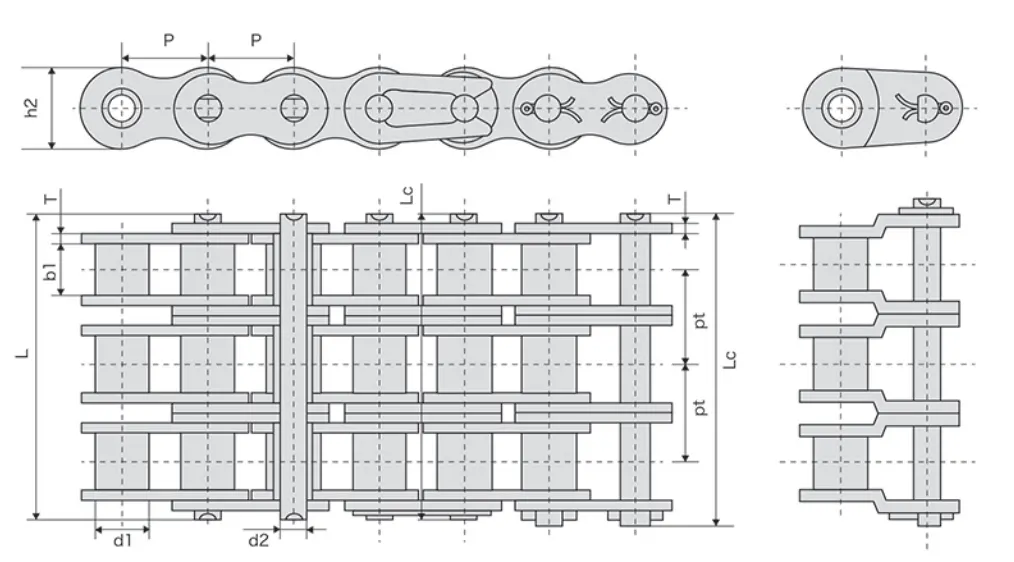

DIN/ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Pt | Q(min) | Q0 | q | ||
mm | mm | mm | mm | mmm | mm | mm | mm | mm | kN | kN | kg/m | ||
04CSS-3 | 25SS-3 | 6.35 | 3.3 | 3.18 | 2.31 | 21 | 21.5 | 6 | 0.8 | 6.4 | 6.3 | 7.56 | 0.44 |
06CSS-3 | 35SS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.7 | 33.5 | 9 | 1.3 | 10.13 | 14.22 | 17.16 | 1.05 |
08ASS-3 | 40SS-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.4 | 46.6 | 12 | 1.5 | 14.38 | 25.38 | 30 | 1.9 |
10ASS-3 | 50SS-3 | 15.875 | 10.16 | 9.4 | 5.08 | 57 | 58.5 | 15.09 | 2.03 | 18.11 | 39.96 | 46.68 | 3.09 |
12ASS-3 | 60SS-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 73.3 | 18 | 2.42 | 22.78 | 57.24 | 66.66 | 4.54 |
16ASS-3 | 80SS-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.7 | 93.6 | 24 | 3.25 | 29.29 | 102.06 | 119.04 | 7.89 |
20ASS-3 | 100SS-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 116.3 | 30 | 4 | 35.76 | 159.3 | 185.76 | 11.77 |
24ASS-3 | 120SS-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141.4 | 145.2 | 35.7 | 4.8 | 45.44 | 228.6 | 262.32 | 17.53 |
28ASS-3 | 140SS-3 | 44.45 | 25.4 | 25.22 | 12.7 | 152.2 | 156.8 | 41 | 5.6 | 48.87 | 342.72 | 355.98 | 22.2 |
32ASS-3 | 160SS-3 | 50.8 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.8 | 6.4 | 58.55 | 408.24 | 468.36 | 30.02 |
36ASS-3 | 180SS-3 | 57.15 | 35.71 | 35.48 | 17.46 | 204.4 | 210.2 | 53.6 | 7.2 | 65.84 | 504.42 | 590.16 | 38.22 |
40ASS-3 | 200SS-3 | 63.5 | 39.68 | 37.85 | 19.85 | 223.5 | 230.4 | 60 | 8 | 71.55 | 636.84 | 730.68 | 49.03 |
48ASS-3 | 240SS-3 | 76.2 | 47.63 | 47.35 | 23.81 | 271.3 | 278.6 | 72.39 | 9.5 | 87.83 | 918.54 | 1053.9 | 71.6 |

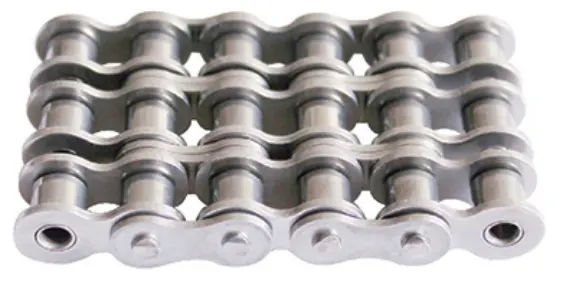

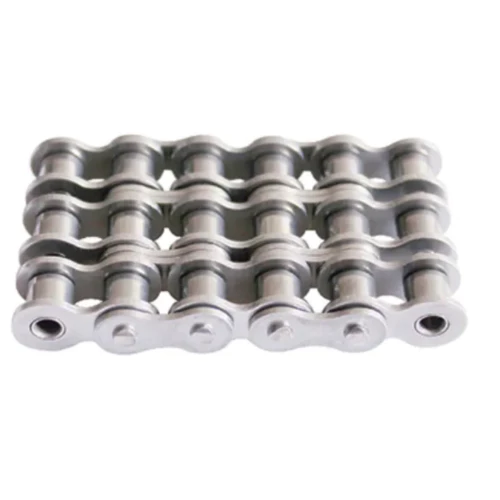

The 06CSS-3/35SS-3 Triplex Short Pitch Stainless Steel Bushing Chain is a highly versatile and durable component that plays a pivotal role in various mechanical transmission systems. With its outstanding features and wide range of uses, this stainless steel chain has become an essential part of numerous industries.
The 06CSS-3/35SS-3 Stainless Steel Chain consists of three main components:
The chain plate is the basic structural component of this short pitch stainless steel roller chain. It comprises inner and outer plates connected through a pin shaft.
The roller is the primary load-bearing part of the chain. It consists of a roller body and a roller shaft. The roller body corresponds to the protruding platform of the inner and outer chain plates, while the roller shaft matches the pin shaft of the chain plate.
The pin shaft is the connecting element of the short pitch stainless steel roller chain, linking the chain plate and the roller together.
Our stainless steel chain is made of advanced materials. They perform exceptionally well in acidic and alkaline environments where there is direct contact with food. Chains will be exposed to water and at extremely high or low temperatures (-40 ?? C to +400 ?? C) where corrosion resistance is required. When chemical resistance is critical, Reynolds stainless steel chains should be selected. It is manufactured from FDA-approved materials and pre-lubricated with USDA H1-approved lubricants.
The stainless steel roller chain functions as a crucial mechanical transmission component, transferring the driving force and bearing the load effectively. Its performance characteristics make it a reliable and efficient solution for power transmission applications.
The short pitch stainless steel roller chain is used in numerous industries, including food processing, chemical, medical equipment, and more. Its suitability for environments with exposure to moisture and corrosive substances makes it an invaluable asset for these industries.
Proper maintenance and care of the short pitch stainless steel roller chain involves regular cleaning, lubrication, and inspection to ensure optimal performance and prolong its service life.
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality.
stainless steel sprockets">
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our roller chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed.
We encourage our customers to explore our products and contact us for any inquiries or purchases. We are confident that our high-quality stainless steel chains and sprockets will meet and exceed your expectations.
