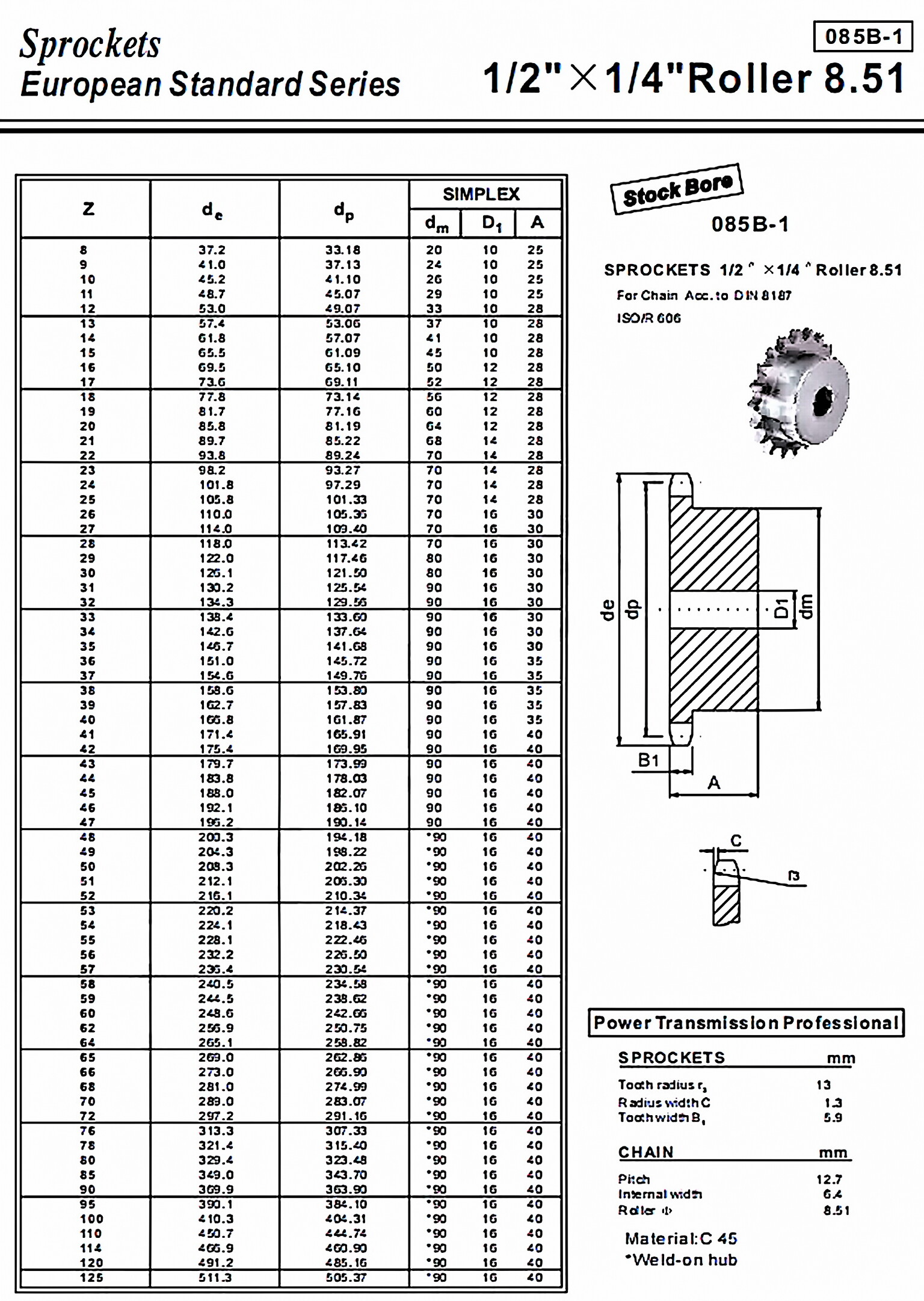

085B-1 Standard Bore Sprocket

085B-1 Standard Bore Sprocket

Introduction

A standard bore sprocket is a key component in many mechanical systems. It is used to transmit rotary motion between two shafts with the help of a chain. The sprocket consists of a wheel with teeth that engage with the links of the chain, allowing for smooth and efficient power transfer.

Structure of Sprocket

When customizing a sprocket, several factors need to be considered to ensure the optimal performance. These factors include:

• Material: The material choice for the sprocket depends on the specific application. Common materials include high carbon steel, alloy steel, or stainless steel.
• Tooth Profile: The tooth profile determines how the sprocket engages with the chain. It can be customized based on the specific requirements of the system.
• Number of Teeth: The number of teeth on the sprocket affects the speed ratio and torque transmission capabilities. It should be chosen carefully to match the desired system performance.
• Dimensions: The dimensions of the sprocket, including outer diameter and width, need to be determined based on the mechanical system's requirements.
• Bore Size: The center bore size of the sprocket is crucial as it needs to fit perfectly onto the shaft.
• Keyway: If required, a keyway can be added to ensure proper alignment and prevent slippage between the sprocket and the shaft.
• Surface Treatment: The sprocket's surface can be treated to enhance its durability and resistance to corrosion.

Materials and Manufacturing Process

Our sprockets are made from high-quality materials and undergo various manufacturing processes to ensure their reliability and longevity:

• Material: We use high carbon steel, alloy steel, or stainless steel for our sprockets, depending on the specific application requirements.
• Manufacturing Process: Our sprockets are carefully manufactured using processes such as material selection, cutting, stamping, forging, machining (turning, milling, drilling), heat treatment (quenching, tempering), surface hardening, surface treatment (rust prevention), and quality testing.

Applications

The 085B-1 Standard Bore Sprocket finds its applications in various industries, including:

• Heavy machinery and equipment
• Food processing and packaging
• Chemical and pharmaceutical
• Assembly lines
• Logistics and warehousing

Maintenance and Care

Proper maintenance and care are essential to ensure the longevity and optimal performance of the sprocket:

• Daily Inspection: Regularly inspect the sprocket for any signs of wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean and free from debris or contaminants that can affect its performance.
• Lubrication: Apply suitable lubrication to reduce friction between the sprocket and the chain, enhancing its efficiency and lifespan.
• Adjustment and Calibration: Periodically adjust and calibrate the sprocket to maintain its proper alignment and tension.

Common Issues and Solutions

Here are some common issues that can occur with sprockets and their corresponding solutions:

• Skipping Teeth: Check for misalignment or worn-out teeth. Adjust the chain tension or replace the sprocket if necessary.
• Breakage: Inspect for any signs of cracks or fractures in the sprocket. Replace it immediately if it's broken.
• Wear: Regularly monitor the sprocket's teeth for excessive wear. Replace the sprocket if the wear exceeds the acceptable limits.
• Noise: Unusual noise can indicate misalignment or lack of lubrication. Check and rectify the cause accordingly.
• Chain Slippage: Ensure that the chain is properly tensioned and aligned with the sprocket. Adjust or replace the chain as needed.

We also offer other types of sprockets, such as platewheel sprockets, idler sprockets, QD sprockets, and taper lock sprockets, along with compatible chains.

Author: Miya
