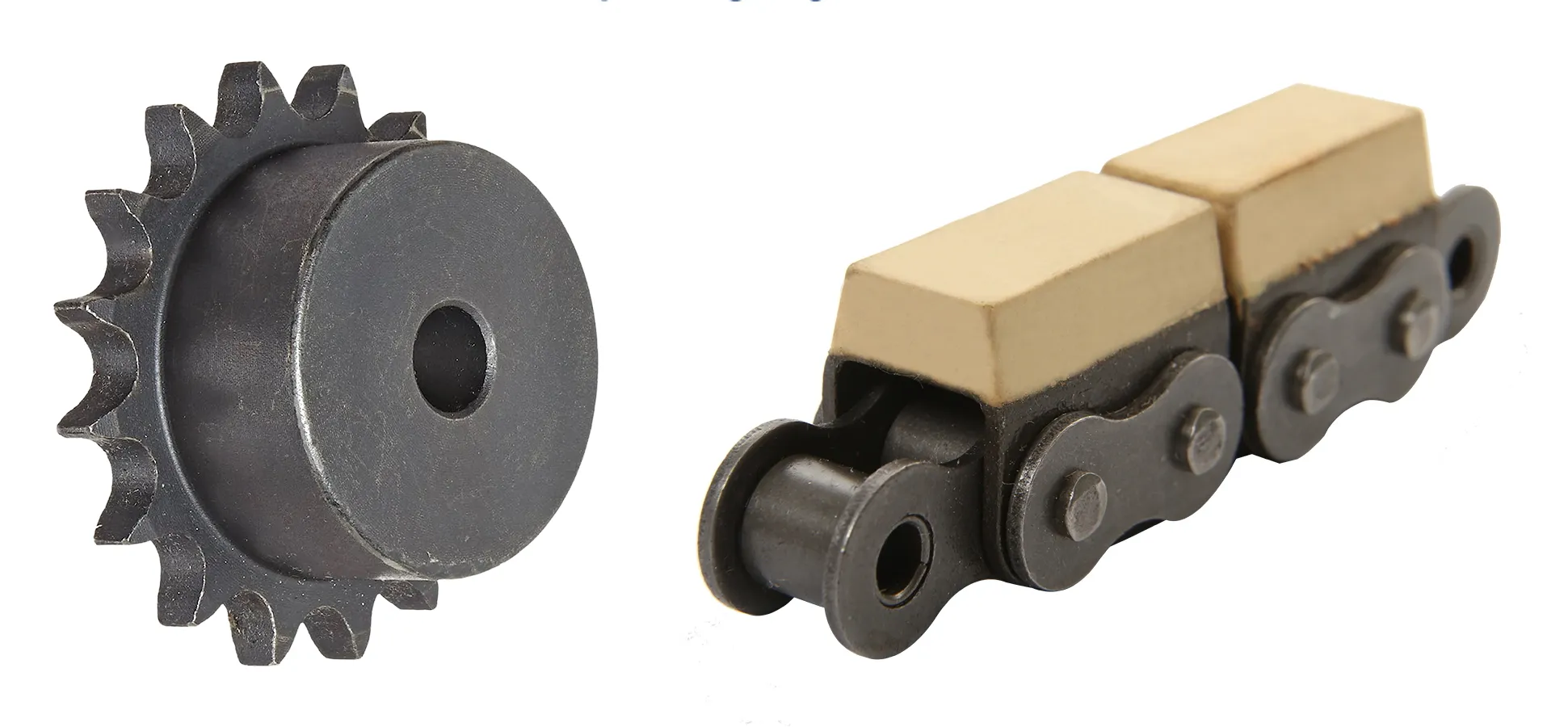

08B-G1 Rubber Top Roller Chain

08B-G1 Rubber Top Chain 08B-G1 Rubber Top Roller Chain

The 08B-G1 rubber top chain is a type of chain used in industrial applications, specifically in conveying systems. It is a type of roller chain that features rubberized tops on the chain links, which provides better grip and reduces slippage when conveying items on the chain. The "08B" refers to the size of the chain, which is a standard size for roller chains commonly used in industrial applications. The "G1" refers to the type of rubber used for the chain's top surface. It is a high-quality synthetic rubber that is resistant to wear, chemicals, and high temperatures.This type of 08B-G1 rubber top chain is commonly used in industries such as food and beverage, packaging, and manufacturing, where reliable and efficient conveying systems are necessary. The rubber top provides a non-slip surface that is gentle on delicate products, reducing the risk of damage during transport. Additionally, the rubber top can absorb shocks and vibrations, reducing noise and extending the life of the chain.

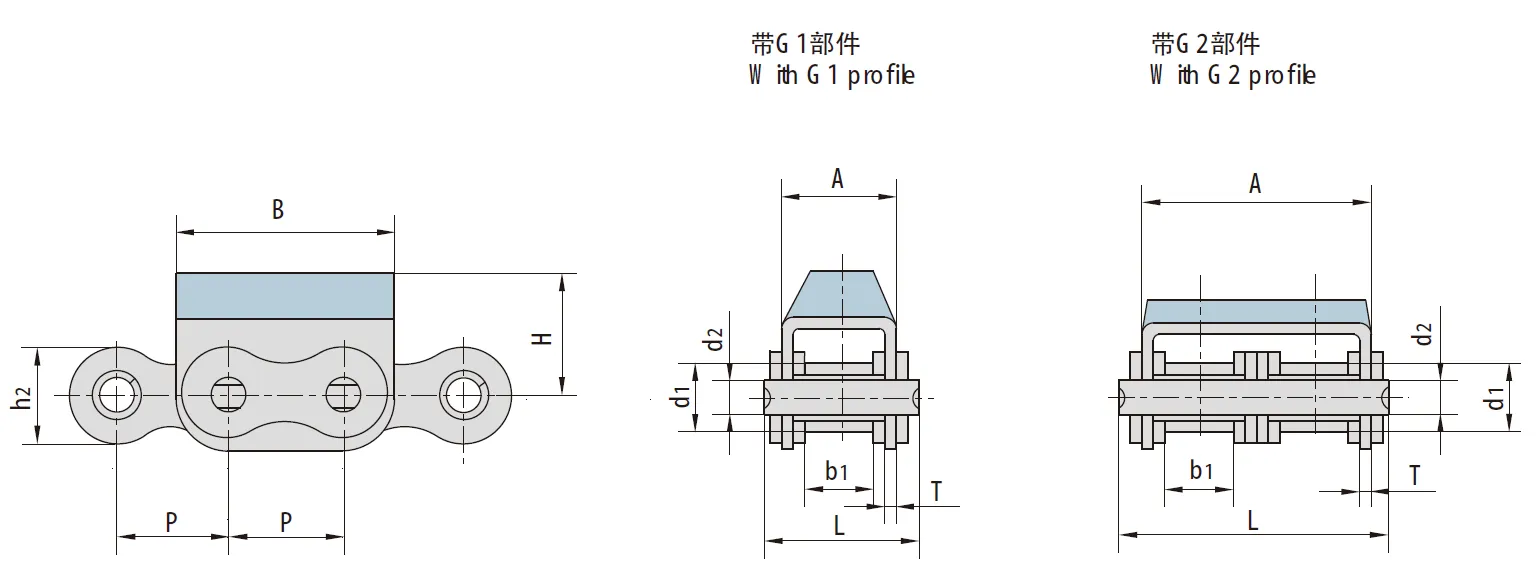

▍08B-G1 Rubber Top Chain Sizes Chart:

Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate and attachment dimension

Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

A

B

H

T

Qmin

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

08B-G1 Chain

12.700

8.51

7.75

4.45

20.0

11.80

14.60

24.20

12.3

1.60

18.0/4091

1.19

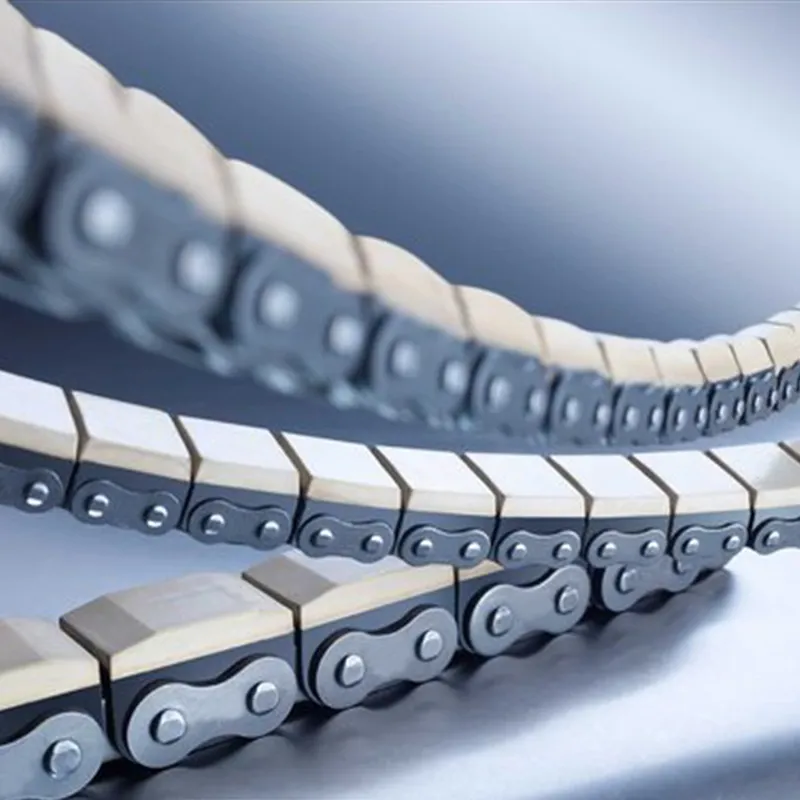

▍08B-G1 Rubber Top Chain Features:

The 08B-G1 rubber top chain is a high-quality roller chain that is used in a variety of applications. It is a simplex chain, which means that it has only one row of pins and rollers. The chain has a pitch of 12.7 mm (1/2") and a width of 7.75 mm (5/16"). The rubber top on the chain helps to reduce noise and vibration, and it also helps to protect the chain from wear and tear.Here are some of the features of the 08B-G1 rubber top chain:Rubber top: The rubber top on the 08B-G1 rubber top chain helps to reduce noise and vibration. This is important in applications where noise is a concern, such as in conveyors or hoists. The rubber top also helps to protect the chain from wear and tear.Heat-treated components: The components of the 08B-G1 rubber top chain are heat-treated to improve their strength and durability. This makes the chain more resistant to wear and tear, and it also helps to extend the chain's service life.Premium rubber: The rubber top on the 08B-G1 rubber top chain is made from premium rubber. This rubber is resistant to wear and tear, and it also helps to reduce noise and vibration.Available in a variety of lengths and styles: The 08B-G1 rubber top chain is available in a variety of lengths and styles. This makes it easy to find the perfect chain for your application.

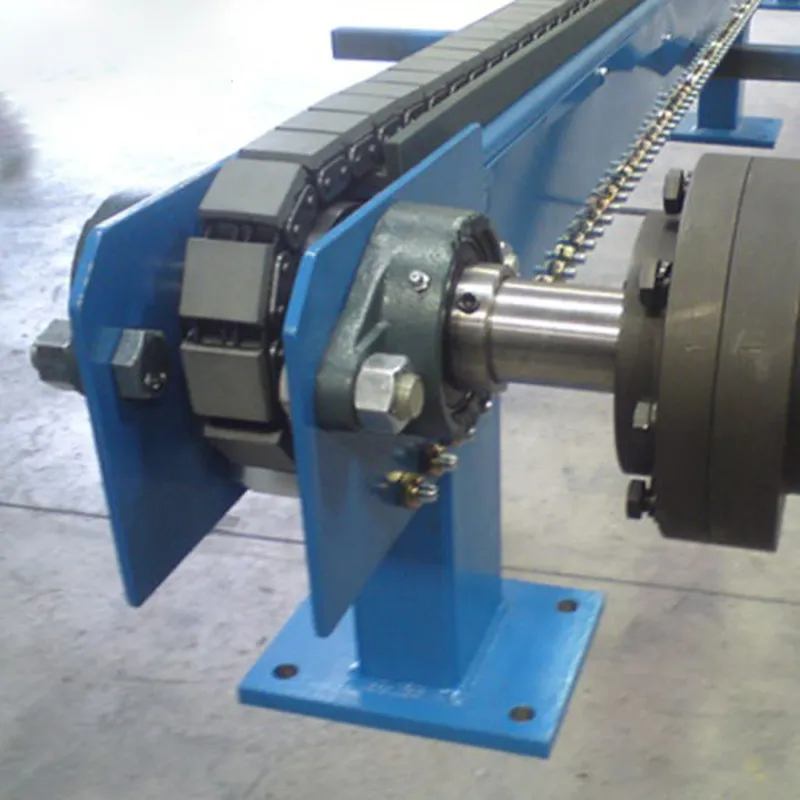

▍08B-G1 Rubber Top Chain Applications:

08B-G1 rubber top chain is a type of roller chain that is designed to be non-marking and gentle on sensitive materials. It is typically used in the wood industry, glass, ceramics, synthetic panels, and other delicate product-type applications.Here are some of the specific applications of the 08B-G1 rubber top chain:(1) Conveying finished wood products. This type of 08B-G1 rubber top chain is ideal for conveying finished wood products without damaging the surface. It is often used in furniture manufacturing, as well as in the production of doors, windows, and other wooden products.(2) Conveying glass.?08B-G1 rubber top chain is also well-suited for conveying glass. The rubber tops help to protect the glass from scratches and other damage. This type of chain is often used in the production of windows, mirrors, and other glass products.(3) Conveying synthetic panels.?08B-G1 rubber top chain can also be used to convey synthetic panels. The rubber tops help to protect the panels from scratches and other damage. This type of chain is often used in the production of countertops, shower enclosures, and other synthetic panel products.In addition to these specific applications, the 08B-G1 rubber top chain can also be used in a variety of other applications where a non-marking and gentle chain is needed. For example, it can be used in the food industry, the medical industry, and in other industries where a high level of cleanliness is required.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
