10B-G1 Rubber Top Roller Chain

10B-G1 Rubber Top Chain 10B-G1 Rubber Top Roller Chain

The 10B-G1 rubber top chain is a type of roller chain used in power transmission applications. It features a rubber top on the chain links, which provides additional grip and reduces the risk of slippage. This type of rubber top chain is commonly used in applications where high friction is needed, such as conveying heavy loads, or in applications where a slip-free drive is required, such as in the food and beverage industry. The "10B" in the name refers to the rubber top chain size according to the British Standard, and "G1" refers to the type of attachment on the chain.

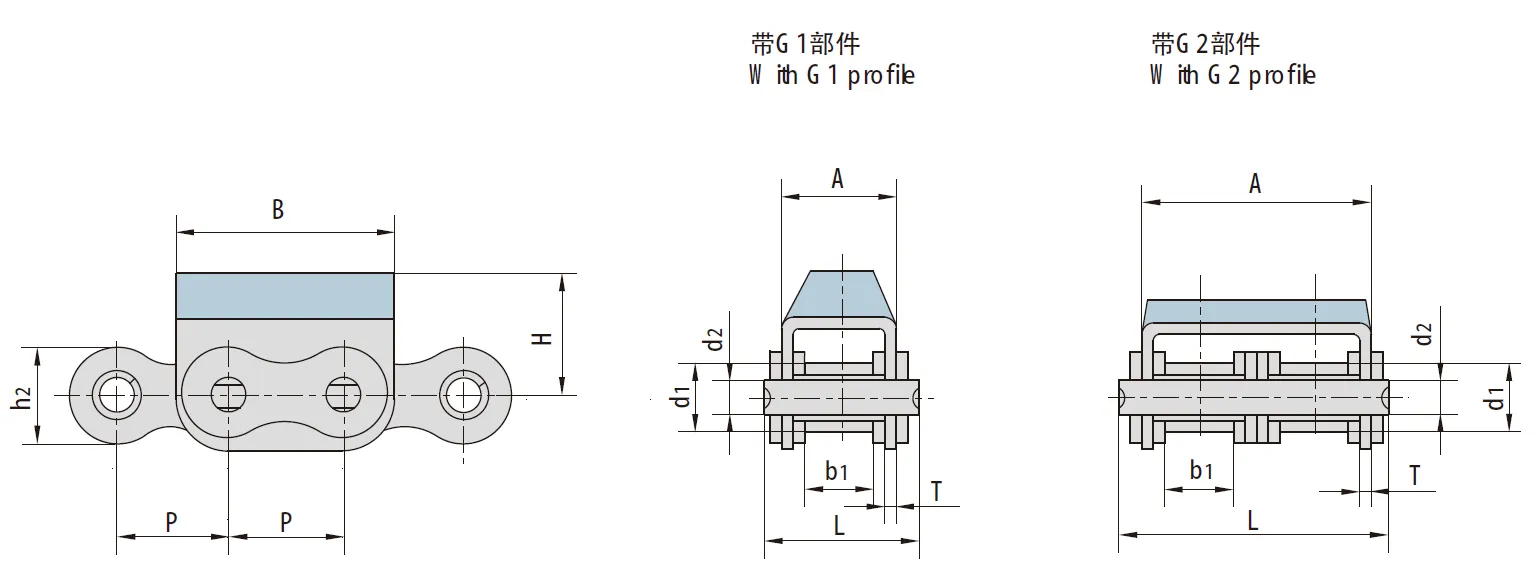

▍10B-G1 Rubber Top Chain Dimensions:

Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate and attachment dimension

Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

A

B

H

T

Qmin

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

10B-G1 Chain

15.875

10.16

9.65

5.08

23.2

14.70

16.80

30.00

17.0

1.60

19.0/4318

1.62

▍Characteristics of 10B-G1 Rubber Top Chain:

The 10B-G1 rubber top chain is a high-quality roller chain with a rubber top that is used for power transmission. It is made of precision heat-treated components and premium rubber, and it is available in both G1 and G1N styles. The G1 style has a single rubber top, while the G1N style has a double rubber top.The following are some of the characteristics of the 10B-G1 rubber top chain:

• Reduced noise and vibration:?The rubber top helps to dampen noise and vibration, making it a more comfortable and safer option for use in noisy or vibration-sensitive environments.
• Improved wear resistance:?The rubber top provides a layer of protection for the metal components of the chain, which helps to extend the chain's life.
• Extended chain life: The rubber top also helps to reduce friction, which can further extend the rubber top chain's life.
• Increased safety: The rubber top can help to prevent the rubber top chain from slipping, which can improve safety in applications where the chain is used to lift or move heavy objects.

In addition to these characteristics, the 10B-G1 rubber top chain is also:

• Dimensionally compatible with other brands:?This means that the chain can be used in place of other brands of rubber top chains, which can save you money on replacement chains.
• Available in a variety of sizes: The 10B-G1 rubber top chain is available in a variety of sizes, so you can find the perfect chain for your application.
• Easy to install and maintain: The 10B-G1 rubber top chain is easy to install and maintain, which can save you time and money.

Overall, the 10B-G1 rubber top chain is a high-quality, versatile chain that is a great option for a variety of power transmission applications. It is characterized by its reduced noise and vibration, improved wear resistance, extended chain life, and increased safety. The chain is also dimensionally compatible with other brands and available in a variety of sizes, making it a convenient and cost-effective choice.

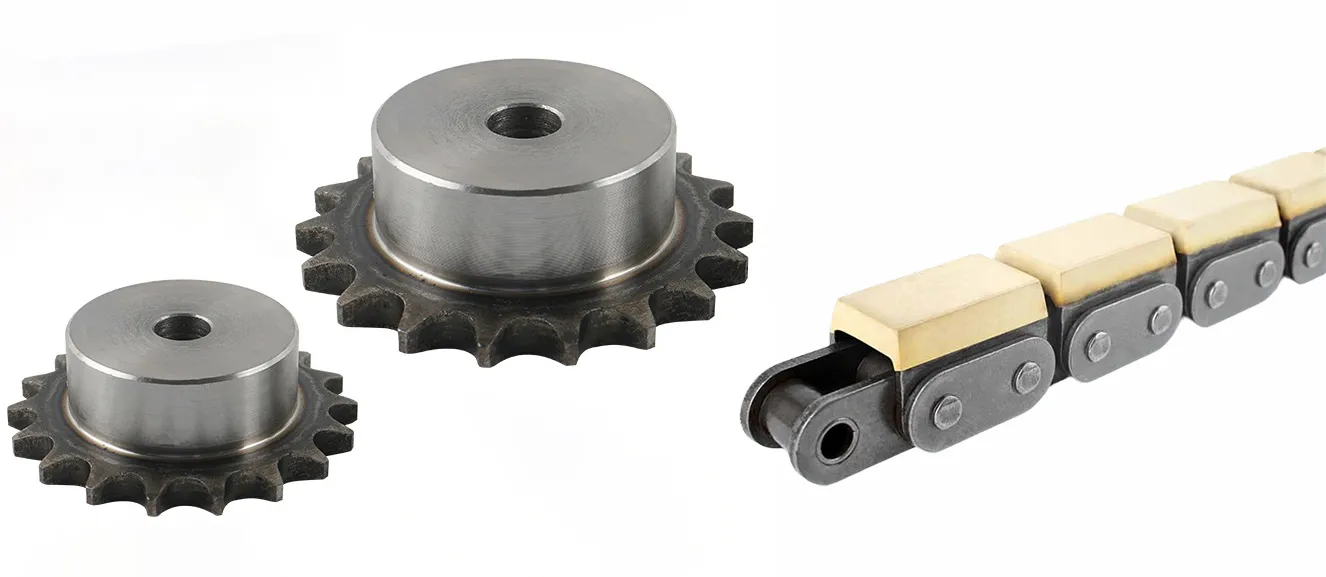

▍10B-G1 Rubber Top Chain Sprockets and 10B-G1 Rubber Top Chain

The 10B-G1 rubber top chain and 10B-G1 rubber top chain sprockets work together to transmit power in a variety of applications. The 10B-G1 rubber top chain is a type of roller chain that is commonly used in power transmission applications. It is designed with a rubber top on the chain links that provides extra grip and helps to reduce slippage. The rubber top chain is available in different lengths and can be customized to fit specific applications. It is typically made of high-quality materials that are resistant to wear and corrosion, which helps to extend its lifespan.The 10B-G1 rubber top chain sprockets are toothed wheels that work with the chain to transmit power. They are designed with teeth that mesh with the chain links to create a positive drive system. The 10B-G1 rubber top chain sprockets are available in different sizes and can be customized to fit specific applications. They are typically made of high-quality materials that are resistant to wear and corrosion, which helps to extend their lifespan.When selecting a 10B-G1 rubber top chain and 10B-G1 rubber top chain sprockets, it is important to consider factors such as the speed, load, and environmental conditions of the application. Proper lubrication and maintenance are also important to ensure optimal performance and extend the lifespan of both the chain and sprockets.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?81X chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
