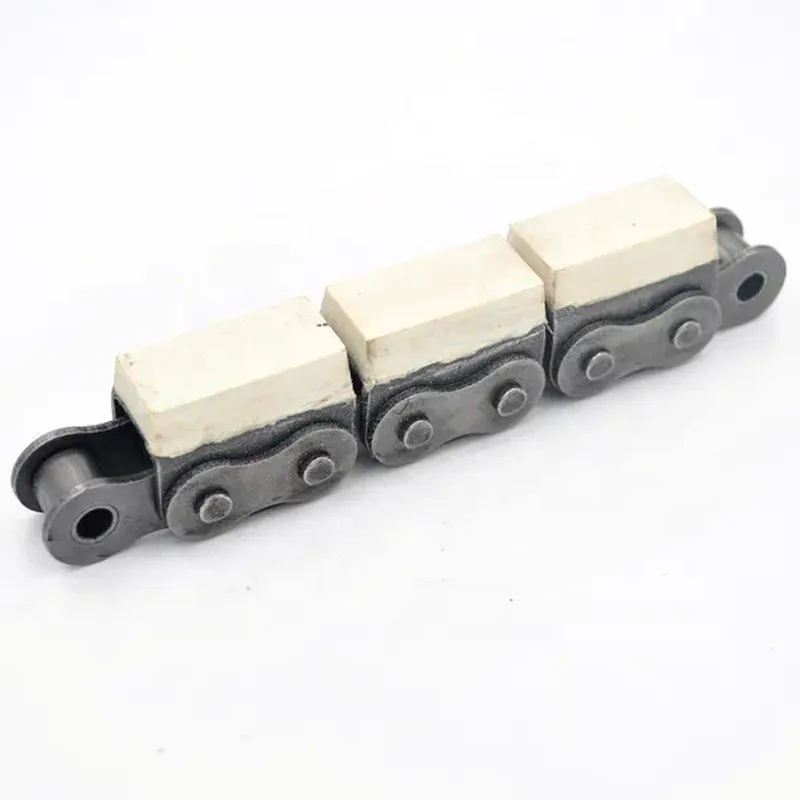

10A-G1 Rubber Top Roller Chain

10A-G1 Rubber Top Chain 10A-G1 Rubber Top Roller Chain

The 10A-G1 rubber top chain is a type of roller chain that has a rubber coating on the top of the links. The "G1" in the chain's name refers to the type of attachment on the chain links. In this case, the chain has rubber top attachments on every link, which provide a non-slip surface for the materials being transported. The 10A-G1 rubber top chain is designed to operate in harsh environments and can withstand high loads and temperatures. It is commonly used in industries such as food processing, packaging, and manufacturing, where reliable and efficient material handling is essential.This rubber coating provides a number of benefits, including:

• Reduced noise and vibration. The rubber coating helps to absorb noise and vibration, making the 10A-G1 rubber top chain quieter and smoother running. This is especially important in applications where noise and vibration are a concern, such as in food processing plants or hospitals.
• Increased wear resistance. The rubber coating helps to protect the 10A-G1 rubber top chain from wear and tear, extending its lifespan. This is especially important in applications where the chain is exposed to harsh environments, such as in the mining or manufacturing industries.
• Improved grip. The rubber coating provides a better grip, which can help to prevent the 10A-G1 rubber top chain from slipping. This is especially important in applications where the chain is used to transport heavy loads, such as in conveyor systems.

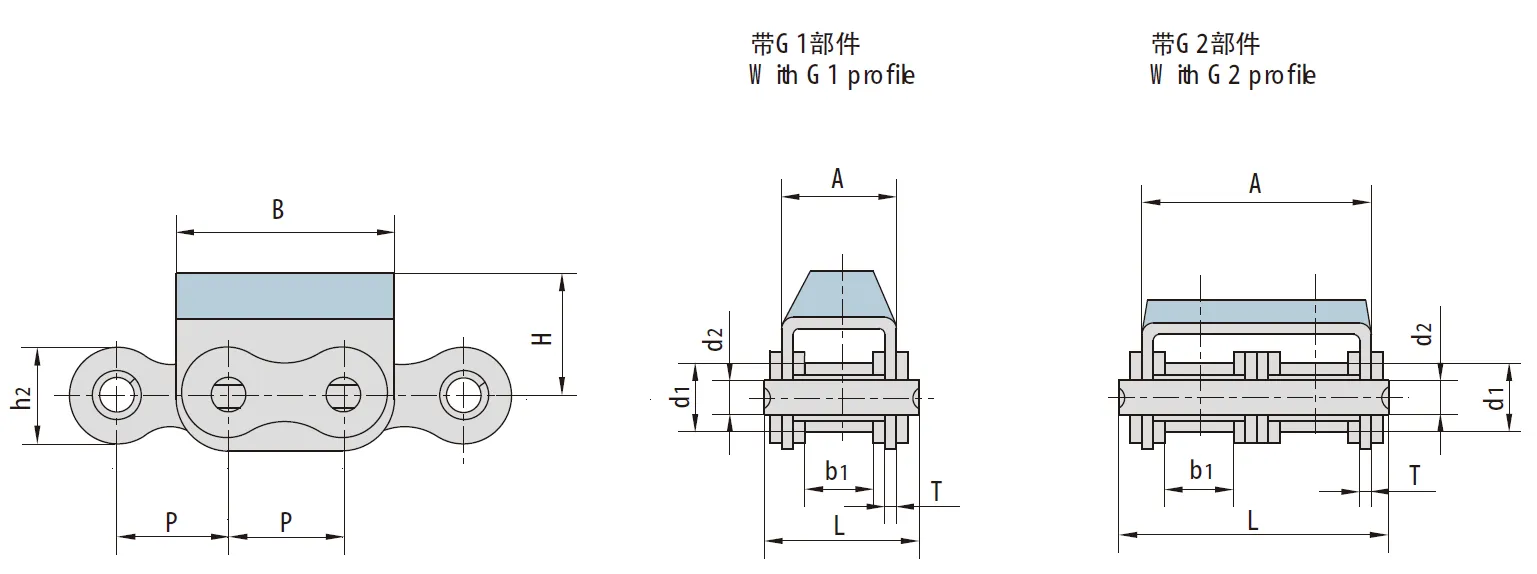

▍10A-G1?Rubber Top Chain Sizes Chart:

Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate and attachment dimension

Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

A

B

H

T

Qmin

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

10A-G1 Chain

15.875

10.16

9.40

5.08

24.5

15.09

17.50

31.00

17.0

1.60

21.8/4953

1.70

▍10A-G1 Rubber Top Chain Specifications:

1. Chain Material:?Alloy steel & Stainless steel2. Rubber Material:?NBR & NR3. Rubber hardness:?Shore hardness 65-75, 75-854. Chain Surface Treatment:?Shot peening & Blackening & Bluing5. Chain Size: 10A-G1 Chain; 10B-G1 Chain; 10B-G2 Chain

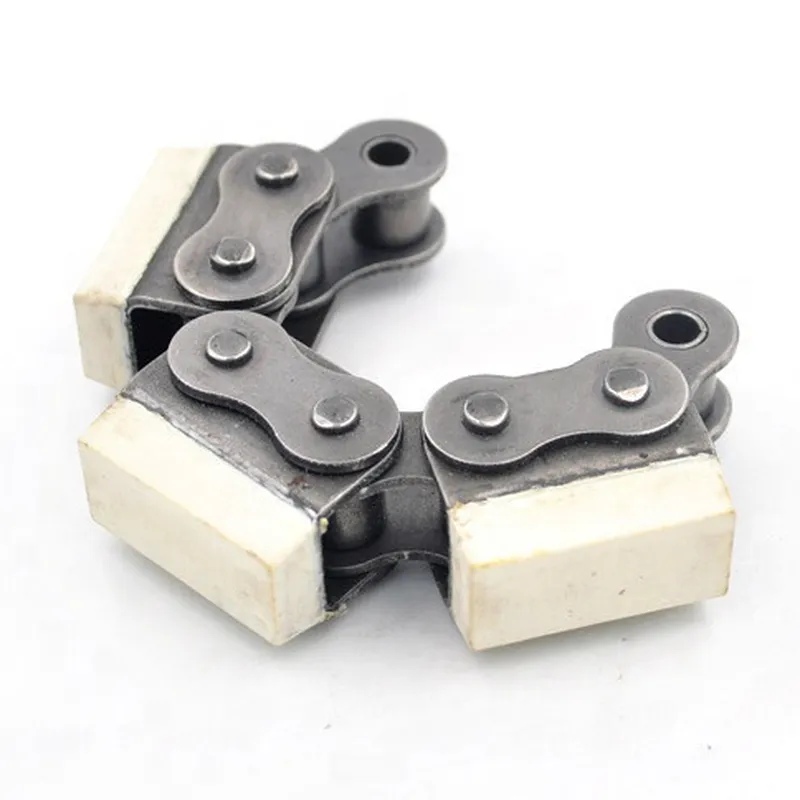

▍Features of 10A-G1 Rubber Top Chain:?

The 10A-G1 rubber top chain has several features that make it suitable for industrial applications. Here are some of its key features:1. Rubber Top Attachments: The rubber top attachments on every link provide a non-slip surface for the materials being transported, ensuring that the 10A-G1 rubber top chain doesn't slip or slide during the conveying process.2. High Strength: The 10A-G1 rubber top chain is made of high-quality steel that provides excellent strength and durability, ensuring that it can withstand high loads and stresses.3. High-Temperature Resistance: The 10A-G1 rubber top chain can operate in high-temperature environments, making it suitable for use in industries that require conveying materials at elevated temperatures.4. Corrosion Resistance: The 10A-G1 rubber top chain is resistant to corrosion, which makes it ideal for use in harsh environments where it may be exposed to chemicals or other corrosive substances.5. Low Maintenance: The 10A-G1 rubber top chain requires minimal maintenance, which reduces downtime and increases productivity.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?81X chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
