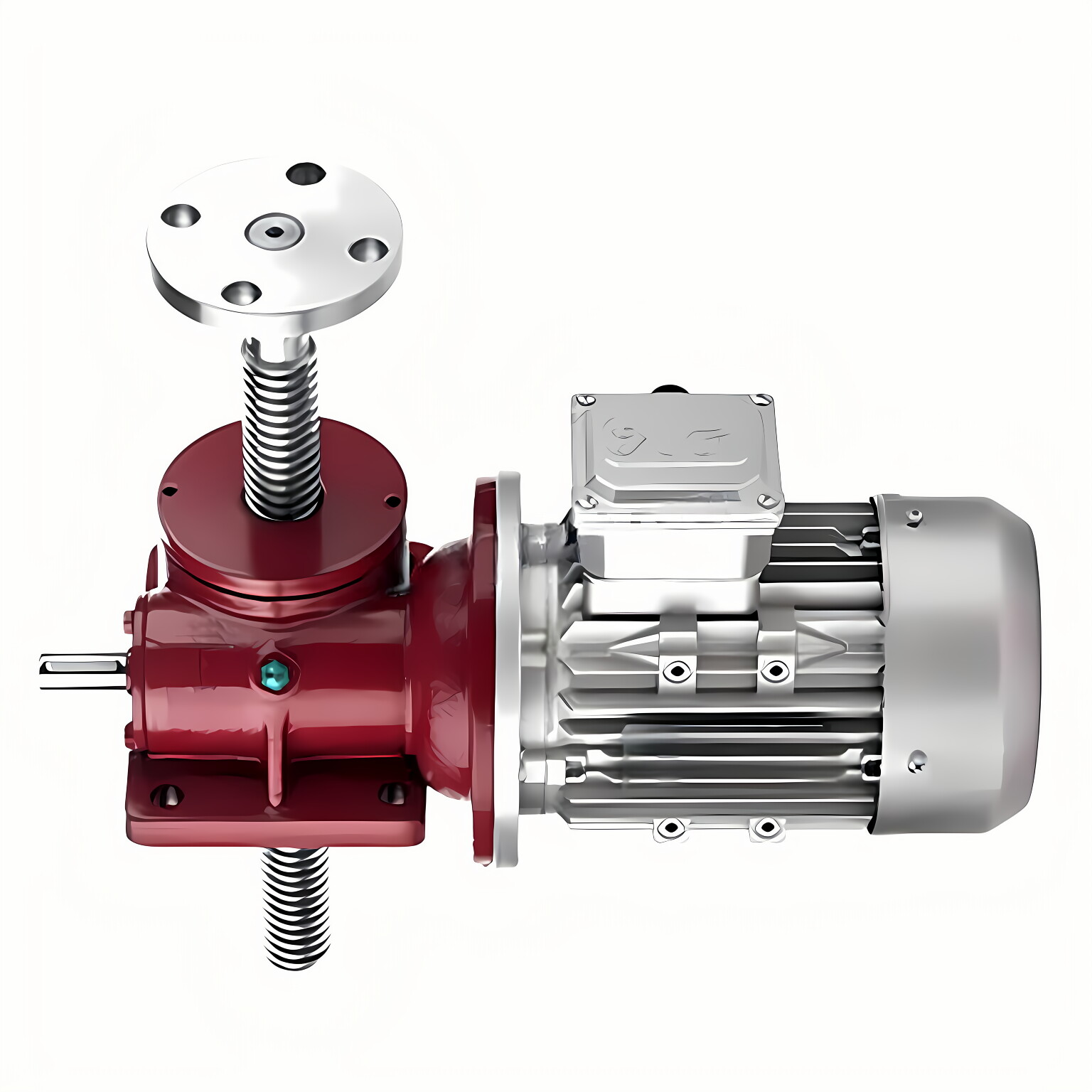

100kN DC Electric Screw Jack Actuators

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
Weight (KG): 50 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 45NM
Input Speed: Max. 1500RPM
Output Speed: MAX. 150RPM
Product name: Gear Motorized Screw Jack
Structures: DC 24V Motor, RV075 Gearbox, 100KN Screw Jack
Lifting Force: Static Load Maximum 100KN
Mounting Type: Upright
Screw Design: Translating Screw
Travel Stroke: 100 MM
Worm Gear Ratio: 1/24
Screw End Fittings: Thread End
Input Types: Motor Flange Mount
Gearing Arrangement: Worm
Output Torque: 45NM
Input Speed: Max. 1500RPM
Output Speed: MAX. 150RPM
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
Weight (KG): 50 KG
Customized support: OEM, ODM, OBM
Product name: Gear Motorized Screw Jack
Structures: DC 24V Motor, RV075 Gearbox, 100KN Screw Jack
Lifting Force: Static Load Maximum 100KN
Mounting Type: Upright
Screw Design: Translating Screw
Travel Stroke: 100 MM
Worm Gear Ratio: 1/24
Screw End Fittings: Thread End
Input Types: Motor Flange Mount
Packaging Details: Strong Exporting Plywood Cases (International Exporting Standard Wooden Material with Free Fumigation).
Port: Ningbo

Features

100kN DC Electric Screw Jack Actuators Features:

Worm gear screw jack with maximum static load capacity 100kN, self locking ACME screw 50mm diameter, pitch 10mm, stroke 50 mm, gear ratio 24:1 (1rpm input travel length 0.42mm), upright type jack, translating screw design, threads end, left motor flange and right shaft. 0.7KW 24V DC motor and RV075 worm gear reducer 15:1 ratio . And attached protective tube, limit switches.
Electric Screw jack lift Function: The Electric screw jack actuator is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw, because it is driven by electric motor, it has higher efficiency than manual screw jack.
