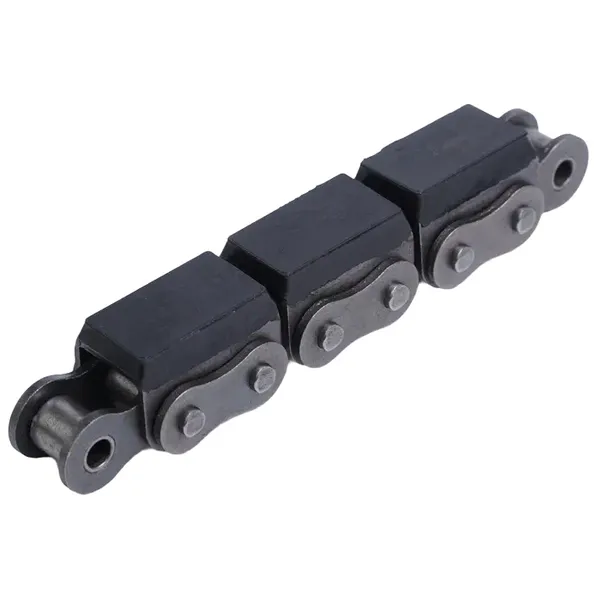

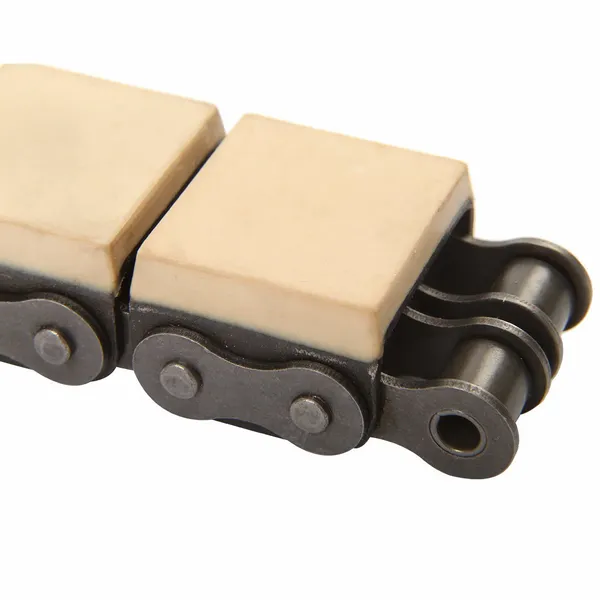

12B-G1 Rubber Top Roller Chain

12B-G1 Rubber Top Chain 12B-G1 Rubber Top Roller Chain

The 12B-G1 rubber top chain is a type of roller chain that is designed for use in applications where a non-marking chain is required. The rubber top on the chain helps to protect sensitive materials from being damaged by the chain. The 12B-G1 rubber top chain is also known as a "G1-type roller chain with rubber bridge."The 12B-G1 rubber top chain is a British/European standard chain with a pitch of 19.05mm. The width between the inner plates is 11.68mm, the roller diameter is 12.07mm, and the pin diameter is 5.72mm. The chain weighs 2.4kg/m. The 12B-G1 rubber top chain is available in a variety of materials, including natural rubber, nitrile rubber, and neoprene rubber. The choice of material will depend on the specific application.

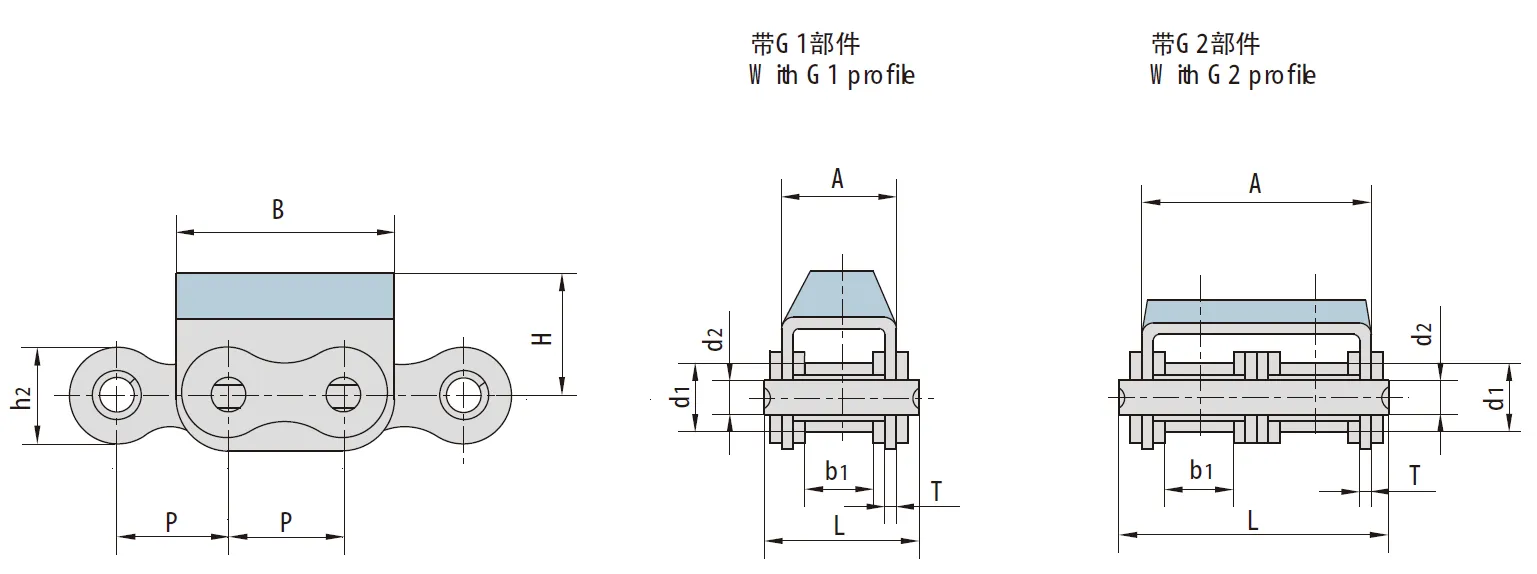

▍12B-G1?Rubber Top Chain Sizes Chart:

Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate and attachment dimension

?Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

A

B

H

T

Qmin

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

12B-G1 Chain

19.050

12.07

11.68

5.72

25.7

16.00

19.60

36.00

21.0

1.85

29.0/6591

2.01

▍12B-G1?Rubber Top Chain Specifications:

1. Chain Material:?Alloy steel & Stainless steel2. Rubber Material:?NBR & NR3. Rubber hardness:?Shore hardness 65-75, 75-854. Chain Surface Treatment:?Shot peening & Blackening & Bluing5. Chain Size: 12B-G1 Chain, 12B-G2 Chain

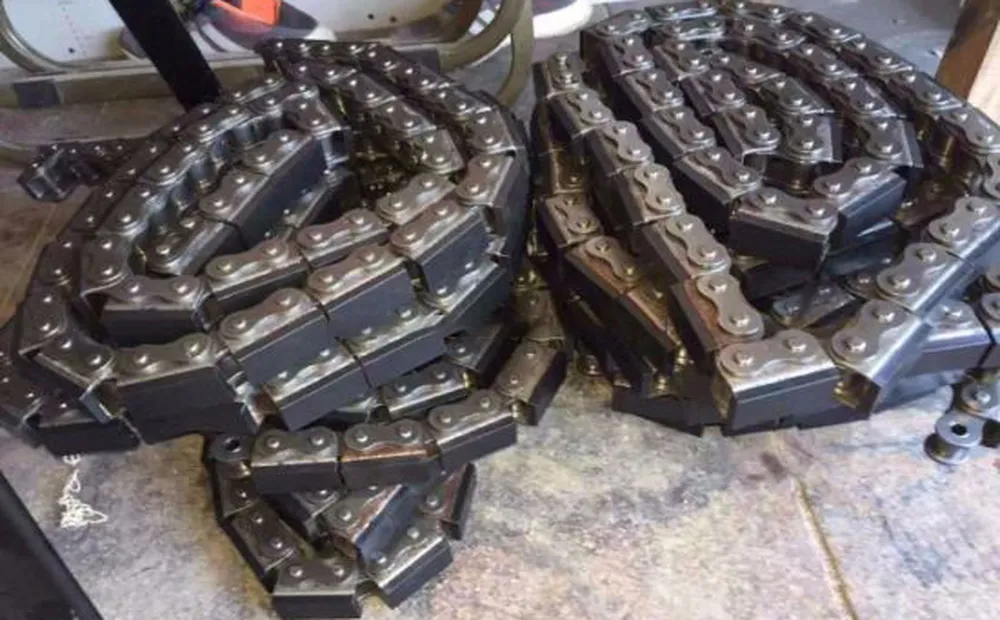

▍12B-G1 Rubber Top Chain Advantages:

The 12B-G1 rubber top chain is a type of roller chain that has a rubber top on the chain links. This rubber top provides a number of advantages over a standard roller chain, including:1. Non-marking: The rubber top helps to protect sensitive materials from being damaged by the chain. This makes it ideal for applications where a non-marking 12B-G1 rubber top chain is required, such as conveying finished wood products, glass, or synthetic panels.2. Durability: The rubber top helps to protect the chain from wear and tear. This makes it a more durable 12B-G1 rubber top chain than a standard roller chain.3. High strength: The rubber top does not significantly reduce the strength of the chain. This means that the 12B-G1 rubber top chain can still be used in applications where high strength is required.4. Quiet operation: The rubber top helps to reduce noise and vibration, making it a quieter 12B-G1 rubber top chain than a standard roller chain.5. Low maintenance: The rubber top helps to protect the 12B-G1 rubber top chain from wear and tear, which means that the chain requires less maintenance than a standard roller chain.In addition to these advantages, the 12B-G1 rubber top chain is also available in a variety of materials, including natural rubber, nitrile rubber, and neoprene rubber. The choice of material will depend on the specific application.

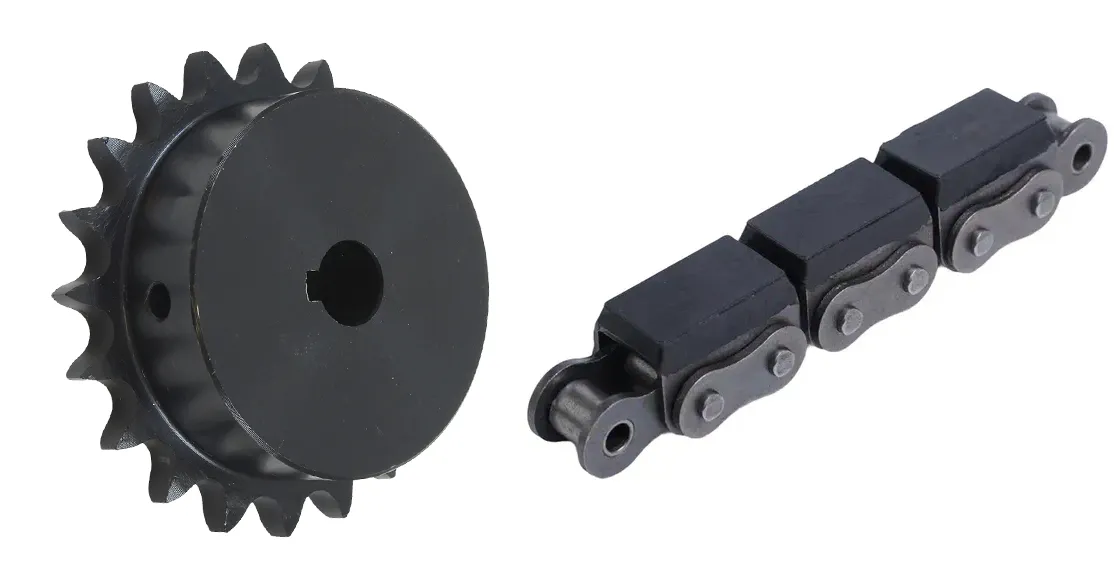

▍12B-G1 Rubber Top Chain Sprockets and 12B-G1 Rubber Top Chain

12B-G1 rubber top chain sprockets and 12B-G1 rubber top chain are both used in power transmission applications. The rubber top on the chain helps to reduce noise and vibration and also protects the chain from wear and tear. The sprockets are made of high-quality steel and are designed to be durable and long-lasting.Here are some of the key features of 12B-G1 rubber top chain sprockets and 12B-G1 rubber top chain:

• Rubber top:?The rubber top helps to reduce noise and vibration, and also protects the chain from wear and tear.
• High-quality steel:?The sprockets are made of high-quality steel and are designed to be durable and long-lasting.
• Precision manufacturing:?The sprockets are precision manufactured to ensure that they fit and function properly.
• Wide range of sizes:?The sprockets are available in a wide range of sizes to accommodate a variety of applications.

12B-G1 rubber top chain sprockets and 12B-G1 rubber top chain are used in a variety of industries, including:

• Woodworking:?The rubber top helps to reduce noise and vibration, which is important in woodworking applications.
• Glass: The rubber top helps to protect the rubber top chain from the sharp edges of the glass.
• Ceramics: The rubber top helps to protect the rubber top chain from the abrasive nature of ceramics.
• Synthetic panels: The rubber top helps to protect the rubber top chain from the chemicals used in the production of synthetic panels.

If you are looking for a high-quality, durable, and quiet power transmission solution, then 12B-G1 rubber top chain sprockets and 12B-G1 rubber top chain are good options.

▍12B-G1 Rubber Top Chain Lubrication and Maintainance

12B-G1 rubber top chain is a high-quality chain that is designed to be durable and long-lasting. However, like any chain, it requires proper lubrication and maintenance in order to function properly and last for many years.Here are some tips for lubricating and maintaining a 12B-G1 rubber top chain:

• Lubricate the chain regularly. The frequency of lubrication will depend on the operating conditions, but it is generally recommended to lubricate the rubber top chain every 250-500 hours of operation.
• Use the correct type of lubricant.?The type of lubricant that you use will depend on the operating conditions, but it is generally recommended to use a high-quality, synthetic lubricant.
• Apply the lubricant evenly. The lubricant should be applied evenly to all of the links in the rubber top chain.
• Remove any excess lubricant. Excess lubricant can attract dirt and debris, which can shorten the life of the rubber top chain.
• Inspect the chain regularly. Inspect the rubber top chain for wear and tear, and replace any damaged links as soon as possible.

By following these tips, you can help to ensure that your 12B-G1 rubber top chain will last for many years.Here are some additional tips for maintaining a 12B-G1 rubber top chain:

• Clean the chain regularly.?This will help to remove dirt and debris that can build up and cause wear.
• Inspect the sprockets for wear. Worn sprockets can cause premature wear on the rubber top chain.
• Keep the chain properly aligned. A misaligned rubber top chain can cause excessive wear and tear.
• Store the chain properly. When the rubber top chain is not in use, it should be stored in a clean, dry place.

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?81X chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
