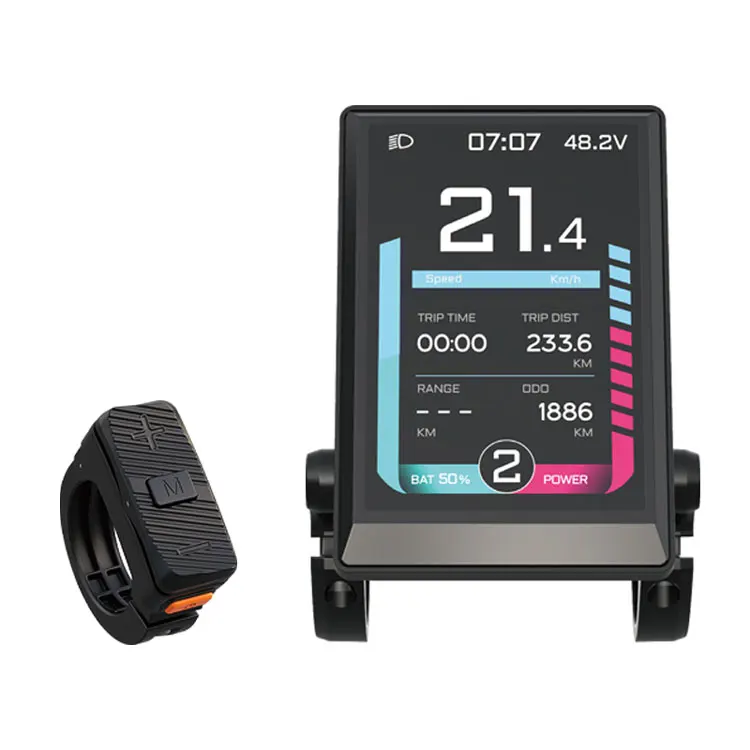

2023 Hot Sale E Bike TFT350 Color Electric Bike Display Screen

Dive into the world of modern cycling with the 2023 Hot Sale E Bike TFT350 Color Electric Bike Display Screen. This cutting-edge accessory is designed to revolutionize your biking experience. The TFT350 model number signifies a high-quality product built with advanced technology for optimal performance. With a display size of 78mm*96mm*53mm and screen size of 3.5inch, it offers a clear, colorful view of your ride statistics. The TFT display type ensures high-resolution visuals, while the various voltages (24V/33V/36V) cater to different e-bike requirements. The TFT350 is also fitted with UART communication and is IP65 waterproof, making it a reliable partner in all weather conditions. Packaged securely in a carton box with bubble wrap to ensure safe delivery, it can be shipped through Shanghai, Ningbo, or Shenzhen ports.

Electric Bike TFT350 Display Specifications

Specification	TFT350
Display Size (L×W×H mm)	78mm×96mm×53mm
Screen Size (inch)	3.5inch
Display Type	TFT
Holder Diameter (mm)	Φ22.2mm / Φ25.4mm / Φ31.8mm
Voltage (V)	24V / 33V/ 36V
Support Level	0-5
Communication	UART
Show Info	PAS Level / Speed / Trip /ODO etc.
Error Info	Yes
Data Port	Wireless
Working Temperature (℃)	-20℃ ~ 60℃
Waterproof	IP65
Weight (g)	147g

Electric Bike TFT350 Display Dimension

Advantages of the TFT350 Electric Bike Display Screen

The TFT350 Electric Bike Display Screen is not just a product, but a technological marvel offering several advantages.

1. 3.5-inch TFT HD colorful screen: Offers a crisp, clear display, improving visibility and readability of your ride statistics.
2. Multi-angle install design: Provides flexibility in mounting, ensuring optimal viewing angle for every rider.
3. Tempered glass: Enhances durability, making it resistant to scratches and breakage.
4. Non-screw assembling craft: Allows for easy installation and removal without the need for tools.
5. Full-screen design: Maximizes the display area for a comprehensive view of all cycling data.
6. Simple style & slim design: Complements your bike's aesthetics without adding bulk.

At Raydafon, we have the capability to produce this technologically advanced product, ensuring quality and performance at every production stage.

Applications of the TFT350 Electric Bike Display Screen

The Electric Bicycle TFT350 Display Screen offers diverse applications, enhancing your cycling experience:

1. 1. Speed and Distance Measurement: Provides real-time speed and distance statistics, helping you monitor your progress and performance.
   2. Battery Monitoring: Displays the remaining battery charge, enabling you to plan your ride effectively.
   3. Power Assist Modes: Allows you to select and switch between different power assist modes, customizing your ride experience.
   4. Trip and Odometer: Tracks and displays trip-related information, giving you insights into your journey and overall bike usage.
   5. Lighting Control: Includes controls for integrated bike lights, ensuring safety during night rides.
   6. Data Logging and Connectivity: Offers data logging capabilities and connectivity options for data analysis and sharing.

How Does the Electric Bicycle TFT350 Display Work?

The Electric Bicycle TFT350 Display Screen operates through a systematic process:

1. 1. Sensor Input: Receives data from various bike sensors, including speed, wheel rotation, cadence, torque, and more.
   2. Data Processing: Interprets sensor data and calculates relevant information like current speed and distance traveled.
   3. Display Output: Showcases the processed data on the TFT screen in a clear, easily readable format.
   4. User Interaction: Allows riders to interact with the bike's electrical system, select power assist modes, adjust settings, and navigate menus.
   5. Control Signals: Sends control signals to the bike's electrical system based on rider input through the display.
   6. Connectivity (Optional): Offers optional connectivity features, such as Bluetooth or wireless, for data synchronization with other devices.

Choosing the Right TFT Display for Electric Bicycles

When selecting a TFT display for an electric bicycle, consider the following factors:

1. Compatibility: Ensure the display is compatible with your electric bicycle's electrical system.
2. Display Size and Visibility: Choose an appropriate display size that offers good visibility in different lighting conditions.
3. Information and Features: Determine what specific information and features you require from the display.
4. User Interface and Controls: Evaluate the display's user interface and controls for ease of use and functionality.
5. Build Quality and Durability: Look for a display with robust construction that can withstand various riding conditions.

Maintenance of the TFT350 Electric Bike Display Screen

Proper maintenance of the Electric Bicycle TFT350 Display Screen can enhance its longevity and performance:

1. Keep it Clean: Clean the display regularly to remove dirt and dust using a soft, lint-free cloth or a screen cleaning solution.
2. Protect from Moisture: Shield the display from water and moisture to prevent damage.
3. Handle with Care: Avoid applying excessive pressure or force when using the display to prevent accidental damage.
4. Avoid Extreme Temperatures: Protect the display from extreme temperatures to ensure optimal performance.
5. Check Connections: Periodically check the connections between the display and the bike's electrical system to ensure secure attachment.
6. Firmware Updates: Regularly check for firmware updates for bug fixes, performance enhancements, and new features.

Why Choose Raydafon's Electric Bicycle TFT Display?

Established in 1993, Raydafon Electric Technology Co., Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by numerous domestic and international intellectual property rights. Our products, including the TFT350 Electric Bike Display Screen, are renowned for their reliable quality, exquisite craftsmanship, and stylish design.We also provide super-mini smart motors, wireless motors, Li-lon batteries, TFT/LCD displays, water bottle batteries, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes, making riding more convenient, easy, and environmentally friendly. We warmly welcome global distributors to visit and negotiate with us. Together, we can promote the development of the electric bicycle industry and contribute to environmental protection.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.Author: Yjx
