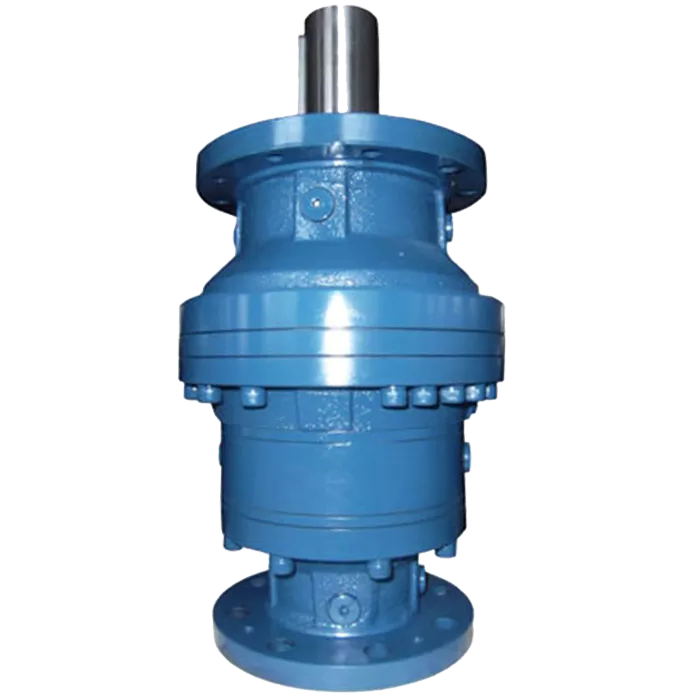

307 Series Planetary Gearbox Replacement Of Replacement of Bonfiglioli 307L1 307L2 307L3 307L4 307R2 307R3 307R4

307 Series Planetary Gearbox Replacement Of Replacement of Bonfiglioli 307L1 307L2 307L3 307L4 307R2 307R3 307R4

Replaceable Planetary Gearbox Models

300L 1	300L 2	300L 3	300L 4	300R2	300R3	300R4
301L 1	301L 2	301L 3	301L 4	301R2	301R3	301R4
303L 1	303L 2	303L 3	303L 4	303R2	303R3	303R4
305L 1	305L 2	305L 3	305L 4	305R2	305R3	305R4
306L 1	306L 2	306L 3	306L 4	306R2	306R3	306R4
307L 1	307L 2	307L 3	307L 4	307R2	307R3	307R4
309L 1	309L 2	309L 3	309L 4	309R2	309R3	309R4
310L 1	310L 2	310L 3	310L 4	310R2	310R3	310R4
311L 1	311L 2	311L 3	311L 4	311R2	311R3	311R4
313L 1	313L 2	313L 3	313L 4	313R2	313R3	313R4
315L 1	315L 2	315L 3	315L 4		315R3	315R4
316L 1	316L 2	316L 3	316L 4		316R3	316R4
317L 1	317L 2	317L 3	317L 4		317R3	317R4
318L 1	318L 2	318L 3	318L 4			318R4
319L 1	319L 2	319L 3	319L 4			319R4
321L 1	321L 2	321L 3	321L 4			321R4



Specifications of Planetary Gearbox

Torque range 1000-450.000 NmTransmissible mechanical power up to 540 kWGear ratios 3.4-9.000Gear unit versions inlineOutput configuration1) Foot and flange mounted2) Output shaft: solid with key, splined, splined hollow3) Hollow with shrink discInput configurations1) Flanged axial piston hydraulic motors2) Hydraulic orbit motors3) IEC and NEMA motor adaptors4) Solid input shaftHydraulic brake hydraulically released parking brakeElectric brake DC and AC type

Tipo		Torque Nm
300L	300L1, 300L2, 300L3, 300L4	1000
301L	301L1, 301L2, 301L3, 301L4	1750
303L	303L1, 303L2, 303L3, 303L4	2500
305L	305L1, 305L2, 305L3, 305L4	5000
306L	306L1, 306L2, 306L3, 306L4	8500
307L	307L1, 307L2, 307L3, 307L4	12500
309L	309L1, 309L2, 309L3, 309L4	18000
310L	310L1, 310L2, 310L3, 310L4	25000
311L	311L1, 311L2, 311L3, 311L4	40000
313L	313L1, 313L2, 313L3, 313L4	55000
315L	315L1, 315L2, 315L3, 315L4	100000
316L	316L1, 316L2, 316L3, 316L4	135000
317L	317L1, 317L2, 317L3, 317L4	170000
318L	318L1, 318L2, 318L3, 318L4	250000
319L	319L1, 319L2, 319L3, 319L4	350000
321L	321L 1, 321L2, 321L3, 321L4	500000

Related Planetary Gearbox

Planetary Gearbox Manufacturer

Raydafon is a family run Italian company focusing on three core business sectors: discrete manufacturing and process industries, mobile and wind industries, and electromechanical and motion systems. For more than 60 years, Raydafon has been in a leading position in the design, production and distribution of various gear motors, planetary gearboxes, servo motors, AC, DC motors, inverter drive systems, etc.Over the years, Raydafon has become an expert on planetary gearboxes. Today, more than 70% of our devices are planetary gearboxes. Planetary gear boxes can be used to transmit extremely high torque in very compact gear units. Our expertise in large planetary gear boxes is not only used in cableways, but also increasingly in heavy-duty industries, such as cement and sugar. Our product portfolio includes planetary gearboxes with rated torque up to 5000 knm. The power range is up to 2000 kW. The limit of helical gear reducer is 1000 knm.
