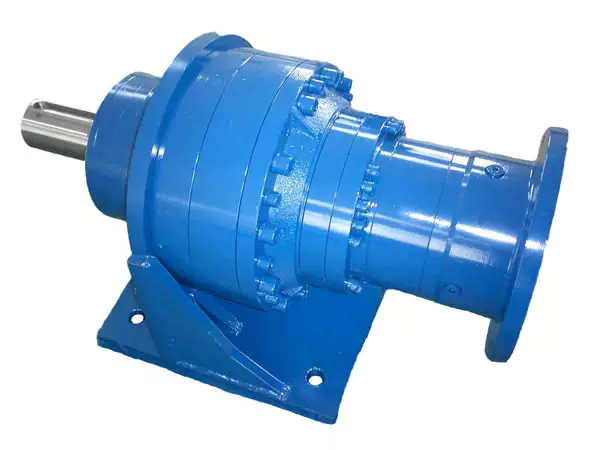

309 Series Planetary Gearbox Replacement Of Replacement of Bonfiglioli 309L1 309L2 309L3 309L4 309R2 309R3 309R4

Raydafon Group presents the 309 Series Planetary Gearbox Replacement for Bonfiglioli 309L1, 309L2, 309L3, 309L4, 309R2, 309R3, and 309R4 models. This durable, high-performance gearbox ensures seamless operations in demanding industrial applications. Engineered with precision and robust materials, it delivers unmatched reliability, reducing downtime and maintenance costs. Ideal for engineers and technicians seeking efficient, long-lasting solutions, it boosts productivity and confidence in machinery performance. Choose Raydafon Group for superior quality and expert support.

Send Inquiry

Product Description

309 Series Planetary Gearbox Replacement Of Replacement of Bonfiglioli 309L1 309L2 309L3 309L4 309R2 309R3 309R4

Replaceable Planetary Gearbox Models

Hzpt 309 series planetary gearbox can replace the following models of Replacement of Bonfiglioli. Our gearbox design and installation dimensions are entirely consistent with Replacement of Bonfiglioli, which can perfectly replace your faulty or scrapped gearbox

309L 1

309L 2

309L 3

309L 4

309R2

309R3

309R4

Unique Features of Planetary Gearbox

1. High-duty planetary gearbox of modular construction

2. Brand high-performance tapered roller bearing absorbing the forces exerted by the swing gear

3. Built-in multi-chip friction brake

4. Low-noise running, long service life, high efficiency

Application Conditions:

The gearboxes have been designed for use at ambient temperatures ranging between -20°Ê and + 40°Ê. Environmental influences such as salt water, salty air, sand, dust, overpressure, heavy vibrations, extreme shocks and ambient temperature, aggressive media, and the like impede the product's function. To enable a safe design of the winch drive, such conditions must be reported to the factory.

Gearbox Design:

The gearbox design is based on many years of practical application experience. The maximum output torques T_2max indicated under technical data for crane applications relate to FEM Section 1, 3^rd Edition and Section IX (FEM -- Federation Europeenne de la Manutention), as well as DIN 15020, collective load class L2, service time category T5 corresponding to driver group M5.

The reference output speed is 25 revolutions per minute maximum. If the swing drive is classified in another driver group, the required output torque must be converted by applying a factor.

Specifications of Planetary Gearbox

Type	Rated torque (Nm)	Rated power (kW)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B

Machining Process

Step1. housing processing process: marking → milling the bottom surface to ensure the center height → rough and fine tedious each hole → drilling → inspection and warehousingStep2. Gear processing process: blanking → rough turning → normalizing → fine turning → gear hobbing → keyway → carburization and quenching → plane grinding → inner hole grinding → gear grinding → inspection and warehousingStep3. Shaft processing process: blanking → rough turning → tempering → fine turning → keyway insertion → cylindrical grinding → inspection and warehousingStep4. Inspection equipment: CMM, measuring machine, hole processing accuracy, geometric tolerance, coarseness level 6 remarks:Each reducer produced by our company is processed through the above process, and the quality is guaranteed
